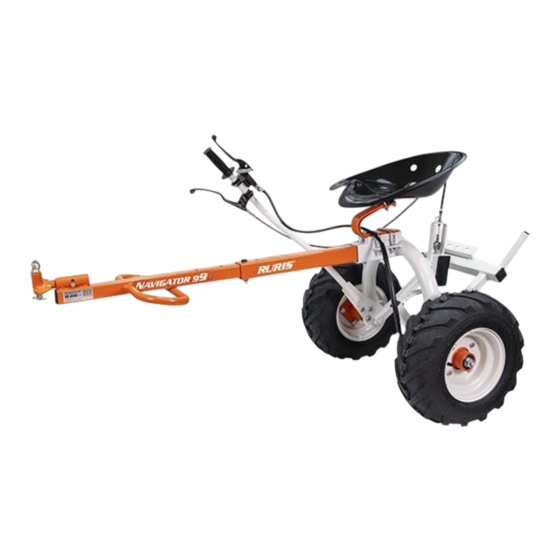

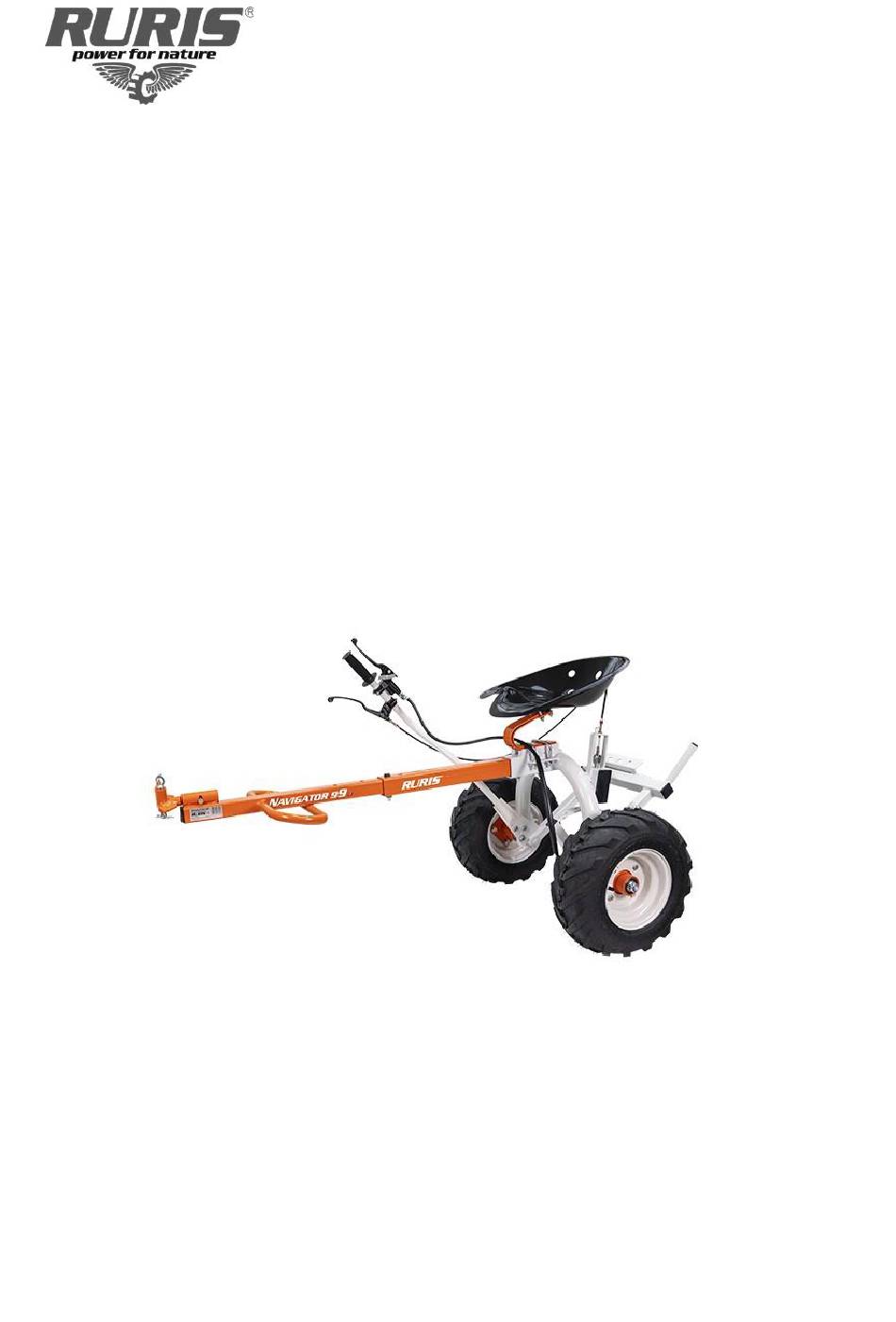

- Page 1 RURIS TILLER ACCESSORY NAVIGATOR 99...
-
Page 2: Table Of Contents
CONTENT Content ....................2 1. Introduction ..................3 2. Overview of the accessory ............4 3. Technical data ................5 4. Assembly guide ................6 5. Schemes of operation and working width ........11 6. Mode of use ................. 13 7. -
Page 3: Introduction
1. INTRODUCTION Dear Client! Thank you for your decision to purchase a RURIS product and for your trust in our company! RURIS has been on the market since 1993 and during all this time it has become a strong brand, which has built its reputation by keeping promises, but also by continuous investments aimed at helping customers with reliable, efficient and quality solutions. -
Page 4: Overview Of The Accessory
The Navigator 99 lift-towed attachment and accessories must only be used by responsible persons trained in the use of the machine and capable of using it. The Navigator 99 accessory is not approved and equipped for use on public roads or for use on slopes/ramps with an inclination greater than 10º. -
Page 5: Technical Data
Type of orders: manuals Rubber wheels (recommended): 6.50-8 for transport; 4.00-8 for agricultural works Brake: working and parking Braking system: hydraulic, with metal disc caliper Navigator 99 is sold without accessories (without work tools), these can be optionally purchased separately. -
Page 6: Assembly Guide
4. ASSEMBLY GUIDE Navigator 99 comes partially assembled, packed and protected in cardboard boxes. To use it, it is necessary to carry out the simple assembly operations below, exactly in the order described. If you cannot perform these operations, please contact an authorized RURIS service. - Page 7 Step 3 Mount the two rubber wheels on their hubs using M10 screws and nuts, 4+4 pcs. The brake disc will be mounted on the left wheel hub. Insert the large spacer bushing on the left axle then insert the wheel. Fit the brake caliper to the disc, then tighten the wheel using the M16 washer and nut.
- Page 8 Connecting pipe Support pipe Step 5 Assemble the indexing arm to lifter 1 using the M10 screws, washers and self-locking nuts, then fix it to the right hub axis using the supplied M8 screw and washers. Support U Lifter 1 Indexing arm M10 screws Insert lifter 2 into the U-bracket of lifter 1, then fix it to the left hub axis using the M8 screw.
- Page 9 Adjust the indexer stroke from the M8 screw and nut on the cable. It is recommended to periodically lubricate the shaft and the rotating bushing of the lifter with RURIS Super Vaseline type grease. Periodic greasing of the indexing bolt and spring (found behind the plastic cover) is also recommended.
- Page 10 / backhoe. ▪ make correct adjustments before starting agricultural work. ▪ use suitable RURIS sleeves and RURIS rubber/metal wheels (recommended to have an outer diameter of around 400 mm). The images are informative, the supplier reserves the right to make structural and...
-
Page 11: Schemes Of Operation And Working Width
▪ for plowing works, with DAC or RURIS type belt excavators, RUIRS sleeves with a maximum length of 20cm will be used. ▪ for plowing work, RURIS sleeves with a maximum length of 15cm will be used for the RURIS 731, RURIS 751 gear box motor excavator. - Page 12 Approximate dimensions, expressed in mm.
-
Page 13: Mode Of Use
. ( see photo below ) . ▪ The wheels metallic ones are all transported in the back , in supports specious lateral , special built . ▪ Navigator 99 connects to excavators through the towing eye with bolt cylindrical . - Page 14 ▪ It is carried out transport Navigator 99 equipped with rubber wheels _ in the land , there where they will be performed agricultural works ▪ Backhoe / backhoe equip themselves now for Agricultural works with wheel metal use sleeves ( coupling parts ) .
-
Page 15: Maintenance
_ in the furrow _ 7. MAINTENANCE Daily, at the end of the work, Navigator 99 will be cleaned of plant remains and other impurities, and the technical condition will also be checked: ▪ visible sub-assemblies and external parts and their joints are checked;... -
Page 16: Declarations Of Conformity
Maximum load: 100 kg Working load: max 80 kg We, SC RURIS IMPEX SRL Craiova, producer, in accordance with HG 1029/2008 - regarding the conditions for the introduction of machines on the market, Directive 2006/42/EC – safety and security requirements, the Standard, EN ISO 12100:2010 – Machines. Security, I have... - Page 17 Validity period: 10 years from the date of approval. Place and date of issuance: Craiova, 07.11.2022 Year of application of the CE marking: 2022 No. reg: 1302/07.11.2021 Authorized person and signature: Ing. Stroe Marius Catalin Director General of SC RURIS IMPEX SRL...
