Related Manuals for Cumberland Competitor Series
Summary of Contents for Cumberland Competitor Series

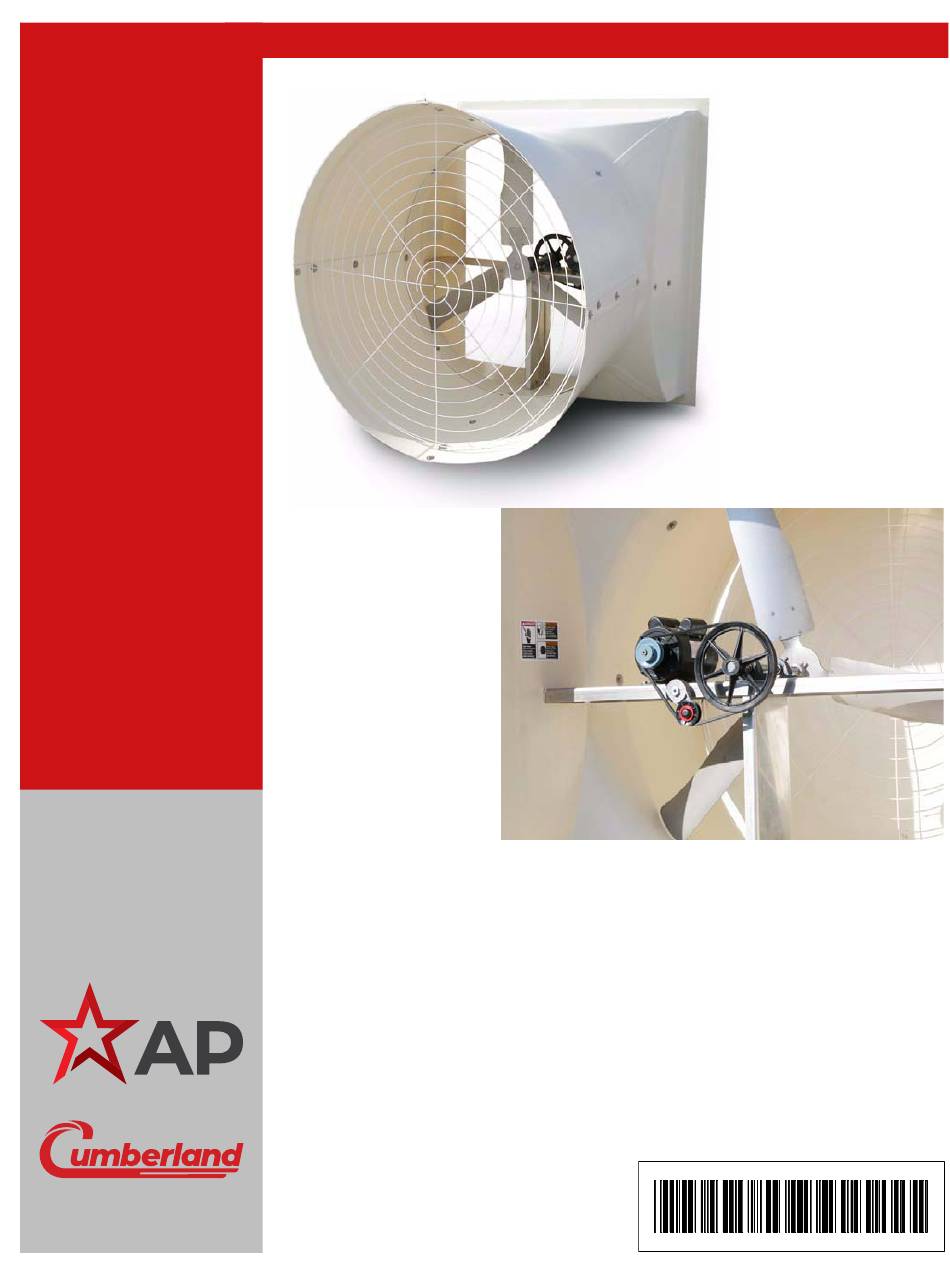

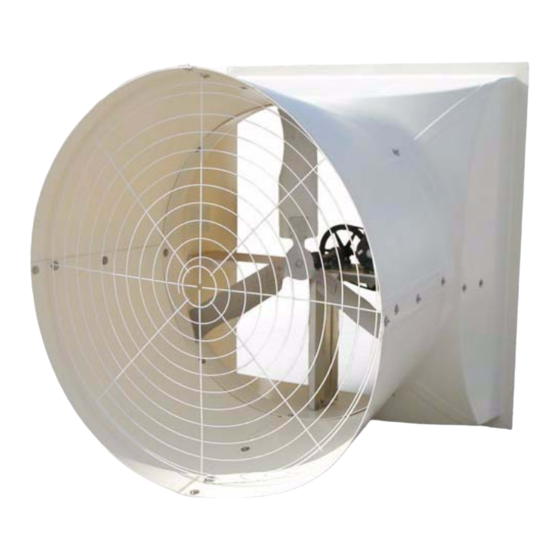

- Page 1 Competitor Series Fans Installation and Operation Manual PNEG-1559 Version: 8.0 Date: 04-04-22 PNEG-1559...
- Page 2 Before beginning installation, check the condition of the fan. Remove the overwrap and packing materials and examine all parts and components for shipping damage. Any damage incurred must be reported immediately to the freight carrier. Models : Competitor Series Fans Size : 12", 14", 18", 24", 36" and 54"...
-
Page 3: Table Of Contents
18" Competitor Series Fiberglass Fan Parts ..................24 24" Competitor Series Fiberglass Fan Parts ..................25 36" Competitor Series Fiberglass Fan Parts ..................26 54" Competitor Series Fiberglass Fan (CS54C1-P and CS54C1-P-BLK) ..........27 54" Competitor Series Fiberglass Fan (CS54C1-E) ................29 Chapter 8 Warranty ..............................31... -
Page 4: Chapter 1 Safety
Personnel operating or working around equipment must read this manual. This manual must be delivered with equipment to its owner. Failure to read this manual and its safety instructions is a misuse of the equipment. ST-0001-4 PNEG-1559 Competitor Series Fans... -
Page 5: Cautionary Symbols Definitions
This symbol is used to address practices not related to NOTICE personal injury. This symbol indicates a general hazard. This symbol indicates a prohibited activity. This symbol indicates a mandatory action. ST-0005-2 PNEG-1559 Competitor Series Fans... -
Page 6: Safety Cautions
Learn how to operate the machine and how to use controls properly. Do not let anyone operate without instruction. • If you do not understand any part of this manual or need assistance, contact your dealer. ST-0002-1 PNEG-1559 Competitor Series Fans... - Page 7 • Lock-out power source before making adjustments, cleaning, or maintaining equipment. ST-0020-2 Lifting Hazard • Single person lift can cause injury. • Use a mechanical lifting device to lift or move the equipment during installation. ST-0021-2 PNEG-1559 Competitor Series Fans...
-
Page 8: General Safety Information
In the installation and use of the fan, only genuine AP/Cumberland parts are to be used. Use of other non-genuine parts is a misuse and may lead to dangerous situations. -
Page 9: General Safety Statements
Provisions for an adequate and safe power supply to the fan unit are essential to your safety. AP/Cumberland recommends that a competent and qualified electrician undertake all electrical wiring. All wiring is to be installed in accordance with National, State and Local Electrical Codes. -
Page 10: Safety Sign-Off Sheet
Below is a sign-off sheet that can be used to verify that all personnel have read and understood the safety instructions. This sign-off sheet is provided for your convenience and personal record keeping. Date Employee Name Supervisor Name ST-0007 PNEG-1559 Competitor Series Fans... -
Page 11: Chapter 2 Safety Decals
To replace a damaged of missing decal, contact us to receive a free replacement. GSI Decals 1004 E. Illinois St. Assumption, IL. 62510 Phone: 1-217-226-4421 PNEG-1559 Competitor Series Fans... - Page 12 2. Safety Decals PNEG-1559 Competitor Series Fans...
- Page 13 54" CE DC-2180 of right and left of the housing. DC-2180 Installation and Operation Manuals available at: Located on the 12", 14", 18" outside of both DC-2498 and 36" right and left of the housing. http://www.automatedproduction.com/ap-sales-and-service/ap-manuals.html DC-2498 PNEG-1559 Competitor Series Fans...
-
Page 14: Chapter 3 Assembly
25-1/2" 26" 25" 24-1/2" 24" CS24* 34-1/2" 34-1/2" 33-1/2" 33" 32-1/2" CS36* 43-1/2" 43-1/2" 42-1/2" 42" 42-1/2" CS54* 58" 60-1/2" 60" 59-1/2" 59" * Add - BLK suffix to end of fan model for black fans. PNEG-1559 Competitor Series Fans... -
Page 15: Fan Dimensions
3. Assembly Fan Dimensions Figure 3B PNEG-1559 Competitor Series Fans... -
Page 16: Cone And Grill Guard Assembly (54" Fan Model)
Ref # Description Ref # Description 5/16"-18 x 1" Flange Bolt SS (S-7447) 5/16" x 1-1/2" x 1/16" SS Fender Washers (S-8724) 5/16"-18 Flange Nut SS Waxed (S-8452) Insert bolts from the inside of the cone PNEG-1559 Competitor Series Fans... -
Page 17: Chapter 4 Electrical Wiring
A safety cut-off switch should be located next to each fan. A circuit breaker switch or slow blow motor type fuses must be used. 3 Phase fans (See Figure 4B.) require three pole contactors with overload protection. Figure 4B PNEG-1559 Competitor Series Fans... -
Page 18: 54" 3 Phase 50 Hz Ce Electrical Hook-Up
Energize the fan and note the direction of rotation. The prop should turn counterclockwise when viewed from inside the house. If not switch the L1 lead with either the L2 or L3 and rotation will be corrected upon re-energizing fan. PNEG-1559 Competitor Series Fans... -
Page 19: Chapter 5 Start-Up And Maintenance
Failure to follow these instructions will void the warranty on these components. 4. While doing fan maintenance, inspect fasteners to ensure they are snug and have not vibrated loose. Tighten as necessary. PNEG-1559 Competitor Series Fans... -
Page 20: Chapter 6 Troubleshooting Guide
Adjust air inlets to lower static pressure. Power supply voltage is too low. Check line voltage at motor; verify wiring is of sufficient gauge for load and length of conductor. Check with local utility supplier for possible line problems. PNEG-1559 Competitor Series Fans... -
Page 21: Chapter 7 Parts List
4. 24" Competitor Series Fiberglass Fan Parts (See Page 25.) 5. 36" Competitor Series Fiberglass Fan Parts (See Page 26.) 6. 54" Competitor Series Fiberglass Fan (CS54C1-P and CS54C1-P-BLK) (See Pages 27 and 28.) 7. 54" Competitor Series Fiberglass Fan (CS54C1-E) (See Pages 29 and 30.) -
Page 22: 12" Competitor Series Fiberglass Fan Parts
7. Parts List 12" Competitor Series Fiberglass Fan Parts 12" Competitor Series Fiberglass Fan Parts List Ref # Part # Description 12-0117 Housing, APP-12 Fiberglass CPS-15SC Shutter, 15" PVS for APP-12 15-0109 Motor, 1/4 HP, 1725 RPM, 1 PH, 115V/230V... -
Page 23: 14" Competitor Series Fiberglass Fan Parts
7. Parts List 14" Competitor Series Fiberglass Fan Parts 14" Competitor Series Fiberglass Fan Parts List Ref # Part # Description 12-0086F Housing, APP-14 Fiberglass CPS-18C Shutter, PVC 18" GP 15-0109 Motor, 1/4 HP, 1725 RPM, 1 PH, 115V/230V 11-0524... -
Page 24: 18" Competitor Series Fiberglass Fan Parts
7. Parts List 18" Competitor Series Fiberglass Fan Parts 18" Competitor Series Fiberglass Fan Parts List Ref # Part # Description 12-0084F Housing, APP-18 Fiberglass CPS-24C1 Shutter, PVC 24" 15-0110 Motor, 1/3 HP, 1725 RPM, 1 PH, 115V/230V 11-0190 APP-18 Motor Mount... -
Page 25: 24" Competitor Series Fiberglass Fan Parts
7. Parts List 24" Competitor Series Fiberglass Fan Parts 24" Competitor Series Fiberglass Fan Parts List Ref # Part # Description 12-0083F* Housing, APP-24 Fiberglass CS241-NC* Shutter, PVC APP-24 15-0105 Motor, 1/3 HP, 1100 RPM, 1 PH, 115V/230V for APP-24... -
Page 26: 36" Competitor Series Fiberglass Fan Parts
7. Parts List 36" Competitor Series Fiberglass Fan Parts 36" Competitor Series Fiberglass Fan Parts List Ref # Part # Description 12-0091 Housing, APP-36 Fiberglass 15-0116 Motor, 1/2 HP, 900 RPM, 1 PH, 115V/230V CPS-42C Shutter, PVC 42" 11-0462 APP-36 Motor Mount Assembly... -
Page 27: 54" Competitor Series Fiberglass Fan (Cs54C1-P And Cs54C1-P-Blk)
7. Parts List 54" Competitor Series Fiberglass Fan (CS54C1-P and CS54C1-P-BLK) PNEG-1559 Competitor Series Fans... - Page 28 7. Parts List 54" Competitor Series Fiberglass Fan (CS54C1-P and CS54C1-P-BLK) Parts List Ref # Part # Description 12-0259* Cone, 54" Fiberglass Panel 13-0242 Propeller, 54" SST (Wide Blade) 3017-3101 Motor, 1-1/2 HP, 1 PH, 1725/1425 RPM, 208V-230V, 50/60 HZ 16-0016 Sheave, AK34 x 5/8"...
-
Page 29: 54" Competitor Series Fiberglass Fan (Cs54C1-E)
7. Parts List 54" Competitor Series Fiberglass Fan (CS54C1-E) PNEG-1559 Competitor Series Fans... - Page 30 7. Parts List 54" Competitor Series Fiberglass Fan (CS54C1-E) Parts List Ref # Part # Description 12-0259 54" Fiberglass Cone Panel 13-0242 Propeller, 54" SST (Wide Blade) 3017-3101 Motor, 1-1/2 HP, 1 PH, 1725/1425 RPM, 208V-230V, 50/60 HZ 017-1391-6 Sheave, 2.8" O.D. x 5/8" I.D.
-
Page 31: Chapter 8 Warranty
GSI warrants, subject to all other conditions described in this Warranty, Service Parts which it manufactures for a period of 12 months from the date of purchase, unless specified in Enhancements above. Parts not manufactured by GSI will carry the Manufacturer’s Warranty. (Protein Limited Warranty_REV01_06 November 2018) PNEG-1559 Competitor Series Fans... - Page 32 This equipment shall be installed in accordance with the current installation codes and applicable regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be consulted before installations are made. 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.automatedproduction.com / www.cumberlandpoultry.com...
