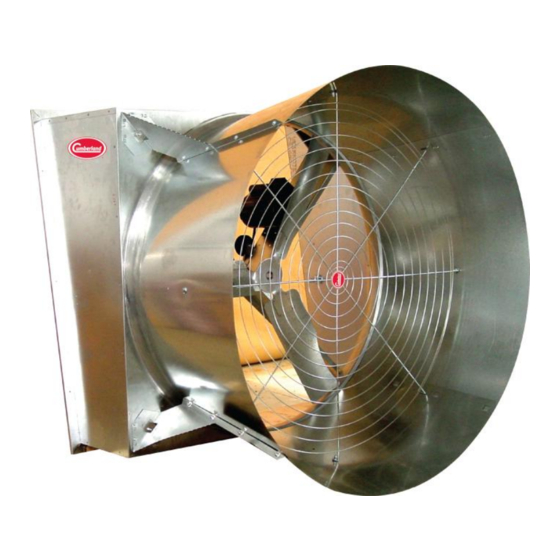

Cumberland MEGA-FLOW CONE FAN Series Installation Manual

BEFORE INSTALLING
1. Inspect fan for damage in transit. Check for
loose, missing, or damaged parts.
2. If there are any missing parts or if there is
any shipping damage, do not attempt to
operate fan. Contact your Distributor.
!
WARNING!
1. Disconnect power source before installing or
servicing fan. Failure to disconnect power
source can result in property damage,
serious injury, or death.
2. When connected to an automatic controller,
FAN MAY START AT ANY TIME.
3. IMPORTANT! Before Operating Fan, Inspect
Fan For any Object That May Obstruct Blade
Rotation.
IMPORTANT!
When this fan is used in a life support ventilation
system where failure could result in loss or injury,
the user should provide adequate backup
ventilation, or accept the risk of such loss or injury.
MAINTENANCE
1. Read WARNING statements before proceeding.
2. Blades, motor, and wire guards should be
cleaned periodically to decrease vibration and
ensure maximum fan life. Remove dirt with a
dry brush or compressed air. DO NOT SPRAY
MOTOR WITH WATER OR CLEANING FLUIDS.
3. Fan performance may be greatly reduced by
damaged or dirty shutter. Clean and inspect
shutter periodically to ensure maximum fan
performance.
Cumberland  1004 E. Illinois St.  Assumption,IL 62510  PHONE 1-217-226-4421  FAX 1-217-226-4420
Manual Part No. 4801-5323 Rev 1-2015

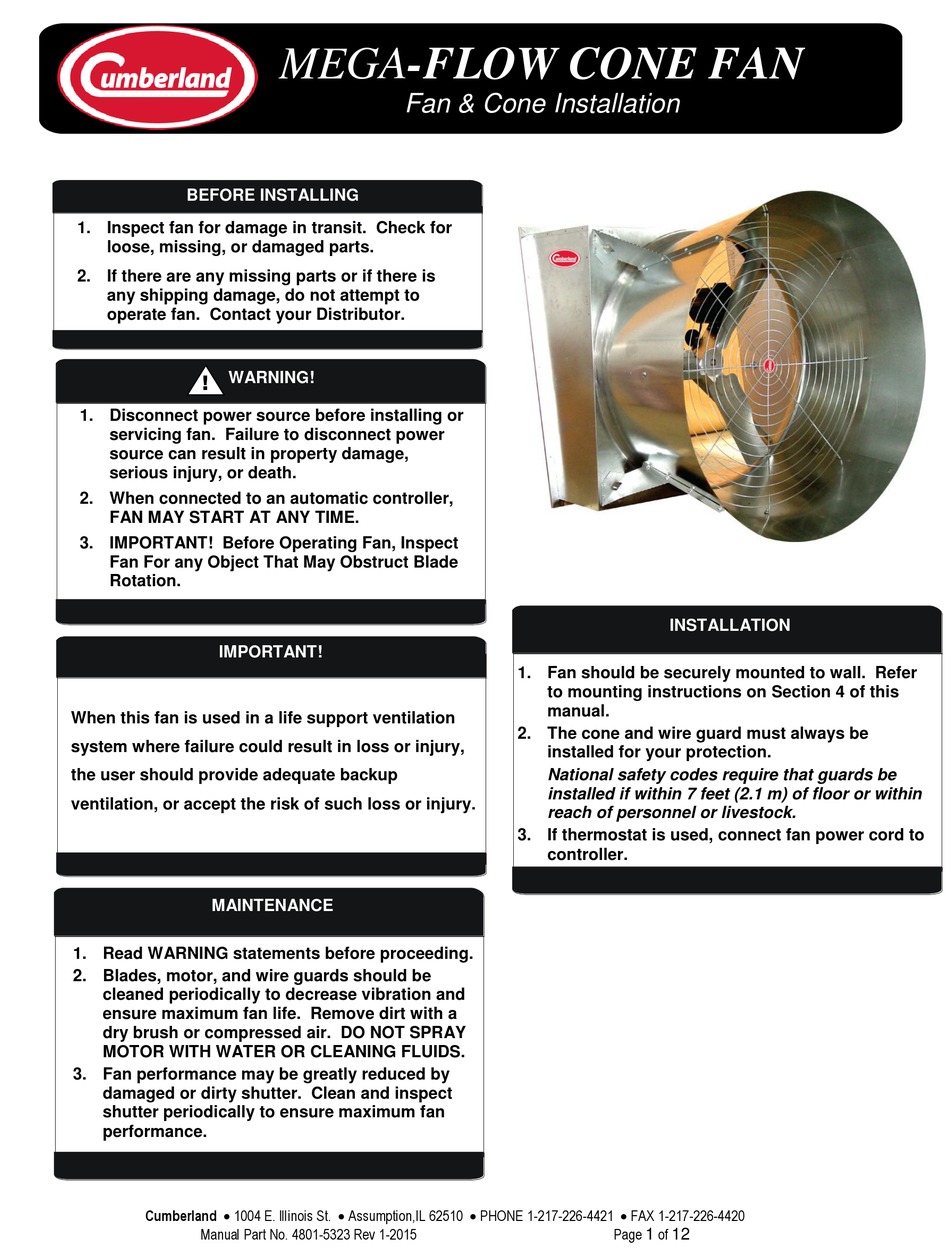

MEGA-FLOW CONE FAN
Fan & Cone Installation
INSTALLATION
1. Fan should be securely mounted to wall. Refer
to mounting instructions on Section 4 of this
manual.
2. The cone and wire guard must always be
installed for your protection.
National safety codes require that guards be
installed if within 7 feet (2.1 m) of floor or within
reach of personnel or livestock.
3. If thermostat is used, connect fan power cord to
controller.
