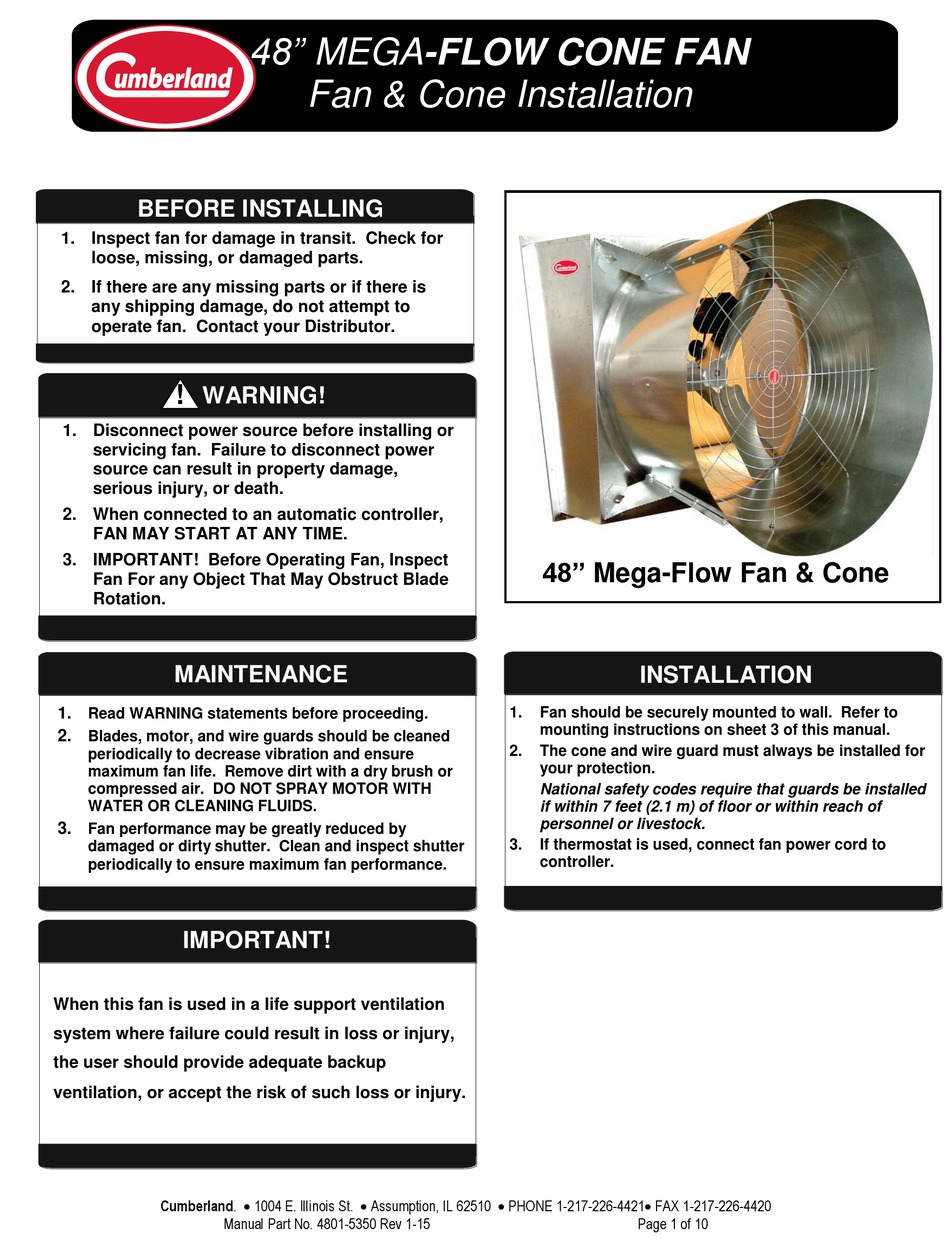

Cumberland 48 INCH MEGA-FLOW CONE FAN Installation Manual

Cumberland 48 INCH MEGA-FLOW CONE FAN Installation Manual

Fan & coneinstallation

Advertisement

Quick Links

BEFORE INSTALLING
1. Inspect fan for damage in transit. Check for
loose, missing, or damaged parts.
2. If there are any missing parts or if there is
any shipping damage, do not attempt to
operate fan. Contact your Distributor.
!
WARNING!
1. Disconnect power source before installing or
servicing fan. Failure to disconnect power
source can result in property damage,
serious injury, or death.
2. When connected to an automatic controller,
FAN MAY START AT ANY TIME.
3. IMPORTANT! Before Operating Fan, Inspect
Fan For any Object That May Obstruct Blade
Rotation.
MAINTENANCE
1.
Read WARNING statements before proceeding.
2.
Blades, motor, and wire guards should be cleaned
periodically to decrease vibration and ensure
maximum fan life. Remove dirt with a dry brush or
compressed air. DO NOT SPRAY MOTOR WITH
WATER OR CLEANING FLUIDS.
3.
Fan performance may be greatly reduced by
damaged or dirty shutter. Clean and inspect shutter
periodically to ensure maximum fan performance.
IMPORTANT!
When this fan is used in a life support ventilation
system where failure could result in loss or injury,
the user should provide adequate backup
ventilation, or accept the risk of such loss or injury.
Cumberland.  1004 E. Illinois St.  Assumption, IL 62510  PHONE 1-217-226-4421 FAX 1-217-226-4420
Manual Part No. 4801-5350 Rev 1-15
48" MEGA-FLOW CONE FAN
Fan & Cone Installation
48" Mega-Flow Fan & Cone
INSTALLATION
1.
Fan should be securely mounted to wall. Refer to
mounting instructions on sheet 3 of this manual.
2.
The cone and wire guard must always be installed for
your protection.
National safety codes require that guards be installed
if within 7 feet (2.1 m) of floor or within reach of
personnel or livestock.
3.
If thermostat is used, connect fan power cord to
controller.
Page 1 of 10
