Summary of Contents for Cumberland CCF20

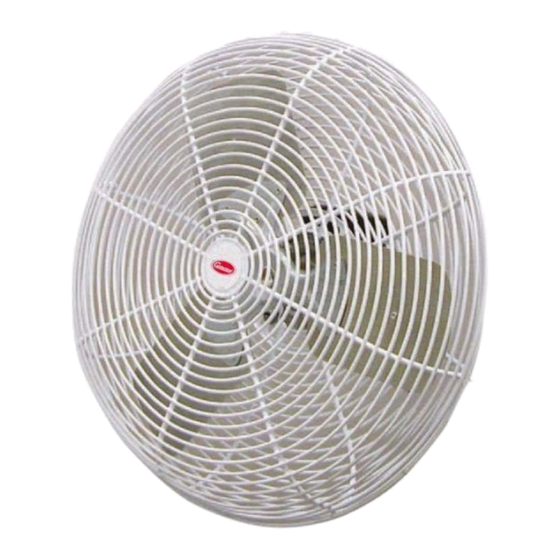

- Page 1 Circulation Fan Models: CCF20 3CF20 Installation Manual PNEG-1565 Date: 01-01-15 PNEG-1565...
- Page 2 PNEG-1565 Circulation Fan...
-
Page 3: Table Of Contents
Safety Decals ............................5 Chapter 3 Circulation Fan Installation .........................6 Fan Hanger Installation ..........................6 Fan Installation Options .........................7 Chapter 4 Parts List ...............................9 20" Circulation Fan (CCF20) Parts ......................9 20" Circulation Fan (3CF20) Parts .......................10 Chapter 5 Warranty ..............................11 PNEG-1565 Circulation Fan... -
Page 4: Chapter 1 Circulation Fan Safety Information
CORRECT INSTALLATION OF 3CF20 CIRCULATION FAN MODEL Rotating blade must be installed a “MINIMUM” of 7' above floor or working level WARNING on fan model 3CF20, (FYI) fan model CCF20 can be installed at any height above floor or working level. PNEG-1565 Circulation Fan... -
Page 5: Chapter 2 Safety Decals
2. Safety Decals DANGER DANGER WARNING STAY CLEAR OF ROTATING BLADE Blade may start automatically. May cause serious injury. Disconnect and lockout power sources before servicing. WARNING HIGH VOLTAGE FLYING OBJECTS Will cause serious HAZARD injury or death. Danger of eye injury. Lockout power before servicing. -
Page 6: Chapter 3 Circulation Fan Installation
3. Circulation Fan Installation Disconnect all electrical power sources before installing the fan mounting bracket and fan. WARNING NOTE: Locate packing slip and make sure that all listed parts are enclosed. If parts are missing contact the dealer immediately. Read and understand all instructions in this manual before installing the fan mounting bracket and fan. -
Page 7: Fan Installation Options
3. Circulation Fan Installation Fan Installation Options 1. Overtop rafter - Install fan, placing fan hanger overtop of rafter. Place fan mount washer on front side of loop end. Install lag screw/bolt (not included). (See Figure 3A on Page 6.) Recommended Lag Screw/Bolt Wood application (lag screw) - Use a minimum diameter of 1/4"... - Page 8 3. Circulation Fan Installation Fan Installation Options (Continued) 3. Open house/angular rafter - Recommended installation on angular rafter (C). NOTE: Fan must be hung plum (VERTICAL). Using a cut 2 x 4 approximately 4"-5" long screw 2 x 4 (B) into rafter where fan will be placed.
-
Page 9: Parts List
4. Parts List 20" Circulation Fan (CCF20) Parts 20" Circulation Fan (CCF20) Parts List Ref # Part # Description 11-0475 Grill, 20" Front White Painted (7' Plus Install) 11-0476 Grill, 20" Back White Painted (7' Plus Install) 11-0373 Hanger Circulation Fan 20"... -
Page 10: 20" Circulation Fan (3Cf20) Parts
Nylock Nut #10-24 ZN Grade 2 S-9405 Washer - Fan Mount S-9352 Wire Tie Blk 0.300" x 8.0" DC-1897 Decal, 2" Diameter Cumberland Logo DC-1540 Decal, Danger/Warning, Danger (DC-1224), Warning DC-2187 Decal, 20" Fan Mounting Instructions PNEG-1565 Circulation Fan 20"... -
Page 11: Chapter 5 Warranty
3 to 5 years - end-user pays 25% All Fiberglass Propellers Lifetime 5 to 7 years - end-user pays 50% AP and Cumberland Flex-Flo/Pan Feeding System Motors 2 Years 7 to 10 years - end-user pays 75% Feeder System Pan Assemblies... - Page 12 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.gsiag.com Cumberland is a part of GSI, a worldwide brand of AGCO Corporation. Copyright © 2015 by The GSI Group, LLC Printed in the USA CN-315800...
