Summary of Contents for Cumberland CCF20

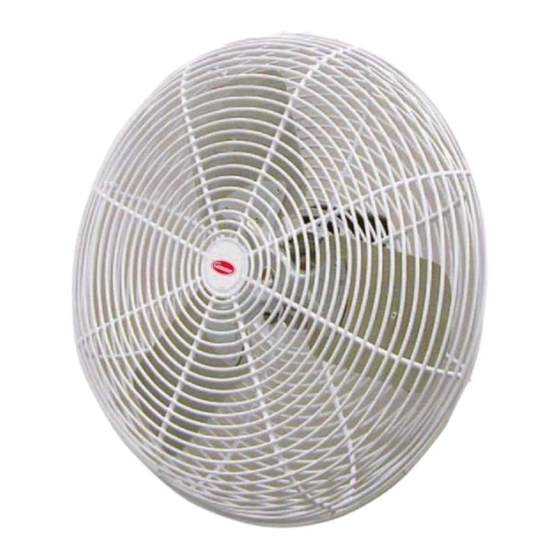

- Page 1 Circulation Fan Models: CCF20 3CF20 BSK24 BSK24HD BSK36 Installation Manual PNEG-1565 Version: 5.0 Date: 01-31-20 PNEG-1565...
- Page 2 All information, illustrations, photos and specifications in this manual are based on the latest information available at the time of publication. The right is reserved to make changes at any time without notice. PNEG-1565 Circulation Fan...
-
Page 3: Table Of Contents
Fan Hanger Installation ..........................6 Fan Installation Options .........................7 Chapter 4 Parts List ...............................9 20" Circulation Fan (CCF20) Parts .......................10 20" Circulation Fan (3CF20) Parts .......................11 24" Circulation Fan (BSK24) Parts .......................12 24" HD Circulation Fan (BSK24HD) Parts ...................13 36" Circulation Fan (BSK36) Parts .......................14 Chapter 5 Warranty ..............................15... -
Page 4: Chapter 1 Safety Information
CORRECT INSTALLATION OF 3CF20 CIRCULATION FAN MODEL Rotating blade must be installed a “MINIMUM” of 7' above floor or working level on fan model 3CF20. The fan model CCF20 can be installed at any height above floor or working level. -
Page 5: Chapter 2 Safety Decals
2. Safety Decals DANGER DANGER WARNING STAY CLEAR OF ROTATING BLADE Blade may start automatically. May cause serious injury. Disconnect and lockout power sources before servicing. WARNING HIGH VOLTAGE FLYING OBJECTS Will cause serious HAZARD injury or death. Danger of eye injury. Lockout power before servicing. -
Page 6: Chapter 3 Installation
3. Installation NOTE: It does not apply to 24" and 36" size Circulation Fans. Disconnect all electrical power sources before installing the fan mounting bracket and fan. NOTE: Locate packing slip and make sure that all listed parts are enclosed. If parts are missing contact the dealer immediately. -
Page 7: Fan Installation Options
3. Installation Fan Installation Options NOTE: It does not apply to 24" and 36" size Circulation Fans. 1. Overtop rafter - Install fan, placing fan hanger overtop of rafter. Place fan mount washer on front side of loop end. Install lag screw/bolt (not included). (See Figure 3A on Page 6.) Recommended Lag Screw/Bolt Wood application (lag screw) - Use a minimum diameter of 1/4"... - Page 8 3. Installation Fan Installation Options (Continued) NOTE: It does not apply to 24" and 36" size Circulation Fans. 3. Open house/angular rafter - Recommended installation on angular rafter (C). NOTE: Fan must be hung plum (VERTICAL). Using a cut 2 x 4 approximately 4"-5" long screw 2 x 4 (B) into rafter where fan will be placed.
-
Page 9: Parts List
4. Parts List 1. 20" Circulation Fan (CCF20) Parts - (See Page 10.) 2. 20" Circulation Fan (3CF20) Parts - (See Page 11.) 3. 24" Circulation Fan (BSK24) Parts - (See Page 12.) 4. 24" HD Circulation Fan (BSK24HD) Parts - (See Page 13.) -
Page 10: 20" Circulation Fan (Ccf20) Parts
4. Parts List 20" Circulation Fan (CCF20) Parts 20" Circulation Fan (CCF20) Parts List Ref # Part # Description 11-0475 Grill, 20" Front White Painted (7' Plus Install) 11-0476 Grill, 20" Back White Painted (7' Plus Install) 11-0373 Hanger Circulation Fan 20"... -
Page 11: 20" Circulation Fan (3Cf20) Parts
Nylock Nut #10-24 ZN Grade 2 S-9405 Washer - Fan Mount S-9352 Wire Tie Blk 0.300" x 8.0" DC-1897 Decal, 2" Diameter Cumberland Logo DC-1540 Decal, Danger/Warning, Danger (DC-1224), Warning DC-2187 Decal, 20" Fan Mounting Instructions PNEG-1565 Circulation Fan Instruction Manual... -
Page 12: 24" Circulation Fan (Bsk24) Parts
4. Parts List 24" Circulation Fan (BSK24) Parts 24" Circulation Fan (BSK24) Parts List Ref # Part # Description 15-0106 Motor, 0.3 HP 1100 RPM, 48 FR S-8723 Fender Washer 3/16" x 1" ZN Grade 2 11-0254 Grill, Housing Back Basket 24" 11-0253 Grill, Housing Front Basket 24"... -
Page 13: 24" Hd Circulation Fan (Bsk24Hd) Parts
4. Parts List 24" HD Circulation Fan (BSK24HD) Parts 24" HD Circulation Fan (BSK24HD) Parts List Ref # Part # Description 15-0115 Motor, 0.3 HP 1700 RPM, 48 FR HD S-8723 Fender Washer 3/16" x 1" ZN Grade 2 11-0254 Grill, Housing Back Basket 24"... -
Page 14: 36" Circulation Fan (Bsk36) Parts
4. Parts List 36" Circulation Fan (BSK36) Parts 36" Circulation Fan (BSK36) Parts List Ref # Part # Description 15-0082Y Motor, 0.5 HP 60 Hz,1 PH, Yoke Mount S-8723 Fender Washer 3/16" x 1" ZN Grade 2 11-0258-WH Grill, Housing Back Basket 36" 11-0257-WH Grill, Housing Front Basket 36"... -
Page 15: Chapter 5 Warranty
0 to 3 years - no material cost to end user ® ® Flex-Flo/Pan Feeding System Motors 2 Years and Cumberland 3 to 5 years - end user pays 25% 24 Months from date 5 to 7 years - end user pays 50% Electronic Controls... - Page 16 This equipment shall be installed in accordance with the current installation codes and applicable regulations, which should be carefully followed in all cases. Authorities having jurisdiction should be consulted before installations are made. 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.automatedproduction.com / www.cumberlandpoultry.com...
