Mega-Flow External Damper Fan
Unassembled
Owner's Manual
Cumberland
1004 E. Illinois St.
Assumption, IL 62510
4801-5327 Rev 1-15

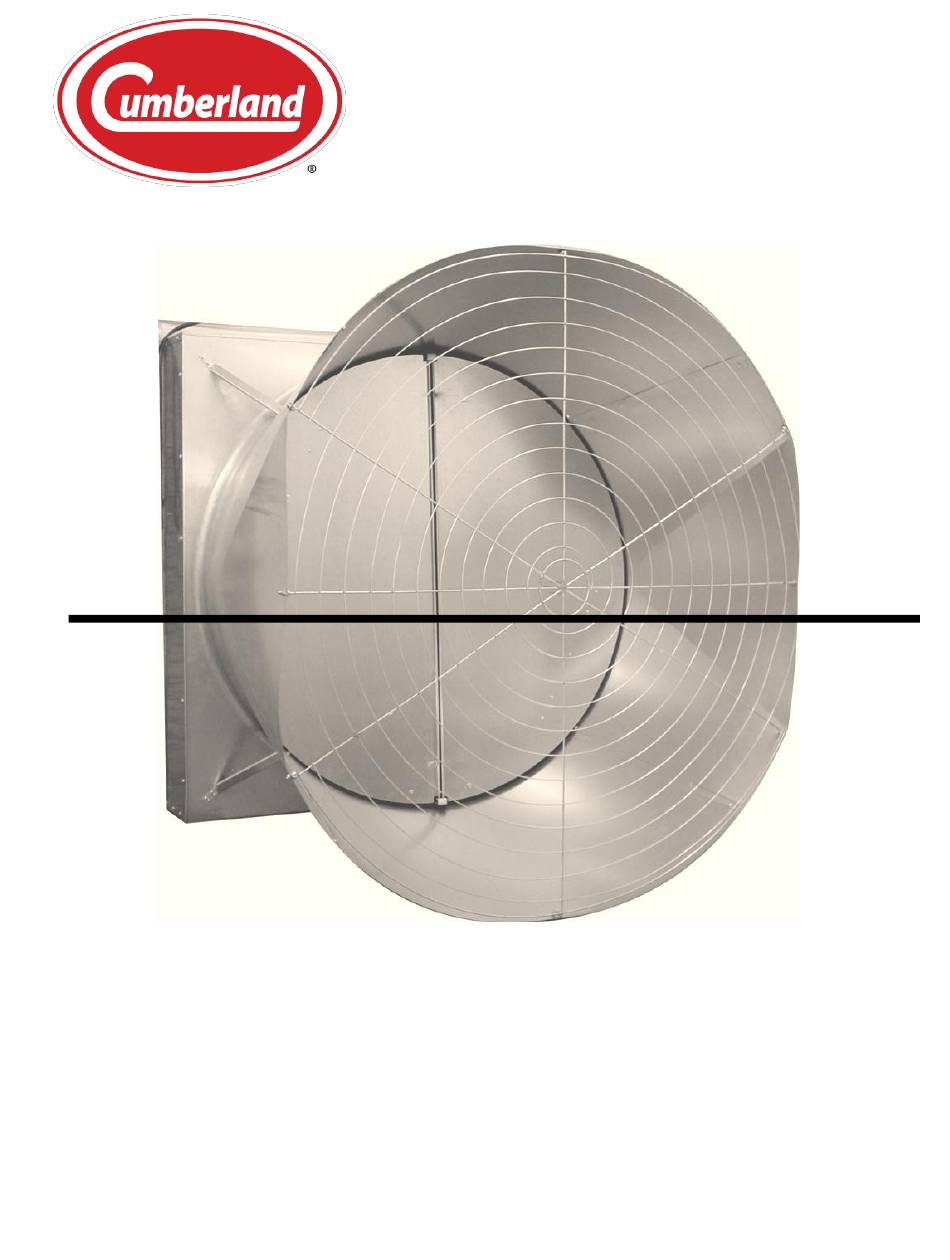

Mega-Flow External Damper Fan - Unassembled
Page 1 of 24
