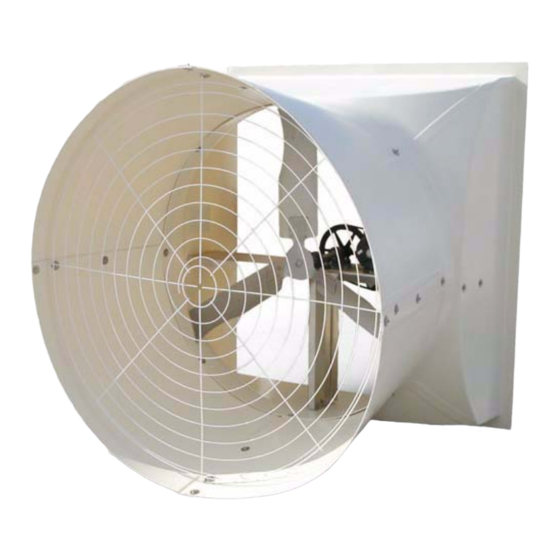

- Page 1 Competitor Series - Fiberglass Fans Installation and Operation Manual PNEG-1559 Date: 07-25-13 PNEG-1559...
- Page 2 Before beginning installation, check the condition of the fan. Remove the overwrap and packing materials and examine all parts and components for shipping damage. Any damage incurred must be reported immediately to the freight carrier. Models : Competitor Series Fans Size : 24", 36" and 54" PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 3: Table Of Contents
54" Competitor Series Fiberglass Fan (CS5435-E-NC-CE) ..............26 54" Competitor Series Fiberglass Fan (CS5435-P-NC-CE) ..............28 54" Competitor Series Fiberglass Fan (CS54C35-E-CE) ..............30 54" Competitor Series Fiberglass Fan (CS54C35-P-CE) ..............32 54" Competitor Series Fiberglass Fan (CS54C1-E) ................34 Chapter 8 Warranty ..............................37 PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 4: Chapter 1 Safety
NOTICE is used to address practices not related to NOTICE personal injury. WARNING CE Fan models only. Safety decal applied DC-2180 four (4) places. PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 5: Safety Instructions
Rotating Fan Blade servicing equipment. Lifting Hazard Single person lift could cause injury. Use two or more people or a mechanical lifting device to lift/move heavy equipment. Use Assistance When Lifting or Moving Heavy Equipment PNEG-1559 Competitor Series - Fiberglass Fans... - Page 6 A respirator may be needed to prevent breathing potentially toxic fumes and dust. Wear a hard hat to help protect your head. Hard Hat Wear appropriate fall protection equipment when working at elevations greater than six feet (6'). Fall Protection PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 7: General Safety Information
In the installation and use of the fan, only genuine AP/Cumberland parts are to be used. Use of other non-genuine parts is a misuse and may lead to dangerous situations. -
Page 8: General Safety Statements
Provisions for an adequate and safe power supply to the fan unit are essential to your safety. AP/Cumberland recommends that a competent and qualified electrician undertake all electrical wiring. All wiring is to be installed in accordance with National, State and Local Electrical Codes. -
Page 9: Chapter 2 Safety Decals
WARNING Flying Objects Hazard HIGH VOLTAGE. FLYING OBJECTS Located left middle outside and Will cause serious HAZARD. right middle inside. injury or death. Danger of eye injury. Lockout power Wear eye protection. before servicing. DC-1540 PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 10: Safety Decals And Locations For 36" Fan
HIGH VOLTAGE. WARNING Flying Objects Hazard FLYING OBJECTS Will cause serious HAZARD. Located left middle outside and injury or death. right middle inside. Danger of eye injury. Lockout power Wear eye protection. before servicing. DC-1540 PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 11: Safety Decals And Locations For 54" Fan And 54" Ce Fan
WARNING Stay Clear of Rotating Blade WARNING Flying Objects Hazard Located left middle outside and right middle inside. DC-2180 - 4-1/2" x 4" Required on CE 54" fans only. Two (2) pieces (inside) Both sides. DC-2180 PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 12: Chapter 3 Installation And Assembly
The fan housing should now be flush and level inside of the framing. Figure 3A Outside Height (A) Fan Model Width Inside Height (B) 4" Wall 6" Wall 8" Wall CS24 34-1/2" 34-1/2" 33-1/2" 33" 32-1/2" CS54 58" 60-1/2" 60" 59-1/2" PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 13: Fan Dimensions
3. Installation and Assembly Fan Dimensions Figure 3B PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 14: Cone And Grill Guard Assembly (54" Fan Model)
5/16" x 1" SS flange bolts, four (4) 5/16" SS flange nuts and eight (8) 5/16" x 1-1/4" fender washers. The fan is now ready to wire up to the power source. Figure 3C Figure 3D Figure 3E PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 15: Chapter 4 Electrical Wiring
A safety cut-off switch should be located next to each fan. A circuit breaker switch or slow blow motor type fuses must be used. (See Figure 4B.) 3 Phase fans require three (3) pole contactors with overload protection. Figure 4B PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 16: 54" 3 Phase 50 Hz Ce Electrical Hook-Up
Energize the fan and note the direction of rotation. The prop should turn counterclockwise when viewed from inside the house. If not switch the L1 lead with either the L2 or L3 and rotation will be corrected upon re-energizing fan. PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 17: Chapter 5 Start-Up And Maintenance
Failure to follow these instructions will void the warranty on these components. 4. While doing fan maintenance, inspect fasteners to ensure they are snug and have not vibrated loose. Tighten as necessary. PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 18: Chapter 6 Troubleshooting Guide
Adjust air inlets to lower static pressure. Power supply voltage is too low. Check line voltage at motor; verify wiring is of sufficient gauge for load and length of conductor. Check with local utility supplier for possible line problems. PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 19: Chapter 7 Parts List
6. 54" Competitor Series Fiberglass Fan (CS54C35-E-CE) (See Pages 30 and 31.) 7. 54" Competitor Series Fiberglass Fan (CS54C35-P-CE) (See Pages 32 and 33.) 8. 54" Competitor Series Fiberglass Fan (CS54C1-E) (See Pages 34 and 35.) PNEG-1559 Competitor Series - Fiberglass Fans... -
Page 20: 24" Competitor Series Fiberglass Fan (Cs24C1) And (Cs24C1-Blk)
7. Parts List 24" Competitor Series Fiberglass Fan (CS24C1) and (CS24C1-BLK) PNEG-1559 Competitor Series - Fiberglass Fans... - Page 21 Flange Bolt 5/16"-18 x 1-1/2" SS S-8452 Flange Nut 5/16"-18 SS Waxed S-8724 Fender Washer 5/16" x 1-1/2" x 1/16" SS PNEG-1559 Competitor Series Fan Operation/Instruction Manual * For black fans add - BLK suffix to part numbers. PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 22: 36" Competitor Series Fiberglass Fan (Cs36C1)
7. Parts List 36" Competitor Series Fiberglass Fan (CS36C1) PNEG-1559 Competitor Series - Fiberglass Fans... - Page 23 Flange Bolt 5/16"-18 x 1" SS (Full Thread) S-8168 Flange Bolt 5/16"-18 x 1-1/2" SS S-8452 Flange Nut 5/16"-18 SS Waxed S-8724 Fender Washer 5/16" x 1-1/2" x 1/16" SS PNEG-1559 Competitor Series Fan Operation/Instruction Manual PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 24: 54" Competitor Series Fiberglass Fan (Cs54C1-P) And (Cs54C1-P-Blk)
7. Parts List 54" Competitor Series Fiberglass Fan (CS54C1-P) and (CS54C1-P-BLK) PNEG-1559 Competitor Series - Fiberglass Fans... - Page 25 Screw, SDS #10-16 x 1-1/4" HWH SS410 S-7502 Screw, SMSA 1/4"-14 x 1-1/2" HWHS SS 1EL2046 Rubber Grommet PNEG-1559 Competitor Series Fan Operation/Instruction Manual * For black fans add - BLK suffix to part numbers. PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 26: 54" Competitor Series Fiberglass Fan (Cs5435-E-Nc-Ce)
7. Parts List 54" Competitor Series Fiberglass Fan (CS5435-E-NC-CE) PNEG-1559 Competitor Series - Fiberglass Fans... - Page 27 Flat Washer 3/16" I.D. (Backup Washer for 3/16" Rivets) S-7419 Screw, SDS #10-16 x 1-1/4" HWH SS410 S-7502 Screw, SMSA 1/4"-14 x 1-1/2" HWHS SS 1EL2046 Rubber Grommet PNEG-1559 Competitor Series Fan Operation/Instruction Manual PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 28: 54" Competitor Series Fiberglass Fan (Cs5435-P-Nc-Ce)
7. Parts List 54" Competitor Series Fiberglass Fan (CS5435-P-NC-CE) PNEG-1559 Competitor Series - Fiberglass Fans... - Page 29 Flat Washer 3/16" I.D. (Backup Washer for 3/16" Rivets) S-7419 Screw, SDS #10-16 x 1-1/4" HWH SS410 S-7502 Screw, SMSA 1/4"-14 x 1-1/2" HWHS SS 1EL2046 Rubber Grommet PNEG-1559 Competitor Series Fan Operation/Instruction Manual PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 30: 54" Competitor Series Fiberglass Fan (Cs54C35-E-Ce)
7. Parts List 54" Competitor Series Fiberglass Fan (CS54C35-E-CE) PNEG-1559 Competitor Series - Fiberglass Fans... - Page 31 Flat Washer 3/16" I.D. (Backup Washer for 3/16" Rivets) S-7419 Screw, SDS #10-16 x 1-1/4" HWH SS410 S-7502 Screw, SMSA 1/4"-14 x 1-1/2" HWHS SS 1EL2046 Rubber Grommet PNEG-1559 Competitor Series Fan Operation/Instruction Manual PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 32: 54" Competitor Series Fiberglass Fan (Cs54C35-P-Ce)
7. Parts List 54" Competitor Series Fiberglass Fan (CS54C35-P-CE) PNEG-1559 Competitor Series - Fiberglass Fans... - Page 33 Flat Washer 3/16" I.D. (Backup Washer for 3/16" Rivets) S-7419 Screw, SDS #10-16 x 1-1/4" HWH SS410 S-7502 Screw, SMSA 1/4"-14 x 1-1/2" HWHS SS 1EL2046 Rubber Grommet PNEG-1559 Competitor Series Fan Operation/Instruction Manual PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 34: 54" Competitor Series Fiberglass Fan (Cs54C1-E)
7. Parts List 54" Competitor Series Fiberglass Fan (CS54C1-E) PNEG-1559 Competitor Series - Fiberglass Fans... - Page 35 Flat Washer 3/16" I.D. (Backup Washer for 3/16" Rivets) S-7419 Screw, SDS #10-16 x 1-1/4" HWH SS410 S-7502 Screw, SMSA 1/4"-14 x 1-1/2" HWHS SS 1EL2046 Rubber Grommet PNEG-1559 Competitor Series Fan Operation/Instruction Manual PNEG-1559 Competitor Series - Fiberglass Fans...
- Page 36 NOTES PNEG-1559 Competitor Series - Fiberglass Fans...
-
Page 37: Chapter 8 Warranty
Prior to installation, the end-user has the responsibility to comply with federal, state and local codes which apply to the location and installation of products manufactured or sold by GSI. 9101239_1_CR_rev7.DOC (revised July 2009) PNEG-1559 Competitor Series - Fiberglass Fans... - Page 38 Authorities having jurisdiction should be consulted before installations are made. 1004 E. Illinois St. Assumption, IL 62510-0020 Phone: 1-217-226-4421 Fax: 1-217-226-4420 www.gsiag.com AP/Cumberland is a part of GSI, a worldwide brand of AGCO Corporation. Copyright © 2013 by Group Printed in the USA CN-307573...
