PROFESSIONAL AUDIO SYSTEM
PSUB2
OPERATING MANUAL
Ver. PSUB2-EN-1.1
LSS Advanced Speaker Systems
Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PSUB2 and is the answer not in the manual?

Questions and answers

Summary of Contents for LSS PSUB2

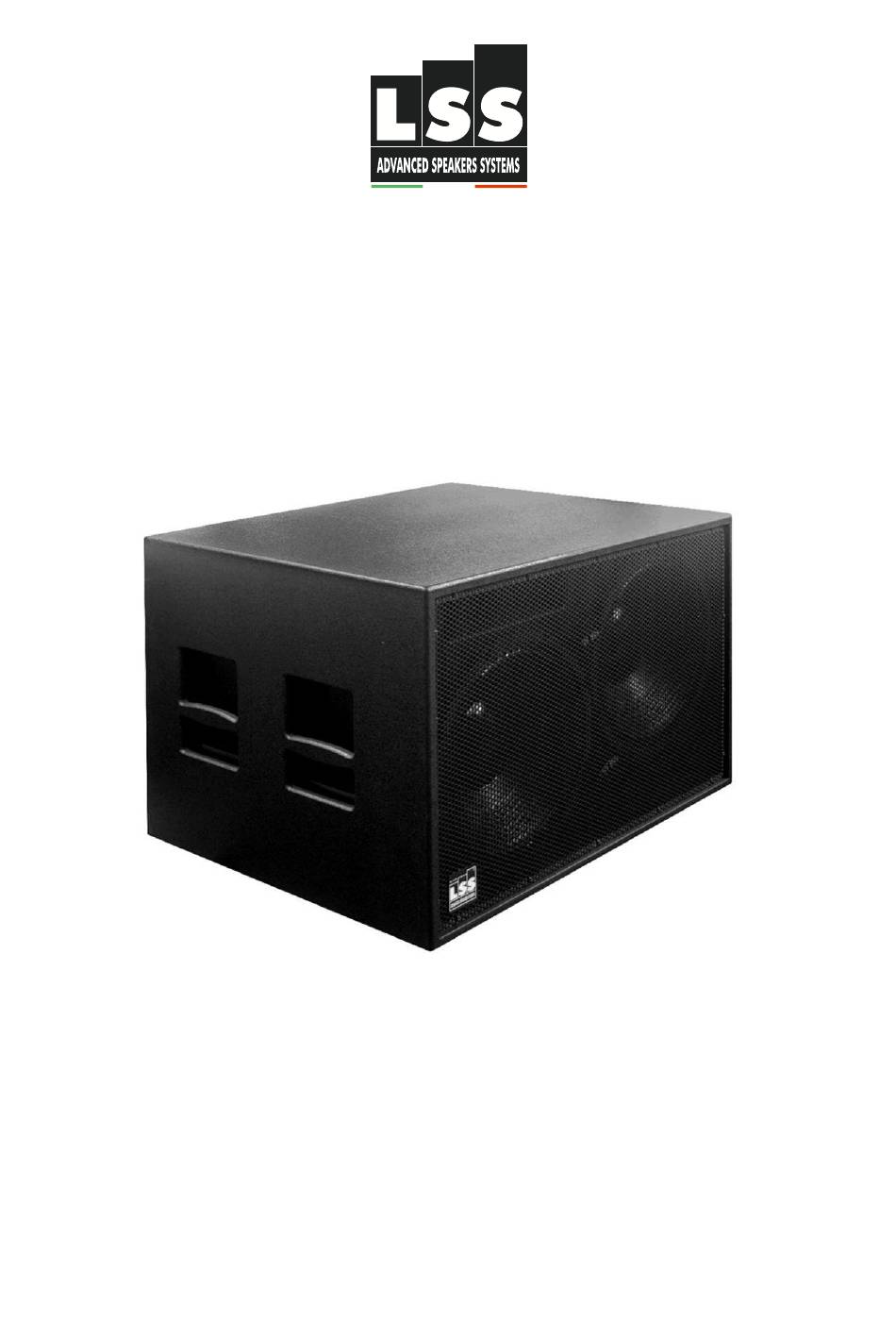

  • Page 1 PROFESSIONAL AUDIO SYSTEM PSUB2 OPERATING MANUAL Ver. PSUB2-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
  • Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
  • Page 3: Table Of Contents

    INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 TROUBLESHOOTING ..........................11 DIMENSIONS ..............................12 NOTES ................................13 Operating Manual ver. PSUB2-EN-1.1 |3...
  • Page 4: Introduction

    LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions.
  • Page 5: Safety And Warning

    LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC.
  • Page 6: Application

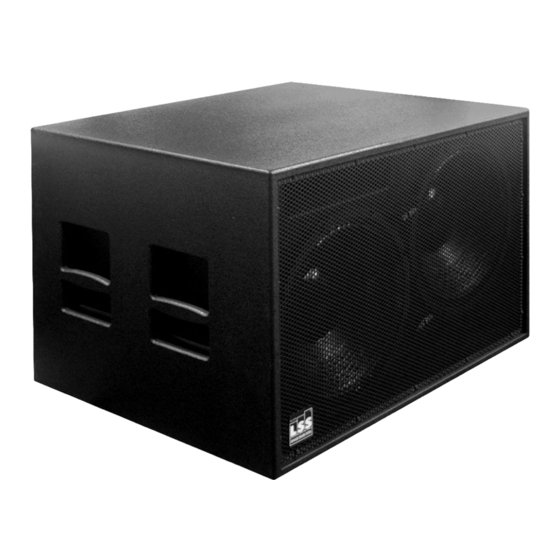

    This system was designed for a wide range of professional applications. PSUB2 system enclosure uses two woofers of 380 mm (15") with 100 mm (4") voice coil. High performance and very high peak output for concert sound and disco music.
  • Page 7: Technical Specifications

    Nominal Dispersion (@ -6 dB) units and configuration Birch Plywood of 18 mm [0.71 Enclosure material inches] Texture poliurethanic black Finish paint MECHANYCAL Powder coated perforated steel Grille with anti-dust foam Connectors 2 Neutrik NL4 Speakon Operating Manual ver. PSUB2-EN-1.1 |7...
  • Page 8: Installation And Wiring

    PSUB2________________________________________________________________________________ INSTALLATION AND WIRING PSUB2 must be installed on the floor, stand alone or in stack configuration. It is possible to install more PSUB2 in stack configuration making fit Top Sub’s feet in bottom sub’s recesses Choose a safe mounting location, so as to prevent the cables can be stepped on or create tripping hazards.
  • Page 9 2 Ohms 1.8 Ohms NL4 Pin Configuration Mixer Caution: Do not exceed the Pins 1+ and 1- Used maximum load rating of Pins 2+ and 2- Not Used the amplifier. You can now use the system Operating Manual ver. PSUB2-EN-1.1 |9...
  • Page 10: Weee Directive

    Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities.
  • Page 11: Troubleshooting

    Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. Operating Manual ver. PSUB2-EN-1.1 |11...
  • Page 12: Dimensions

    PSUB2________________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 62cm 84cm 84cm BOTTOM 12| Operating Manual ver. PSUB2-EN-1.1...
  • Page 13: Notes

    ______________________________________________________________________________ NOTES Operating Manual ver. PSUB2-EN-1.1 |13...
  • Page 14 PSUB2________________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 14| Operating Manual ver. PSUB2-EN-1.1...
