  • Page 1 PROFESSIONAL AUDIO SYSTEM LT60 OPERATING MANUAL Ver. LT60-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
  • Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
  • Page 3: Table Of Contents

    SUMMARY SAFETY AND WARNING ..........................4 INTRODUCTION ............................4 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................8 INSTALLATION AND WIRING ........................9 WEEE DIRECTIVE ............................11 DIMENSIONS ..............................12 NOTES ................................12 Operating Manual ver. LT60-EN-1.1 |3...
  • Page 4: Introduction

    LSS produce professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions.
  • Page 5: Safety And Warning

    LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC.
  • Page 6: Application

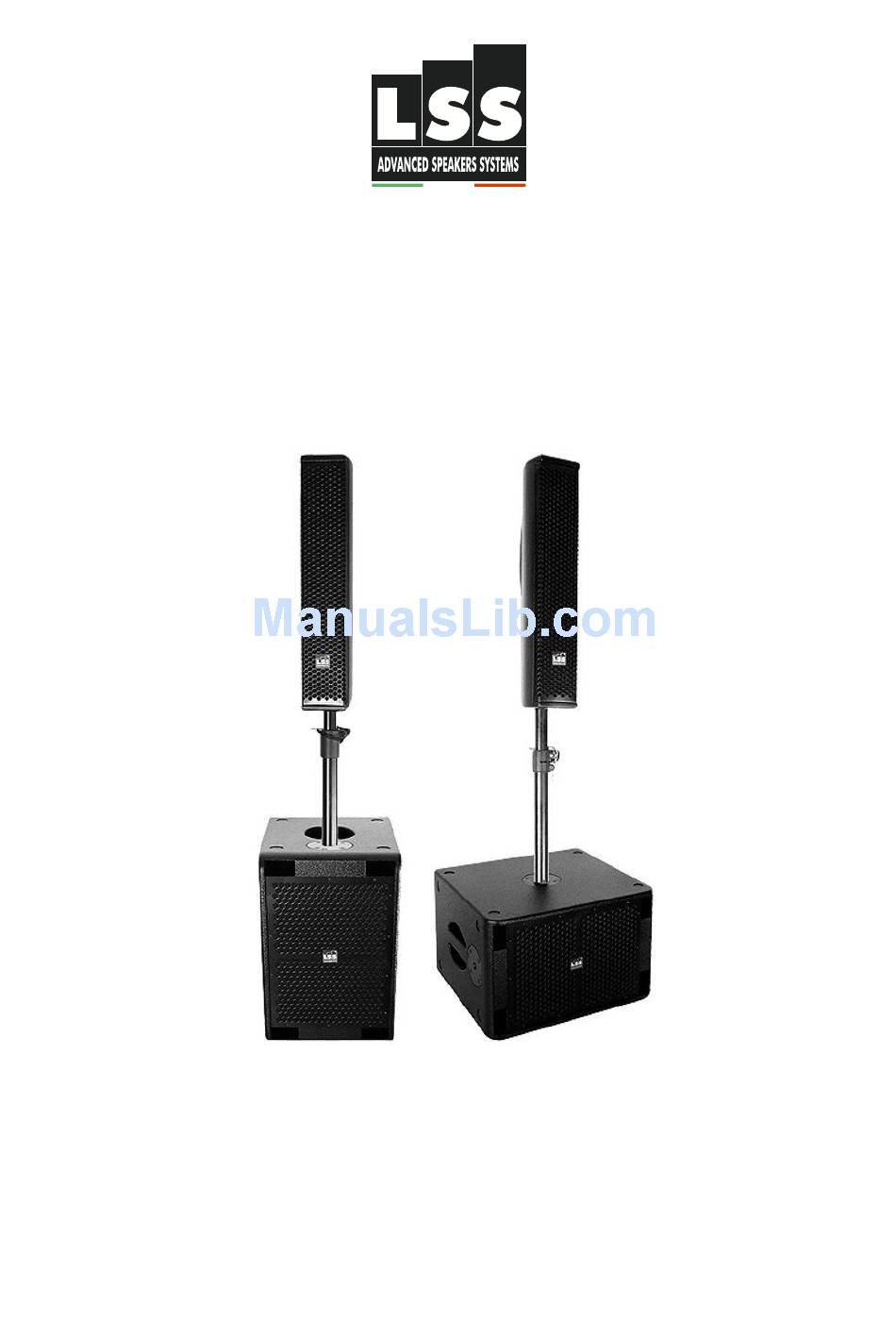

    LT60__________________________________________________________________________________ APPLICATION LSS’s LT60 is a compact self-powered system that uses a subwoofer of 250mm (10”) in reflex configuration with integrated digital module, the same has an active output that controls the satellite with 4 customizable presets on request. The subwoofer can be placed in two positions (vertical and horizontal). The satellite is configured as a mini line array with 4 mid-woofers of 100 mm (4”)
  • Page 7 [C] Recessed for Supporting Feet [I] Connection Panel [D] Enclosure Cabinet [J] Enclosure Cabinet [E] Pole Mount Plate [K] Supporting Feet [F] Woofer [L] Supporting Feet Materials and construction meet the highest professional standards to ensure maximum reliability Operating Manual ver. LT60-EN-1.1 |7...
  • Page 8: Technical Specifications

    [700 W] Horizontal 80° Nominal Dispersion (@ -6 dB) Vertical 25 ° Birch Plywood of 15 mm [0.59”] Enclosure material and 6 mm on sides [0.23“] Texture polyurethanic black MECHANYCAL Finish paint Suspension Pole Mount 8| Operating Manual ver. LT60-EN-1.1...
  • Page 9: Installation And Wiring

    Pole Mount, Soft Bag Accessories (Included) INSTALLATION AND WIRING LT60 speaker must be installed on the floor. Subwoofer can be placed in two positions: vertical or horizontal. After choosing the desired position, arrange the sub with the side containing the fixing plate of the pole upwards, then tighten the pole and install the satellite.
  • Page 10 P1 – preset 1 (green): indicates the factory presets LOUD P2 – preset 2 (green): indicates the factory presets ACOUSTIC P3 – preset 3 (green): indicates the factory presets JAZZ P4 – preset 4 (green): indicates the factory presets FLAT 10| Operating Manual ver. LT60-EN-1.1...
  • Page 11: Weee Directive

    Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities.
  • Page 12: Dimensions

    LT60__________________________________________________________________________________ DIMENSIONS SID E FRONT REAR SID E 45cm 33cm 33cm 45cm BOTTOM SID E FRONT REAR Front 50cm 21cm 130cm 5,5cm BOTTOM 12| Operating Manual ver. LT60-EN-1.1...
  • Page 13 ________________________________________________________________________________ NOTES Operating Manual ver. LT60-EN-1.1 |13...
  • Page 14 LT60__________________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 14| Operating Manual ver. LT60-EN-1.1...
