PROFESSIONAL AUDIO SYSTEM
SF15A-P
OPERATING MANUAL
Ver. SF15A-P-EN-1.0
LSS Advanced Speaker Systems
Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF15A-P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LSS SF15A-P

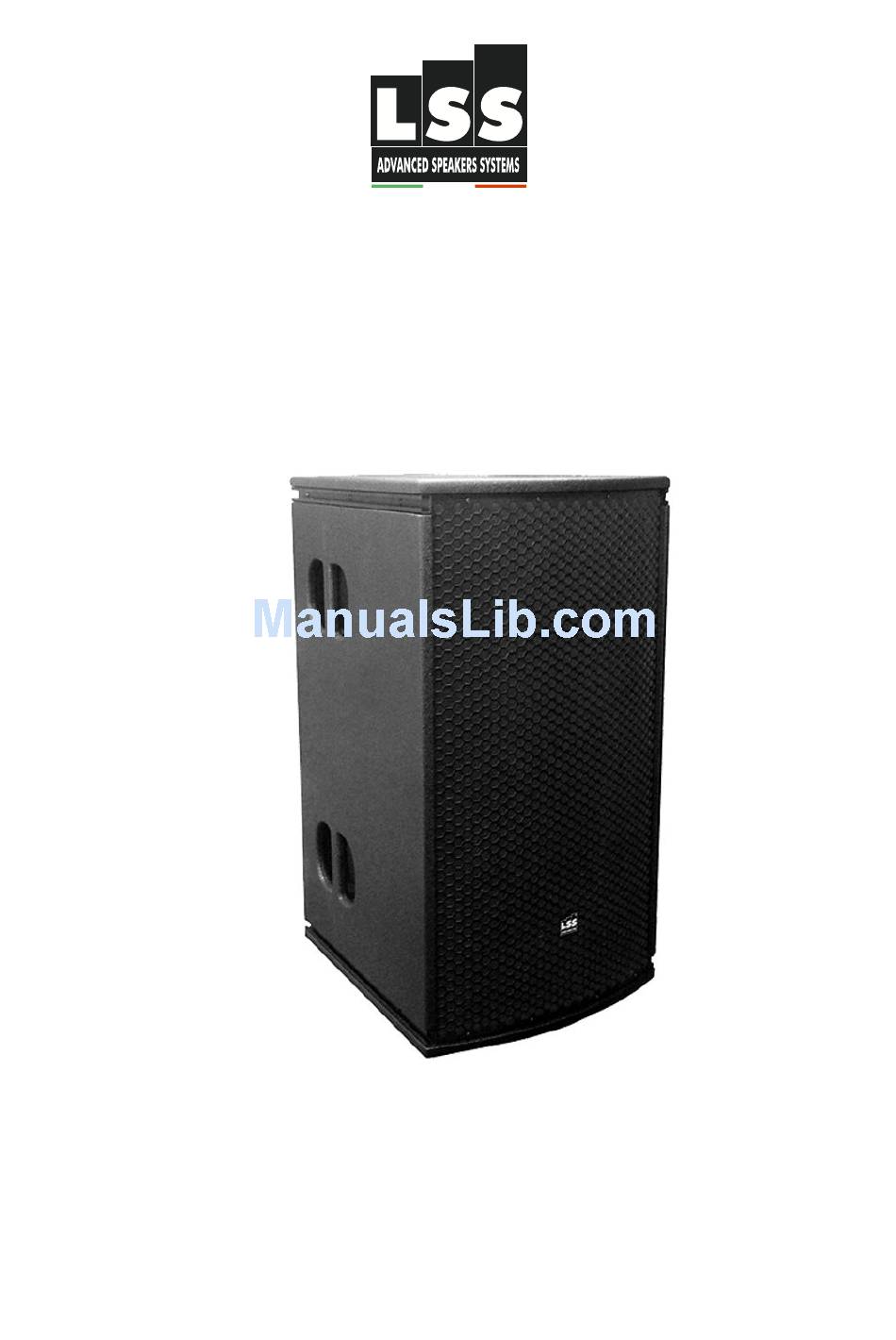

  • Page 1 PROFESSIONAL AUDIO SYSTEM SF15A-P OPERATING MANUAL Ver. SF15A-P-EN-1.0 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
  • Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
  • Page 3: Table Of Contents

    PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................8 INSTALLATION AND WIRING ........................9 SF15A WIRING ............................. 13 SF15P WIRING.............................. 14 WEEE DIRECTIVE ............................16 TROUBLESHOOTING ..........................17 DIMENSIONS SF15A ..........................18 DIMENSIONS SF15P ..........................19 NOTES ................................20 Operating Manual ver. SF15A-P-EN-1.0 |3...
  • Page 4: Introduction

    LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions.
  • Page 5: Safety And Warning

    LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC.
  • Page 6: Application

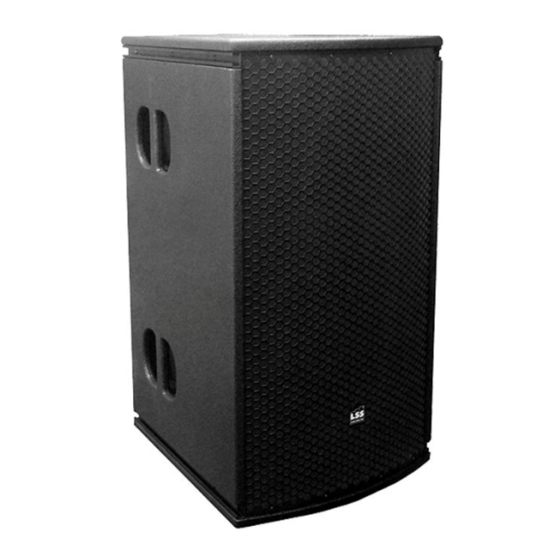

    SF15A-P_______________________________________________________________________________ APPLICATION LSS's SF15 is a fullrange 2-way loudspeaker specifically designed for curvilinear horizontal or vertical array system that provides high output, low distortion sound reinforcement for the entire range of pro audio applications. It is available in two versions, Active (SF15A) and Passive (SF15P).
  • Page 7 [B] Mounting Hardware Guide [G] Enclosure Cabinet [C] Steel Protection Grid [H] Connection Panel [D] Reflex [I] Handle [E] HF Driver on Wave Guide Materials and construction meet the highest professional standards to ensure maximum reliability. Operating Manual ver. SF15A-P-EN-1.0 |7...
  • Page 8: Technical Specifications

    Hardware Mounting Suspension Suspension Powder coated perforated MECHANYCAL Grille steel with anti-dust foam Active Neutrik Powercon + XLR Connectors Passive Neutrik Speakon NL4 Fly Clip with Ring, Optional Accessories Flight Case, Bumper, Hardware Array 8| Operating Manual ver. SF15A-P-EN-1.0...
  • Page 9: Installation And Wiring

    For suspended installation, mounting hardaware is necessary , it is the same both for SF15A and SF15P and is composed from: Name Component BUMPER SF15 LIFTBAR SF15 ALUBAR SF15 GRILLO16 SF15 JOINT SF15 BOLT M8 X 40 Operating Manual ver. SF15A-P-EN-1.0 |9...
  • Page 10 Insert ALUBAR SF15 in the guide slots on the sides of the cabinet. If one speaker must be mounted, insert only the ALUBAR in the upper side. Install the LIFTBAR SF15 on the ALUBAR, then lock them with a M8 BOLT. 10| Operating Manual ver. SF15A-P-EN-1.0...
  • Page 11 ALUBAR SF15 in the upper and lower guide slots on the sides of two adjacent cases. Install BUMPER SF15 as previously explained and connect it with the LIFTBARs using four GRILLO16. Another GRILLO16 can be used to hook the BUMPER Operating Manual ver. SF15A-P-EN-1.0 |11...
  • Page 12 To connect a case with the lower one use the JOINT SF15, then lock them with the locking pin. It is possible to install a maximum of three speaker in horizontal configuration and three in vertical configuration. Use plugs suitable to support the weight of the entire apparatus. 12| Operating Manual ver. SF15A-P-EN-1.0...
  • Page 13: Sf15A Wiring

    – preset 2 (green): indicates the factory presets VOCAL VOCAL P3 – – preset 3 (green): indicates the factory presets LOUD LOUD P4 – – preset 4 (green): indicates the factory presets FLAT FLAT Operating Manual ver. Operating Manual ver. SF15A-P-EN-1.0 |13...
  • Page 14: Sf15P Wiring

    2- 2+) and needs an external digital processor to work properly. If your amplifier can manage a 2 Ohms Load and has sufficient power, it is possible to connect a maximum of 4 speaker in parallel (total impedance will be 2 Ohms). 14| Operating Manual ver. SF15A-P-EN-1.0...
  • Page 15 ______________________________________________________________________________ Before making connections between mixer and speakers, make sure the mixer volume is turned down. You can now use the system Operating Manual ver. SF15A-P-EN-1.0 |15...
  • Page 16: Weee Directive

    Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities.
  • Page 17: Troubleshooting

    Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. Operating Manual ver. SF15A-P-EN-1.0 |17...
  • Page 18: Dimensions Sf15A

    SF15A-P_______________________________________________________________________________ DIMENSIONS SF15A SIDE FRONT REAR 57,5cm 48,5cm 23cm BOTTOM 18| Operating Manual ver. SF15A-P-EN-1.0...
  • Page 19: Dimensions Sf15P

    ______________________________________________________________________________ DIMENSIONS SF15P SIDE FRONT REAR 57,5cm 48,5cm 23cm BOTTOM Operating Manual ver. SF15A-P-EN-1.0 |19...
  • Page 20: Notes

    SF15A-P_______________________________________________________________________________ NOTES 20| Operating Manual ver. SF15A-P-EN-1.0...
  • Page 21 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. SF15A-P-EN-1.0 |21...
