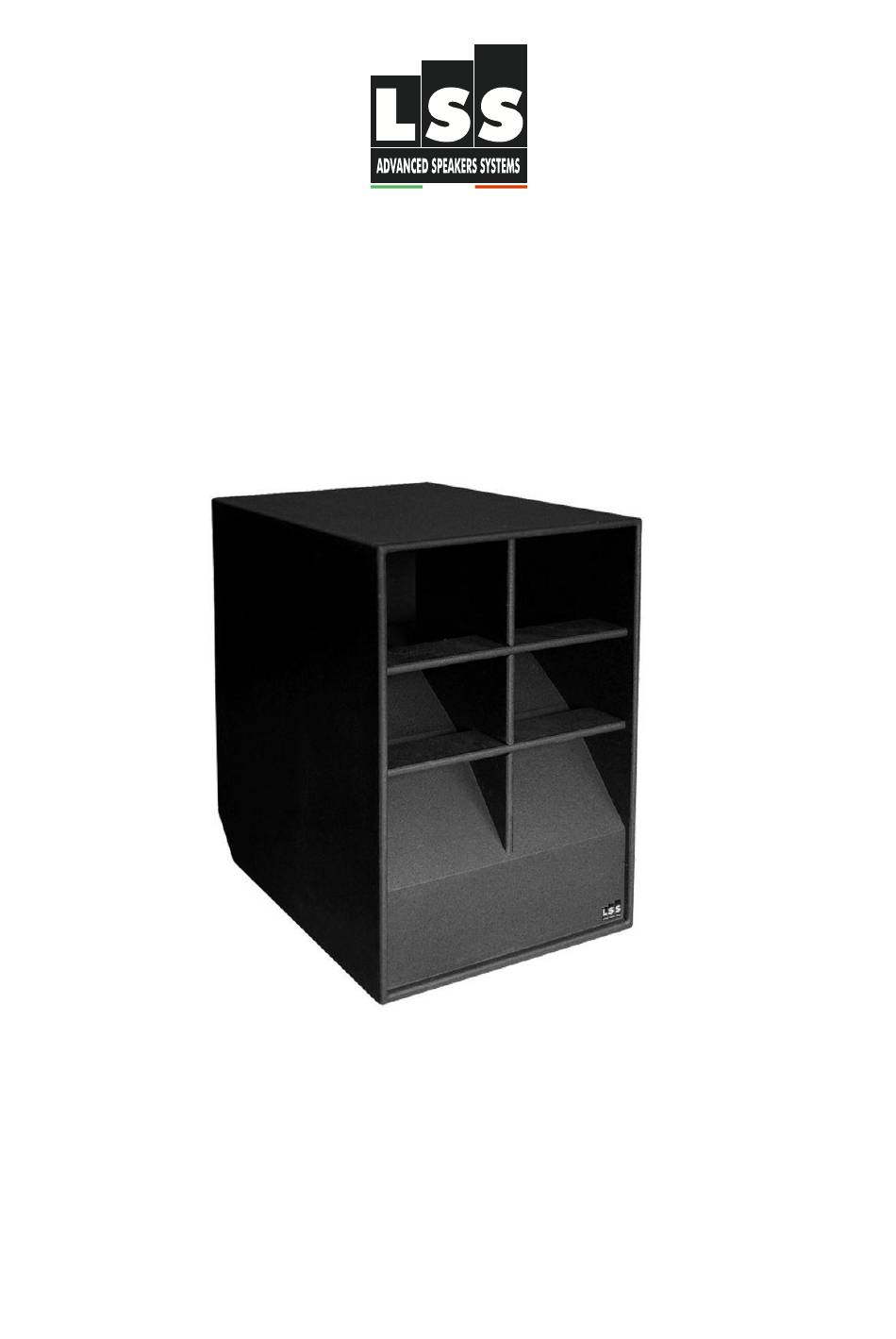

  • Page 1 PROFESSIONAL AUDIO SYSTEM PSUB4 OPERATING MANUAL Ver. PSUB4-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
  • Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
  • Page 3: Table Of Contents

    INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 TROUBLESHOOTING ..........................11 DIMENSIONS ..............................12 NOTES ................................13 Operating Manual ver. PSUB4-EN-1.1 |3...
  • Page 4: Introduction

    LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions.
  • Page 5: Safety And Warning

    LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC.
  • Page 6: Application

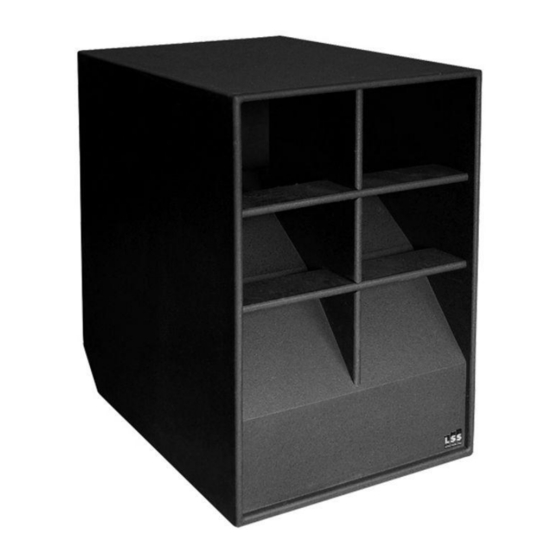

    APPLICATION LSS's PSUB4 loudspeaker is a pro-horn subwoofer system that provides high output, low distortion sound reinforcement. PSUB4 was designed for a wide range of professional applications and especially for live sound reinforcement. High performance and very high peak output for concert sound.
  • Page 7: Technical Specifications

    7000 W 360°, varies with number of Nominal Dispersion (@ -6 dB) units and configuration Birch Plywood of 18 mm [0.71 Enclosure material inches] Texture poliurethanic black MECHANYCAL Finish paint Connectors 2 Neutrik NL4 Speakon Operating Manual ver. PSUB4-EN-1.1 |7...
  • Page 8: Installation And Wiring

    PSUB4________________________________________________________________________________ INSTALLATION AND WIRING PSUB4 must be installed on the floor. It can work in vertical or horizontal position, lying on one of its lateral sides. To transport the speaker, grip the handles behind and tilt down, then slide on the wheels.
  • Page 9 2 Ohms 1.8 Ohms NL4 Pin Configuration Mixer Caution: Do not exceed the Pins 1+ and 1- Used maximum load rating of Pins 2+ and 2- Not Used the amplifier. You can now use the system Operating Manual ver. PSUB4-EN-1.1 |9...
  • Page 10: Weee Directive

    Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities.
  • Page 11: Troubleshooting

    Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. Operating Manual ver. PSUB4-EN-1.1 |11...
  • Page 12: Dimensions

    PSUB4________________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 86cm 60cm 60cm BOTTOM 12| Operating Manual ver. PSUB4-EN-1.1...
  • Page 13: Notes

    ______________________________________________________________________________ NOTES Operating Manual ver. PSUB4-EN-1.1 |13...
  • Page 14 PSUB4________________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 14| Operating Manual ver. PSUB4-EN-1.1...
