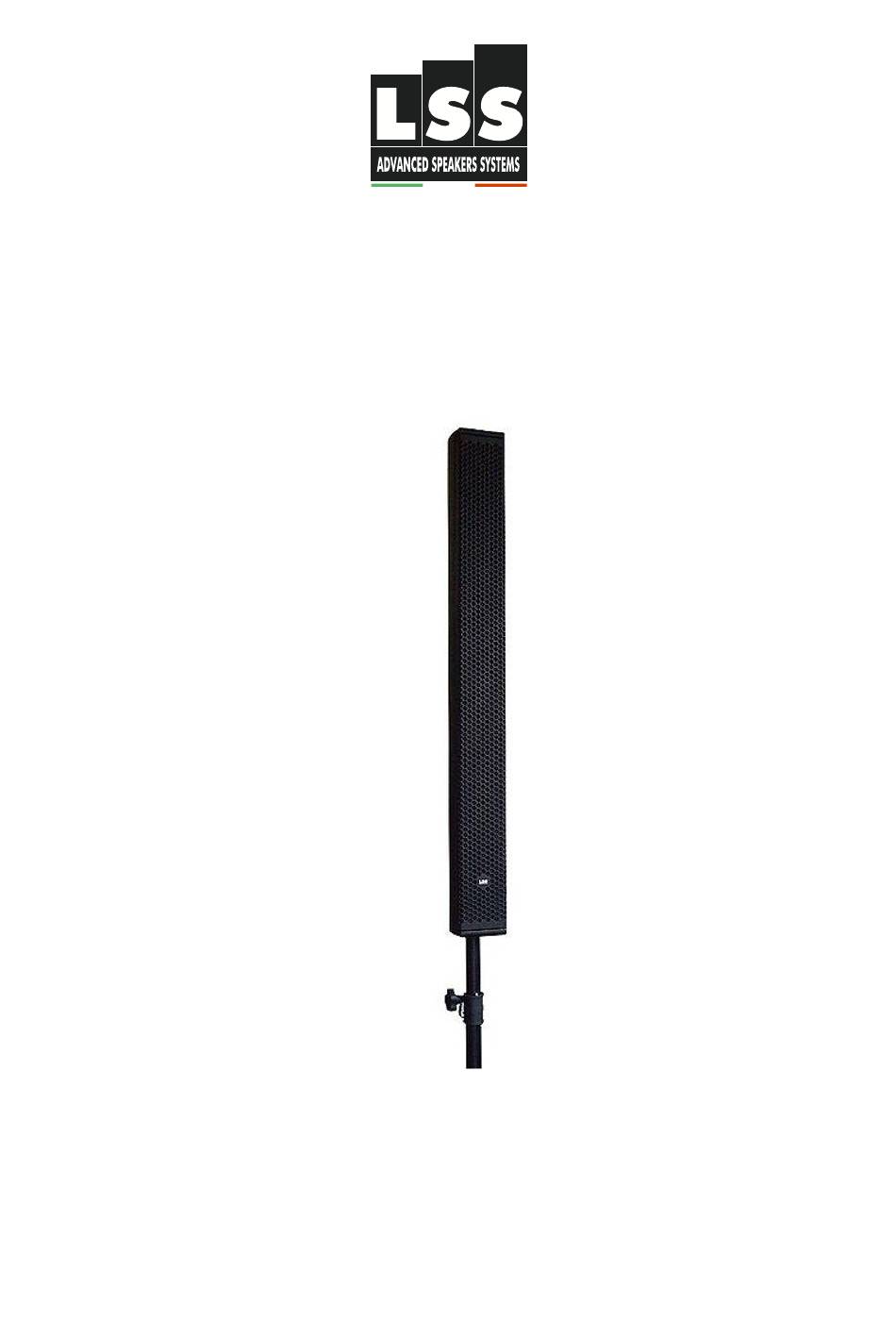

- Page 1 PROFESSIONAL AUDIO SYSTEM PP4-10 OPERATING MANUAL Ver. PP4-10-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
SUMMARY INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 DIMENSIONS ..............................11 NOTES ................................12 Operating Manual ver. PP4-10-EN-1.1 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application

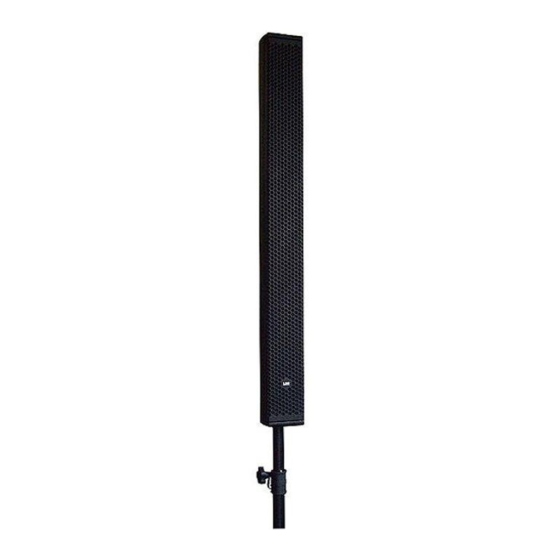

PP4-10 is ideal for sound reinforcement in A/V events, paging and background music. The small dimensions of system are ideal for portable use. PP4-10 uses 10 full-range speakers of 100 mm (4”) and 25mm (1”) voice coil water-resistant cone. The total nominal impedance is 6 Ohms. The cabinet is sealed enclosure of Birch Plywood of 14 mm and 6 mm curved on side. -
Page 7: Technical Specifications
Birch Plywood of 14 mm [0.55”] and 6 mm on side Enclosure material [0.23”] Texture poliuretanic black Finish paint MECHANYCAL Powder coated perforated Grille steel with anti-dust foam Connectors Neutrik Speakon NL4 Speaker Bag, Wall-Mount Accessories & Pole-Mount Hardware Operating Manual ver. PP4-10-EN-1.1 |7... -
Page 8: Installation And Wiring
PP4-10________________________________________________________________________________ INSTALLATION AND WIRING PP4-10 speaker can be mounted to the wall (using the Wall Mount Bracket) or suspended on the pole (using the Pole Mount Bracket). Wall Mount Bracket must be fixed to the wall through the fixing holes using plugs suitable to support the weight of the entire apparatus. - Page 9 Channel 2 has been linked from In to the out. You can now use the system Operating Manual ver. PP4-10-EN-1.1 |9...
-
Page 10: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 11: Dimensions
______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 14,5cm 12,5cm 5,5cm BOTTOM Operating Manual ver. PP4-10-EN-1.1 |11... -
Page 12: Notes
PP4-10________________________________________________________________________________ NOTES 12| Operating Manual ver. PP4-10-EN-1.1... - Page 13 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. PP4-10-EN-1.1 |13...
