    LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions.
  • Page 5: Safety And Warning

    LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC.
  • Page 6: Application

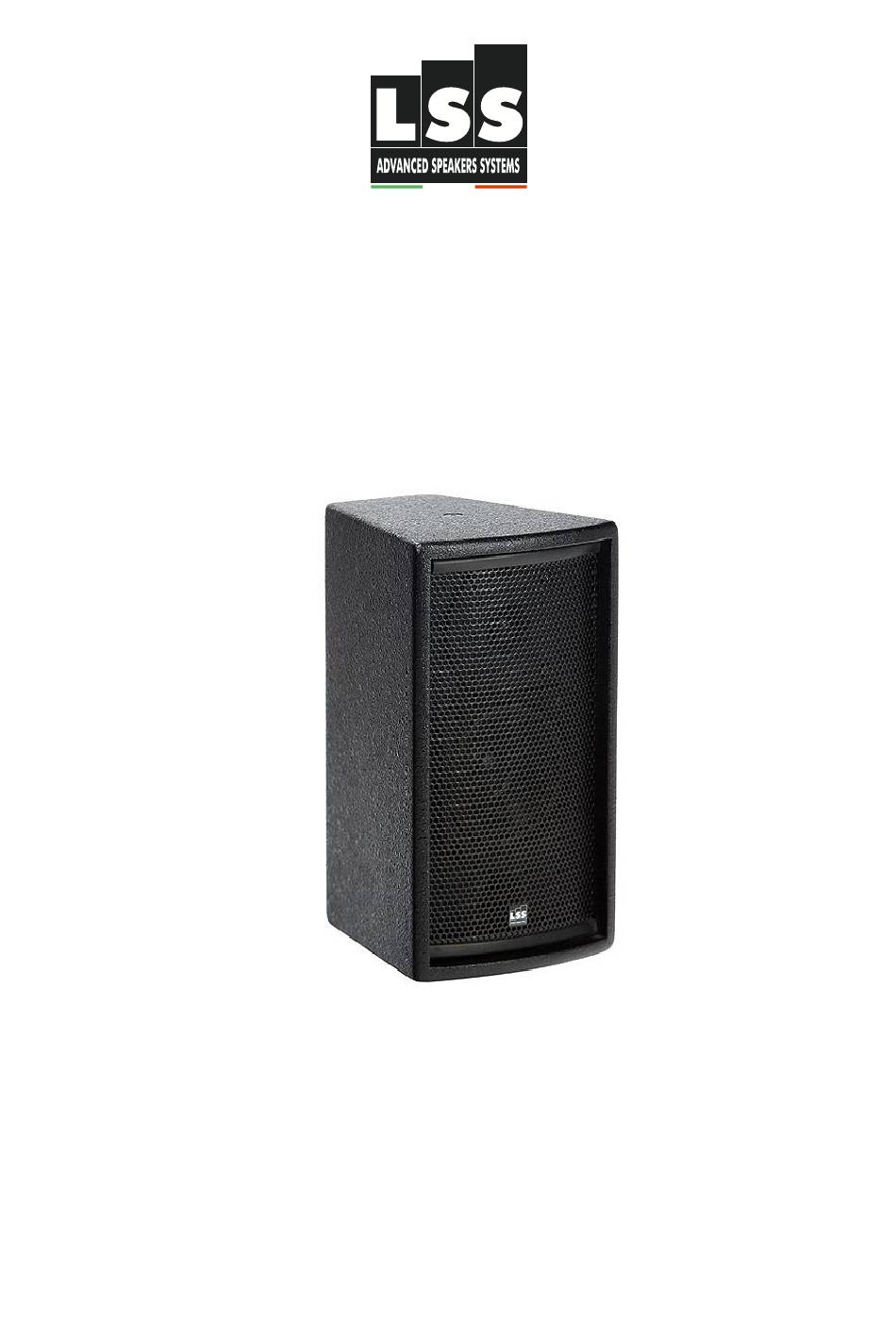

    SP110_________________________________________________________________________________ APPLICATION LSS’s SP110 is a 2-WAY loudspeaker system, it is the first small enclosure to the SP Series. SP110 loudspeaker is designed to work in full-range mode or to be supported by the PULCEW subwoofer below 100Hz and is ideal for distributed systems.
  • Page 7: Technical Specifications

    Birch Plywood of 12 mm [0.47 Enclosure material inches] Finish Texture poliuretanic black paint Suspension 4 point mounting suspension MECHANYCAL Powder coated perforated steel Grille with anti-dust foam Connectors Neutrik Speakon NL4 Optional Accessories Fly clip with ring Operating Manual ver. SP110-EN-1.1 |7...
  • Page 8: Installation And Wiring

    SP110_________________________________________________________________________________ INSTALLATION AND WIRING SP110 speaker can be mounted to the wall or floor using its own bracket. The bracket must be fixed to the wall through the fixing holes using plugs suitable to support the weight of the entire apparatus.
  • Page 9 Before making connections between mixer and speakers, make sure the mixer volume is turned down. In the connection panel there are two clamps used for electrical connection: one red and one black. You can now use the system Operating Manual ver. SP110-EN-1.1 |9...
  • Page 10: Weee Directive

    Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities.
  • Page 11: Dimensions

    ______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 17cm 15cm BOTTOM 4 cm 2 cm 0.7 cm fine Operating Manual ver. SP110-EN-1.1 |11...
  • Page 12: Notes

    SP110_________________________________________________________________________________ NOTES 12| Operating Manual ver. SP110-EN-1.1...
  • Page 13 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. SP110-EN-1.1 |13...
