PROFESSIONAL AUDIO SYSTEM
MIL130
OPERATING MANUAL
Ver. MIL130-EN-1.0
LSS Advanced Speaker Systems
Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MIL130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LSS MIL130

  • Page 1 PROFESSIONAL AUDIO SYSTEM MIL130 OPERATING MANUAL Ver. MIL130-EN-1.0 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
  • Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
  • Page 3: Table Of Contents

    SUMMARY INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 DIMENSIONS ..............................11 NOTES ................................12 Operating Manual ver. MIL130-EN-1.0 |3...
  • Page 4: Introduction

    LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions.
  • Page 5: Safety And Warning

    LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC.
  • Page 6: Application

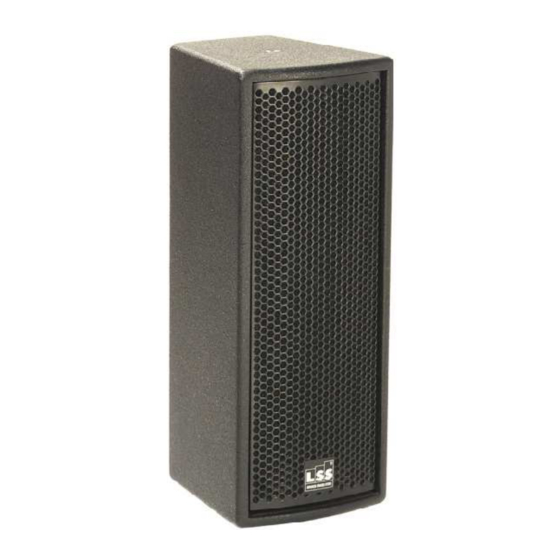

    MIL130________________________________________________________________________________ APPLICATION LSS’s MIL130 system is a 2-way full range system in a compact trapezoidal enclosure engineered for exceptional performance in the nearfield. Very effective as a fill / delay element in a larger overall systems or for foreground / background music reproduction. It is also ideal for distributed systems. The comprehensive system mounting points permit safe suspension in a permanent installation.
  • Page 7: Technical Specifications

    Texture poliuretanic black paint Suspension 4 point mounting suspension Powder coated perforated steel MECHANYCAL Grille with anti-dust foam Connectors Neutrik Speakon NL4 Fly clip with ring, Flight case on Optional Accessories wheels for 4 or 8 MIL130 Operating Manual ver. MIL130-EN-1.0 |7...
  • Page 8: Installation And Wiring

    INSTALLATION AND WIRING INSTALLATION AND WIRING MIL130 MIL130 speaker can be mounted to the wall or floor using its own wall or floor using its own bracket. The bracket must be fixe The bracket must be fixed to the wall through the fixin d to the wall through the fixing holes using plugs suitable to support the weight of the entire apparatus.
  • Page 9 In the connection panel there are two Speakon NL4 connectors referred as ‘IN’ and ‘OUT’. IN is the input connector and must be connected to the amplifier, ‘OUT’ is a LINK OUT and can be connected to other systems. You can now use the system Operating Manual ver. MIL130-EN-1.0 |9...
  • Page 10: Weee Directive

    Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities.
  • Page 11: Dimensions

    ______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 20cm 18cm 12cm BOTTOM 20 mm 30 mm 10 mm 10 mm 30 mm 182 mm Operating Manual ver. MIL130-EN-1.0 |11...
  • Page 12: Notes

    MIL130________________________________________________________________________________ NOTES 12| Operating Manual ver. MIL130-EN-1.0...
  • Page 13 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. MIL130-EN-1.0 |13...
