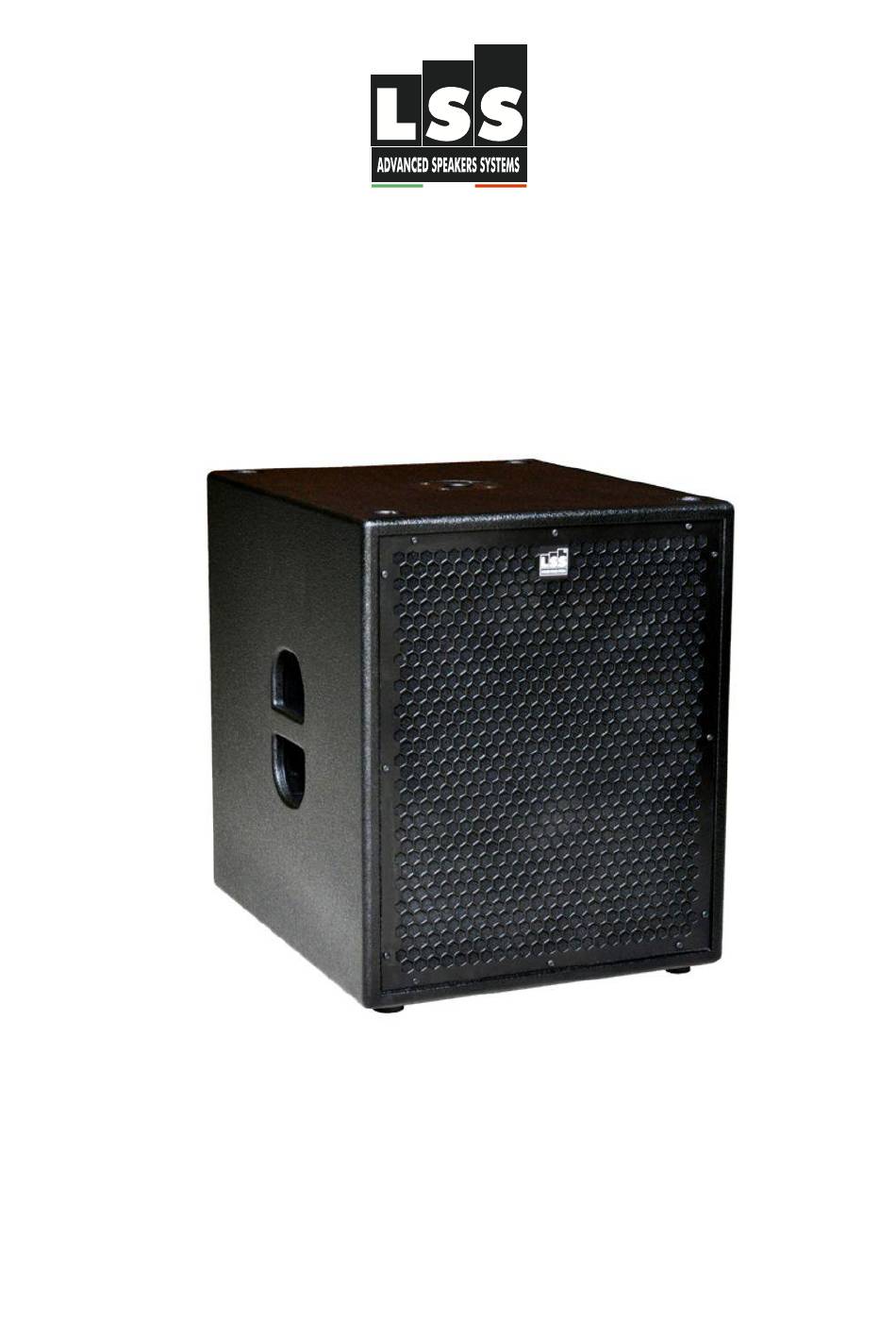

- Page 1 PROFESSIONAL AUDIO SYSTEM PSUB1 OPERATING MANUAL Ver. PSUB1-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 TROUBLESHOOTING ..........................11 DIMENSIONS ..............................12 NOTES ................................13 Operating Manual ver. PSUB1-EN-1.1 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Application

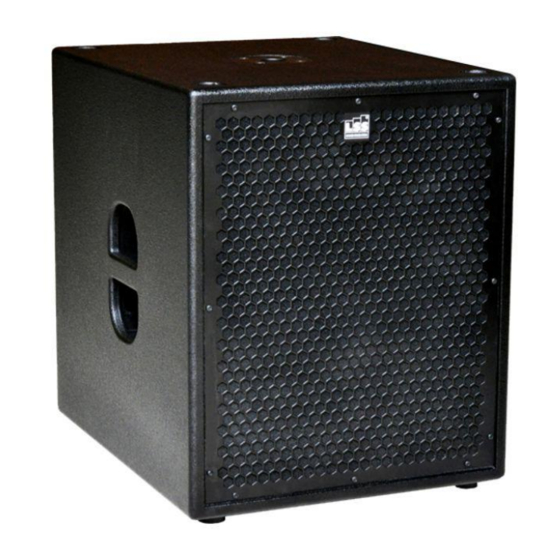

PSUB1________________________________________________________________________________ APPLICATION LSS's PSUB1 loudspeaker is a compact reflex subwoofer system that provides high output, low distortion sound reinforcement. This system was designed for a wide range of professional applications. The 380 mm (15") low frequency woofer with 100 mm (4") voice coil provides higher performance and very high peak output for small concert sound. -
Page 7: Technical Specifications
Nominal Dispersion (@ -6 dB) units and configuration Birch Plywood of 18 mm [0.71 Enclosure material inches] Texture poliurethanic black Finish paint MECHANYCAL Powder coated perforated steel Grille with anti-dust foam Connectors 2 Neutrik NL4 Speakon Operating Manual ver. PSUB1-EN-1.1 |7... -
Page 8: Installation And Wiring
It is possible to install more PSUB1 in stack configuration making fit Top Sub’s feet in bottom sub’s recesses On the top and side of PSUB1 there is a plate for fixation of a pole, it can be used to install another speaker. - Page 9 2 Ohms 1.8 Ohms NL4 Pin Configuration Mixer Caution: Do not exceed the Pins 1+ and 1- Used maximum load rating of Pins 2+ and 2- Not Used the amplifier. You can now use the system Operating Manual ver. PSUB1-EN-1.1 |9...
-
Page 10: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 11: Troubleshooting
Poor system hissing, grounding or ground Check and correct the system grounding, as required. humming loop If these suggestions do not solve your problem, contact your nearest LSS dealer or LSS distributor. Operating Manual ver. PSUB1-EN-1.1 |11... -
Page 12: Dimensions
PSUB1________________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 55cm 45cm 45cm BOTTOM 12| Operating Manual ver. PSUB1-EN-1.1... -
Page 13: Notes
______________________________________________________________________________ NOTES Operating Manual ver. PSUB1-EN-1.1 |13... - Page 14 PSUB1________________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 14| Operating Manual ver. PSUB1-EN-1.1...
