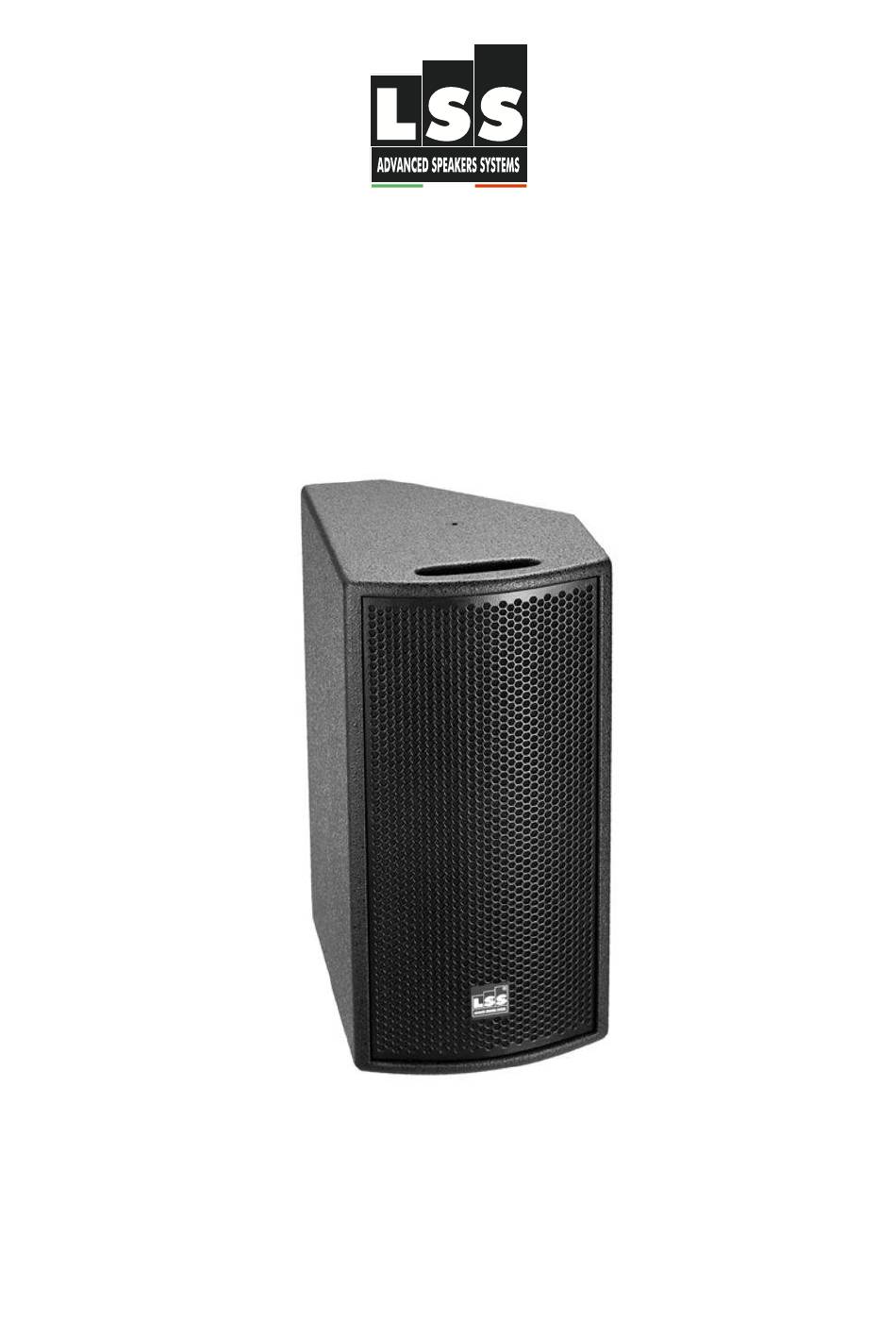

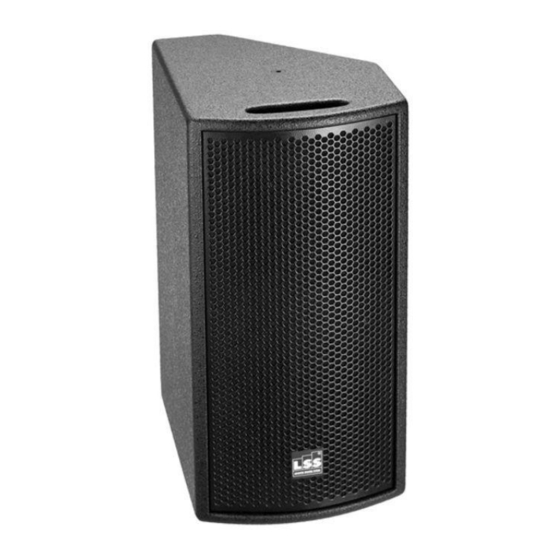

PROFESSIONAL AUDIO SYSTEM
SP220
OPERATING MANUAL
Ver. SP220-EN-1.1
LSS Advanced Speaker Systems
Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP220 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LSS SP220

  • Page 1 PROFESSIONAL AUDIO SYSTEM SP220 OPERATING MANUAL Ver. SP220-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
  • Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
  • Page 3: Table Of Contents

    SUMMARY INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 DIMENSIONS ..............................11 NOTES ................................12 Operating Manual ver. SP220-EN-1.1 |3...
  • Page 4: Introduction

    LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions.
  • Page 5: Safety And Warning

    LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC.
  • Page 6: Application

    SP220_________________________________________________________________________________ APPLICATION LSS’s SP220 is a 2-Way loudspeaker system designed for use in portable or fixed installations, it can be used as a dedicated top-box or personal mini- monitor and should be supported by subwoofer below 100 Hz. SP220 uses one 200 mm (8”) mid-woofer in Ferrite with a high excursion voice coil of 51mm (2”) and a driver from 25 mm (1”) in Mylar on a rotatable...
  • Page 7: Technical Specifications

    Birch Plywood of 15 mm [0.59 Enclosure material inches] Texture polyurethanic black Finish paint 4 point mounting suspension, U Suspension Bracket MECHANYCAL Powder coated perforated steel Grille with anti-dust foam Connectors Neutrik Speakon NL4 Optional Accessories Speaker Soft Bag Operating Manual ver. SP220-EN-1.1 |7...
  • Page 8: Installation And Wiring

    SP220_________________________________________________________________________________ INSTALLATION AND WIRING SP220 speaker can be mounted to the wall using its own bracket or on the floor as monitor. There are two plates provided with the speaker: one of them must be installed when using a mount pole, the other one must be used when using the mounting bracket to fix it.
  • Page 9 IN is the input connector and must be connected to the amplifier, ‘OUT’ is a LINK OUT and can be connected to other systems. Channel 2 has been linked from In to the out. You can now use the system Operating Manual ver. SP220-EN-1.1 |9...
  • Page 10: Weee Directive

    Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities.
  • Page 11: Dimensions

    ______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 31,5cm 24cm 8,5cm BOTTOM Operating Manual ver. SP220-EN-1.1 |11...
  • Page 12: Notes

    SP220_________________________________________________________________________________ NOTES 12| Operating Manual ver. SP220-EN-1.1...
  • Page 13 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. SP220-EN-1.1 |13...
