PROFESSIONAL AUDIO SYSTEM
SP530A
OPERATING MANUAL
Ver. SP530A-EN-1.1
LSS Advanced Speaker Systems
Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SP530A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LSS SP530A

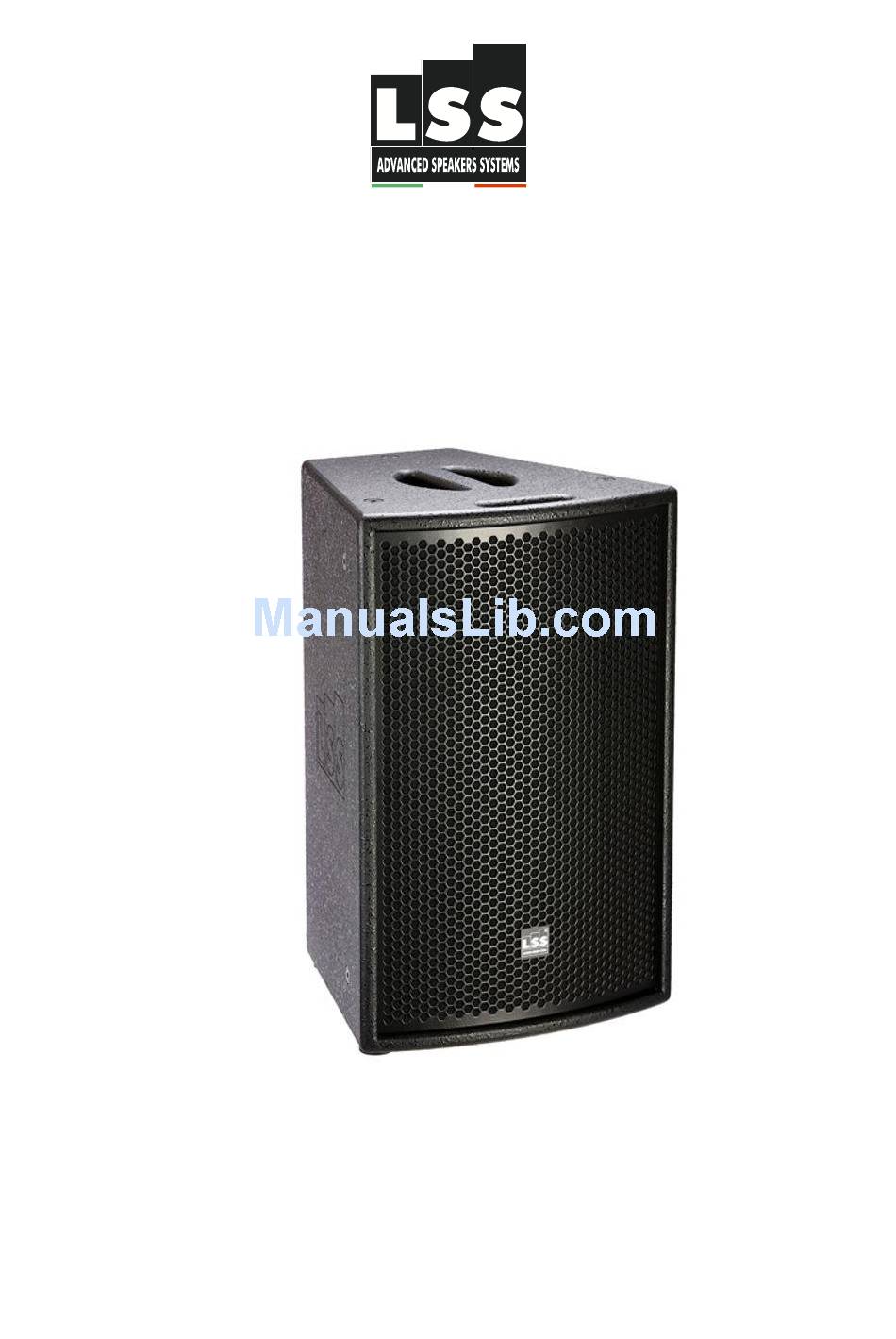

  • Page 1 PROFESSIONAL AUDIO SYSTEM SP530A OPERATING MANUAL Ver. SP530A-EN-1.1 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
  • Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
  • Page 3: Table Of Contents

    SUMMARY INTRODUCTION ............................4 SAFETY AND WARNING ..........................5 APPLICATION ..............................6 PHYSICAL DESCRIPTION ........................... 6 TECHNICAL SPECIFICATIONS ........................7 INSTALLATION AND WIRING ........................8 WEEE DIRECTIVE ............................10 DIMENSIONS ..............................11 NOTES ................................12 Operating Manual ver. SP530A-EN-1.1 |3...
  • Page 4: Introduction

    LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions.
  • Page 5: Safety And Warning

    LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC.
  • Page 6: Application

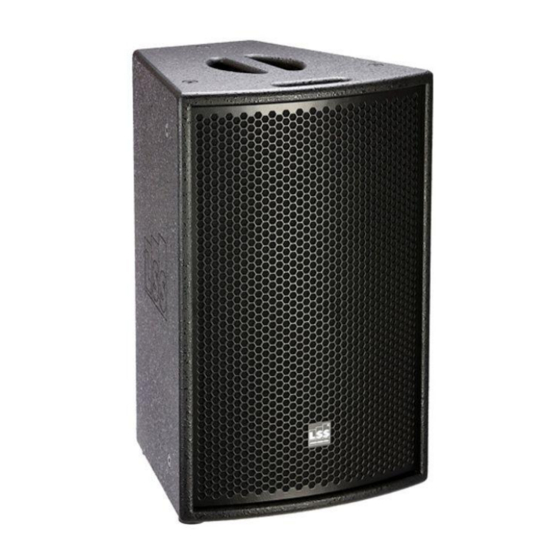

    SP530A________________________________________________________________________________ APPLICATION LSS's SP530A is a self powered loudspeaker system that provides high output, low distortion sound reinforcement for the entire range of pro audio applications. The 320 mm (12") low frequency cone with 75 mm (3") voice coil and 44 mm (1.75") voice coil high frequency compression driver...
  • Page 7: Technical Specifications

    Suspension 12 Point Mounting Suspension Powder coated perforated steel Grille MECHANYCAL with anti-dust foam Neutrik XLR In & Out + Connectors AC Power: 240V, VDE Connector Fly Clip with Ring, Speaker Optional Accessories Soft Bag Operating Manual ver. SP530A-EN-1.1 |7...
  • Page 8: Installation And Wiring

    It is possible to install a maximum of three speakers in cascade using eyebolts. Use plugs suitable to support the weight of the entire apparatus. Bracket with Screws Pole Mount Plate 8| Operating Manual ver. SP530A-EN-1.1...
  • Page 9 P1 – preset 1 (green): indicates the factory presets SMOOTH P2 – preset 2 (green): indicates the factory presets VOCAL P3 – preset 3 (green): indicates the factory presets LOUD P4 – preset 4 (green): indicates the factory presets FLAT Operating Manual ver. SP530A-EN-1.1 |9...
  • Page 10: Weee Directive

    Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities.
  • Page 11: Dimensions

    ______________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 39,5cm 39cm 19,5cm BOTTOM Operating Manual ver. SP530A-EN-1.1 |11...
  • Page 12: Notes

    SP530A________________________________________________________________________________ NOTES 12| Operating Manual ver. SP530A-EN-1.1...
  • Page 13 ______________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it Operating Manual ver. SP530A-EN-1.1 |13...
