- Page 1 PROFESSIONAL AUDIO SYSTEM SB17 OPERATING MANUAL Ver. SB17-EN-1.0 LSS Advanced Speaker Systems Via On. Longo 53-89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it...
- Page 2 Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.
-
Page 3: Table Of Contents
BUMPER AND SYSTEM HANGING ..................... 15 ARRAY SIMULATOR SOFTWARE ....................... 16 INSTALLATION ON A POLE ........................17 TRANSPORT OF SPEAKERS ....................... 18 ELECTRICAL CONNECTION......................... 19 WEEE DIRECTIVE ............................21 DIMENSIONS ..............................22 NOTES ................................23 Operating Manual ver. SB17-EN-1.0 |3... -
Page 4: Introduction
LSS produces professional audio products – the result of exceptional engineering and meticulous craftsmanship. This manual is intended for use with LSS loudspeaker. This includes: safety precautions; installation, set-up and operating instruction. Please read this manual plus any accompanying manual and follow all relevant precautions and instructions. -
Page 5: Safety And Warning
LSS loudspeakers can produce sound levels capable of causing permanent hearing damage from prolonged exposure. The higher the sound level, the less exposure needed to cause such damage CAUTION: This product is energized as long as it is connected to the AC. -
Page 6: Controls And Inspections
The flow rates of suspension accessories provided by LSS are certified by a qualified consultant external to the Company. The original document is available at the LSS office. -
Page 7: Application

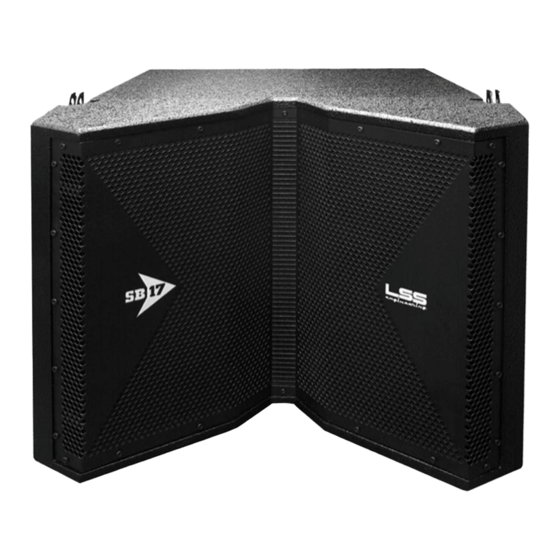

ST17. It is ideal for creating a vertical array systems with a ratio of one sub with two ST17. SB17 can be used as main system in the wider range of professional audio applications. The ultra-compact design is intended to fulfil... -
Page 8: Technical Specifications
[0.59 inches] Texture poliurethanic black Finish paint Powder coated perforated Grille MECHANYCAL steel with anti dust foam Connectors 2 Neutrik NL4 Speakon Flight Case for 2 SB17(optional), Pole mount Accessories cup,coupling and suspension hardware (included) 8| Operating Manual ver. SB17-EN-1.0... -
Page 9: Installation And Wiring
SB17 is an extension module for low-frequency reinforcement of line array ST17 and can be used both in flying or stacking configuration. ST17 and SB17 have the same mounting hardware and similar shape in order to facilitate the creation of arrays. Maximum number of... -
Page 10: Mounting The Array
Bottom RiggingHoles Bottom RiggingHoles The bracket with rigging holes has a female side and a male side in order to facilitate the snap-in mounting of more speakers. Female side of bracket Male side of bracket 10| Operating Manual ver. SB17-EN-1.0... - Page 11 ______________________________________________________________________________ Overlap the speakers aligning the rigging holes, then secure them with the quick release pins. The bracket for the regulation of inclination is in the rear of the case. Operating Manual ver. SB17-EN-1.0 |11...
- Page 12 SB17__________________________________________________________________________________ Rear brackets of two overlapping speakers must be connected via the connecting bracket. Align the holes in the desired position, then secure them with the quick release pins. 12| Operating Manual ver. SB17-EN-1.0...
- Page 13 Value of the degrees of inclination for each hole are shown on the printed label on the plate: 0°-1.25°-2.5°-3.75°-5°-6.25°-7.5°-8.75°-10°. SB17 LABEL Sub'sPlates Regulation Holes Connecting ST17 LABEL Bracket Speaker’sPlat ST17 400W 16 Ohm Bottom Speaker’sPlates Operating Manual ver. SB17-EN-1.0 |13...
-
Page 14: Installation On Bumper
The fixing method of the first case to the bumper takes place in the same way of fastening between multiple speakers:attach the speaker to the sides via rigging holes, then connect the rear bracket adjusting the inclination. 14| Operating Manual ver. SB17-EN-1.0... -
Page 15: Bumper And System Hanging
Bumper can be fixed to the ceiling or other supports via holes for bumper suspensionor the holes for suspension and regulation of inclination using eyebolts and a chain or a rope able to support the weight of the entire apparatus. Operating Manual ver. SB17-EN-1.0 |15... -
Page 16: Array Simulator Software
To know exactly these angles for optimal installation,equip with an inclinometer and use the software ‘Array Simulator’* of LSS. After inserting the information of the speakers system and installation location, ‘Array Simulator’... -
Page 17: Installation On A Pole
______________________________________________________________________________ *To receive the software or to have more information, contact your LSS distributors or send an email to tech@lss.it. INSTALLATION ON A POLE To install the speakers on a pole, it is necessary to use the dedicated hardware: bumper and pole mount cup. -
Page 18: Transport Of Speakers
SB17__________________________________________________________________________________ TRANSPORT OF SPEAKERS If you need to move the speakersit is possible touse a flight case on wheels. It may contain up to Two SB17. 18| Operating Manual ver. SB17-EN-1.0... -
Page 19: Electrical Connection
In the connection panel there are two Speakon NL4 connectors referred as ‘IN’ and ‘OUT’. IN is the input connector and must be connected to the amplifier, ‘OUT’ can be used to connected other systems. Woofer of SB17 is connected on pins 1+ 1-. Operating Manual ver. SB17-EN-1.0 |19... - Page 20 SB17__________________________________________________________________________________ To use an array with ST17 and SB17 is necessary an external digital processor with custom setup provided by LSS. One output channel drive the SB17 and another one drive the ST17. If your amplifier can manage a 2 Ohms Load...
-
Page 21: Weee Directive
Warning: If the product is used for business purposes, the following steps to delete it: contact your LSS dealer for information about the product recall. Might be charged for the costs of collection and recycling. Small products (and amounts) might be taken back by your local collection facilities. -
Page 22: Dimensions
SB17__________________________________________________________________________________ DIMENSIONS SIDE FRONT REAR 47,6cm 58cm 58cm BOTTOM 22| Operating Manual ver. SB17-EN-1.0... -
Page 23: Notes
______________________________________________________________________________ NOTES Operating Manual ver. SB17-EN-1.0 |23... - Page 24 SB17__________________________________________________________________________________ CONTACT INFORMATION: LSS Advanced Speaker Systems Via On. Longo 53 89024 Polistena (RC) ITALY Tel (39) 966 9321299 – Fax (39) 966 933007 Email: info@lss.it - Internet: www.lss.it 24| Operating Manual ver. SB17-EN-1.0...
