Portage Peak Modual Chaise
SKU# 272-1957 / 272-1962 / 272-1967 / 272-1972
MISSING PARTS? DAMAGED PARTS?
DON'T GO BACK TO THE RETAILER.
WE CAN HELP YOU FASTER.
Please email to:
service@sunwellgarden.com
Or leave a message: 1-888-733-8169
Monday-Friday 9AM - 5PM EST

Advertisement

loading
Need help?

Need help?

Do you have a question about the Portage Peak 272-1957 and is the answer not in the manual?

Questions and answers

Related Manuals for Backyard Creations Portage Peak 272-1957

Summary of Contents for Backyard Creations Portage Peak 272-1957

  • Page 1 Portage Peak Modual Chaise SKU# 272-1957 / 272-1962 / 272-1967 / 272-1972 MISSING PARTS? DAMAGED PARTS? DON'T GO BACK TO THE RETAILER. WE CAN HELP YOU FASTER. Please email to: service@sunwellgarden.com Or leave a message: 1-888-733-8169 Monday-Friday 9AM - 5PM EST...

  • Page 2: Part List

    PART LIST CODE IMAGE PARTS CODE IMAGE PARTS MEDIUM LEFT ARM BOLT LONG RIGHT ARM BOLT CHAISE WASHERS BACK LOVESEAT HEX KEY BACK CHAISE CHAISE SEAT PANEL SEAT CUSHION LOVESEAT LOVESEAT SEAT CUSHION SEAT PANEL SHORT BACK BOLT CUSHIONS STEP 1: Attach chaise back (C ) to chaise seat (E) with 2 medium bolts (H) and 2 washers (J) using hex key (K).

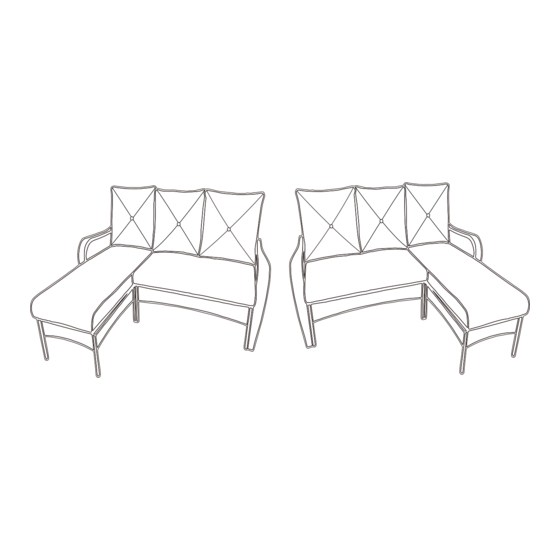

  • Page 3 STEP 2: Attach loveseat back (D ) to loveseat seat panel (F) with 3 medium bolts (H) and 3 washers (J) using hex key (K). Do not fully tighten bolts. Important: The chaise and loveseat can be configured in two ways. See pictures below.
  • Page 4 STEP 4: Attach loveseat seat (F) to chaise seat (E) with 2 short bolts (G) and 2 washers (J) using hex key (K). Do not fully tighten bolts. STEP 5: Attach left arm (A) and right arm (B) to chaise back (C) and loveseat back (D) with 4 medium bolts (H) and 4 washers (J) using hex key(K).
  • Page 5 STEP 6: Attach left arm (A) and right arm(B) to chaise seat (E) and loveseat seat (F) with 4 short bolts (G) and 4 washers (J) using hex key(K). Verify the alignment and adjust, then fully tighten all the bolts.
  • Page 6 Option 2 STEP 7: Tie the chaise seat cushion (L), loveseat seat cushion (M) and back cushions (N) onto the seat.

This manual is also suitable for:

Portage peak 272-1962Portage peak 272-1967Portage peak 272-1972
