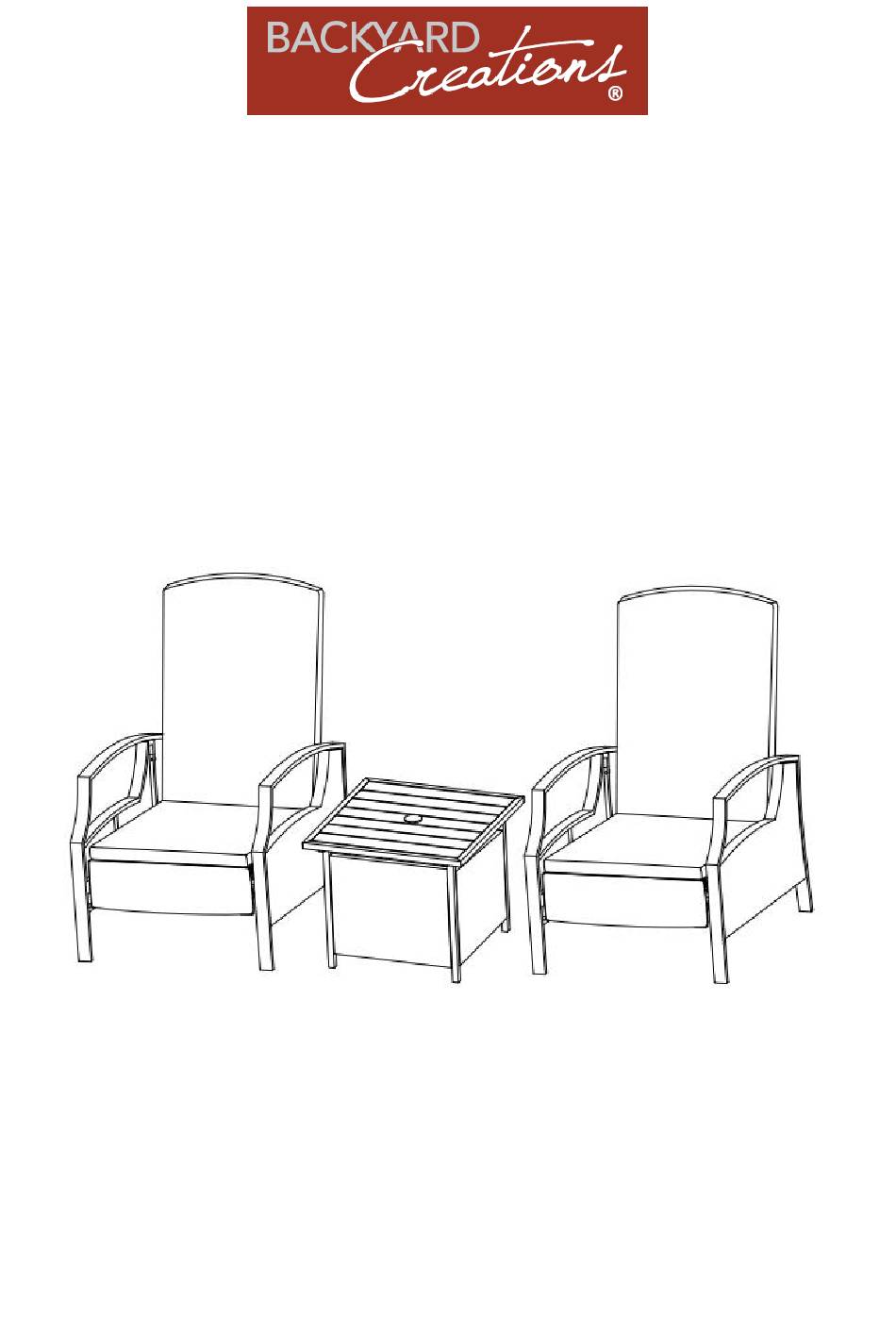

- Page 1 Owner’s Manual Marquette 3-Piece Wicker Reclining Set Model Number: MAR-3PC-SET SKU Number: 272-1861 1 of 12...
-
Page 2: Parts List
Parts List Marquette Reclining Chair (2) Letter Illustration Description Qty. Letter Illustration Description Qty. Left Recliner Right Arm Extension Recliner Left Arm Extension Support Bar M8 x 40mm Hex Back Frame Bolt M6 x 35 mm Seat Frame Bolt M6 x 32 mm Leg Rest Frame Bolt Footrest Frame... - Page 3 Letter Illustration Description Qty. Letter Illustration Description Qty. M8 Steel Washer M6 Bolt Cap Small Plastic M6 Nut Cap Spacer M6 Nut M8 Bolt Cap Seat/Back Allen Wrench Cushion Leg Rest M6 Open Cushion Wrench Footrest M8 Open Cushion Wrench 3 of 12...
- Page 4 Assembly Instructions Marquette Reclining Chair Note: For video instructions please visit: https://insideout.store/video-assembly-instructions/ Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before beginning to assemble the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
- Page 5 Step 1.2: Attach Recliner Extension Support Bar (J) to Right Recliner Extension (H) and Left Recliner Extension (I) using Bolt (M) and Large Plastic Spacers (O). See Figure 1B. Figure 1B Step 1.3: Attach the Leg Rest Frame (E) to the Right Recliner Extension (H) and Left Recliner Extension (I) using Bolts (N) and Washers (P).
- Page 6 Step 1.4: Attach the Footrest Frame (F) to the Right Recliner Extension (H) and Left Recliner Extension (I) using Bolts (N) and Washers (P). See Figure 1D. Tighten all bolts. Figure 1D Step 2: Reclining Chair Assembly Step 2.1: Attach the Front and Back of Right Recliner Extension (H) to the inside bottom of Seat Frame (D) using Bolts (M), Washers (P), and Nuts (S).
- Page 7 Step 2.2: Attach Right Arm (A) and Left Arm (B) to Seat Support Frame (G) using Hex Bolts (K) and Washers (Q). See Figure 2B. Tighten bolts. Figure 2B Step 2.3: Attach the Back Frame (C) to the Seat Frame (D) using Bolt (M), Washer (P), Small Plastic Spacer (R), then Washer (P) and Nut (S) for the “Top Hole”...
- Page 8 Step 3: Attach Bolt Caps (W, Y) and Nut Caps (X). See Figure 3A. Figure 3A Step 4: Attach Seat/Back Cushion (T), Leg Rest Cushion (U) and Footrest Cushion (V) with Velcro straps. See Figure 4A. Figure 4A Note: Please see our video for additional assembly assistance: https://insideout.store/video-assembly-instructions/ 8 of 12...
- Page 9 Parts List Marquette Side Table Letter Illustration Description Qty. Letter Illustration Description Qty. M6 x 32 mm Tabletop Bolt M6 x 20 mm Legs Bolt Legs M6 Steel Washer Wicker Side M6 Bolt Cap Panel Wicker Side Allen Wrench Panel Umbrella Hole Cover 9 of 12...
- Page 10 Assembly Instructions Marquette Side Table Note: For video instructions please visit: https://insideout.store/video-assembly-instructions/ Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before beginning to assemble the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
- Page 11 Step 2: Side Panel Assembly Step 2.1: Attach Wicker Side Panels (D) to opposite sides using Bolts (G) and Washers (I). See Fig 2A. Note: Hole alignment for wicker Side Panels (D & E) is different. Step 2.2: Repeat for Wicker Side Panels (E). See Fig 2A. Step 2.3: Tighten all bolts for Legs (B &...
-
Page 12: Warranty
Care & Maintenance Maintain your outdoor furniture by using furniture covers or storing out of the elements when not in use. Frame: Clean frames with a mild soap and warm water. Do not use abrasive materials, cleaners or bleach. Rinse with clean water and dry thoroughly.
