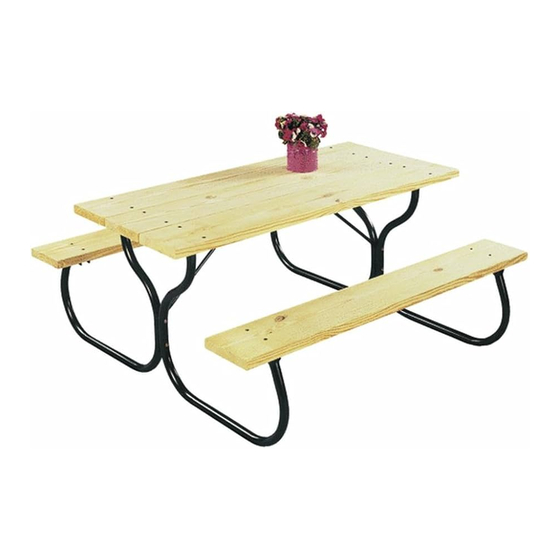

- Page 1 SKU 272-0095/FC-30-MN USE AND CARE GUIDE Picnic Table Kit Questions, problems, missing parts? Please call Customer Service:1-800-800-4950 warranty © 2018 Jack-Post Corporation BC-ZI-2040 09/18...
- Page 2 SKU 272-0095/FC-30-MN Contents Do Not Return ..................02 Instructions ...................03 Customer Service Contact Info............10 DO NOT RETURN THIS ITEM TO THE STORE If you experience any difficulty with assembly, missing parts or use, DO NOT please return this item to the store.
- Page 3 SKU 272-0095/FC-30-MN Picnic Table Kit Assembly Instructions – Model FC-30 Open outer hardware bag HB-2020 © 2018 Jack-Post Corporation 09/18...
-
Page 4: Hardware Parts List
SKU 272-0095/FC-30-MN LARGE PARTS (NOT TO SCALE) BRACKET (2) BRACE (2) LEG (4) HARDWARE PARTS LIST (SHOWN TO SCALE) 3-1/4" • 82mm CARRIAGE BOLT (8) 2" • 50mm CARRIAGE BOLT (14) 2" • 53mm SLOTTED HEAD SCREW (4) HEX NUT (30) 2-5/8"... - Page 5 SKU 272-0095/FC-30-MN MATERIAL PLAN 4 FOOT LONG TABLE 6 FOOT LONG TABLE 8 FOOT LONG TABLE LUMBER CUT SIZES LUMBER CUT SIZES LUMBER CUT SIZES Pcs. Length Size Pcs. Length Size Pcs. Length Size Pcs. Length Size Pcs. Length Size Pcs.
- Page 6 SKU 272-0095/FC-30-MN LEG (4) LEG ASSEMBLY BRACE 1/4" BRACE 1/4" HEX NUT THIS ANGLE MUST BE 90º 3-1/4" CARRIAGE BOLT 2-5/8" SLOTTED TABLE 2" CARRIAGE SCREW 1/4" BOLT HEX NUT 1/4" HEX NUT STEPS 3 & 4 1/4" HEX NUT 2"...
- Page 7 SKU 272-0095/FC-30-MN STEP 3 Insert four 2" carriage bolts into counterbored holes in cleat. 2" CARRIAGE BOLT (4) GLUE WOODEN CLEAT STEP 3A Before nailing cleat, cover the mating surface of the cleat with a coat of white glue. STEP 3B When attaching cleat, nails driven straight in are easily pulled out, but when angled, reinforce one another.
- Page 8 SKU 272-0095/FC-30-MN SEAT STEP 1 Select four 10" x 2" x 4" cleats. Locate and drill two 1/4" diameter holes in each cleat, as shown. Counterbore each of the holes with a 5/8" bit to a depth of approximately 1/8". This will allow clearance for the carriage bolts in STEP 4.
-
Page 9: Final Assembly
SKU 272-0095/FC-30-MN FINAL ASSEMBLY STEP 1 Attach two tubular legs to angle bracket with 2" slotted head screws and 1/4" hex nuts. STEP 2 Fasten the two tubular legs together with two 2-5/8" slotted head screws, fastening brace between legs through hole, as shown. - Page 10 SKU 272-0095/FC-30-MN Customer Service Questions, problems, missing parts? Please call Customer Service: 1-800-800-4950 For more information about warranty, please visit WWW.JACK-POST.COM / Warranty . CORPORATION 800 East Third Street Buchanan, Michigan 49107-1803 Customer Service 1-800-800-4950 Mon. thru Fri. 8:00am – 8:00pm EST E-mail cs@jack-post.com...
