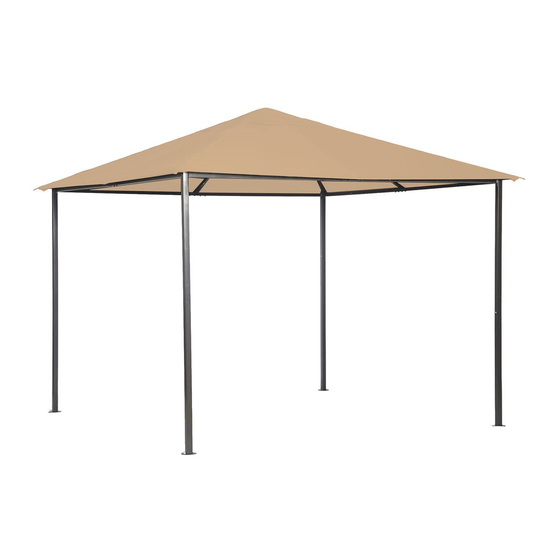

FREMONT 10' X 10' ROOF STYLE GARDEN HOUSE
SKU# 272 2094
Model # 5SGZ2021-NN
CAUTION
This is NOT a permanent structure.
The canopy top should never be left on during periods of extended or heavy rain
nor any inclement weather where high winds or wind gusts can occur.
If left up, damage to the gazebo and surroundings can occur.
If you have questions or concerns, do not return to store. Please call toll free
888-445-4533.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Backyard Creations 5SGZ2021-NN
Summary of Contents for Backyard Creations 5SGZ2021-NN
- Page 1 FREMONT 10' X 10' ROOF STYLE GARDEN HOUSE SKU# 272 2094 Model # 5SGZ2021-NN CAUTION This is NOT a permanent structure. The canopy top should never be left on during periods of extended or heavy rain nor any inclement weather where high winds or wind gusts can occur.
- Page 2 Table of Contents Table of Contents ............2 Safety Information ............2 Care Instructions ............2 Part List................3 Assembly ..............4~11 Safety Information WARNING: of any foreign WARNING: This garden house Gazebo is NOT a permanent structure and is designed for sunshade and privacy and must be used under normal weather conditions.
- Page 3 Part List Quantity Illustration Part Cross beam Joint Corner post Corner roof tube Middle roof tube Roof hub Canopy Fabric Guide rope Bolt (M6x15) Bolt (M6x30) Bolt (M6x50) Washer(M6) FF/GG Wrench Ground stake...
- Page 4 Step 1 Assembling Cross Beams Slide cross beams (A) into the joint (B). Align these beams to the joint properly. Secure the cross beams to the joint with bolts (CC), washers (EE) and nuts (DD) using wrenches (FF) and (GG). Fully tighten all bolts and nuts. DD DD Step 2 Erecting the main frame AA A...
- Page 5 Step 3 Attaching Corner Roof Tubes Put the ladder at the center of the frame. Identify the corner receivers on the roof hub (F). At the top of the ladder, hold the roof hub (F) in the air with the four corner receivers pointing to the four corners of the main frame.
- Page 6 Step 4 Attaching Middle Roof Tubes Snap middle roof tubes (E) into the remaining receivers of the roof hub (F). Attach the other end of each middle roof tube (E) to the U-bracket (2) of each joint (B) with bolt (BB) and nut (DD) using wrenches (FF) and (GG). click!
- Page 7 Step 5 Putting on the Canopy Fabric Place the canopy fabric on the roof frame. Open the canopy fabric and pull the corner pockets (3) to the corners of the roof frame. Cover the end of each corner roof tube (D) with one pocket (3) . Cover the end of each middle roof tube (E) with one pocket (4).
- Page 8 Step 6 Staking and Anchoring the Gazebo Carefully adjust the position of the gazebo and make sure four corner posts are standing upright. Hammer one ground stake (HH) through the hole at the bottom of each corner post (C) into ground. Secure one end of each guide rope (H) to the loop (5) in the corner of the canopy fabric.
