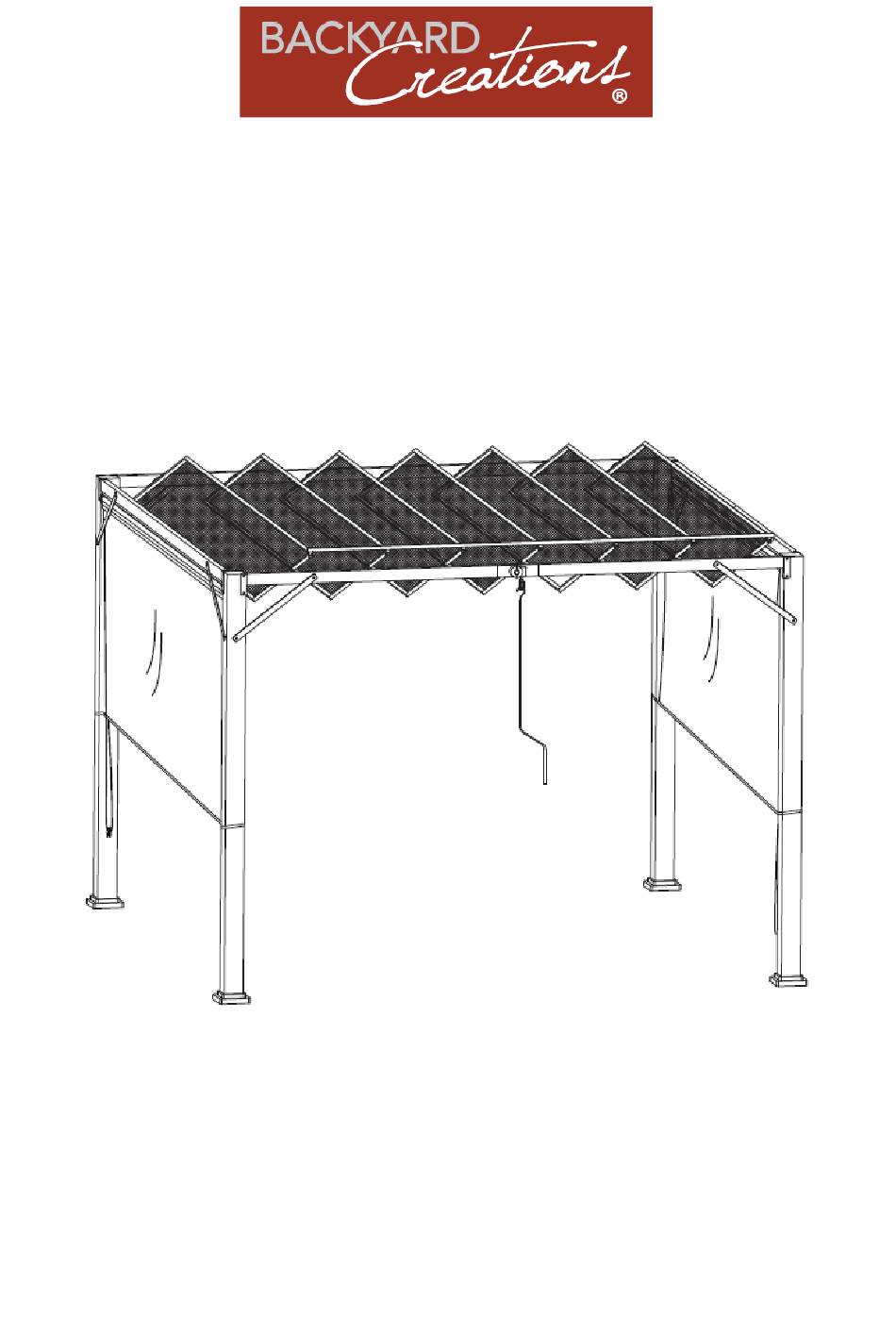

Backyard Creations PERG-1111 Owner's Manual

10' x 10' brunson pergola

Advertisement

Quick Links

Owner's Manual
10' x 10' Brunson Pergola
Model Number: PERG-1111
SKU Number: 272-1153
Note: This pergola frame is designed to be used as a permanent fixture on level surface.
1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the PERG-1111 and is the answer not in the manual?

Questions and answers

Judy Kirby
May 11, 2025

Where can I find the replacement for rotating device for Backyard Creations® 10' x 10' Brunson Pergola

1 comments:
Mr. Anderson
May 20, 2025

You can obtain a replacement rotating device for the Backyard Creations PERG-1111 by contacting the manufacturer’s customer service. Call 1-888-607-4417 or email service@iso-intl.net, available Monday to Friday, 8:00 a.m. to 5:00 p.m. Central Time.

This answer is automatically generated

Mike gellin
April 21, 2025

Need rotating device for perg 1111 C2 in manual

1 comments:
Mr. Anderson
May 11, 2025

The rotating device for the Backyard Creations Pergola model PERG-1111 is part C2. It is attached to the exterior of the Lintel with Rotating Device (part D) using M6 x 15mm bolts with washers (part M). It works with the Rotating Device Connector (part K), which is inserted into the middle hole of the Lintel with Rotating Device. This assembly allows adjustment of the roof panels.

This answer is automatically generated

Summary of Contents for Backyard Creations PERG-1111

  • Page 1 Owner’s Manual 10’ x 10’ Brunson Pergola Model Number: PERG-1111 SKU Number: 272-1153 Note: This pergola frame is designed to be used as a permanent fixture on level surface. 1 of 11...
  • Page 2: Parts List

    Parts List 10’ x 10’ Brunson Pergola Letter Illustration Description Qty. Corner Post Corner Post Roof Panel Panel Connecting Rod Rotating Device Lintel w/Rotating Device Front Lintel Side Lintel Corner Post Brace Roof Adjustment Pole Base Plate 2 of 11...
  • Page 3 Letter Illustration Description Qty. Base Cover Roof Panel Connectors Rotating Device Connector Pull-Down Screen M6 x 15mm Bolt with Washer M6 x 75mm Bolt with Washer M6 x 15mm Bolt Self-Tapping Screw M6 Open Wrench Allen Wrench Allen Wrench Ground Stake 3 of 11...
  • Page 4 Assembly Instructions 10’ x 10’ Brunson Pergola Note: For video instructions please visit: https://insideout.store/video-assembly-instructions/ Important: Read all the instructions before assembly. Failure to do so may result in faulty assembly and ⚫ potential injury. ⚫ Before assembling the product, remove all protective materials, hardware kit(s), and identify all parts packed in the carton are present.
  • Page 5 Step 2: Attach Side Lintel (E) and Front Lintel (D and D1) to the Corner Posts (A1 & A2) using Bolt (M). See Figure 2. Note: Make sure the holes on the Front Lintel (D and D1) are facing inwards. Figure 2 5 of 11...
  • Page 6 Step 3: Attach all Corner Post Braces (F) to the Corner Posts (A1 & A2) and the Lintels (D/D1/E) using Bolts (M). See Figure 3. Figure 3 Step 4: Attach Roof Panel Connectors (J) to the interior of the Front Lintel (D1) and Lintel with Rotating Device (D) using Bolts (O).
  • Page 7 Step 5: Insert Rotating Device Connector (K) into the middle hole of Lintel with Rotating Device (D). See Figure 5. Figure 5 Step 6: Attach Roof Panels (B) to the Roof Panel Connectors (J) using Bolts (M). See Figure 6-1. Attach Rotating Device Connector (K) to Roof Panel (B) using Bolts (M).
  • Page 8 Step 7: Connect the Panel Connecting Rod (C1) to each Roof Panel (B) using Bolts (O). See Figure 7. Figure 7 8 of 11...
  • Page 9 Step 8: Attach Pull-Down Screen (L) to the Side Lintel (E) using Bolts (N). Repeat for opposite side. See Figure 8-1. Attached the plastic anchor on the Pull-Down Screen (L) to the Post (A1) by Self-Tapping Screw (P). See Figure 8.2. Figure 8-1 Figure 8-2 9 of 11...
  • Page 10 Step 9: Secure Pull-Down Screen (L) to Corner Posts (A1 & A2). See Figure 9. Insert the Stake (T) into the ground through Base Plate (H) to fix the gazebo. See Figure 10. Figure 10 Figure 9 Note: Please see our video for additional assembly assistance: https://insideout.store/video-assembly-instructions/ 10 of 11...
  • Page 11: Care And Maintenance

    Care & Maintenance Maintain your outdoor gazebo by removing the canopies and storing out of the elements when not in use, or during hazardous weather conditions (wind, rain, snow, etc.). Frame: Clean frames with a mild soap and warm water. Do not use abrasive materials, cleaners or bleach. Rinse with clean water and dry thoroughly.
