Assembly Instructions • MODEL: 273-5112

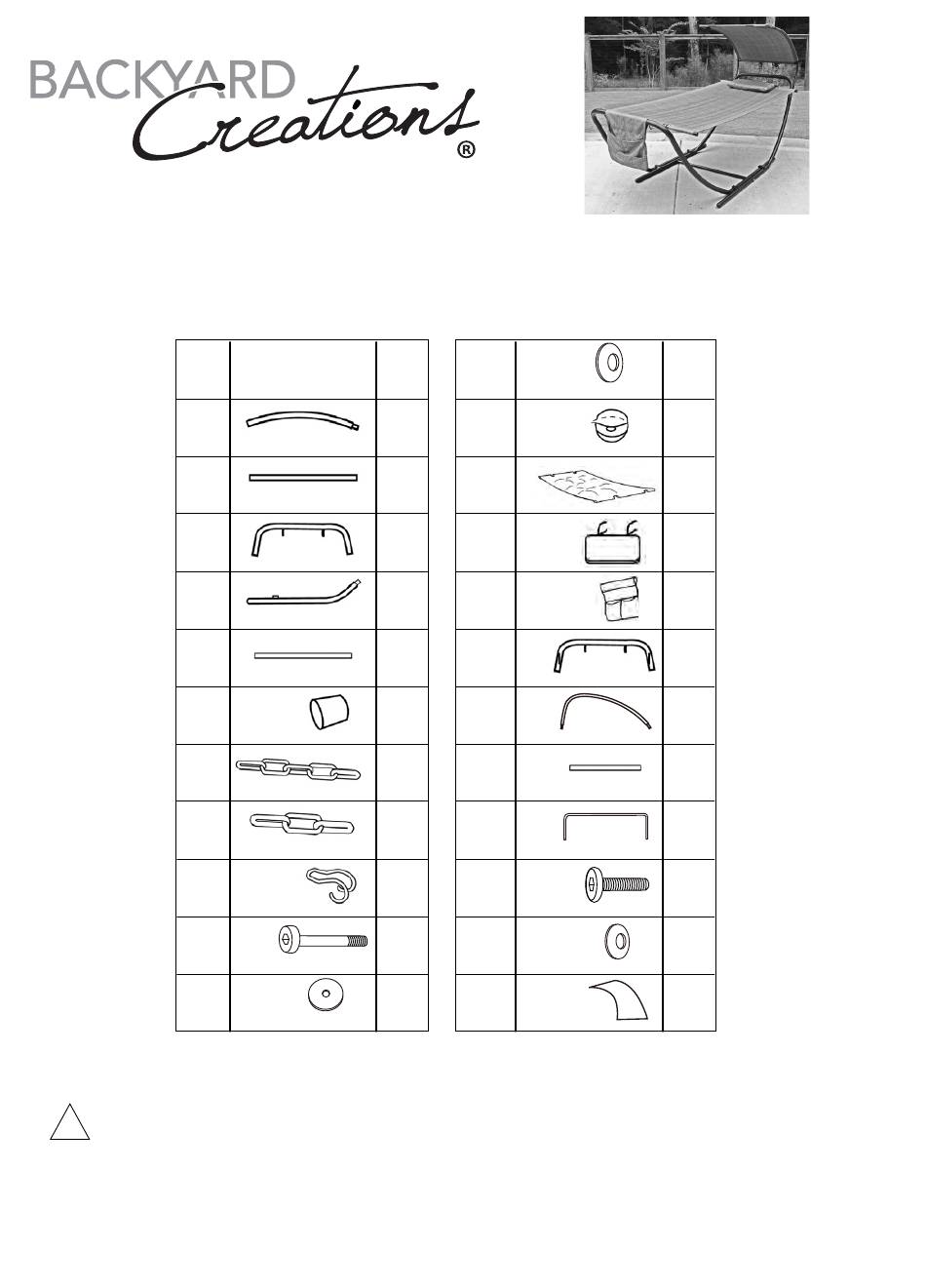

PARTS LIST

PART
NO.
10
11
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE. INTENDED FOR RESIDENTIAL USE ONLY.
!
• Use the correct bolts as indicated. Do not tighten any of the bolts until the hammock is completely assembled.
• Do not discard of any of the packaging until you have checked that you have all of the parts and fittings required.
• Keep children away during assembly. This item contains small parts that can be swallowed by children.
• Children should always be under direct adult supervision while using this product.
• Retain these assembly instructions for future reference.
PART
1
SIDE SUPPORT
2
CROSS BRACE
3
SIDE BEAM A
4
BOTTOM SUPPORT
5
BRACE
6
BRACE CAP
7
5 LINK SUSPENSION CHAIN
8
3 LINK SUSPENSION CHAIN
9
CHAIN CONNECTOR
BOLT M10*115
WASHER d10.5*D32*4
12
QTY
WASHER d10.5*D21*2.0
4
13
PLASTIC END CAP
1
14
FABRIC
1
15
PILLOW
4
16
MAGAZINE BAG
2
17
SIDE BEAM B
4
18
FRONT CANOPY BRACE
4
19
CANOPY CROSS BRACE
2
20
U-SHAPED CANOPY BRACE
4
21
BOLT M6*30
2
22
WASHER D6.5*D13*1.0
2
23
CANOPY
2
2
1
1
1
1
2
1
1
2
2
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 273-5112 and is the answer not in the manual?

Questions and answers

Tim
June 21, 2025

Can’t figure out bottom pipes

Summary of Contents for Backyard Creations 273-5112

  • Page 1 ASSEMBLY INSTRUCTIONS • MODEL: 273-5112 PARTS LIST PART PART WASHER d10.5*D21*2.0 SIDE SUPPORT PLASTIC END CAP CROSS BRACE FABRIC SIDE BEAM A PILLOW BOTTOM SUPPORT MAGAZINE BAG BRACE SIDE BEAM B BRACE CAP FRONT CANOPY BRACE 5 LINK SUSPENSION CHAIN...
  • Page 2 FIGURE 1 Step 1: Position two bottom supports (#4) together facing in opposite directions. See Figure 1. Note: The labelled arrows on the bottom supports (#4) should be facing each other as displayed in Figure 1. Step 2: FIGURE 2 Insert bolt (#10) with washer (#12) through the outside bottom support (#4).
  • Page 3 FIGURE 5 Step 5: Slide the magazine bag (#16) onto one of the side beams A (#3). Press the spring buttons on the side supports (#1) and insert into the side beams (#3 and #17). Make sure that the spring buttons on the side supports (#1) come completely through the holes on the side beams (#3 and #17).
  • Page 4 FIGURE 9 FIGURE 10 Step 9: Step 10: Hang the 3-link suspension chains (#8) to the hooks Insert the canopy cross brace (#19) and U-shaped on one of the side beams (#17), then place pillow canopy brace B (#20) into the sleeves of the canopy (#15) onto the hammock.
  • Page 5 To Fold The Hammock: Step 1: FIGURE 10 Release the safety locks on the bottom supports (#4). See Figure 10. Step 2: Fold the hammock and secure in place by hooking the 3-link suspension chains (#8) to the opposite side beams (#3). See Figure 11.
