Bradley Express SS Series Installation Manual
  1. Manuals
  2. Brands
  3. Bradley Manuals
  4. Plumbing Product
  5. Express SS Series
  6. Installation manual

Bradley Express SS Series Installation Manual

Lavatory system
Hide thumbs Also See for Express SS Series:
Table of Contents

Advertisement

Quick Links

Download this manual

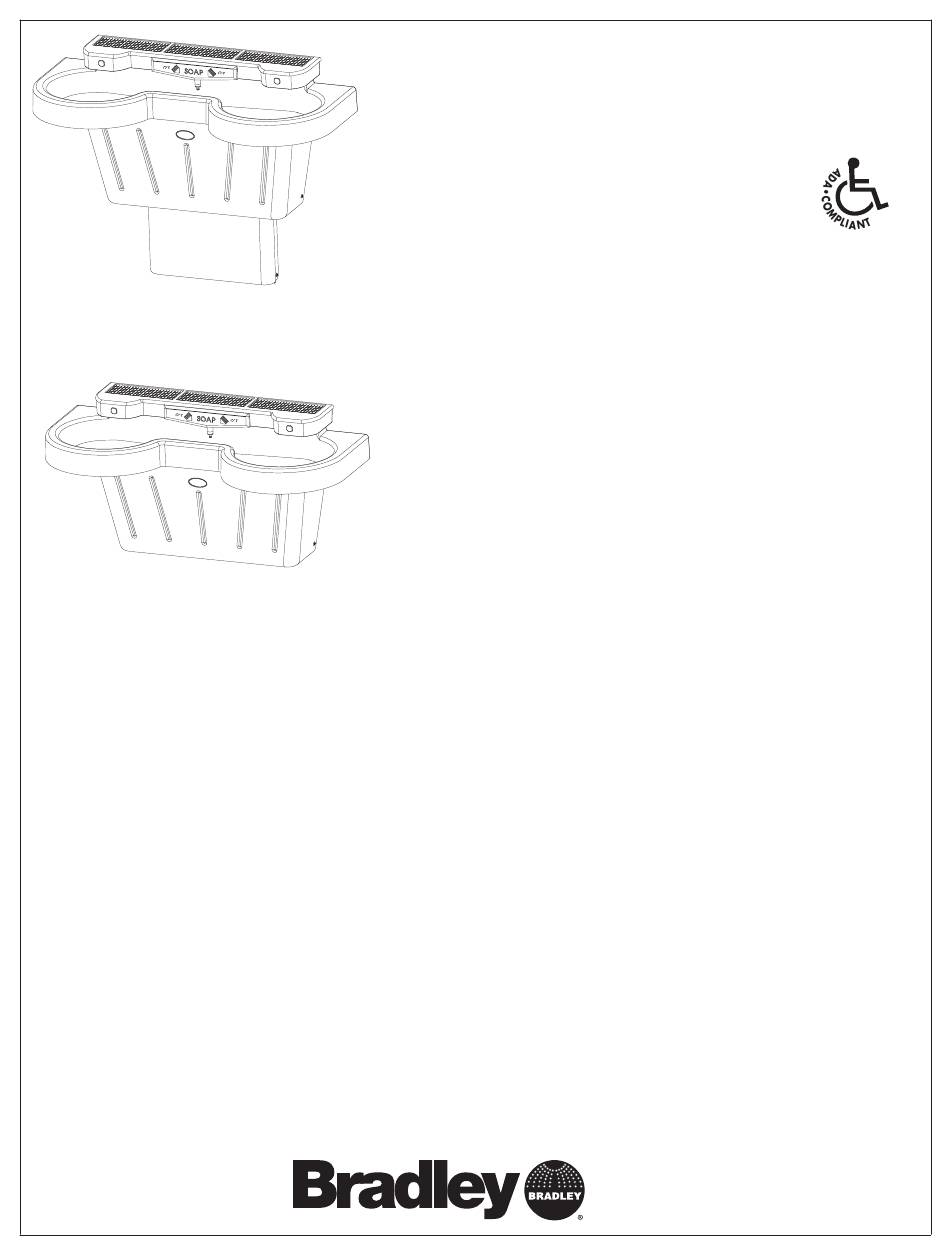

SS-2N/ndt/STD/LSD-2
SS-2N/ndt/WH/LSD-2
215-1576 Rev. F; ECN 08-812
© 2008 Bradley Corporation
Page 1 of 14
7/15/08
Installation
SS-2N/ndt/STD
SS-2N/ndt/WH

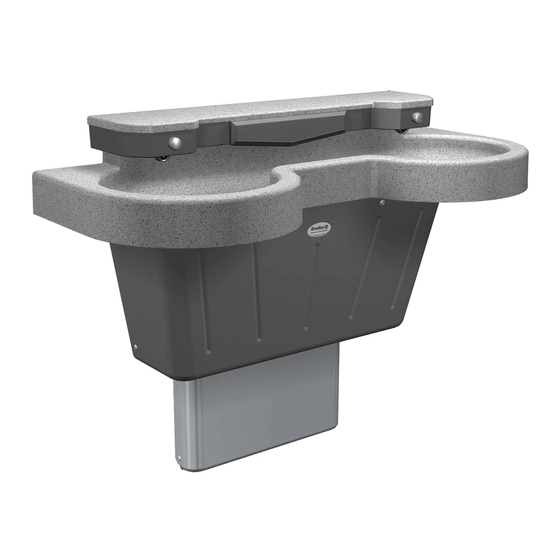

Express® Lavatory System SS-Series
Express Lavatory Systems are ADA and TAS compliant
U.S. Pat. Nos. 5,611,093, D447,224
Other Patents Pending

Table of Contents

Pre-Installation Information . . . . . . . . . . . . . . . . .2
Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Supplies Required . . . . . . . . . . . . . . . . . . . . . . . .4
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5
Rough-Ins . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Solenoid Valve Troubleshooting . . . . . . . . . . . . .11
Stop/Check Valve Troubleshooting . . . . . . . . . . .13
Soap Dispenser Maintenance . . . . . . . . . . . . . .14
P.O. Box 309, Menomonee Falls, WI 53052-0309
Phone: 1-800-BRADLEY
www.bradleycorp.com
Fax: 262-253-4161
