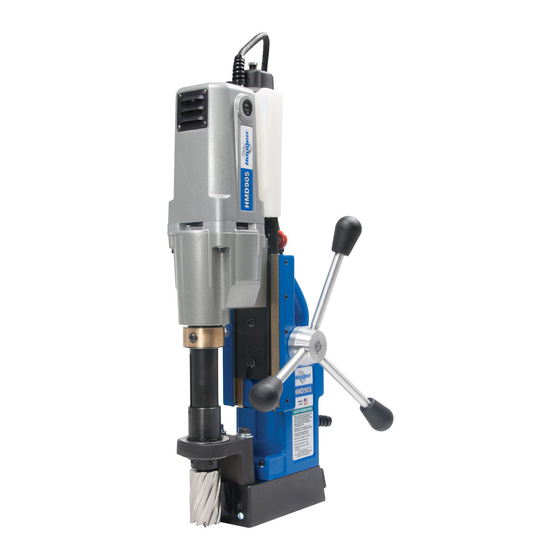

- Page 1 HMD905 SERIES PORTABLE MAGNETIC DRILL Covers Drill Covers Drill Part Numbers: Part Numbers: 0905102 0905108 0905104 0905109 0905105 0905110 OM9050717CSAEF Printed in U.S.A.
-
Page 2: Welcome To Hougen
Portable Magnetic Drill. Your model is designed to produce superior holes quickly and ® efficiently. Through constant innovation and development, Hougen is committed to provide you with hole producing tools and products to help you be more productive. Before attempting to operate your new Portable Magnetic Drill, please read all instructions first. These include the Operator’s Manual and Warning Label on the unit itself. -
Page 3: Important Safety Instructions
WARNING Cutters are sharp. Wear To prevent electric Do not stare at Always wear eye The slug is ejected at gloves when installing shock, do not use operating light. protection while using the end of the cut. Do or removing cutter from power tools near wet cutting tools, or in the not aim cutter or arbor... -
Page 4: Additional Safety Instructions
fire and/or serious personal injury. h) Keep handles and grasping surfaces, clean and Do not use Hougen Cutters where ejected slug might cause Important Safety Instructions - Continued free from oil and grease. Slippery handles and injury (slug ejected at end of cut). -
Page 5: Safety Switch Indicator Light
** SAFETY SWITCH LIGHT WILL COME ON AND REMAIN ON WHILE DRILL IS PLUGGED IN ** The Safety Switch Indicator Light is a Standard Safety Feature on Hougen portable magnetic drills. Its purpose is to inform the user that the lift detector switch is activated. - Page 6 RPM recommendations are based on using your HMD905 drill with Hougen "12,000-Series" H.S.S. Cutters. The RPM’s do not represent optimum speeds for any given cutter diameter and application. For more information refer to Hougen’s Speed & Feed Calculator located on Hougen.com, or call 1-800-426-7818 for Technical Support.
- Page 7 * This method of using coolant can also be used for an attached coolant bottle if the bottle is lost. "12000-Series" 6. For horizontal or drilling overhead holes, use Hougen Cutter Slick-Stik Lubricant. Coolant Reservoir COOLANT BOTTLE ASSEMBLY...
- Page 8 HMD905 MAG BASE DRILL Motor Assembly (see page 12) Coolant Bottle Assembly (see page 7) #4 - Coolant Arbor Assembly Motor/Slide Assembly (see page 11) Control Panel Assembly (see page 10) 07870 FRONT SUPPORT BRACKET ASSEMBLY 07076 COOLANT INDUCER ASM 40301 WASHER-THRUST 1-3/8 X 2-1/16 X 1/32...
- Page 9 HMD905 Breakdowns 07941 Arbor & Front Support Bracket 08112 Arbor & Front Support Bracket - Swivel Item Part # Description 07948 Motor / Slide Assy. Item Part # Description 07831 Coolant Arbor Assy. Non-Swivel 07942 Arbor - Non Coolant 08115 Coolant Arbor Assy.
- Page 10 CONTROL PANEL BREAKDOWN & WIRING 07889 Panel Assembly Item Part # Description 08057 Faceplate 01335 Switch - Motor Off 01334 Switch - Motor On 05335 Mini Toggle Switch Assy. 05336 Mini Toggle Switch Boot 4 & 5 01226 Guard Switch 04614 Magnet Switch 02548...
- Page 11 MOTOR SLIDE ASSEMBLY BREAKDOWN 07948 Motor & Slide Assembly Item Part # Description 07951 Motor Complete Assembly 115V 40038 SCR BHC #10-32 x 5/8 LG 10560 Lock Washer Ext. #10 08062 Bottle Support 07955 Dovetail Slide 08001 Rack Gear 90028 Lock Washer - Helical 1/4 10624 SCR SHC 1/4-20 x 3/4...
-
Page 12: Motor Parts Diagram
MOTOR PARTS DIAGRAM 07952 Motor Assembly Item Part # Description Item Part # Description 08234 SCR SHC #10-32 X 1-5/8 LG 07969 Gear Box Cover 50038 08070 Washer - Lock Helical #10 Washer - Spring 07860 Retaining Ring 08025 SCR - SHC #10-32 x 3-1/4 LG 40274 Bearing 25mm x 47mm x 12mm 07956... -
Page 13: Maintenance
MAINTENANCE In order to minimize wear on moving parts and to insure smoother operation and longer life for your magnetic drill, the following maintenance should be done periodically, based on use. 1. Regularly tighten all fasteners and replace all worn parts. 2. - Page 14 ARBOR & FRONT SUPPORT BRACKET REMOVAL AND INSTALLATION Coolant Arbor Removal 1. Loosen arbor support bracket bolts. 2. Remove screw in coolant inducer. Rotate arbor until arbor screw is in line with hole. 3. Loosen set screw holding arbor onto motor output shaft. 4.
-
Page 15: Hints For Smoother Operation
HINTS FOR SMOOTHER OPERATION 1. Keep the inside of Hougen Cutter clear of chips. Chips will interfere with cutting to maximum depth, maybe impede the free oil flow and can cause cutter breakage. #1 cause of cutter 2. Keep work, machine, arbor and Hougen Cutter free of chips and dirt. -
Page 16: Commercial / Industrial Limited Warranty
COMMERCIAL / INDUSTRIAL LIMITED WARRANTY Hougen Manufacturing, Inc. warrants its Portable Magnetic Drills and Trak-Star Rail Drills for two (2) years, Electro-hydraulic Hole Punchers and Tornado II Paint Shakers for one (1) year, and it's Husqvarna Saw and other products for ninety (90) days from date of purchase against defects due to faulty material or workmanship and will repair or replace (at its option) without charge any items returned.
