Built-In Self-Test (BIST) Instructions

ZCU102 Evaluation Kit
Power Good and
DONE LEDs

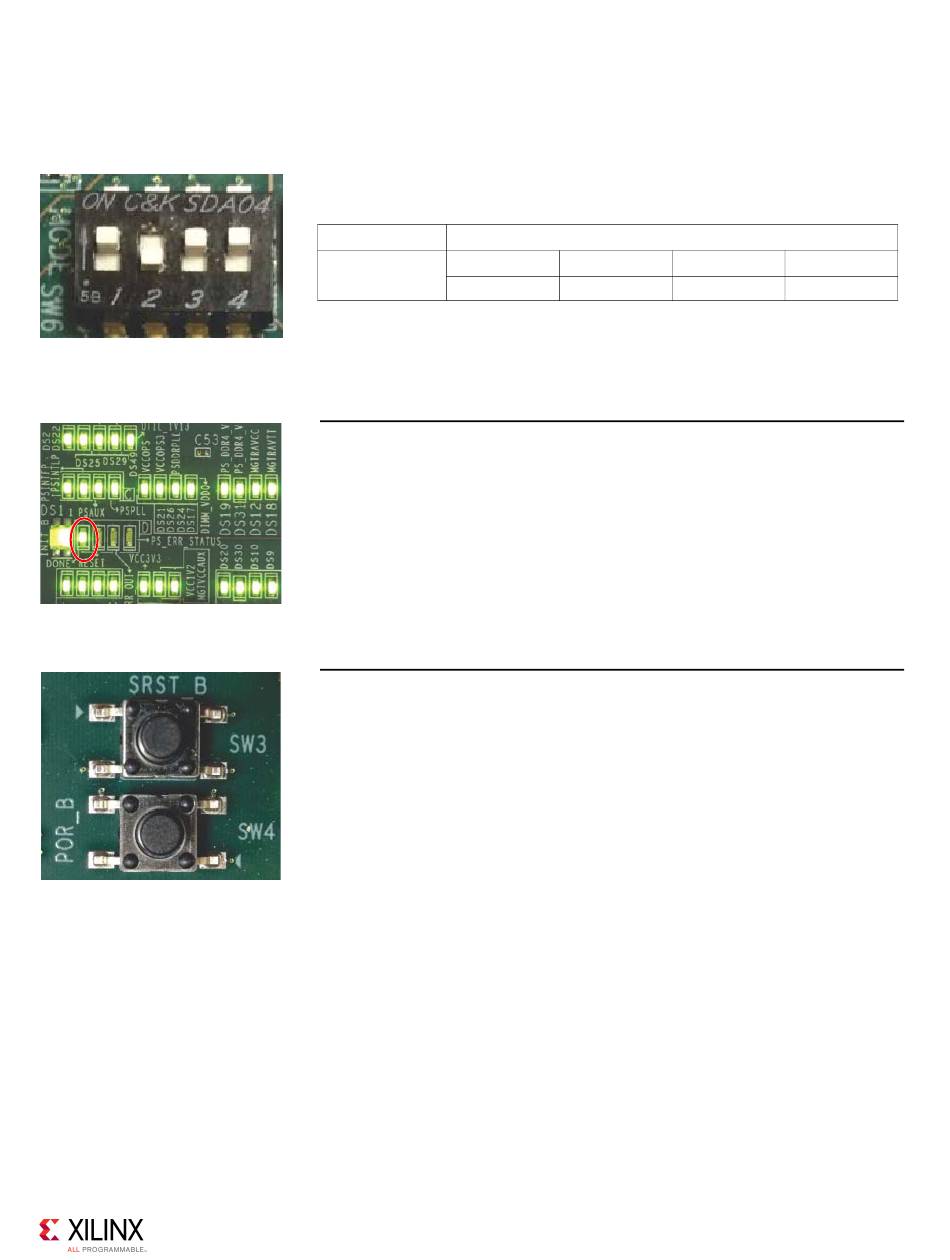

Set Configuration Switches

STEP 1:
Set mode switch SW6 to QSPI32.
Boot Mode
1
QSPI32
0
Note: For this DIP switch, in relation to the arrow, moving the switch
toward the label ON is a 0. DIP switch labels 1 through 4 are equivalent to
Mode pins 0 through 3.

Connect Power

STEP 2:
Plug the power supply into a power outlet with one of the included power
cords.
Connect the 6-pin power supply plug to J52.
Turn on the board power with the SW1 slide switch.
If the three rows of Power Good LEDs glow green, the power system is good.
If the DONE LED circled here glows green, the Zynq UltraScale+ device has
configured successfully.

Initialize Configuration

STEP 3:
The built-in self-test (BIST) starts shortly after power on.
Note: Pressing the POR_B (SW4) switch causes the DONE LED to go out,
the FPGA to configure again, and the BIST to restart.
The PL LEDs flash on and off several times at the start of the BIST.
2
Mode Pins [0:3]
2 3
1 0
4
0
