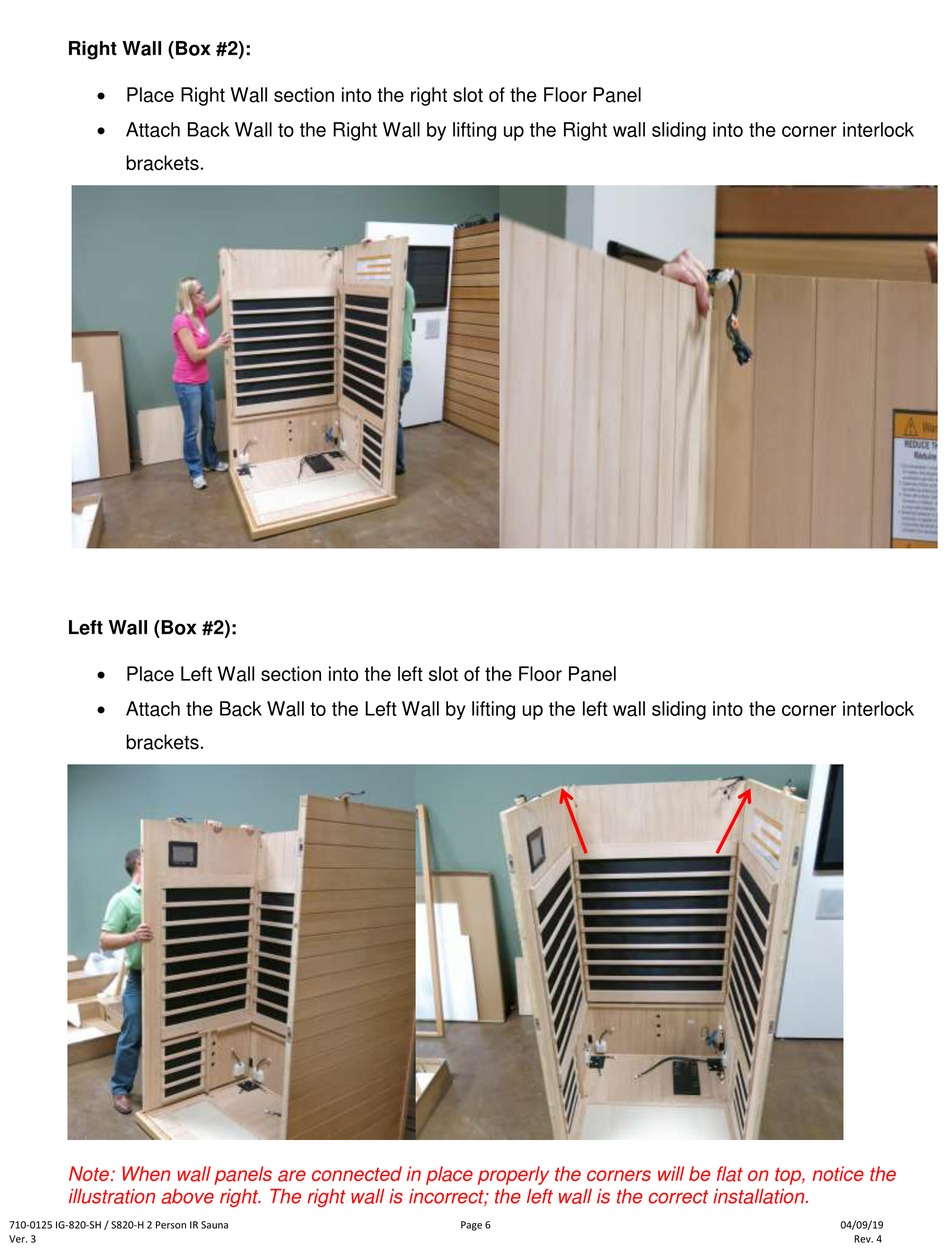

Right Wall (Box #2):
 Place Right Wall section into the right slot of the Floor Panel
 Attach Back Wall to the Right Wall by lifting up the Right wall sliding into the corner interlock
brackets.
Left Wall (Box #2):
 Place Left Wall section into the left slot of the Floor Panel
 Attach the Back Wall to the Left Wall by lifting up the left wall sliding into the corner interlock
brackets.
Note: When wall panels are connected in place properly the corners will be flat on top, notice the
illustration above right. The right wall is incorrect; the left wall is the correct installation.
