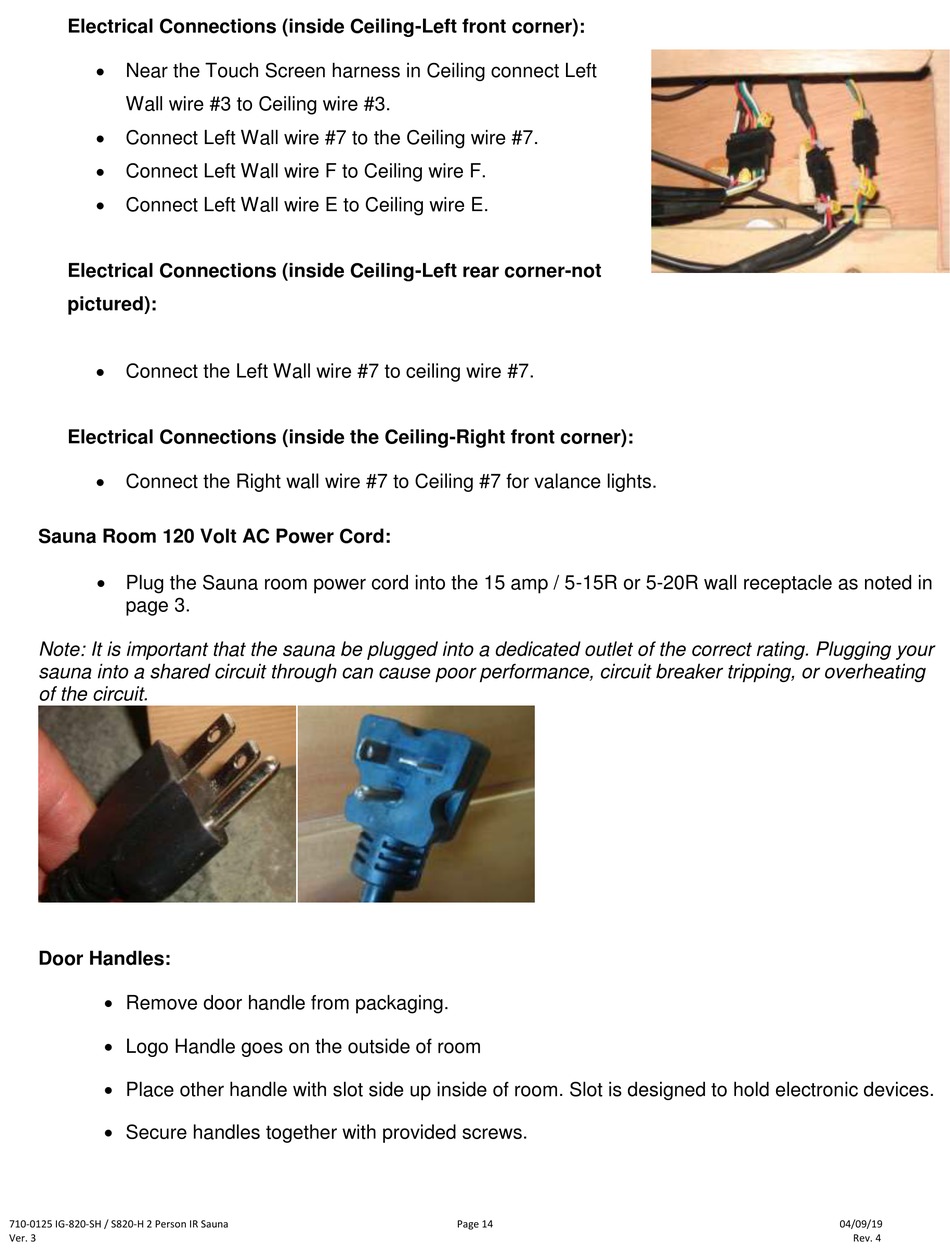

Electrical Connections (inside Ceiling-Left front corner):
Near the Touch Screen harness in Ceiling connect Left
Wall wire #3 to Ceiling wire #3.
Connect Left Wall wire #7 to the Ceiling wire #7.
Connect Left Wall wire F to Ceiling wire F.
Connect Left Wall wire E to Ceiling wire E.
Electrical Connections (inside Ceiling-Left rear corner-not
pictured):
Connect the Left Wall wire #7 to ceiling wire #7.
Electrical Connections (inside the Ceiling-Right front corner):
Connect the Right wall wire #7 to Ceiling #7 for valance lights.
Sauna Room 120 Volt AC Power Cord:
 Plug the Sauna room power cord into the 15 amp / 5-15R or 5-20R wall receptacle as noted in
page 3.
Note: It is important that the sauna be plugged into a dedicated outlet of the correct rating. Plugging your
sauna into a shared circuit through can cause poor performance, circuit breaker tripping, or overheating
of the circuit.
Door Handles:
 Remove door handle from packaging.
 Logo Handle goes on the outside of room
 Place other handle with slot side up inside of room. Slot is designed to hold electronic devices.
 Secure handles together with provided screws.
710-0125 IG-820-SH / S820-H 2 Person IR Sauna
Ver. 3
Page 14
04/09/19
Rev. 4
