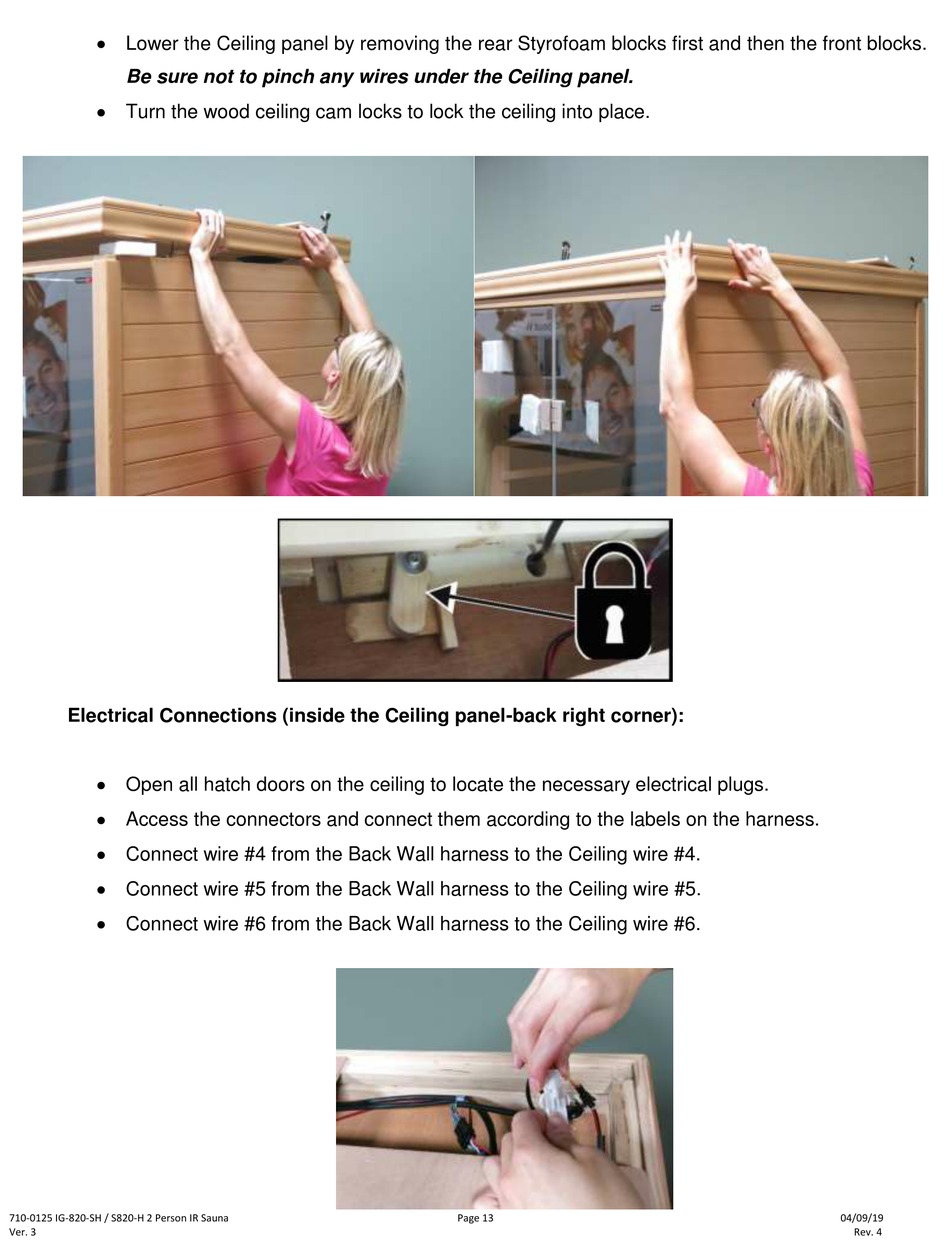

 Lower the Ceiling panel by removing the rear Styrofoam blocks first and then the front blocks.
Be sure not to pinch any wires under the Ceiling panel.
 Turn the wood ceiling cam locks to lock the ceiling into place.
Electrical Connections (inside the Ceiling panel-back right corner):
 Open all hatch doors on the ceiling to locate the necessary electrical plugs.
 Access the connectors and connect them according to the labels on the harness.
 Connect wire #4 from the Back Wall harness to the Ceiling wire #4.
 Connect wire #5 from the Back Wall harness to the Ceiling wire #5.
 Connect wire #6 from the Back Wall harness to the Ceiling wire #6.
710-0125 IG-820-SH / S820-H 2 Person IR Sauna
Ver. 3
Page 13
04/09/19
Rev. 4
