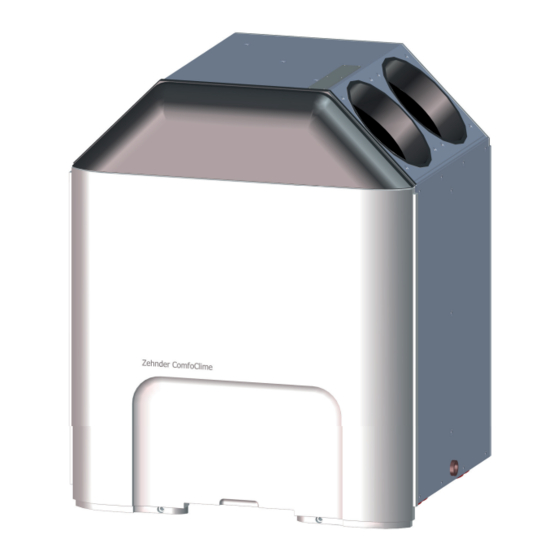

Zehnder Rittling ComfoClime 24 Installer Manual
Hide thumbs
Also See for ComfoClime 24:
- Quick user manual (64 pages) ,
- User manual (30 pages) ,
- Installer manual (22 pages)
Subscribe to Our Youtube Channel
Related Manuals for Zehnder Rittling ComfoClime 24
Summary of Contents for Zehnder Rittling ComfoClime 24
- Page 1 Decorative radiators Comfortable indoor ventilation Heating and cooling ceiling Clean air solutions Installer Manual ComfoClime 24 ComfoClime 36...
-
Page 2: Table Of Contents
Zehnder Group International - Via G. di Vittorio 6 - 41011 Campogalliano (MO), Italy T +39 059 978 62 00 - F +39 059 978 62 01 To configure and operate the ComfoClime the user must install the ComfoClime Control app by downloading it from Google Play or Apple Store. -
Page 3: Preface
This manual provides all the information required for a safe and optimal installation and maintenance of the ComfoClime 24 or ComfoClime 36. It is also intended as a reference for servicing, so that this can be carried out in a responsible manner. The unit is subject to continuous development and improvement. -
Page 4: Introduction
1 Introduction The ComfoClime is a balanced ventilation system with passive energy recovery combined with a state of the art reversible heat pump to provide active climatization in order to create healthy, balanced, energy-efficient ventilation in houses. 1.1 CE and UKCA declaration and warranty 1.1.1 Identification plate The ComfoClime has a CE and UKCA marking on the identification plate. -
Page 5: Warranty
■ The air distribution system and the diffusers should be designed for a nominal air volume of at least 200m /h for the ComfoClime 24 and 315m /h for the ComfoClime 36. 5 - EN... -
Page 6: Safety Measures
1.2.1 Safety measures Always observe the local building, safety and installation guidelines of the municipality, utility companies or other authorities. Lift or move the unit according to the local safety regulations. The ComfoClime weighs around 60kg. The installation of the unit hanging on the wall is not permitted. Always connect air ducts with a minimum length of 900 mm to the unit before connecting the power supply to prevent contact with the internal components. -
Page 7: For The Installer
2 For the Installer 2.1 ComfoClime configuration and dimensions The standard ComfoClime configuration consists of: ■ 1 ComfoClime unit; ■ 1 cabled power supply plug; ■ 4 rubber ring gaskets; ■ 1 condensation drain cap; ■ 2 EPP standoffs; ■ 1 white plastic front cover; ■... -
Page 8: Technical Specifications
2.2 Technical specifications ComfoClime ComfoClime 24 ComfoClime 36 Performance Minimum airflow 200 m3/h 315 m3/h Maximum airflow 400 m3/h 600 m3/h Electrical connection details Maximum electrical absorption 1100 W 1100 W 230 V ± 10%, single 230 V ± 10%, single... -
Page 9: Installation Conditions
2.3 Installation conditions In case of retrofitting installation, it's recommended that the ComfoAir Q has the latest firmware with a minimum of release 1.10 (see ComfoAir Q manual). In order to determine whether the ComfoClime can be installed in a certain area, the following aspects must be taken into account: ■... -
Page 10: Installation Of The Comfoclime
2.4 Installation of the ComfoClime 2.4.1 Transport and unpacking Contact your supplier immediately in case of damage or incomplete delivery and do not proceed with the installation. ■ Take the necessary precautions when transporting and unpacking the ComfoClime unit. ■ Only transport it in an upright position. ■... - Page 11 ■ 2 EPP standoffs; ■ 4 rubber gaskets; ■ Wall bracket; ■ DN32 PP bend; ■ Wiring group. 11 - EN...
-
Page 12: Configuration Of The Unit
2.5 Configuration of the unit Legend ACRONYM MEANING Right layout Left layout Outdoor air intake Indoor supply air Indoor air extraction Outdoor air exhaust Consider the following schemes to connect the ducts: 2.6 Installation procedure During the installation, please take into consideration electromagnetic interferences. ■... - Page 13 Before proceeding with the ComfoClime installation, write the serial number of the ComfoAir Q, located below the grey upper lid, in the designated space of the ComfoClime installer manual. This serial would be useful in case of future remote access to the unit . Write down also the serial number of the ComfoClime for an easy future necessity of it.
- Page 14 Step Action Unpack carefully the ComfoClime and place carefully the ComfoClime over the ComfoAir Q respecting all the safety rules taking as reference the four pins on its bottom which have to fit in with the corresponding recesses in the EPP standoffs; WARNING! Never lift the unit alone.
- Page 15 Verify that the blue central rotary switch is in the proper position: • 0 for ComfoClime 36 • 1 for ComfoClime 24 • 2 for ComfoClime Q if necessary ensure it in the correct position using a flat screw driver;...
- Page 16 Step Action Mount the plastic front cover A onto the unit. Check that the top of the plastic design front is properly matching the recesses and that it goes smoothly above the CAQ front plastic cover. Then fix the ComfoClime plastic front A with the two provided screw on top and the two on the bottom;...
- Page 17 Step Action Depending to the installation setting, the drainage system will be different as shown in the following pictures: Installation with CAQ HRV (standard exchanger) Installation with CAQ ERV (enthalpy exchanger) * an open funnel might be required according to local regulations. 17 - EN...
-
Page 18: Installation Of Air Ducts
2.6.2 Installation of air ducts CAUTION! Do not connect the ComfoAir Q nor the ComfoClime to the power supply until the end of the installation and the duct connection of the units are fitted. The unit must not be mounted/hung onto the wall. Always comply with the safety regulations, warnings, comments and instructions given in this document and according to regulations within the local country. -
Page 19: Wiring Diagram Comfoclime
2.7 Wiring diagram ComfoClime BK-22 BK-22 ACN-IN ACL-IN +15V +12V +310V +12V CAN-H CAN-L N500233A 19 - EN... -
Page 20: Commissioning The Comfoclime
2.8 Commissioning the ComfoClime After installation, the ComfoClime system must be commissioned. In case of retrofitting installation, it's recommended that the ComfoAir Q has the latest firmware with a minimum of release 1.10 (see ComfoAir Q manual). Proceed with the unit activation according to the following steps: Step Action Connect to the ComfoAir Q and the ComfoClime to the power supply;... -
Page 21: Troubleshooting
2.11 Troubleshooting This paragraph concerns issues related to the main unit. CAUTION! Never open the unit nor touch the internal components. Only authorized personnel can get access to the internal components. CAUTION! In case of malfunctioning such as weird noise, bad smell, water leakages, unplug the power supply and call a Zehnder Authorised Representative. -
Page 22: Error And Alarm Messages
3 Error and alarm messages In this page it is possible to read the messages coming from the unit: errors, alarms, alert, advice. Each of them is related to the interested device. The following table lists the error codes that could appear in this page: Code Component Description... - Page 23 PAGE INTENTIONALLY LEFT BLANK 23 - EN...
