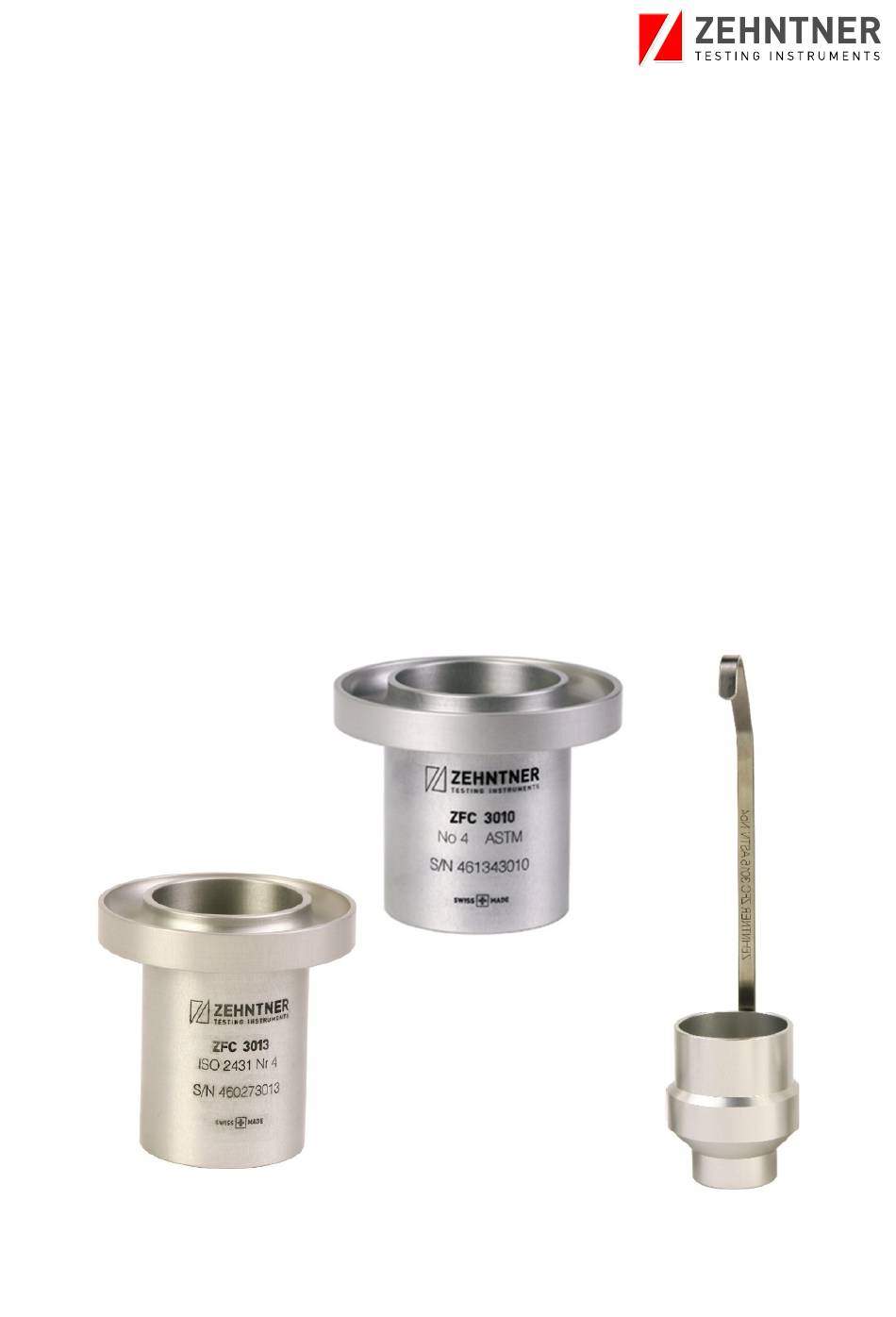

- Page 1 ZFC 3010 – 3015 Flow Cups / Immersion Flow Cups Instruction manual...
-
Page 3: Table Of Contents
Index Exclusion of liability ....................... 4 Description of device ....................5 Safety information ....................6 2.1 Symbols used ..................... 6 2.2 Safety notes and hints ..................6 Delivery of device ..................... 7 3.1 Damages during carriage .................. 7 3.2 Shipment ......................7 3.3 Standard delivery .................... -
Page 4: Exclusion Of Liability
Exclusion of liability Illustrations, descriptions as well as the technical specifications conform to the instruction manual on hand at the time of publishing or printing. However, Zehntner GmbH Testing Instruments policy is one of continuous product development. All changes resulting from technical progress, modified construction or similar are reserved without obligation for Zehntner to update. -
Page 5: Description Of Device
Description of device The ZFC 3010 – 3015 Flow Cups / Immersion Flow Cups are useful test devices for rapid determination of the flow time of paints, varnishes and similar liquids. Application / application areas: For paint and varnish manufacturers and fabricators, as well as test •... -
Page 6: Safety Information
Reproduction without permission is not allowed. Zehntner GmbH Testing Instruments refuses all warranty and liability claims for damages caused by usage of the ZFC 3010 – 3015 in combination with non-original accessories, or accessories from 3 party suppliers. For the operation of the ZFC 3010 – 3015 apply all local safety regulations. -
Page 7: Delivery Of Device
Delivery of device 3.1 Damages during carriage On the receipt of the goods, check for any visible damages on the packaging. If it is undamaged you may sign the receipt of the goods. If you do suspect by your visual inspection that damage has occurred, make a note of the visible damage on the delivery receipt and request the courier to countersign it. -
Page 8: Standard Delivery
ACC593 calibration and certification (incl. certificate) Zehntner GmbH Testing Instruments refuses all warranty and liability claims for damages caused by usage of the ZFC 3010 – 3015 in combination with non-original accessories, or accessories from 3 party suppliers. Page 8... -
Page 9: Handling Flow Cups
Handling flow cups Valid for our products ZFC 3010, ZFC 3011 and ZFC 3013: Choose a flow cup that will give a flow time of between 30 s and 100 s • (depending on the standard). Put the flow cup into the levelled three-foot stand. -
Page 10: Handling Immersion Flow Cups
Handling immersion flow cups Valid for our products ZFC 3012, ZFC 3014 and ZFC 3015: Immerse the immersion flow cup entirely below the surface of the liquid under • test. Withdraw the cup vertically and simultaneously start the timing-device. • Stop the timing-device as soon as the stream of the sample breaks for the •... -
Page 11: Mounting The Acc072 Three-Foot Stand
6.2 Mounting the ACC072 three-foot stand Before the first use the three-foot stand has to be mounted. Screw the 3 supporting legs into the holding ring. • Adjustable foot fixed foot Tighten the 3 supporting legs with the combination wrench. •... - Page 12 Level the stand with the 2 supporting legs with adjustable feet. • Adjustable foot Adjustable foot The three-foot stand is ready to use now. • Page 12...
-
Page 13: Technical Specification
Technical specification Version with fixed jet No.* Standards ZFC 3010 1, 2, 3, 4 or 5 ASTM D1200 ZFC 3011 1, 2, 3, 4, 5, 6, 7 or 8 jet No. 4 acc. with DIN 53211 (withdrawn 1996) ZFC 3012... -
