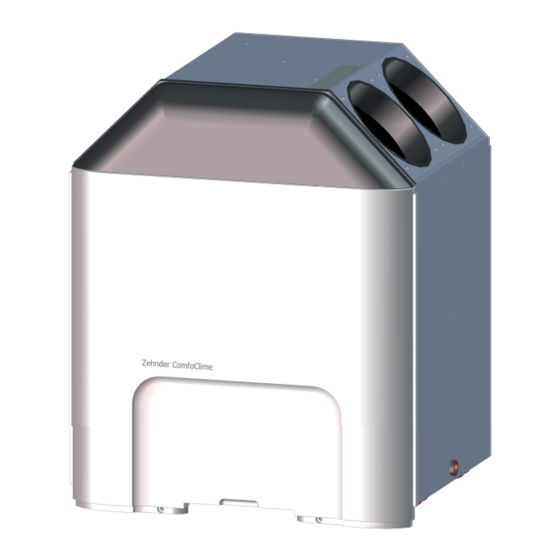

Zehnder Rittling ComfoClime 24 User Manual

Hide thumbs Also See for ComfoClime 24:
Table of Contents

Advertisement

Quick Links

■ Decorative radiators
■ Comfortable indoor ventilation
■ Heating and cooling ceiling systems
■ Clean air solutions
ComfoClime 24
ComfoClime 36
User manual
1 - EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ComfoClime 24 and is the answer not in the manual?

Questions and answers

Related Manuals for Zehnder Rittling ComfoClime 24

Summary of Contents for Zehnder Rittling ComfoClime 24

  • Page 1 ■ Decorative radiators ■ Comfortable indoor ventilation ■ Heating and cooling ceiling systems ■ Clean air solutions ComfoClime 24 ComfoClime 36 User manual 1 - EN...

  • Page 2: Table Of Contents

    Table of Contents Preface ..................................3 1 Installation ..................................4 2 Main menu .................................5 3 Home ..................................6 4 Your devices ................................7 5 ComfoClime ................................8 6 ComfoAir Q .................................9 7 Comfo Room ................................10 8 THERMAL PROFILE (Advanced Users) ........................11 9 Apartment select ............................... 12 10 Scenarios ................................

  • Page 3: Preface

    Preface IMPORTANT! Carefully read this manual before use. The ComfoClime is hereinafter referred to as "device". This manual explains how to install, configure and use the App in order to control the ComfoClime. Since that application is continuously developed and improved, your actual release may differ a bit from the descriptions showed in this document.

  • Page 4: Installation

    1 Installation Step Action Image For the first installation you’re invited to enter in Google Play or Apple Store and type “ComfoClime Control” and, once found, clic on Install. The following icon will appear among the installed apps. EN - 4...

  • Page 5: Main Menu

    2 Main menu Tapping anytime on the upper left corner, on the "four dotted icon", a scroll-down menu will appear. The voices are: App menu Action Image • HOME: the main page appears showing the main parameters of the system •...

  • Page 6: Home

    3 Home The home page shows the overall condition of the ComfoClime system: Main menu voice Action Image ComfoAir Q air speed • It is possible to select the three CAQ speeds, in a loop. BOOST ventilation mode • Always visible. •...

  • Page 7: Your Devices

    4 Your devices In this page are shown all the system components: Main menu voice Action Image ComfoAir Q Tapping on them a new dedicated page will ComfoClime pop up. Comfo Room Comfo Room (optional) 7 - EN...

  • Page 8: Comfoclime

    5 ComfoClime This page shows the current working mode of the ComfoClime: Pos Main menu voice Image Outdoor air temperature Supply air temperature Extract air temperature Exhaust air temperature Indoor air temperature (comfort temperature) Selector mode: PASSIVE, ECONOMY, COMFORT EN - 8...

  • Page 9: Comfoair Q

    6 ComfoAir Q This page shows the current working mode of the ComfoAir Q, including: Pos Main menu voice Image Outdoor air temperature Supply air temperature Extract air temperature Exhaust air temperature Indoor air temperature Fan speed (rounded icon) 9 - EN...

  • Page 10: Comfo Room

    7 Comfo Room This page shows the current working mode of the Comfo Room, including: Pos Main menu voice Image Indoor air temperature Indoor temperature set-point Mode: AUTO or MANUAL EN - 10...

  • Page 11: Thermal Profile (Advanced Users)

    8 THERMAL PROFILE (Advanced Users) This page shows the thermal profile including: Main menu voice Action Image Auto: it enable os disable the full auto mode, switching to MANUAL In MANUAL the user can manually change/ force the desired season Heating threshold: outdoor average temperature below which the heating is SEASON SELECTION...

  • Page 12: Apartment Select

    9 Apartment select In this page it is possible to select the current, active system: Main menu voice Action Image Tapping on the ADD button it is possible to add a new installation in case the user owns more than one ComfoClime/house. APARTMENT SELECT The next page will ask for a name of the installation, an address, a city and the...

  • Page 13: Scenarios

    10 Scenarios The user can choose among different scenarios to plan the weekly scheduler. The choice is: Main menu voice Action Image This is the standard behaviour when no other NORMAL/DAY scenario is active. Heat pump maximum thermal power is 70%. When the inhabitants are sleeping, the focus is on low noise level and air renovation to keep low CO...

  • Page 14: Scheduler

    11 Scheduler In this page the user can program the system across the whole week, from Monday to Sunday, for each hour. The scheduling is defined in three steps: Step Action Image Select the day tapping over the desired one; Select the scenario (browsing through the icons) and its duration typing and selecting the start and the end time;...
  • Page 15 Step Action Image Tap on SAVE. The action can be repeated all the times it is needed and it is possible also to make multiple selections of days. 15 - EN...

  • Page 16: Troubleshooting

    12 Troubleshooting This paragraph concerns issues related to the main unit. CAUTION! Never open the unit neither touch the internal components. CAUTION! In case of malfunctioning such as weird noise, bad smell, water leakages, unplug immediately the power supply and call a Zehnder Authorised Service. If the ComfoClime is running but it doesn’t deliver the requested air conditions, please contact the Zehnder Technical Service or the Installer.
  • Page 17 PAGE INTENTIONALLY LEFT BLANK 17 - EN...
  • Page 18 Zehnder Group IT Via G. di Vittorio 6 41100 Campogalliano (MO), Italy...
