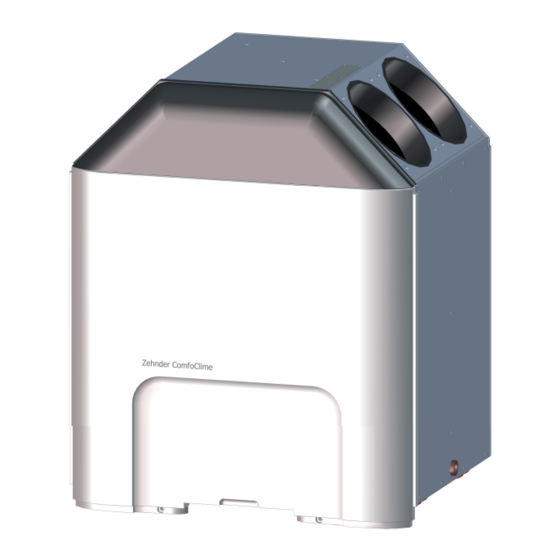

Zehnder Rittling ComfoClime 24 Service Manual
Hide thumbs
Also See for ComfoClime 24:
- Quick user manual (64 pages) ,
- User manual (30 pages) ,
- Installer manual (24 pages)
Related Manuals for Zehnder Rittling ComfoClime 24
Summary of Contents for Zehnder Rittling ComfoClime 24
- Page 1 Decorative radiators Comfortable indoor ventilation Heating and cooling ceiling Clean air solutions Service manual ComfoClime 24 ComfoClime 36...
-
Page 2: Table Of Contents
Table of Contents Preface ..........................3 1 Introduction ........................3 2 ComfoClime unit internal access ..................4 2.1 Access to the LEFT front coil ....................4 2.2 Access to the LEFT front part .................... 5 2.3 Access to the RIGHT back part (siphon and condensation tray) ..........6 2.4 Access to the RIGHT back condensation tray .............. -
Page 3: Preface
This manual provides all the information required for safe and optimal installation and maintenance of the ComfoClime 24 or ComfoClime 36. It is also intended as a reference for servicing, so that this can be carried out in a responsible manner. The unit is subject to continuous development and improvement. -
Page 4: Comfoclime Unit Internal Access
2 ComfoClime unit internal access 2.1 Access to the LEFT front coil Always comply with the safety regulations, warnings, comments and instructions given in this document. Failure to comply with the safety regulations, instructions, warnings and comments may lead to personal injury or damage to the unit. Before starting any operation, disconnect the main plug from the power supply and make sure that the unit is voltage free. -
Page 5: Access To The Left Front Part
Step Action The coil E is visible on the left side (higlighted in red); it is possible to clean it using a vacuum cleaner, a compressor taking care of closing the below intake of the ComfoAir Q to avoid dirt falling down into the ComfoAir Q (see after for access to condensation tray). -
Page 6: Access To The Right Back Part (Siphon And Condensation Tray)
Step Action Unscrew the two screws B that lock the bypass flap C then pull it gently toward you rotating it slightly. Pay attention to prevent the back bolt and its washer B from falling down. It is possible to replace the internal siphon extracting gently the rubber hose ends. 2.3 Access to the RIGHT back part (siphon and condensation tray) Always comply with the safety regulations, warnings, comments and instructions given in this document. -
Page 7: Access To The Right Back Condensation Tray
Step Action The coil and the condensation tray are visible and it’s possible to clean the coil with a vacuum cleaner, or a brush taking care of closing the below intake of the ComfoAir Q to avoid the dirt falling down into the ComfoAir Q. 2.4 Access to the RIGHT back condensation tray In order to proceed with access to the RIGHT back condensation tray, follow the steps as described below:... -
Page 8: Replacement Of The Actuators
2.5 Replacement of the actuators In order to proceed with the replacement of the actuators, follow the steps as described below: Step Action Please follow the previous sequence described in the "Paragraph 2.1 - Step 1 to 3", to get access to the internal components. Identify the actuators A placed in the central bottom area, before the compressor. - Page 9 Step Action Unscrew the two screws C that hold it attached to the frame and gently pull it out paying attention not to loose parts of it. CAUTION! The supplier shall not be held liable for any damage, to things or people, caused by accidents due to a failure to comply with the instructions provided in this manual and in the following chapters.
-
Page 10: Wiring Diagram Comfoclime
2.6 Wiring diagram ComfoClime BK-22 BK-22 ACN-IN ACL-IN +15V +12V +310V +12V CAN-H CAN-L N500233A EN - 10... -
Page 11: Logistics & Distribution
3 Logistics & Distribution 3.1 Part numbers ComfoClime Article numbers Climatic ventilation unit Product number ComfoClime 24 - EU 471420020 ComfoClime 36 - EU 471420010 ComfoClime 24 - UK 471420070 ComfoClime 36 - UK 471420080 ComfoClime 24 - CH 471420090... -
Page 12: Part Numbers Spare Parts
3.2 Part numbers spare parts Mechanical Component Part number Name 471429171 ComfoClime by-pass actuator 471429172 ComfoClime Q by-pass damper 471429173 ComfoClime Q filter 471429174 ComfoClime Q fan 471429175 ComfoClime plastic bushing 471429178 ComfoClime short damper 471429179 ComfoClime long damper 471429180 SHUTTER BUSH 471429181 RETURN SHUTTER... - Page 13 1 19 20 1 17 1 16 1 12 1 29 13 - EN...
-
Page 14: Error And Alarm Messages
4 Error and alarm messages In this page it is possible to read the messages coming from the unit: errors, alarms, alert, advice. Each of them is related to the interested device. The following table lists the error codes that could appear in this page: Code Component Description... -
Page 15: Maintenance And Cleaning
5 Maintenance and cleaning It’s strongly recommended to perform a proper maintenance and cleaning, following the messages appearing in the CAQ display (filters replacement); an accurate overall cleaning must be performed at least every 2 years by Zehnder service personnel. It’s mandatory that only authorized personnel can operate on the internal components of the unit.
