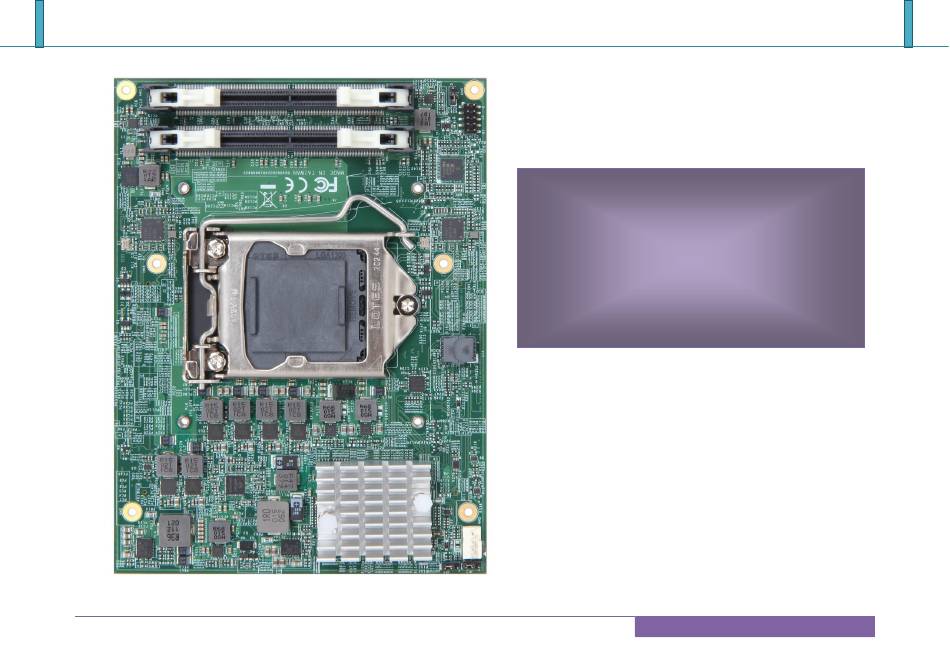

COM Express™

PORTWELL 2022

PORTWELL PCOM-B880VG2 User's Guide

COM Express™

PCOM-B880VG2

User's Guide

PCOM-B880VG2 User's Guide

R0.1

Table of Contents

Need help?

Do you have a question about the COM Express PCOM-B880VG2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell COM Express PCOM-B880VG2

Page 2 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Revision History Rev. Note Date R0.1 Preliminary release 2022 / 11 / 10 R0.2 Update mechanical dimension figures 2023 / 01 / 03 © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 3: Table Of Contents
7.2.2 Configuration ....................................40 7.2.3 Security ...................................... 67 7.2.4 Boot ......................................68 7.2.5 Save & Exit ....................................70 8 BIOS / EC Update ......................................71 9 PORTWELL Software Tool ....................................79 10 Packaging Information ....................................80 © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 5 COM Express™ PORTWELL PCOM-B880VG2 User's Guide List of Tables Table 1 PCOM-B880VG2 CPU Support List ............................10 Table 2 PCOM-B880VG2 Module SKU .............................. 11 Table 3 PCOM-B880VG2 SPEC ................................ 14 Table 4 OS Support list ..................................15 Table 5 Electrical characteristics ................................ 17 Table 6 PCOM-B880VG2 Power Consumption List 1.........................
Page 6 COM Express™ PORTWELL PCOM-B880VG2 User's Guide List of Figures Figure 1 Block Diagram ..................................12 Figure 2 PCOM-B880VG2 Power on sequence ..........................17 Figure 3 Input Power Sequencing ..............................19 Figure 4 Mechanical Dimension - Top ..............................24 Figure 5 Mechanical Dimension - Bottom ............................25 Figure 6 Cooler 125W mechanical dimension ............................
Page 7 PORTWELL products, regardless of the legal theory on which the claim is based, and even if PORTWELL has been advised of the possibility of such damages.
Page 8 PORTWELL is certified to ISO 9001:2008 standard. Technical Support PORTWELL technicians and engineers are committed to providing the best possible technical support for our customers so that our products can be easily used and implemented. We request that you first visit our website at http://www.PORTWELL.com.tw/support/...

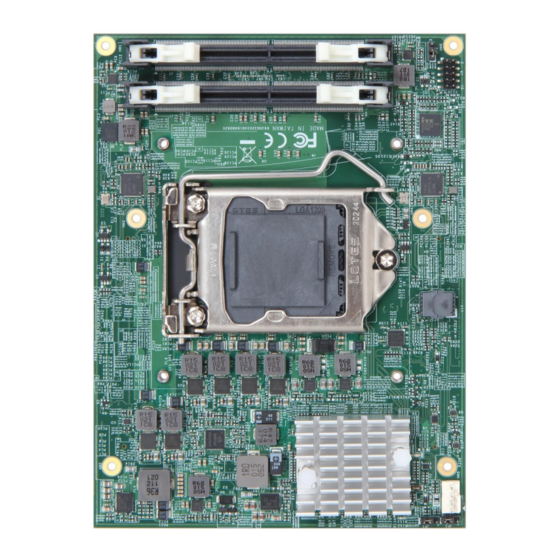

Page 9: Introduction
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 1 Introduction PCOM-B880VG2 is Intel® Comet Lake-S platform COM-HPC® Client, Size C module. The COM-HPC® Client Formfactor support more I/O interface and power for desktop level socket type CPU for wider computing demand applications. The desktop CPU on module offers customer higher computing power but lower cost comparing to mobile solutions.
Page 10: Pcom-B880Vg2 Sku List
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 1.1 PCOM-B880VG2 SKU List PCOM-B880VG2 COM HPC Client Size C CPU SKU Core Threads Cache Base Freq Max Turbo Freq Max Memory MT/s W480E Q470E Xeon W-1250E 12MB 3.5GHz 4.7GHz Xeon W-1290TE 20MB 1.8GHz 4.5Ghz...
Page 11: Table 2 Pcom-B880Vg2 Module Sku
COM Express™ PORTWELL PCOM-B880VG2 User's Guide Series PCOM-B880VG2 Ordering P/N AB1-3L36 AB1-3L35 CPU/PCH Specifications Processor Socket Type Socket Type W480E Q470E TDP Range 35 ~ 80 W 35 ~ 80 W Temperature Range 0 °C ~ 60 °C 0 °C ~ 60 °C...
Page 12: Block Diagram
COM Express™ PORTWELL PCOM-B880VG2 User's Guide PCOM-B880VG2 ® COM HPC Client Module +12 VDC ATX Mode 0 ~ +60ﾟC Size C 160x120mm +5 VDC 2 Block Diagram DDR4 Dual Channel Secondary Primary (J2) (J1) SO-DIMM 0 SO-DIMM 1 DDI #2...
Page 13: Specifications
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 3 Specifications Product ➢ PCOM-B880VG2 Form Factor ➢ ® COM-HPC Client, Size C (160 X 120mm) Processor ➢ Intel Xeon W-1250E ® ® ➢ Intel Xeon W-1290TE ® ® ➢ Intel Xeon W-1270TE ®...
Page 14: Table 3 Pcom-B880Vg2 Spec
COM Express™ PORTWELL PCOM-B880VG2 User's Guide PCI Express ➢ PEG (Group 1, PCIe 3.0 x16) ➢ 8x Gen3 x1 (Group 0 Low) ➢ 2x Gen3 x4 (Group 0 High) ➢ 1x Gen3 x4 (Group 2, #32 ~ #35) ➢ 4x USB 3.2 Gen2 ➢...
Page 15: Supported Operating Systems
Table 4 OS Support list Note. Portwell does not endorse/validate/support any specific Linux distribution or entity mentioned on this list. Note. Portwell recommends customers to work with Linux vendors/open source communities to find feature list and support model. © Copyright...
Page 16: Windows Os Driver
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 3.2 Windows OS Driver Please download the drivers from Portwell download center website http://www.portwell.tw/support/download_center.php © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 17: Electrical Characteristics
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 3.3 Electrical Characteristics Input voltage +12V ± 5% RTC Battery From Carrier Power on mode ATX Mode & AT Mode Table 5 Electrical characteristics Figure 2 PCOM-B880VG2 Power on sequence © Copyright PORTWELL 2022...
Page 18 COM Express™ PORTWELL PCOM-B880VG2 User's Guide ⚫ Input Power Sequencing COM-HPC input power sequencing requirements are as follows: VCC_RTC should come up at the same time or before VCC_5V_SBY comes up ➢ ➢ VCC_5V_SBY should come up at the same time or before VCC comes up ➢...
Page 19: Figure 3 Input Power Sequencing
COM Express™ PORTWELL PCOM-B880VG2 User's Guide VCC_RTC VCC_5V_SBY USB2 PWR could be enabled RSMRST_OUT# VIN_PWR_OK Boot delay Optional RSTBTN# Boot delay PLTRST# Figure 3 Input Power Sequencing ® (Reference from COM-HPC Module Base Specification) © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 20 COM Express™ PORTWELL PCOM-B880VG2 User's Guide ⚫ Power signals Signals VIN_PWR_OK, RSTBTN#, and PLTRST# shall be supported for all COM-HPC Modules. Signal VIN_PWR_OK indicates that all the power to the Module is stable within the specified range and can be used to enable Module internal power supplies.
Page 21: Power Consumption
S3: 5v standby current, wait 5 min later after system into sleeping status ⚫ S5: 5v standby current, wait 5 min later after system into shutdown status Note. Power consumption results are measured at Portwell laboratory and are for reference only © Copyright...
Page 22: Table 6 Pcom-B880Vg2 Power Consumption List 1
COM Express™ PORTWELL PCOM-B880VG2 User's Guide ⚫ CPU SKU 1 Series PCOM-B880VG2 Processor Xeon W-1250E Xeon W-1290TE Xeon W-1270TE Xeon W-1250TE i9-10900TE i7-10700TE Cores / Threads 6 / 12 10 / 20 8 / 16 6 / 12 10 / 20...
Page 23: Table 7 Pcom-B880Vg2 Power Consumption List 2
COM Express™ PORTWELL PCOM-B880VG2 User's Guide ⚫ CPU SKU 2 Series PCOM-B880VG2 Processor i5-10500E i5-10500TE i3-10100E i3-10100TE Pentium G6400E Pentium G6400TE Cores / Threads 6 / 12 6 / 12 4 / 8 4 / 8 2 / 4 2 / 4...
Page 24: Mechanical Dimensions
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 3.5 Mechanical Dimensions 此區限高4mm ⚫ Top Side Dimension 淨空此區此區限高8mm 此區限高1.2mm 120.00 116.00 114.00 106.00 97.20 59.73 36.58 32.00 25.45 22.20 14.00 6.00 5.18 4.00 Figure 4 Mechanical Dimension - Top 此區限高3mm © Copyright...
Page 25: Figure 5 Mechanical Dimension - Bottom
COM Express™ PORTWELL PCOM-B880VG2 User's Guide ⚫ Bottom Side Dimension 2.7hole/ 6pad_ both side 此區淨空 120.00 110.00 86.47 3.05hole/5Pad each side 51.58 25.45 21.58 10.00 Figure 5 Mechanical Dimension - Bottom 3.8hole/6Pad each side 4hole/6Pad each side © Copyright PORTWELL 2022...
Page 26: Environmental Specifications
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 3.6 Environmental Specifications Storage Temperature -40°C ~ 85°C Operation Temperature 0°C ~ 60°C Storage Humidity 0% ~ 95% Operation Humidity 0% ~ 95% Table 8 Environmental Specifications © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 27: Ordering Guide
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 3.7 Ordering Guide ⬧ Module Product Ordering P/N PCOM-B880VG2-W480E AB1-3L36 PCOM-B880VG2-Q470E AB1-3L35 Table 9 Ordering Guide - PCOM-B880VG2 ⬧ Accessory Accessory Ordering P/N Remark Cooler 125W B9971030 For 80W+ CPU Cooler 80W B9971060 For 80W CPU...
Page 28: Thermal Solution
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 4 Thermal Solution ⚫ Cooler 125W (B9971030) Figure 6 Cooler 125W mechanical dimension © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 29: Figure 7 Cooler 80W Mechanical Dimension
COM Express™ PORTWELL PCOM-B880VG2 User's Guide ⚫ Cooler 80W (B9971060) Figure 7 Cooler 80W mechanical dimension © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 30: Figure 8 Cooler 35W Mechanical Dimension
COM Express™ PORTWELL PCOM-B880VG2 User's Guide ⚫ Cooler 35W (B8304610) Figure 8 Cooler 35W mechanical dimension © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 31: Pin Out Tables
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 5 Pin out Tables Row A Row B Row C Row D GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) GBE0_MDI3- GBE0_ACT# GBE0_MDI3+ LPC_FRAME# USB_SSRX0- USB_SSTX0- GBE0_LINK_1000# LPC_AD0 USB_SSRX0+ USB_SSTX0+ GBE0_LINK_2500# LPC_AD1 GBE0_MDI2- LPC_AD2 USB_SSRX1- USB_SSTX1- GBE0_MDI2+ LPC_AD3...
Page 32 COM Express™ PORTWELL PCOM-B880VG2 User's Guide SATA2_TX+ SATA3_TX+ PCIE_RX7+ PCIE_TX7+ SATA2_TX- SATA3_TX- PCIE_RX7- PCIE_TX7- SUS_S5# PWR_OK DDI1_HPD SATA2_RX+ SATA_RX+ SATA2_RX- SATA_RX- DDI1_PAIR0+ BATLOW# DDI1_PAIR0- (S)ATA_ACT# HDA_SYNC HDA_SDIN1 DDI1_PAIR1+ HDA_RST# HDA_SDIN0 DDI1_PAIR1- GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) HDA_BITCLK SPKR DDI2_CTRLCLK_AUX+ DDI1_PAIR2+ HDA_SDOUT...
Page 33 COM Express™ PORTWELL PCOM-B880VG2 User's Guide CPU_CFG6 CPU_CFG5 SYS_RESET# DDI3_PAIR3+ DDI2_PAIR3+ LPC_SERIRQ CB_RESET# DDI3_PAIR3- DDI2_PAIR3- GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) PCIE_TX5+ PCIE_RX5+ PEG_RX0+ PEG_TX0+ PCIE_TX5- PCIE_RX5- PEG_RX0- PEG_TX0- GPI0 GPO1 TYPE0# PCIE_TX4+ PCIE_RX4+ PEG_RX1+ PEG_TX1+ PCIE_TX4- PCIE_RX4- PEG_RX1- PEG_TX1- GPO2 TYPE1#...
Page 34 COM Express™ PORTWELL PCOM-B880VG2 User's Guide LVDS_A1- LVDS_B1- PEG_RX7+ PEG_TX7+ LVDS_A2+ LVDS_B2+ PEG_RX7- PEG_TX7- LVDS_A2- LVDS_B2- LVDS_VDD_EN LVDS_B3+ LVDS_A3+ LVDS_B3- PEG_RX8+ PEG_TX8+ LVDS_A3- LVDS_BKLT_EN PEG_RX8- PEG_TX8- GND(FIXED) GND(FIXED) GND(FIXED) GND(FIXED) LVDS_A_CK+ LVDS_B_CK+ PEG_RX9+ PEG_TX9+ LVDS_A_CK- LVDS_B_CK- PEG_RX9- PEG_TX9- LVDS_I2C_CK LVDS_BKLT_CTRL...
Page 35: Table 11 Pin Out Description
COM Express™ PORTWELL PCOM-B880VG2 User's Guide A100 GND(FIXED) B100 GND(FIXED) C100 GND(FIXED) D100 GND(FIXED) A101 SER1_TX B101 FAN_PWNOUT C101 PEG_RX15+ D101 PEG_TX15+ A102 SER1_RX B102 FAN_TACHIN C102 PEG_RX15- D102 PEG_TX15- A103 LID# B103 SLEEP# C103 D103 A104 VCC_12V B104 VCC_12V...
Page 36: System Resources
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 6 System Resources Device I/O Address Note 0x6E / 0x6F EC Address 0x62 / 0x66 EC ACPI CMD Port 0x200 / 0x201 EC BRAM Port for I2C function Embedded Controller 0x300~0x3FF EC LPC IO Space...
Page 37: Bios Setup Items
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 7 BIOS Setup Items 7.1 Introduction The following section describes the BIOS setup program. The BIOS setup program can be used to view and change the BIOS settings for the module. Only experienced users should change the default BIOS settings.
Page 38: Bios Setup
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 7.2 BIOS Setup Power on the computer and the system will start POST (Power on Self Test) process. When the message below appears on the screen, press <Delete> or <ESC> key will enter BIOS setup screen.
Page 40: Configuration
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 7.2.2 Configuration Use this menu to set up the items of special enhanced features © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 42 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Feature Description Options ★All, 1, 2, 3, 4, 5, 6, 7, 8, 9 Number of cores to enable in each processor package. Active Processor Cores ★Enabled, Disabled Enabled or Disabled Hyper-Threading Technology. Hyper-Threading Max Battery, Select the performance state that the BIOS will set starting from reset ★Max Non-Turbo Performance...
Page 43 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Chipset Configuration ⚫ Configuration Chipset feature Feature Description Options ★Enabled ,Disabled VT-d VT-d Capability Above 4GB MMIO BIOS Enable/Disable above 4GB MemoryMappedIO BIOS assignment ★Disabled, Enabled assignment This is enabled automatically when Aperture Size is set to 2048MB Control Detection of the HD-Audio device.
Page 44 COM Express™ PORTWELL PCOM-B880VG2 User's Guide AMT Configuration ⚫ Configure Intel® Active Management Technology Parameters Feature Description Options When disable AMT BIOS Features are no longer supported and user is no ★Disabled, Enabled AMT BIOS Features longer able to access MEBx Setup. Note: This option does not disable...
Page 45 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Graphics Configuration ⚫ Configuration Graphics Settings Feature Description Options Select which of IGFX/PEG/PCI Graphics device should be Primary ★Auto, IGFX, PEG Slot, PCH PCI Primary Display Display Or select HG for Hybrid Gfx. ★Auto, Disable, Enable Internal Graphics Keep IGFX enable based on the setup options.
Page 46 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Power Control Configuration ⚫ System Power Control Configuration Parameters Feature Description Options Enables or Disables System ability to Hibernate (OS/S4 ★Enabled ,Disabled Enable Hibernation Sleep State). This option may not be effective with some...
Page 47 COM Express™ PORTWELL PCOM-B880VG2 User's Guide PCI/PCIE Configuration ⚫ PCI / PCI Express Settings Feature Description Options ★PCIe, BMC PCIe BMC Switch Set switch to PCIe or BMC PCIe PEG Port Configuration PEG Port Options COM HPC PCIe Port PCI Express Root Port Settings.
Page 48 COM Express™ PORTWELL PCOM-B880VG2 User's Guide PEG Port Configuration ⚫ Feature Description Options ★1x16, 2x8, 1x8_2x4 PEG Port Lane Width Set PEG port lane width Disabled, Enabled, ★Auto Enable Root Port Enable or Disable the Root Port ★Auto, Gen1, Gen2, Gen3...
Page 49 COM Express™ PORTWELL PCOM-B880VG2 User's Guide COM HPC PCIe Port ⚫ PCI Express Root Port Settings Feature Description Options ★Enabled, Disabled COM HPC PCIe Port Control the PCI Express Root Port. Set the ASPM Level: Force L0s – Force all links to L0s State ★Disabled, L0s, L1, L0sL1, Auto...
Page 51 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Feature Description Options ★Enabled , Disabled Intel LAN I255 Controller Control the PCI Express Root Port. ★Enabled , Disabled PCIE_WAKE(Wake On Lan) Control PCIE Wake# pin for Wake On Lan function. ★Disabled, Enabled Launch UEFI PXE ROM Enable/Disable UEFI Network Stack.
Page 52 COM Express™ PORTWELL PCOM-B880VG2 User's Guide SATA/NVMe Configuration ⚫ SATA/NVMe Device Options Settings Feature Description Options SATA And RST Configuration SATA Device Options Settings NVMe Device Options Settings NVMe Configuration © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 54 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Feature Description Options ★Enabled , Disabled SATA Controller(s) Enable/Disable the SATA Device. ★AHCI, SATA Mode Selection Determines how SATA controller(s) operate Intel RST With Intel Optane System Acceleration SATA Controller Speed Indicates the maximum speed the SATA controller can support COM HPC SATA Port 0,1 ★Enabled ,Disabled...
Page 57 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Feature Description Options Enable/Disable this USB Physical Connector (physical port). Once disable, ★Enabled ,Disabled COMe USB 3.0 Port #0~3 any USB devices plug into the connector will not be detected by BIOS or Enable/Disable this USB Physical Connector (physical port). Once disable, ★Enabled ,Disabled...
Page 58 COM Express™ PORTWELL PCOM-B880VG2 User's Guide TPM Configuration ⚫ Trust Computing Settings Feature Description Options Enables or Disables BIOS support for security device. O.S. will not show ★Disabled, Enabled Security Device Support Security Device. TCG EFI protocol and INT1A Interface will not be available.
Page 59 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Super IO Configuration ⚫ System Super IO Chip Parameters Feature Description Options Serial Port 1, 2 Configuration Set Parameters of Serial Port 1(COMA) and Port 2(COMB) ★Disabled, Enabled Watch Dog Timer Enable/Disable Watch Dog Timer Watch Dog Timer[Enable] ★Second, Minute...
Page 60 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Serial Port 1/2 Configuration ⚫ Set Parameters of Serial Port 1/2 Feature Description Options ★Enabled, Disabled Module Serial Port 1/2 Enable or Disable Serial Port (COM) © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 61 COM Express™ PORTWELL PCOM-B880VG2 User's Guide H/W Monitor ⚫ Monitor hardware status Feature Description Options ★Enabled ,Disabled Module Fan Function Disable/Enable the Smart Fan Control. ★Thermal Cruise Mode ,Fan Control Module Fan Control Mode Select Smart Fan Control Mode. Mode ★5...
Page 62 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Serial Port Console Redirection ⚫ Serial Port Console Redirection Feature Description Options ★Disabled, Enabled Console Redirection Console Redirection Enable or Disable © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 64 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Feature Description Options Emulation: ANSI: Extended ASCII char set. VT100: ASCII char ★VT100+, VT100,VT-UTF8, set. VT100+: Extends VT100 to support color, function keys, etc. Terminal Type VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or ANSI more bytes.
Page 67: Security
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 7.2.3 Security Feature Description Options [Setup] check password when enter setup screen. ★Setup, Power on Password Check Mode [Power on] check password on every time system power on. Administrator Password Set Administrator Password ©...
Page 69 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Feature Description Options Number of seconds to wait for setup activation key. ★1 Setup Prompt Timeout 65535(0xFFFF) means indefinite waiting. ★On, Off Bootup NumLock State Select the keyboard NumLock state ★Disabled CSM Support Enable/Disable CSM support CSM Support [Enabled] ★UEFI ,Do not launch,...
Page 70: Save & Exit
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 7.2.5 Save & Exit Feature Description Options Save Changes and Reset Reset the system after saving the changes. Discard Changes and Reset Reset system setup without saving any changes. Restore Defaults Restore/Load Default values for all the setup options.
Page 71: Bios / Ec Update
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 8 BIOS / EC Update PCOM-B880VG2 only support BIOS/EC update under UEFI shell environment, refer the following step, please. ⚫ BIOS update Step 1. Unzip update file to the USB DOK (USB DOK must be FAT or FAT32 format) Step 2.
Page 72 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Step 3. Plug the USB DOK on the target system and select “Built-in EFI Shell” in the BIOS “Save&Exit” page Step 3. Shown as below picture © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 73 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Step 4. Under the UEFI shell, change prompt to your USB DOK, the below example is “ fs0: “ Step 5. Then change the folder with updated file and use command: “ update “ and press enter ©...
Page 74 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Step 6. The updating process will start and show the updating progress Step 7. Please power off and restart the system once updating finished (BIOS updating finished) © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 75 COM Express™ PORTWELL PCOM-B880VG2 User's Guide ⚫ EC update Step 1. Unzip EC binary file to the USB DOK (USB DOK must be FAT or FAT32 format) Step 2. Select “EC Firmware Update” item in BIOS setup menu © Copyright...
Page 77 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Step 4. Select “Yes” to start EC update (Please don’t turn off power during firmware update) © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 78 COM Express™ PORTWELL PCOM-B880VG2 User's Guide Step 5. Turn off power to make system into G3 status once updating finished, then power on the system © Copyright PORTWELL 2022 PCOM-B880VG2 User's Guide...
Page 79: Portwell Software Tool
PORTWELL BIOS web Tool (PBT) The PORTWELL BIOS web Tool (PBT) is a brand new on-line utility innovated by PORTWELL. PBT now is available for PORTWELL's premiere customers who are able to add customized BIOS logo and change BIOS default settings on American Megatrends Inc.
Page 80: Packaging Information
COM Express™ PORTWELL PCOM-B880VG2 User's Guide 10 Packaging Information PCOM-B880VG2's packaging specification will follow the Portwell standard style. Package Appearance Size Anti-Static bubble bag 180x130mm White Paper Box 210x150x40mm Shipping Box 595x300x185mm (10 pcs White paper box) Table 13 Packaging information ©...
Page 81 COM Express™ PORTWELL PCOM-B880VG2 User's Guide 11 Industry Specifications The list below provides links to industry specifications that apply to PORTWELL modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications...
