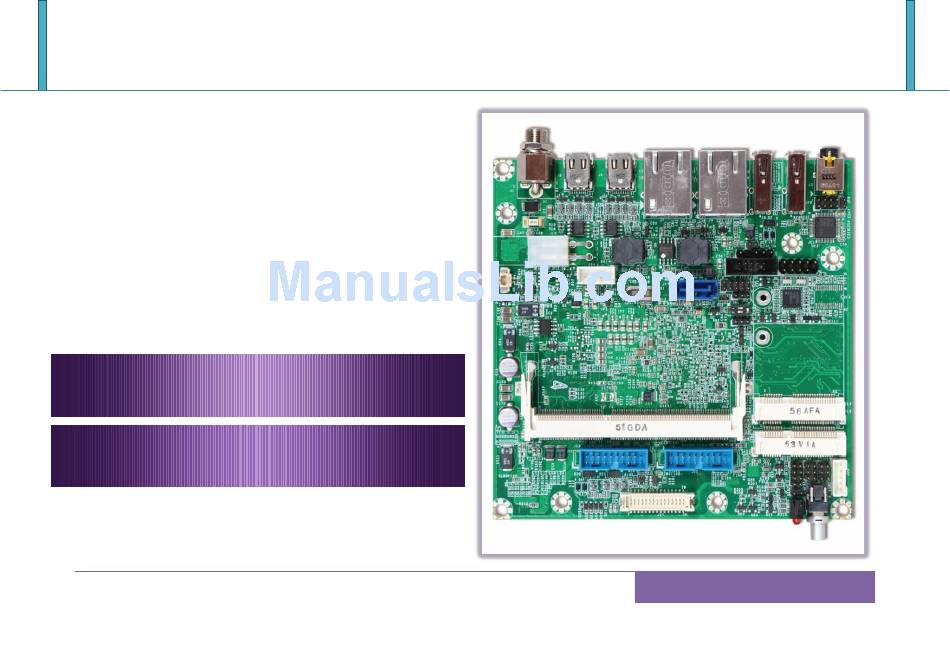

NANO-6050

Portwell

Version 0.1

NANO-6050

User's Guide

Table of Contents

Need help?

Do you have a question about the NANO-6050 and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell NANO-6050

Page 3: Table Of Contents
5.1 Watch Dog Signal ......................................29 5.2 GPIO Signal ......................................... 33 6 System Resources ........................................38 6.1 Intel® Broadwell-U CPU .................................... 38 6.2 Main Memory ......................................38 6.3 Installing the Single Board Computer................................39 Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 4 7.2.5 Save &Exitt ....................................... 84 8 Trouble shooting ........................................86 8.1 Hardware Quick Installation ..................................86 8.2 BIOS Setting ........................................ 89 8.3 FQA..........................................90 9 Portwell Software Service..................................... 100 10 Industry Specifications......................................101 Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 5: Preface
Portwell provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing. Portwell assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide.
Page 6 Portwell makes no representation, warranty or guaranty, express or implied regarding the products except its standard form of limited warranty (“Limited Warranty”). Portwell may in its sole discretion modify its Limited Warranty at any time and from time to time.
Page 7: Introduction
(ESB) that offers lower power consumption, robust computing power and with longevity support. The NANO-6050 is specifically designed to operate at low power consumption and low heat, so it can be a truly fanless configuration and battery operated. NANO-6050 is designed with Intel(R) 5th Generation Intel® Core™ i3-5010U and Intel®...
Page 8: Specifications
 USB Port: 2 x USB 2.0 on rear I/O, 4 x USB 3.0 on board Input/Output  Audio Interface: Audio Combo Jack including Mic-in and Line-out. Connector for Mic-In, Line-In and Line-Out. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 9  Operating temperature: 0 ~ 60° C  Storage temperature:-20 ~ 80° C Mechanical  Humidity: 5 ~ 90% non-condensing environmental specifications  Power supply voltage: +12 V  Board size: 120mm x 120 mm (4.72" x 4.72") Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 10: Supported Operating Systems
NANO-6050 2.1 Supported Operating Systems The NANO-6050 supports the following operating systems.  Windows* 8.1u (64 bit)  * Windows* Embedded Industry 8.1 (64 bit)  Windows* 7 (32/64 bit)  Windows* 7 (POS ready 7 & WES7) (32/64 bit) ...
Page 12: Power Consumption
2.3 Power consumption Test Configuration CPU Type Intel® Core™ Broadwell i7-5650U CPU @ 2.20GHz 256KB 100MHz SBC BIOS Portwell, Inc. NANO-6050 TEST BIOS (50604T01) Memory WARIS DDR3L SO-DIMM 1600 1.35V/8GB*1 (SK hynix H5TC4G83AFR ) VGA Card Onboard Intel® Graphics 6000 VGA Driver Intel®...
Page 13: Environmental Specifications
NANO-6050 Power consumption Item Power ON Full Loading 10Min Full Loading 30Min ATX Power 1.54A 2.06A 2.15A 2.4 Environmental Specifications Storage Temperature: -20~80°C Operation Temperature: 0~60°C Storage Humidity: 5~90% Operation Humidity: 10~90% Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 15: Hardware Configuration
NANO-6050 4 Hardware Configuration 4.1 Jumpers and Connectors This chapter indicates jumpers’ headers’ and ‘connectors’ locations. Users may find useful information related to hardware settings in this chapter. Figure 1,NANO-6050 Top View Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 16: Jumper Settings
4.2 Jumper Settings For users to customize NANO-6050’s features. In the following sections, Short means covering a jumper cap over jumper pins; Open or N/C (Not Connected) means removing a jumper cap from jumper pins. Users can refer to Figure 1 for the Jumper allocations.
Page 17 Mic in LEFT Channel and Mic in Right Jumper See JP8 External Audio (Mic + Line_in + Line_out ) Pin HDR. Please do not use JP9 and J2 at the same time AT Mode or ATX Mode Selection Power Button Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 18 1-4 ON ATX Mode 2-3 OFF 1-4 OFF ATX Mode 2-3 ON 1-4 OFF AT Mode 2-3 OFF JP1: Watch Dog Timer Hardware Enable PIN No. Signal Description 1-2 short Enable 1-2 open Disbale Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 19 JP4: Panel Backlight Enable Selection PIN No. Signal Description 1-3 , 2-4 5V , Active High 3-5 , 2-4 5V , Active Low 1-3 , 4-6 12V , Active High 3-5 , 4-6 12V , Active Low Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 20 Signal Description 1-3 short 3.3V 3-5 short 3-4 short JP6: S0 State LED PIN No. Signal Description 3.3V JP8: Mic in LEFT Channel and Mic in Right Jumper PIN No. Signal Description MIC_R MIC_L Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 21 (a) When using J2 for Mic out function, please use jumper shunt to short JP8 Pin 1 and Pin 2. (b) When Using JP9 for Mic out function, please do not short JP8. (c)Please do not use JP9 and J2 at the same time. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 22 NANO-6050 J10: ATX 4 Pin Power Connector PIN No. Signal Description PIN No. Signal Description +12V +12V J11: SMBus Pin HDR PIN No. Signal Description SMB_CLK SMB_DATA 3.3V Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 26 NANO-6050 J16: GPIO Pin HDR. PIN No. Signal Description GPI#0 GPO#0 GPI#1 GPO#1 GPI#2 GPO#2 GPI#3 GPO#3 Note: GPO Operating Voltage can be switched by JP2 Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 27 NANO-6050 J25: Front Panel Pin HDR PIN No. Signal Description VCC5 SATA_LED# Buzzer Reset# Power On# J26: LVDS Backlight Power Pin HDR. PIN No. Signal Description Backlight Control Backlight Enable Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 28 J27: LVDS Connector PIN No. Signal Description PIN No. Signal Description VDD_LVDS VDD_LVDS LVDSA_DATA0 LVDSA_DATA#0 LVDSA_DATA1 LVDSA_DATA#1 LVDSA_DATA2 LVDSA_DATA#2 LVDSA_DATA3 LVDSA_DATA#3 LVDSA_CLKP LVDSA_CLKN DDC_SCL DDC_SDA LVDSB_DATA0 LVDSB_DATA#0 LVDSB_DATA1 LVDSB_DATA#1 LVDSB_DATA2 LVDSB_DATA#2 LVDSB_DATA3 LVDSB_DATA#3 LVDSB_CLKP LVDSB_CLKN Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 29: Signal Descriptions
0x06 // WDT Select mode. #define WDT_MIN 0x07 // Minute mode counter #define WDT_SEC 0x08 // Second mode counter // Use port 62 and port 66 to access EC command / data. static intIBF_Check() Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 30 () unsigned char OBF_status; pw_udelay (20); // delay 20 us OBP_status = inportb (EC_CMD); } while (!(OBF_status& 0x01)); return 1; static void Write_EC (unsigned char index, unsigned char data) IBF_Check (); Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 31 Read_EC (unsigned char address) unsigned char data; IBF_Check (); outportb (EC_CMD, EC_CMD_READ); IBF_Check (); outportb (EC_DATA, address); OBF_Check(); data = inportb (EC_DATA); return data; void EC_WDT_Trigger () /* WDT Counter */ Write_EC (WDT_SEC, 0x05); Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 32 Write_EC ((b->wdt.ec.count_m_addr& 0xFF), b->wdt.ec.timeout); Write_EC ((b->wdt.ec.cfg_addr& 0xFF), 0x03); // WDTCFG[1:0]=11 int main () inti; EC_WDT_Trigger (); for (i = 0; i< 5; i++) printf ("Reset counter ....%d\n", 5 - i); delay (1000); return 0; Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 33: Gpio Signal
#include <stdlib.h> #include <conio.h> #include <dos.h> #define EC_DATA 0x62 #define EC_CMD 0x66 #define EC_CMD_READ 0x80 #define EC_CMD_WRITE 0x81 #define GPIO_DIR 0x2B #define GPIO_DATA 0x2C static void Write_EC (unsigned char index, unsigned char data) Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 34 (EC_CMD, EC_CMD_WRITE); delay(100); outportb (EC_DATA, index); delay(100); outportb (EC_DATA, data); static unsigned char Read_EC (unsigned char address) unsigned char data; delay(100); outportb (EC_CMD, EC_CMD_READ); delay(100); outportb (EC_DATA, address); delay(100); data = inportb (EC_DATA); Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 35 NANO-6050 return data; int main () unsigned char d2; printf("\n\n"); printf("NANO-6050 GPIO TEST Program v1.0\n"); printf("Please short the following pins with 2.0mm-pitched jumper on J10\n"); printf("PIN 1,3,5,7 is input ; PIN 2,4,6,8 is output\n"); printf("GPIO1 ---- GPIO5\n"); printf("GPIO2 ---- GPIO6\n");...
Page 36 = Read_EC (GPIO_DATA); printf("GPIO_DATA = %x\n", d2); if ((d2 & 0x01) == 0) printf ("GPIO70->GPIO74 test ok !! (pull low)\n"); else printf ("GPIO70->GPIO74 test fail (pull high) \n"); if ((d2 & 0x02) == 0) Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 37 ("GPIO72->GPIO76 test ok !! (pull low)\n"); else printf ("GPIO72->GPIO76 test fail (pull high)\n"); if ((d2 & 0x08) == 0) printf ("GPIO73->GPIO77 test ok !! (pull low)\n"); else printf ("GPIO73->GPIO77 test fail (pull high)\n"); return 0; Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 38: System Resources
Intel® Core™ i3-5010U Processor (2 core, 15W, 2.1GHz, 1600MT) 6.2 Main Memory NANO-6050 provides 1 x 204-pin SO-DIMM sockets which supports DDR3L non-ECC memory. The maximum memory can be up to 8GB. Memory clock and related settings can be detected by BIOS via SPD interface.
Page 39: Installing The Single Board Computer
6.3.1 Chipset Component Driver NANO-6050 uses state-of-art Intel® Broadwell-U Soc. It’s a new chipset that some old operating systems might not be able to recognize. To overcome this compatibility issue, for Windows Operating Systems such as Windows 8, please install its INF before any of other Drivers are installed.
Page 40: Intel® Hd Graphics 6000/5500
6.3.2 Intel® HD Graphics 6000/5500 NANO-6050 has integrated Intel® HD Graphics 6000/5500 which supports DX11.2, OpenGL 4.3 / OpenCL 2.0. It is the most advanced design to gain an outstanding graphic performance. NANO-6050 supports VGA, Mini DP. This combination makes NANO-6050 an excellent performance hardware.
Page 41: Bios Setup Items
The BIOS setup program provides a General Help screen. The menu can be easily called up from any menuby pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 43 Description Options System Date The date format is <Day>, <Month><Date><Year>. Use [＋] or [－] to configure system Date. System Time The time format is <Hour><Minute><Second>. Use [＋] or [－] to configure system Time. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 46 ★CPU C7s Short, ★Long C7 Latency Configure Short/Long latency for C7 Disabled, ★Enabled CPU C8 report Enable/Disable CPU C8 report to OS Disabled, ★Enabled CPU C9 report Enable/Disable CPU C9 report to OS Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 47 Configure MSR 0xE2[15], CFG lock bit. C0, C2, C3, C6, C7, C7s, C8, C9, C10, Package C State limit Package C State limit ★AUTO ★Disabled, Enabled LakeTiny Feature Enable/Disable LakeTiny for C state configuration Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 49 Control Detection of the Azalia device. ★Enabled, Disabled Azalia Disabled = Azalia will be unconditionally disabled Enabled = Azalia will be unconditionally enabled ★LPC Bus, PCIE Bus Port 80h Redirection Control where the Port 80h cycles are sent. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 51 This option just controls the BIOS extension execution. If enabled, this requires additional firmware in the SPI device ★Disabled, Enabled Un-Configure ME OEMFlag Bit 15:Un-Confugure ME without password ★Disabled, Enabled Disable ME Set ME to Soft Temporary Disabled. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 53 LAN cannot be disabled if ME is on at Sx state.) Launch Legacy PXE Rom. [Disable] Not launch Rom, ★Disable, Enable, Auto Launch Legacy PXE Rom [Enable] Force launch Rom, [Auto] Auto detect LAN cable status to Enable/Disable Rom initial Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 55 Secondary boot display selection will appear based on your selection. Select the Active LFP Configuration. No LVDS: VBIOS does not enable LVDS. No LVDS, ★eDP Port-A Active LFP eDP Port-A:LFP Driven by Int-DisplayPort encoder from Port-A (eDP to PTN3460 LVDS) Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 57 Select color depth and data format. VESA and JEIDA 18 bpp Single Channel, Channel Mode Select LVDS Channel Mode ★Dual Channel ★Even Bus, Odd Bus, Both Buses Clock Mode Select clock output for LVDS Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 59 PCIE Root Port Function Swapping Swapping. Subtractive Decode ★Disabled, Enabled Enable or disable PCI Express Subtractive Decode. (Enabled) Select PCI Express Subtractive Decode Root Port. User to ensure port Subtractive Decode Port# availability Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 61 PCI Express Root Port Control the PCI Express Root Port. ★Disabled, L0s, L1, L0sL1, ASPM PCI Express Active State Power Management settings. Auto ★Auto, Gen 1, Gen 2 PCIe Speed Select PCI Express port speed. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 63 Note: Requires hardware support. ★Disabled, Enabled External SATA External SATA Support. Identify the SATA port is connected to Solid State Drive or Hard Disk ★Hard Disk Drive, Solid State Drive SATA Device Type Drive. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 65 USB devices available only for EFI applications. ★Enabled, Disabled XHCI Legacy Support Enable/Disable XHCI Controller Legacy support. USB Mass Storage Driver Disabled, ★Enabled Enable/Disable USB Mass Storage Driver Support. Support Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 67 Enable / Disable USB port. Disabled, ★Enabled USB Port #4 Enable / Disable USB port. Disabled, ★Enabled USB Port #5 Enable / Disable USB port. Disabled, ★Enabled USB Port #6 Enable / Disable USB port. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 69 Wake up day 0-31 would like the system to wake up Use [Enter], [TAB] to select field, HH: 0-23 HH: 0-23 Wake up Time (HH:mm:ss) mm: 0-59 mm: 0-59 ss: 0-59 ss: 0-59 Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 71 Set Current UART MODE RS232, RS485, RS485/RS422 DUFLEX, RS485/422 FULL DUFLEX Watch Dog Timer ★Disabled, Enabled Enable/Disable Watch Dog Timer (Enabled) ★Second, Minute Timer Unit Select Timer count unit of WDT ★20 Timer value Set WDT Timer value seconds/minutes Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 73 NANO-6050 Serial Port Console Redirection Serial Port Console Redirection Feature Description Options Console Redirection ★Disabled, Enabled Console Redirection Enable or Disable. (Enable) Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 74 NANO-6050 Console Redirection Settings The settings specify how the host computer and remote computer (which the user is using) will exchange data. Both computers should have the same or compatible settings. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 75 Disabled, ★Enabled VT-UTF8 Combo Key Support Enable VT-UTF8 Combination Key Support for ANSI/VT100 terminals With this mode enable only text will be sent. This is to capture ★Disabled, Enabled Recorder Mode Terminal data. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 76 The Setting specify if Boot Loader is selected then Legacy console redirection is disable before booting to Legacy OS. Default value ★Always Enable, Boot Loader Redirection After BIOS POST always enable which means Legacy console Redirection is enable for Legacy OS. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 77: 3Security
NANO-6050 7.2.3 Security This section lets you set security passwords to control access to the system at boot time and/or when entering the BIOS setup program. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 78 Description Options ★Setup [Setup] check password when enter setup screen. Password Check Mode [Power on] check password on every time system power on. Power On Administrator Password Set Administrator Password Create New Password Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 80 ★All State Devices If Auto, only install Legacy OpRom with Legacy OS and logo would NOT be shown during post. Efi driver will still be installed with EFI OS. Auto, ★EFI Driver VGA Support Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 81 Network Stack Driver Support If Disabled, Network Stack Driver will be skipped. ★Legacy only, UEFI only Boot option filter This option controls Legacy/UEFI ROMs priority Boot Option #1 Sets the system boot order Disabled Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 85 Restore/Load Default values for all the setup options. Save configuration Attempts to Launch EFI Shell application (Shell.efi) from one of the Launch EFI Shell from filesystem device and reset? available filesystem devices Yes, No Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 86: Trouble Shooting
ATX Power Setting Unlike other Single board computer, NANO-6050 supports ATX 12V 4 Pin or DC 12V Power adaptor only. Therefore, there is no other setting that needs to be setup. However, there is ATX 4 Pin Connector – J10& DC JACK – J1 on the NANO-6050 board.
Page 88 Unlike IDE bus, each Serial ATA channel can only connect to one SATA hard disk at a time; The installation of Serial ATA is simpler and easier than IDE, because SATA hard disk doesn’t require setting up Master and Slave, which can reduce mistake of hardware installation. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 89: Bios Setting
To make sure that you have a successful start with NANO-6050, it is recommended, when going with the boot-up sequence, to hit “Delete ” or ” Esc” key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well.
Page 90: Fqa
You can switch off your power supply then find the JP3 to set it from 1-2 short to 2-3 short and wait 10 seconds to clean your password then set it back to 1-2 short to switch on your power supply. JP3：CMOS Setting Jumper Setting Describe *1-2 Short Normal Operation (Default) 2-3 Short Clean CMOS Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 92 NANO-6050 Question:How to update the BIOS file of NANO-6050? Answer: 1. Please visit web site of Portwell download centeras below hyperlink http://www.portwell.com.tw/support/download_center.php Registering an account in advance is a must. (The E-Mail box should be an existing Company email address that you check regularly.)
Page 96 BIOS setup menu and switch to “Save & Exit” page then select “Restore Defaults” option and press “Yes” then select “Save Changes and Reset” to finish all BIOS update processes. Copyright © Portwell 2016 NANO-6050 User's Guide...
Page 98 NANO-6050 Question: What are the display options while using NANO-6050? Answer: The NANO-6050 does not support DVI display output . It supports: 1. 1x dual channel 24bit LVDS on board connector via PTN3460 eDP to LVDS transmitter, Need back light control support (follow NANO-6050 design) 2.
Page 99 NANO-6050 Question: How to install Windows 7 in NANO-6050? Answer: Windows 7* installation media does not include native driver support for USB 3.0, so during installation, when you get to the screen to select your preferred language, a keyboard or mouse connected to a USB 3.0 port does not respond. If you need the solution for this issue, please fill in the technical request form as below hyperlink and we will contact you as soon as possible.
Page 100: Portwell Software Service
9 Portwell Software Service Portwell Evaluation Tool (PET) The Portwell Evaluation Tool (PET) is an API which Portwell's customers can access the GPIO, I2C, SMBus, etc under Windows and Linux OS. For more information please contact Portwell. Portwell BIOS web Tool (PBT) The Portwell BIOS web Tool (PBT) is a brand new on-line utility which innovated by Portwell.
Page 101: Industry Specifications
NANO-6050 10 Industry Specifications The list below provides links to industry specifications that apply to Portwell modules. Low Pin Count Interface Specification, Revision 1.0 (LPC)http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0http://www.usb.org/home PCI Specification, Revision 2.3https://www.pcisig.com/specifications Serial ATA Specification, Revision 3.0http://www.serialata.org/...
