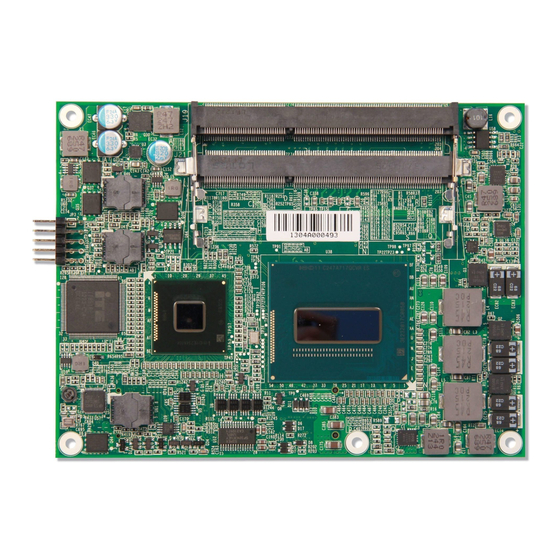

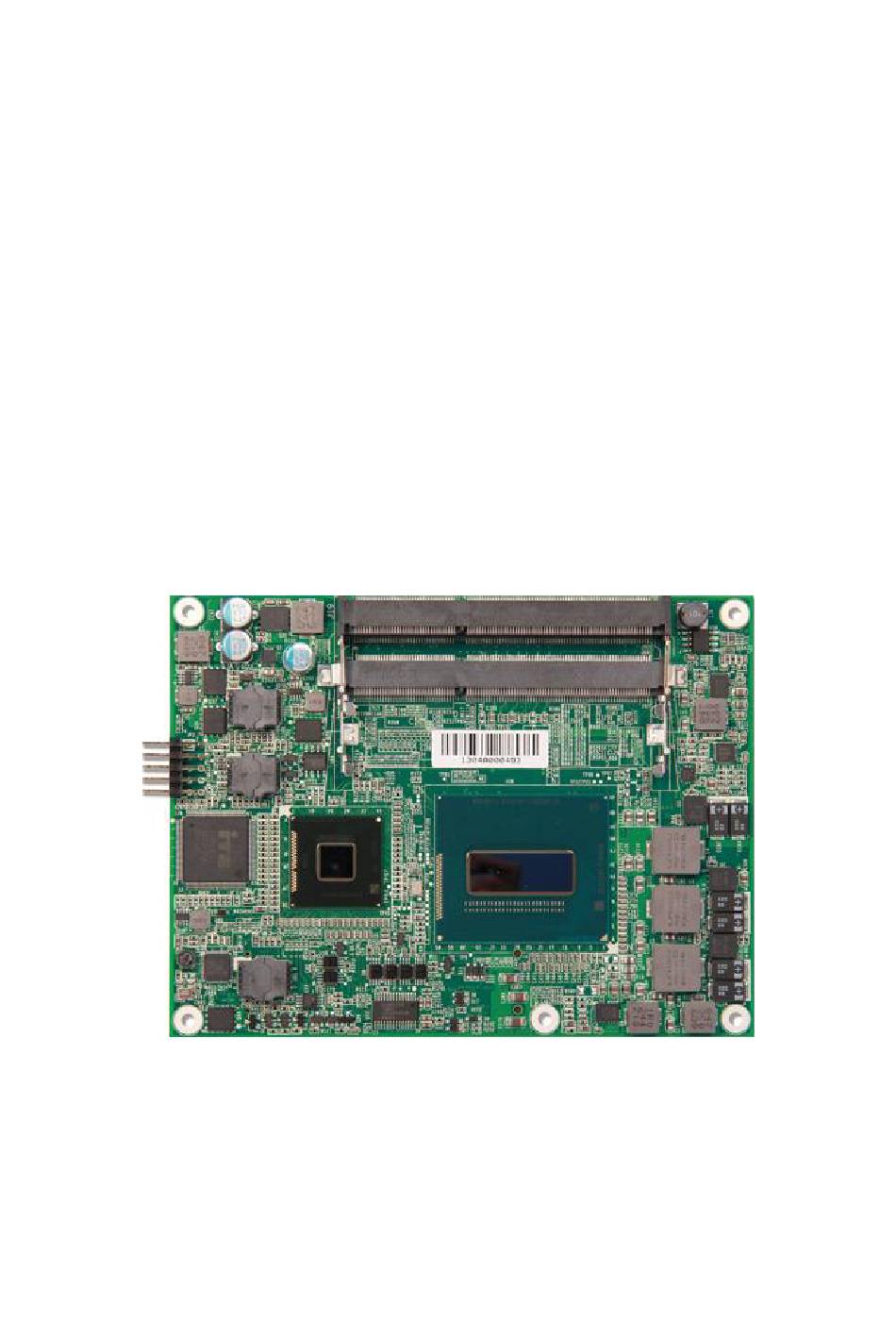

PCOM-B630VG
COM Express Type VI with ECC Module
User's Manual
Version 1.0
Copyright © Portwell, Inc., 2012. All rights reserved.
All other brand names are registered trademarks of their respective owners
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCOM-B630VG and is the answer not in the manual?

Questions and answers

Related Manuals for Portwell PCOM-B630VG

Summary of Contents for Portwell PCOM-B630VG

  • Page 1 PCOM-B630VG COM Express Type VI with ECC Module User's Manual Version 1.0 Copyright © Portwell, Inc., 2012. All rights reserved. All other brand names are registered trademarks of their respective owners...

  • Page 2: Table Of Contents

    Preface Table of Contents How to Use This Manual Chapter 1 System Overview ....................... 1-1 1.1 Introduction ....................... 1-1 1.2 Check List ......................1-1 1.3 Product Specification ..................1-2 1.4 Mechanical Drawing ..................1-3 1.5 System Architecture ..................1-4 Chapter 2 Hardware Configuration ....................5 2.1 Connector Allocation ....................5 Chapter 3 System Installation .......................

  • Page 3: How To Use This Manual

    Preface How to Use This Manual The manual describes how to configure your PCOM-B630VG to meet various operating requirements. It is divided into five chapters, with each chapter addressing a basic concept and operation of this COM Express Module. Chapter 1 : System Overview. Presents what you have in the box and give you an overview of the product specifications and basic system architecture for this model of single board computer.

  • Page 4: Chapter 1 System Overview

    (supports SDVO/HDMI/DP/DVI), SATA and so on. Check List The PCOM-B630VG series package should cover the following basic items  One PCOM-B630VG module board If any of these items is damaged or missing, please contact your vendor and keep all packing materials for future replacement and maintenance.

  • Page 5: Product Specification

    System Overview Product Specification Requirement Detailed Description Form Factor Type 6, Compact Form Factor Com Express Processor - Intel Haswell Bridge i7 2.0GHZ 6MB 4 Core (47W) - Intel Haswell Bridge i5 1.8GHZ 3MB 2 Core (37W) Chipset -Intel® QM87 Memory -Support up to 16GB ECC DDR3L 1333/1600 MT/s SDRAM on two 204-pin SODIMM sockets.

  • Page 6: Mechanical Drawing

    System Overview Mechanical Drawing PCOM-B219VG-VI-ECC...

  • Page 7: System Architecture

    System Overview System Architecture PCOM-B219VG-VI-ECC...

  • Page 8: Chapter 2 Hardware Configuration

    Row C Row D Signal Signal Signal Signal Description Description Description Description GND (FIXED) B1 GND (FIXED) C1 GND (FIXED) D1 GND (FIXED) GBE0_MDI3- B2 GBE0_ACT# C2 LPC_FRAME GBE0_MDI3+ B3 USB0_SSRX- D3 USB0_SSTX- GBE0_LINK1 LPC_AD0 USB0_SSRX+ D4 USB0_SSTX+ PCOM-B630VG User’s Manual...
  • Page 9 GND (FIXED) C31 GND (FIXED) D31 GND (FIXED) HDA_BITCL DP2_CTRLCL SPKR DP1_LANE2 K_AUX HDA_SDOU DP2_CTRLD DP1_LANE2 I2C_CLK ATA_AUX# DP2_AUX_SE DP1_AUX_SE BIOS_DIS0# I2C_DAT THRMTRIP# B35 THRM# DP3_CTRLCL USB6- USB7- DP1_LANE3 K_AUX DP3_CTRLD DP1_LANE3 USB6+ USB7+ ATA_AUX# USB_6_7_OC USB_4_5_OC DP3_AUX_SE PCOM-B630VG User’s Manual...
  • Page 10 PEG_RX4- PEG_TX4- GPI2 WAKE1# PCIE_TX0+ PCIE_RX0+ PEG_RX5+ PEG_TX5+ PCIE_TX0- PCIE_RX0- PEG_RX5- PEG_TX5- GND (FIXED) B70 GND (FIXED) C70 GND (FIXED) D70 GND (FIXED) LVDS_A0+ LVDS_B0+ PEG_RX6+ PEG_TX6+ LVDS_A0- LVDS_B0- PEG_RX6- PEG_TX6- LVDS_A1+ LVDS_B1+ LVDS_A1- LVDS_B1- PEG_RX7+ PEG_TX7+ PCOM-B630VG User’s Manual...
  • Page 11 VCC_12V C105 VCC_12V D105 VCC_12V A106 VCC_12V B106 VCC_12V C106 VCC_12V D106 VCC_12V A107 VCC_12V B107 VCC_12V C107 VCC_12V D107 VCC_12V A108 VCC_12V B108 VCC_12V C108 VCC_12V D108 VCC_12V A109 VCC_12V B109 VCC_12V C109 VCC_12V D109 VCC_12V PCOM-B630VG User’s Manual...

  • Page 12: Chapter 3 System Installation

    PCI device and handle Watch Dog Timer (WDT) and operation of GPIO in software programming. Install PCOM-B630VGVG with a Carrier Board PCOM-C600 Place PCOM-C600 in a flat surface and screw on the four (4) cooper pillars. PCOM-B630VG User’s Manual...
  • Page 13 BIOS Setup Information Do the same with PCOM-B630VG and Make Sure the Memory DDR3L DIMM Module is PCOM-B630VG User’s Manual...
  • Page 14 BIOS Setup Information Insert the ECC DDR3L SO-DIMM Memory Module in the right direction and make sure be well installed. PCOM-B630VGVG onto PCOM-C600 Then mount the Make sure that row connector is well installed PCOM-B630VG User’s Manual...
  • Page 15 BIOS Setup Information PCOM-B630VGVG Then screw on the four (4) cooper pillars to fix the PCOM-B630VG User’s Manual...

  • Page 16: Main Memory

    To overcome this compatibility issue, for Windows Operating Systems such as Windows XP, please install its INF before any of other Drivers are installed. You can find very easily this chipset component driver in PCOM-B630VGVG CD-title. PCOM-B630VG User’s Manual...

  • Page 17: Intel® Integrated Graphics Controller

    The following table indicates how to enable/disable Clear CMOS Function hardware circuit by putting jumpers at proper position. As we know PCOM-B630VGVG is a Module Card, we are taking an example with Portwell evaluative Carrier PCOM- C600. 3.4.1: CLEAR CMOS...

  • Page 18: Wdt Function

    BIOS Setup Information WDT Function  B219 Module WDT from EC PCOM-B630VG User’s Manual...

  • Page 19: Gpio

    BIOS Setup Information C600 Carrier WDT to Header (When WDRST switch on and produce a high  pulse will PM_SYSRST# pull low let system reset) GPIO B219 Module GPIO from EC PCOM-B630VG User’s Manual...

  • Page 20: Chapter 4 Bios Setup Information

    Chapter 4 BIOS Setup Information PCOM-B630VG uses phoenix BIOS structure stored in Flash ROM. These BIOS has a built-in Setup program that allows users to modify the basic system configuration easily. This type of information is stored in CMOS RAM so that it is retained during power-off periods.

  • Page 21: Entering Setup -- Launch System Setup

    If the message disappears before responding and still wish to enter Setup, please restart the system by turning it OFF and On or pressing the RESET button. It can be also restarted by pressing <Ctrl>, <Alt>, and <Delete> keys on keyboard simultaneously. PCOM-B630VG User’s Manual...

  • Page 22: Main

    Processor Brand Name / Processor Speed This value will change depend of different CPUs. And please make sure the Processor that you’ll install will be compatible with PCOM-B630VG User’s Manual System Date The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date.

  • Page 23: 2.4 System Setup Utility

    Configure the system interfaces, system management, Configuration power management, thermal management, and other system characteristics. Boot Configure boot device priority settings. Security Configure user authentication requirements. Save changes and exit the system setup utility, or Save & Exit restore default settings. PCOM-B630VG User’s Manual...

  • Page 24: 4.4 Configuration

    Troubleshooting 4.4 Configuration Use this menu to set up the items of special enhanced features. PCOM-B630VG User’s Manual...
  • Page 25 -All ★ Default Active Processor Cores cores to enable in each processor package -Disabled ★ Default Intel Virtualization Technology -Enabled -Disabled EIST -Enabled ★ Default -Disabled Turbo Mode -Enabled ★ Default -Disabled ★ Default CPU C states -Enabled PCOM-B630VG User’s Manual...
  • Page 26 It is not necessary to make any change just take the default value. BIOS Item Usage Item-Specific Help -Disabled High Precision Timer -Enabled★ Default -Disabled Azalia -Enabled★ Default -Disabled ★ Default Enabled/Disabled VT-d VT-d -Enabled function on MCH -LPC Bus Port 80h Redirection -PCIE Bus PCOM-B630VG User’s Manual...
  • Page 27 Troubleshooting AMT Configuration BIOS Item Usage Item-Specific Help -Disabled Disables/Enabled iAMT Intel AMT -Enabled ★ Default function -Disabled ★ Default Un-Configure ME -Enabled -Disabled ★ Default Disable ME -Enabled PCOM-B630VG User’s Manual...
  • Page 28 Troubleshooting Memory Configuration BIOS Item Usage Item-Specific Help -Disabled Enable/Disable memory ECC Support -Enabled ★ Default ECC support PCOM-B630VG User’s Manual...
  • Page 29 Troubleshooting LAN Configuration BIOS Item Usage Item-Specific Help Launch OpROM -Disabled ★ Default Policy -Enabled -Disabled PCH LAN Controller -Enabled ★ Default PCOM-B630VG User’s Manual...
  • Page 30 Display or select -PCIE Secondary Display for switchable Graphics -Auto Primary PEG -PEG11 -PEG12 -Auto -PCIE1 -PCIE2 -PCIE3 Primary PCIE -PCIE4 -PCIE5 -PCIE6 -PCIE7 -Auto ★ Default Keep IGD Enabled based Internal Graphics -Disabled on the setup options -Enabled PCOM-B630VG User’s Manual...
  • Page 31 Internal -MAX Graphics Device -VBIOS Default -CRT -EFP Primary IGFX Boot -LFP Display -EFP2 -LFP2 -EFP3 -VBIOS Default -640x480 -800x600 -1024x768 -1280x1024 -1400x1050 -1600x1200 LCD Panel Type -1366x768 -1680x1050 -1920x1200 -1440x900 -1600x900 -1280x800 -1920x1080 -2048x1536 PCOM-B630VG User’s Manual...
  • Page 32 Troubleshooting -18Bit ★ Default Panel Color Depth -24Bir PCOM-B630VG User’s Manual...
  • Page 33 -192 PCI Bus Clocks -224 PCI Bus Clocks -248 PCI Bus Clocks -Auto -128 Bytes -256 Bytes Maximum Payload -512 Bytes -1024 Bytes -2048 Bytes -4096 Bytes -Auto -128 Bytes Maximum Read Request -256 Bytes -512 Bytes PCOM-B630VG User’s Manual...
  • Page 34 It is not necessary to make any change just take the default value. BIOS Item Usage Item-Specific Help -Auto -Gen1 PEG0~PEG2 – Gen X -Gen2 -Gen3 -Disabled -Auto PEG0~PEG2 - ASPM -ASPM L0s -ASPM L1 -ASPM L0sL1 -Disable Enable PEG -Enable -Auto PCOM-B630VG User’s Manual...
  • Page 35 It is not necessary to make any change just take the default value. PCI Express Root Port 1/5/7/8 (Only take Port 1 as an example) It is not necessary to make any change just take the default value. PCOM-B630VG User’s Manual...
  • Page 36 Control PCI Express root -Enabled ★ Default 1/5/7/8 port -Disabled ★ Default Control PCIe Active State -L0S ASPM Power Management setting -L0S And L1 -Auto -Auto ★ Default Select PCIe Speed to Gen1 PCIe Speed -Gen1 or Gen2 -Gen2 PCOM-B630VG User’s Manual...
  • Page 37 SATA Controller(s) controller (s) operate -Disabled -Disabled -IDE Determines how SATA SATA Mode Selection -AHCI controller (s) operate -RAID -Default -Gen1 SATA Controller Speed -Gen2 -Gen3 -Disabled Port 0~5 -Enabled -Disabled Hot Plug -Enabled -Disabled External SATA -Enabled PCOM-B630VG User’s Manual...
  • Page 38 -Enabled ★ Default XHCI Hand-off -Disabled -Enabled EHCI Hand-off -Disabled★ Default USB Mass Storage Driver -Enabled ★ Default Support -Disabled PCH USB Configuration -Disabled ★ Default Control each of the USB -USB Ports per-Port 0~13 ports disabling -Enabled Disable PCOM-B630VG User’s Manual...
  • Page 39 -Last State after a power failure Enable or disable System wake on alarm event. -Disabled ★ Default Wake system with Fixed When enabled, System Time -Enabled will wake hr:min:sec specified -Disabled ★ Default Wake on Ring -Enabled PCOM-B630VG User’s Manual...
  • Page 40 Troubleshooting TPM Configuration BIOS Item Usage Item-Specific Help -Disabled ★ Default Enabled/Disabled TPM Security Device Support Function -Enabled PCOM-B630VG User’s Manual...
  • Page 41 Troubleshooting Super IO Configuration PCOM-B630VG User’s Manual...
  • Page 42 Troubleshooting Serial Port 0~1 Configuration BIOS Item Usage Item-Specific Help -Disable Serial Port Setting Serial Port 1 IRQ -Enable★ Default PCOM-B630VG User’s Manual...
  • Page 43 Troubleshooting Watch Dog Timer BIOS Item Usage Item-Specific Help -Disable WDT Controller -Enabled -WDT Disabled -10 Seconds -20 Seconds Change Settings -30 Seconds -40 Seconds -50 Seconds -60 Seconds PCOM-B630VG User’s Manual...
  • Page 44 BIOS Item Usage Item-Specific Help -Disable Disable / Enable Smart Smart Fan1~3 Control -Enable ★ Default Fan function 25, 30, 35, 40, 45, 50, 55, Smart Fan1~3 start 60, 65, 70 Fan1~3 Full Speed 60, 65, 70, 75 PCOM-B630VG User’s Manual...
  • Page 45 Troubleshooting Serial Port Console Configuration Configure console redirection on serial port. BIOS Item Usage Item-Specific Help Control Console -Disabled ★ Default Serial Port 1 Console Redirection Redirection -Enabled enable/disable PCOM-B630VG User’s Manual...
  • Page 46 Long or -115200 ★ Default noisy lines may require lower speeds Data Bits -None -Even Parity -Odd -Mark -Space Stop Bits -None ★ Default None – No flow control Flow Control RTS/CTS – Hardware -Hardware RTS/CTS PCOM-B630VG User’s Manual...
  • Page 47 XON/XOFF – Software flow control VT-UTF8 Combo Key -Disabled -Enabled ★ Default Support -Disabled ★ Default Recorder Mode -Enabled -Disabled ★ Default Resolution 100x31 -Enabled Legacy OS Redirection -80x24 Resolution -80x25 -VT100 -LINUX -XTERMR6 Putty KeyPad -SCO -ESCN -VT400 PCOM-B630VG User’s Manual...

  • Page 48: Boot

    This item is used to determine the display mode when an optional ROM is initialized during POST. When set to [Force BIOS], the display mode used by AMI BIOS used. Select [Keep Current] want display mode of optional ROM. Choices: Force BIOS, Keep Current. PCOM-B630VG User’s Manual...
  • Page 49 Choices: Disabled, Enabled. Summary Screen Choices: Disabled, Enabled. Fast Boot Choices: Disabled link, Enabled. Boot mode Select Choices: LEGACY, UEFI. Boot Option #1 ~#7 Sets the system boot order. Choices: Built-in EFI Shell, other bootable devices, Disabled. PCOM-B630VG User’s Manual...

  • Page 50: Security

    Troubleshooting Security Set or clear the Supervisor account’s password. Administrator Password Set Setup Administrator Password User Password Set User password PCOM-B630VG User’s Manual...
  • Page 51 Finally resets the system automatically. Save Changes and Exit Exit system setup after saving the changes Discard Changes and Reset Reset the system without saving the changes. Restore Defaults Restore/Load Default Values for all the setup options. PCOM-B630VG User’s Manual...

  • Page 52: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting This chapter provides a few useful tips to quickly get PCOM-B630VG running with success. As basic hardware installation has been addressed in Chapter 2, this chapter will primarily focus on system integration issues, in terms of BIOS setting, and OS diagnostics.

  • Page 53: Bios Setting

    BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting any time when system appears to be unstable in boot up sequence.

  • Page 54: Faq

    Answer: You can simply short 2-3 pins on JP20 to clean your password. Question: How to update the BIOS file of the PCOM-B630VG? Answer: 1. Please visit web site of the Portwell download center as below hyperlink and register an account.
  • Page 55 Please visit our technical web site at http://www.portwell.com.tw For additional technical information, which is not covered in this manual, you can mail to tsd@mail.portwell.com.tw or you can also send mail to our sales, they will be very delighted to forward them to us. PCOM-B630VG User’s Manual...
  • Page 56 562K 【Available】 First Meg -- Conventional memory end at 624K -- 9C00-9D3F Extended BIOS Area 9D40-9FFF Unused A000-AFFF VGA Graphics B000-B7FF Unused B800-BFFF VGA Text C000-CD7F Video ROM CD80-EFFF 138K Unused F000-FFFF System ROM First 64K Extended PCOM-B630VG User’s Manual...
  • Page 57 【Unassigned】 IRQ 10 Usable IRQ 【Unassigned】 IRQ 11 Video ROM Usable IRQ IRQ 12 System ROM IBM Mouse Event IRQ 13 System ROM Coprocessor Error IRQ 14 System ROM Hard Disk Event IRQ 15 Usable IRQ 【Unassigned】 PCOM-B630VG User’s Manual...
