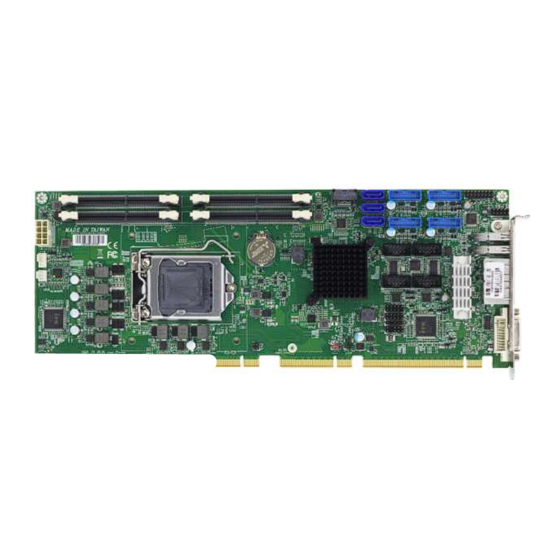

ROBO-8114VG2AR

PICMG 1.3 Single Host Board

Version 1.4

ROBO-8114VG2AR User's Guide

Table of Contents

Need help?

Do you have a question about the ROBO-8114VG2AR and is the answer not in the manual?

Questions and answers

Summary of Contents for Portwell ROBO-8114VG2AR

Page 2 ROBO-8114VG2AR Revision History R1.0 Preliminary R1.1 Page 11/33,add VGA resolution limitation R1.2 Correct memory information R1.3 Update typo R1.4 Update RS485 information about remove Auto flow control Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 3: Table Of Contents
Intel® Coffee lake-S PCH ..................................40 Main Memory ......................................40 Installing the Single Board Computer ..............................41 5.3.1 Chipset Component Driver..................................41 5.3.2 Intel® HD Graphics 630 ..................................42 5.3.3 Intel LAN I210AT/I219LM Gigabit Ethernet Controller ..........................42 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 4 Save & Exit ......................................82 Troubleshooting ............................................. 84 Hardware Quick Installation ................................... 84 BIOS Setting ......................................85 FAQ ........................................86 Portwell Software Service ........................................89 Industry Specifications ........................................... 90 10.1 Industry Specifications ................................... 90 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 5 Portwell provides no warranty with regard to this user’s guide or any other information contained herein and hereby expressly disclaims any implied warranties of merchantability or fitness for any particular purpose with regard to any of the foregoing. Portwell assumes no liability for any damages incurred directly or indirectly from any technical or typographical errors or omissions contained herein or for discrepancies between the product and the user’s guide.
Page 6 Warranty”). Portwell may in its sole discretion modify its Limited Warranty at any time and from time to time. Beginning on the date of shipment to its direct customer and continuing for the published warranty period, Portwell represents that the products are new and warrants that each product failing to function properly under normal use, due to a defect in materials or workmanship or due to non conformance to the agreed upon specifications, will be repaired or exchanged, at Portwell’s option and expense.
Page 7 Caution: Do not just hold any single side of the SBC; hold evenly on both sides! ⚫ Heavy processor cooler may bend the SBC when SBC being held just on one side. ⚫ The bending may cause soldering or components damaged. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 8 Caution: Suggest your S.I or vendor to use a metal bracket to hold/fix the desktop or server grade SBC to avoid the vibration damage during transportation. Heavy processor cooler may bend the SBC when systems are during transportation without any holder. Example: ⚫ 4U chassis : ➔ Use L type mental or plastic or rubber bracket to hold SBC. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 10: Introduction
DirectX® 12. It supports triple display function via DVI-I (VGA and DVI-D) and HDMI up to 4Kx2K. Rich I/O functions are also provided by ROBO-8114VG2AR single host board, which is 2x USB 3.1, 8x USB 3.0, 5x SATA III ports (dual ports via backplane), 2x RS232 ports, 2x smart COM ports which select RS232/422/485 mode by bios adjustment, and dual Intel GbE LAN ports.
Page 11: Specifications
Serial Ports: 2x RS-232 & 2x RS-232/422/485 selectable by bios ◆ USB Port: 2x USB 3.2(Gen1) on bracket, 8x USB 3.2(Gen2) on board header ◆ Input/Output GPIO connector: 8GPI + 8GPO ◆ Audio Interface: Mic-In / Line-Out / Line-in (on-board header) ◆ Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 12: Supported Operating Systems
Board size: 338.5mm x 126.39mm, 13.33" (L) x 4.98" (W) ◆ Supported Operating Systems The ROBO-8114VG2AR supports the following operating systems.  Windows 10 Enterprise & IOT Enterprise (64b) RS3  Ubuntu, SuSe, Redhat Enterprise 1,2 (Kernel 4.14)  Yocto 2.4 Tool-based Embedded Linux Distribution ...
Page 15: Power Consumption
ROBO-8114VG2AR Power Consumption Test Configuration CPU Type Intel® Core™ i7-9700E CPU @ 2.6GHz SBC BIOS Portwell, Inc. ROBO-8114VG2AR BIOS Rev.: 0.0.6 (07092019) Memory WARIS DDR4 SO-DIMM 2400/16GB *4 VGA Card Onboard Intel® UHD Graphics 630 VGA Driver Intel® UHD Graphics 630 ,Version: 26.20.100.6888 LAN Card Onboard Intel®...
Page 16: Environmental Specifications
System +5V 1.19A 1.63A 1.63A System+ Device +12V 0.40A 0.94A 0.89A System+ Device +5V 2.39A 2.64A 2.68A Environmental Specifications Storage Temperature : -20~80°C Operation Temperature : 0~60°C Storage Humidity : 5~90% Operation Humidity: 10~90% Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 17 M.2 CONN. SATA*1 Type M(2280) SATA Gen3*3 SATA PCIe*4 PICMG BP SATA PICMG BP SATA Gen3*2 BIOS ROM TPM2.0 F81216DG Infineon SLB9665 PS/2 KB&MS IT5121 SP339 F81213 COM port COM port RS-232/422/485 RS-232 GPIO*8 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 18: Hardware Configuration
ROBO-8114VG2AR 3 Hardware Configuration Jumpers and Connectors This chapter indicates jumpers’, headers’ and connectors’ locations. Users may find useful information related to hardware settings in this chapter. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 20: Jumpers Settings
Jumpers Settings For users to customize ROBO-8114VG2AR’s features. In the following sections, Short means covering a jumper cap over jumper pins; Open or N/C (Not Connected) means removing a jumper cap from jumper pins. Users can refer to Figure 1 for the Jumper allocations.
Page 21 1x8 , 2x4 3-4, Short 1-2, Open Reserved 3-4, Short 1-2, Short 3-4, Open 1-2, Open 1x16 3-4, Open JP5: Clear CMOS Setup PIN No. Description 1-2, Short Normal 2-3, Short Clear CMOS Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 23: Connector Settings
DDR4 Channel A Slot J7/J11 DDR4 Channel B Slot Audio Pin Header Header 5Px2/2.54mm ATX 8 Pin Connector(For CPU Power) J16/J19 USB2.0/3.1(Gen2) connector(Type-A) COM1 Pin Header COM2 Pin Header CPU Fan RJ45 Connector for I210 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 24 J1: Front Panel Connector PIN No. Description Description PWR_LED (+) PWR_LED (-) I219_LAN (+) I219_LAN (-) BUZZER I210_LAN (-) 10 Ground I210_LAN (+) 12 Power Button Signal HDD_LED (+) 14 Reset Signal HDD_LED (-) 16 Ground Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 25 ROBO-8114VG2AR J2/J3/13/14: USB2.0/3.1 connector PIN No. Description PIN No. Description 5VDual USB3_RX_N 5VDual USB3_RX_P USB3_RX_N Ground USB3_RX_P USB3_TX_N Ground USB3_TX_P USB3_TX_N Ground USB3_TX_P USB2_N Ground USB2_P USB2_N Ground USB2_P Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 27 HDMI_D1_P Ground HDMI_D1_N HDMI_D2_P Ground HDMI_D2_N HDMI_D3_P Ground HDMI_D3_N HDMI_DDC_CLK HDMI_DDC_DATA Ground 5V_HDMI HDMI_HPD J9: Audio Pin Header PIN No. Description PIN No. Description MIC_IN Ground LINE_IN_L Ground LINE_IN_R Ground AUDIO_OUT_L Ground AUDIO_OUT_R Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 28 J15: ATX 8 Pin Connector(For CPU Power) PIN No. Description PIN No. Description Ground +12V Ground +12V Ground +12V Ground +12V J16/J19：USB2.0/USB3.1(Gen2) Connector PIN No. DESCRIPTION 5VDual USB2_N USB2_P Ground USB3_RX_N USB3_RX_P Ground USB3_TX_N USB3_TX_P Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 29 ROBO-8114VG2AR J17/J18/J23/J24: COM1/COM2/COM3/COM4 Pin Header PIN No. Description PIN No. Description DCD# RXD# TXD# DTR# Ground DSR# RTS# CTS# J20: CPU FAN PIN No. Description Ground Fanin Fanout Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 30 J21: RJ45 Connector for I210 PIN No. Description PIN No. Description MDI0_P MDI0_N MDI1_P MDI1_N LAN_CT1 LAN_CT2 MDI2_P MDI2_N MDI3_P MDI3_N LED_100 LED _1000 LED_LINK#/ACT# ACT_LED J22: System Fan PIN No. Description Ground Fanout Fanin Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 31 MDI0_N MDI1_P MDI1_N LAN_CT1 LAN_CT2 MDI2_P MDI2_N MDI3_P MDI3_N LED_100 LED _1000 LED_LINK#/ACT# ACT_LED J26: GPIO Pin Header PIN No. Description PIN No. Description GPIO_0 GPIO_4 GPIO_1 GPIO_5 GPIO_2 GPIO_6 GPIO_3 GPIO_7 Ground Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 32 J27: SM Bus Pin Header PIN No. Description Clock Ground Data J28: Keyboard/Mouse Connector PIN No. Signal Description PIN No. Signal Description Mouse Data Keyboard Data Ground Ground PS2 Power PS2 Power Mouse Clock Keyboard Clock Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 33 If use the B6903351(DVI-D +VGA Y cable) to connect with DVI-D & VGA monitor simultaneously, the VGA resolution only can up to 1920x1080.And only DVI-D can be to show correct information about type of monitor & resolution. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 34 J31: M.2 KEY-M slot PIN No. Description PIN No. Description Ground 3.3V Ground 3.3V RX3_N RX3_P Ground LED# TX3_N 3.3V TX3_P 3.3V Ground 3.3V RX2_N 3.3V RX2_P Ground TX2_N TX2_P Ground RX1_N RX1_P Ground TX1_N Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 35 ROBO-8114VG2AR TX1_P DEVSLP Ground RX0_N/SATA_B+ RX0_P/SATA_B- Ground TX0_N/SATA_A- TX0_P/SATA_A+ PERST# Ground CLKREQ# CLK_N PEWAKE# CLK_P Ground KEY-M KEY-M KEY-M KEY-M KEY-M KEY-M KEY-M KEY-M SUSCLK PEDET 3.3V Ground 3.3V Ground 3.3V Ground Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 36: Signal Descriptions
#Define WDTMIN 0x07 // WDT Timer Counter Register (Minute) #Define WDTSEC 0x08 // WDT Timer Counter Register (Second) #Define EC_IOPort 0xE300 // Default, reference to BIOS configuration VOID Write_EC_SRAM(UINT8 Offset,UINT8 Value){ IoWrite8(EC_IOPort+Offset,Value); Byte Read_EC_SRAM(UINT8 Offset){ IoRead8(EC_IOPort+offset,Value); return Value; void WDT() Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 37 Write_EC_SRAM(WDTCFG,0x01); //Bit0: WDT Enable, BIT1: 0:Second Mode // Enable WDT 5min Write_EC_SRAM(WDTSEC,5); Write_EC_SRAM(WDTCFG,0x03); //Bit0: WDT Enable, BIT1: 1:Minute Mode // Enable WDT 10min, 20sec Write_EC_SRAM(WDTSEC,20); Write_EC_SRAM(WDTSEC,10); Write_EC_SRAM(WDTCFG,0x03); //Bit0: WDT Enable, BIT1: 1:Minute Mode } Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 38: Gpio Signal
// Bit3 = GPI3, Bit2 = GPI2, ..., // 0: Low; 1: High #Define EC_IOPort 0xE300 // Default, reference to BIOS configuration VOID Write_EC_SRAM(UINT8 Offset,UINT8 Value){ IoWrite8(EC_IOPort+Offset,Value); Byte Read_EC_SRAM(UINT8 Offset){ IoRead8(EC_IOPort+offset,Value); return Value; void GPIO() int Temp; Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 39 ROBO-8114VG2AR // Get GPI status Temp = Read_EC_SRAM(GPDR); //Bit3-0: GPI3-0 status // Set GPO4 Output & High Temp = Read_EC_SRAM(GPDR); Write_EC_SRAM(GPDR,Temp|0x80); //Bit7-4: Set GPO3-0 status, 0: Low 1: High Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 40: System Resources
Intel® C246 Chipset Main Memory ROBO-8114VG2AR provides 4 x 260-pin SO-DIMM sockets which supports DDR4 ECC/non-ECC memory. The maximum memory can be up to 128GB. Memory clock and related settings can be detected by BIOS via SPD interface. Watch out the contact and lock integrity of memory module with socket, it will impact on the system reliability. Follow normal procedures to install memory module into memory socket.
Page 41: Installing The Single Board Computer
Chipset Component Driver ROBO-8114VG2AR is based on Intel® Q370/C246 chipset and desktop/workstation processors including Xeon E3-12XX /Core™ i7 / i5 / i3 sku . It’s a new chipset that some old operating systems might not be able to recognize. To overcome this compatibility issue, for Windows Operating Systems such as Windows 8, please install its INF before any of other Drivers are installed.
Page 42: Intel® Hd Graphics 630
Intel® HD Graphics 630 ROBO-8114VG2AR has integrated Intel® HD Graphics 630 which supports DirectX 12、OpenCL 2.0、OpenGL 4.5. It is the most advanced design to gain an outstanding graphic performance. ROBO-8114VG2AR supports VGA+DVI-D by DVI-I connector on bracket, and on board HDMI display output. This combination makes ROBO-8114VG2AR an excellent performance hardware.
Page 43: System Resources
Watch out the contact and lock integrity of memory module with socket, it will impact on the system reliability. Follow normal procedures to install memory module into memory socket. Before locking, make sure that all modules have been fully inserted into the card slots. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 44: Installing The Single Board Computer
To overcome this compatibility issue, for Windows Operating Systems such as Windows 8, please install its INF before any of other Drivers are installed. You can find very easily this chipset component driver in ROBO-8114 CD-title Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 45: Intel® Uhd Graphics 630
- Intel I210AT Gigabit Ethernet controller and 1x RJ45 connectors on rear I/O - Intel I219LM Gigabit Ethernet controller and 1x RJ45 connectors on rear I/O Drivers Support Please find Intel I210AT/I219LM LAN driver in /Ethernet directory of ROBO-8114-Q370 CD-title. The driver supports Windows 8. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 46: Bios Setup Items
The BIOS setup program provides a General Help screen. The menu can be easily called up from any menu by pressing <F1>. The Help screen lists all the possible keys to use and the selections for the highlighted item. Press <Esc> to exit the Help Screen. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 49 The date format is <Day>, <Month> <Date> <Year>. Use [＋] or [－] to configure system Date. System Date The time format is <Hour> <Minute> <Second>. Use [＋] or [－] to configure system Time. System Time Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 52 IO MWAIT Redirection PMG_IO_BASE_ADDRBASE+offset to MWAIT(offset) C0/C1,C2,C3,C6,C7,C7S,C8,C Maximum Package C State Limit Setting. Cpu Default: Leaves to Factory default value. Package C State Limit 9,C10,Cpu Default,★Auto Auto: Initializes to deepest available Package C States Limit Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 53 This is enabled automatically when Aperture Size is set to 2048MB Disabled, ★ Enabled HD Audio Control Detection of the HD-Audio device Port 80h Redirection Control where the Port 80h cycles are sent ★ LPC Bus, PCIE Bus Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 54 AMT BIOS Features access MEBx Setup. Note: This option does not disable Manageability Features in FW ★Disabled, Enabled ME Unconfig on RTC Clear When Disable ME will not be unconfigured on RTC Clear Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 56 Select DVMT 5.0 Pre-Allocated (Fixed) Graphics Memory size used by the 416M,448M,480M,512M, DVMT Pre-Allocated Internal Graphics Device. 1024M,1536M,2048M, 4M, 8M,12M,16M,20M,24M, 28M,32M,/F7,36M,40M,44M, 48M,52M,56M,60M Select DVMT5.0 Total Graphic Memory size used by the Internal Graphics ★256M, 128M, MAX DVMT Total Gfx Mem Device Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 58 ★Power On state) Enable or disable System wake on alarm event. When enabled, System will Wake System from S5 via RTC wake on the hr::min::sec ★Disabled, Enabled Specified/programmed by the Tools from OS Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 59 ROBO-8114VG2AR PCI/PCIE Configuration PCI, PCI-X and PCI Express Settings Feature Description Options ★1x16, 2x8,1x8. 2x4 PEG Port Lane Width Set PEG port Lane width Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 60 Force L0s – Force all links to L0s State ★Disabled, L0s, ASPM 7/9/21 L1, L0sL1, Auto AUTO-BIOS auto configure DISABLE – Disables ASPM ★Auto, Gen1, Gen2, Gen3 PCIe Speed Select PCI Express port speed Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 62 Support to Enable/Disable IPSEC certificate for Ikev PXE boot wait time Wait time in seconds to press ESC key to abort the PXE boot ★0 Media detect count Number of times the presence of media will be checked ★1 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 64 ★Disabled, Enabled Hot Plug Designates this port as Hot Pluggable ★Hard Disk Drive, SATA Device Type Identify the SATA port is connected to Solid State Drive or Hard Disk Drive Solid State Drive Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 66 This is a workaround for OSes without XHCI hand-off support. The XHCI ownership ★Enabled , Disabled XHCI Hand-off change should be claimed by XHCI driver USB Mass Storage Driver ★Enabled , Disabled Enable/Disable USB Mass Storage Driver Support Support Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 68 TPM 1.2 will restrict support to TPM 1.2 devices, TPM 2.0 will restrict support to TPM 2.0 Device Select devices, Auto will support both with the default set to TPM 2.0 devices if not found, TPM ★Auto, TPM 1.2, TPM 2.0 1.2 devices will be enumerated. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 69 System Super IO Chip Parameters. Feature Description Options ★Disabled, Enabled Watch Dog Timer Enable/Disable Watch Dog Timer ★Second, Minute Timer Unit Select Timer count unit of WDT Timer value Set WDT Timer value ★20 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 70 Description Options ★Enabled, Disabled Serial Port Enable or Disable Serial Port (COM) ★IO=3F8h; IRQ=4, Auto, IO=240h; IRQ=3,4,5,6,7,10,11,12 Change Settings Select an optimal settings for Super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12 IO=250h; IRQ=3,4,5,6,7,10,11,12 IO=258h; IRQ=3,4,5,6,7,10,11,12 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 71 Description Options ★Enabled, Disabled Serial Port Enable or Disable Serial Port (COM) ★IO=2F8h; IRQ=3, Auto, IO=240h; IRQ=3,4,5,6,7,10,11,12 Change Settings Select an optimal settings for Super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12 IO=250h; IRQ=3,4,5,6,7,10,11,12 IO=258h; IRQ=3,4,5,6,7,10,11,12 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 72 RS-232/422/485 Control Serial port 3 RS-232/422/485 Control Option Option RS-422 FLL DUPLEX ★IO=3E8h; IRQ=11, Auto, IO=240h; IRQ=3,4,5,6,7,10,11,12 Change Settings Select an optimal settings for Super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12 IO=250h; IRQ=3,4,5,6,7,10,11,12 IO=258h; IRQ=3,4,5,6,7,10,11,12 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 73 RS-232/422/485 Control Serial port 3 RS-232/422/485 Control Option Option RS-422 FLL DUPLEX ★IO=2E8h; IRQ=10, Auto, IO=240h; IRQ=3,4,5,6,7,10,11,12 Change Settings Select an optimal settings for Super IO Device IO=248h; IRQ=3,4,5,6,7,10,11,12 IO=250h; IRQ=3,4,5,6,7,10,11,12 IO=258h; IRQ=3,4,5,6,7,10,11,12 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 75 Smart Fan Mode Select Smart Fan™ III Mode System Tolerance Temp System Fan Tolerance Temperature ★5 System Start Target Temp System Start Fan Target Temperature. ★40 System Full Target Temp System Full Fan Target Temperature. ★60 Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 76 ROBO-8114VG2AR Serial Port Console Redirection Serial Port Console Redirection Feature Description Options ★Disabled, Enabled Console Redirection Console Redirection Enable or Disable Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 78 With this mode enabled only text will be sent. This is to capture Terminal ★Disabled, Enabled Recorder Mode data. ★Disabled, Enabled Resolution 100x31 Enables or disables extended terminal resolution ★VT100, LINUX,XTERMR6, SCO,ESCN,VT400 Putty KeyPad Select FunctionKey and KeyPad on Putty Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 79: Security
7.2.3 Security Feature Description Options [Setup] check password when enter setup screen. [Power on] check password on ★Setup, Power on Password Check Mode every time system power on. Administrator Password Set Administrator Password Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 81 Legacy, ★UEFI Boot mode select Select boot mode LEGACY/UEFI Legacy, ★UEFI Boot Option #1~7 Sets the system boot order UEFI Application Boot Priorities Specifies the Boot Device Priority sequence from available UEFI Application Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 83 Reset the system after saving the changes. UEFI: Built-in EFI Shell (Boot option filter: UEFI only) Attempts to Launch EFI Shell application (Shell.efi) from one of the available Launch EFI Shell from filesystem device filesystem devices. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 84: Troubleshooting
Unlike other Single board computer, ROBO-8114-Q370 supports ATX only. Therefore, there is no other setting that needs to be set up. However, there are only two connectors that must be connected— J15 (ATX 8 Pin Connector (For CPU Power)) on the ROBO-8114-Q370 board & 20 pins ATX Power Connector on the carrier board Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 85: Bios Setting
To make sure that you have a successful start with ROBO-8114-Q370, it is recommended, when going with the boot-up sequence, to hit “delete” or ”ESC” key and enter the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up your system far well. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 86: Faq
BIOS setting back to the initial factory configurations. It is recommended to do this so you can be sure the system is running with the BIOS setting that Portwell has highly endorsed. As a matter of fact, users can load the default BIOS setting at any time when system appears to be unstable in boot up sequence.
Page 87 6. When you see the “Programming success” message, which means the BIOS update processes finished. Please cut the AC power off and wait for 10 seconds before powering on. Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 88 If you have other additional technical information or request which is not covered in this manual, please fill in the technical request form as below hyperlink. https://www.portwell.com.tw/support-center/technical-request/?lang=zh-hant We will do our best to provide a suggestion or solution for you. Thanks Copyright © Portwell 2019 ROBO-8114VG2AR User's Guide...
Page 89: Portwell Software Service
ROBO-8114VG2AR 9 Portwell Software Service 1. If you have customized requirements of BIOS, you can contact person of our company or branch. 2. If you have requirements of WDT、GPIO APP, you can contact our headquarter or branch, and we can render you assistance on developing.
Page 90: Industry Specifications
ROBO-8114VG2AR 10 Industry Specifications 10.1 Industry Specifications The list below provides links to industry specifications that apply to Portwell modules. Low Pin Count Interface Specification, Revision 1.0 (LPC) http://www.intel.com/design/chipsets/industry/lpc.htm Universal Serial Bus (USB) Specification, Revision 2.0 http://www.usb.org/home PCI Specification, Revision 2.3 https://www.pcisig.com/specifications...
