PMAT-03069
User Manual
PMAT-03069
Portwell India

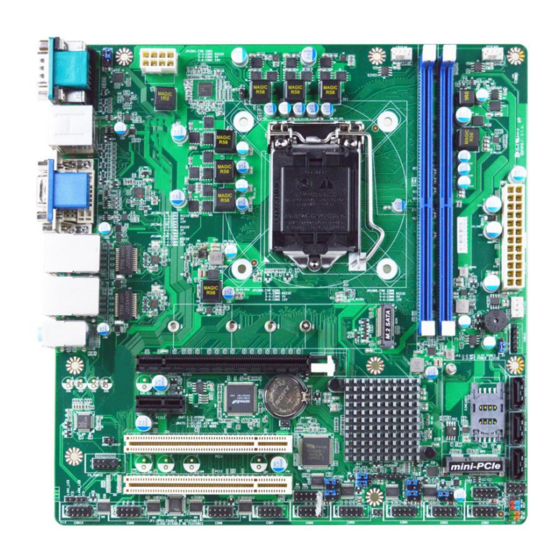

PMAT-03069 (Micro-ATX Size motherboard)
Version 1.0
Published date:
1
www.portwell.in
User's Manual
PMAT-03069

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PMAT-03069 and is the answer not in the manual?

Questions and answers

Related Manuals for Portwell PMAT-03069

Summary of Contents for Portwell PMAT-03069

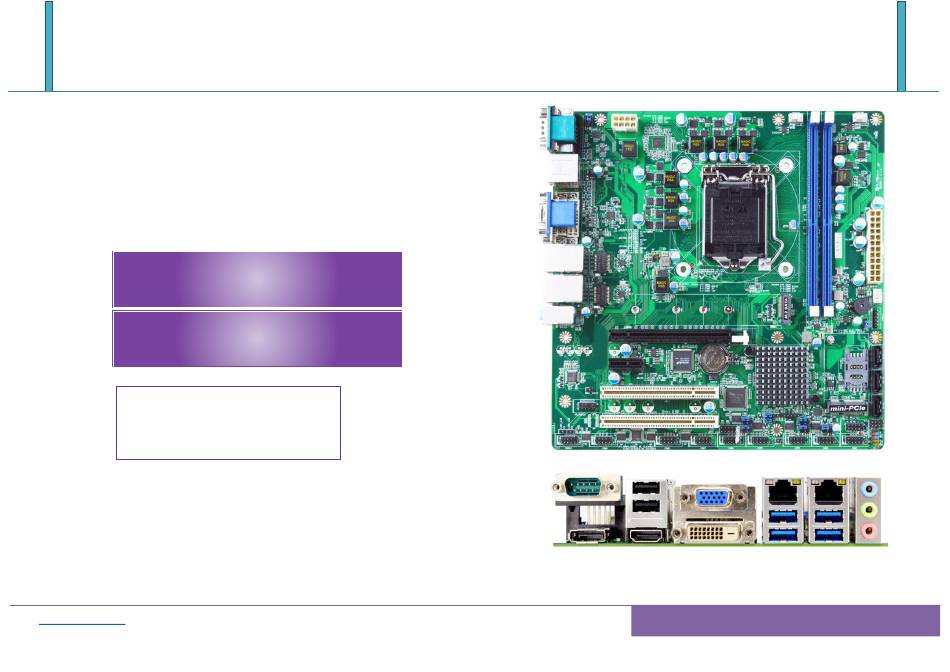

  • Page 1 PMAT-03069 User Manual PMAT-03069 Portwell India PMAT-03069 (Micro-ATX Size motherboard) Version 1.0 Published date: www.portwell.in User’s Manual PMAT-03069...

  • Page 2: Table Of Contents

    PMAT-03069 User Manual Table of Contents 1. Introduction ......................................... 3 2. Specifications ....................................... 4 2.1. Supported Operating Systems [Platform-Coffee Lake(i3-8100T)] ........................5 3. Internal I/O & Rear I/O ....................................6 3.1. Internal I/Os ........................................6 3.2. Rear I/O..........................................8 4.

  • Page 3: Introduction

    Product names, logos, brands, and other trademarks featured or referred to within this User ‘s guide or the Portwell website, are the property of their respective trademark holders. These trademark holders are not affiliated with Portwell, our products, or our website.

  • Page 4: Specifications

    PMAT-03069 User Manual Specifications Intel ® socket 1151 for 8 Gen Intel ® Core™ i7/ i5/ i3, 8th generation Coffee Lake series processor up to 65W TDP Chipset Intel® H310 Chipset 2 x DDR4 U-DIMM max.64GB, DDR4 up to 2666 MHz SDRAM...

  • Page 5: Supported Operating Systems [Platform-Coffee Lake(I3-8100T)]

    PMAT-03069 User Manual 1 x SMBUS header 1 x 9-Pin front panel USB 2.0 header for 2-expansion USB 2.0 ports 1 x RS232/422/485 COM Port header (COM 2) 8 x RS232 COM Port header (COM 3/4/5/6/7/8/9/10) GPIO 1 x GPIO header...

  • Page 6: Internal I/O & Rear I/O

    PMAT-03069 User Manual 3. Internal I/O & Rear I/O 3.1. Internal I/Os www.portwell.in User’s Manual PMAT-03069...
  • Page 7 PMAT-03069 User Manual ATX 12V Power connector CPU Fan connector System Fan connector DDR4 DIMM Slot – 2 Nos ATX Power connector System Fan-2 connector Buzzer SMBUS Header SATA III Ports – SATA1/2/3 Power LED and Speaker Header Front Panel Header USB 2.0 header...

  • Page 8: Rear I/O

    PMAT-03069 User Manual 3.2. Rear I/O. RS232/422/485 Serial Port – COM 1 USB 2.0 Port VGA Port RJ-45 LAN Port BLUE: Line-in Connector GREEN: Line-out Connector PINK: MIC Connector USB 3.1 (Gen.1) Port DVI-D Port HDMI Port Display Port www.portwell.in User’s Manual...

  • Page 9: Jumpers & Headers

    PMAT-03069 User Manual 4. Jumpers & Headers 4.1. Jumpers 4.1.1. JPCOM1 Connector Type (4-pin): COM1 Port Pin9 Function Select 4.1.2. JPCOM2 Connector Type (4-pin): COM2 Port Pin9 Function Select www.portwell.in User’s Manual PMAT-03069...
  • Page 10 PMAT-03069 User Manual 4.1.3. JPCOM3: Connector Type (4-pin): COM3 Port Pin9 Function Select 4.1.4. JPCOM4 Connector Type (4-pin): COM4 Port Pin9 Function Select www.portwell.in User’s Manual PMAT-03069...
  • Page 11 PMAT-03069 User Manual 4.1.5. JPCOM5 Connector Type (4-pin): COM4 Port Pin9 Function Select 4.1.6. JPCOM6 Connector Type (4-pin): COM4 Port Pin9 Function Select www.portwell.in User’s Manual PMAT-03069...
  • Page 12 PMAT-03069 User Manual 4.1.7. JBAT: Clear CMOS Connector Type (3-pin): Clear CMOS RAM Settings 4.1.8. JAT_ATX : AT/ATX mode select Connector Type (3-pin): AT Mode /ATX Mode Select ATX Mode selected: Press power button to power on after power input ready...
  • Page 13 PMAT-03069 User Manual 4.1.9. JP1: ME Features Select Connector Type (2-pin): ME Features Select 4.1.10. COPEN: Case Open Message Display Function Connector Type (2-pin): Case Open Message Display Function Pin 1-2 Short: When Case open function pin short to GND, the Case open function was detected.
  • Page 14 PMAT-03069 User Manual 4.1.11. JP2 (3-pin): MPE (Mini PCI-E) Slot VCC 3.3V/3.3VSB Select (3-pin): MPE (Mini PCI-E) Slot VCC 3.3V/3.3VSB Connector Type Select www.portwell.in User’s Manual PMAT-03069...

  • Page 15: Headers

    PMAT-03069 User Manual 4.2. Headers 4.2.1. COM 1: COM1 (9-pin Block): RS232/422/485 Port Connector Type (9-pin Block):RS232/422/485 Port COM1 port can function as RS232/422/485 port. In normal settings COM1 functions as RS232 port. With compatible COM cable COM1 can function as RS422 or RS 485 port. User also needs to go to BIOS to set ‘Transmission Mode Select’...
  • Page 16 PMAT-03069 User Manual ROW1 ROW2 +3.3V +3.3V +3.3V -12V Soft Power on Power OK +5V Stand by +12V Figure1：20-pin power plug Figure 2：24-pin power plug +12V +3.3V 4.2.3. ATX12V (8-pin block): 12V Power Connector Connector Type (8-pin block): 12V Power Connector This is a new defined 8-pin connector that usually comes with ATX Power Supply that supports extra 12V voltage to maintain system power consumption.
  • Page 17 PMAT-03069 User Manual 4.2.4. SATA1/2/3 (7-pin): SATA III Port connector Connector Type (7-pin): SATAIII Port connector Pin No. Definition These connectors are high-speed SATAIII ports that support 6 GB/s transfer rate. 4.2.5. CPUFAN/SYSFAN1/SYSFAN2 Connector Type (4-pin): Fan Connectors SYSFAN2 CPUFAN/SYSFAN1 www.portwell.in...
  • Page 18 PMAT-03069 User Manual 4.2.6. M2M: M.2 M-Key Slot M2M M.2 M-Key slot supports compatible type 2242/2260/2280/22110 SATA module. Deferent type of cards has different length. Find corresponding nut location for further installation. Nut Location Card Length 4.2 cm 6 cm...
  • Page 19 PMAT-03069 User Manual 4.2.8. FP: Front Panel Header Connector Type (9-pin): Front Panel Header 4.2.9. SPK_LED: PWR LED Header & Speaker Header Connector Type (7-pin): PWR LED Header & Speaker Header PIN 1 www.portwell.in User’s Manual PMAT-03069...
  • Page 20 PMAT-03069 User Manual 4.2.10. FP_AUDIO: Line-Out, MIC-In Header Connector Type (9-pin): Line-Out, MIC-In Header This header is connected to Front Panel Line-out, MIC connector with cable 4.2.11. HDMI_SPDIF: HDMI-SPDIF Out header Connector Type (2-pin): HDMI-SPDIF Out header www.portwell.in User’s Manual...
  • Page 21 PMAT-03069 User Manual 4.2.12. LAN1_LED/ LAN2_LED: LANLED Header Connector Type (2-pin): LANLED Header LAN1_LED LAN2_LED 4.2.13. PS2KBMS: PS/2 Keyboard & Mouse Header Connector Type (6-pin): PS/2 Keyboard & Mouse Header www.portwell.in User’s Manual PMAT-03069...
  • Page 22 PMAT-03069 User Manual 4.2.14. GPIO_CON: GPIO Header Connector Type (10-pin): GPIO Header 4.2.15. SMBUS: SM BUS Header Connector Type (5-pin): SM BUS Header www.portwell.in User’s Manual PMAT-03069...
  • Page 23 PMAT-03069 User Manual 4.2.16. USB2: USB 2.0 Port Header Connector Type (9-pin): USB 2.0 Port Header 4.2.17. COM2: Serial Port Header Connector Type (9-pin): Serial Port Header *RS422 *RS485 COM2 header can function as RS232/422/485 Pin NO. RS232 (optional) (optional) port header.
  • Page 24 PMAT-03069 User Manual 4.2.18. COM 3/4/5/6/7/8/9/10: Serial Port Header Connector Type (9-pin): Serial Port Header Pin NO. RS232 Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 www.portwell.in User’s Manual PMAT-03069...

  • Page 25: Bios

    PMAT-03069 User Manual 5. BIOS 5.1. BIOS Setup Program Use the BIOS Setup program to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief online help to guide you in using the BIOS Setup program Press <Delete>...

  • Page 26: Menu Bar

    PMAT-03069 User Manual 5.2. Menu Bar The menu bar on top of the screen has the following main items Main For changing the basic system configuration Advanced For changing the advanced system settings Chipset To change chipset configuration Security For configuring the system security settings Boot For changing the system boot configuration.

  • Page 27: Main Menu

    PMAT-03069 User Manual 5.3. MAIN Menu The Main menu provides you an overview of the basic system information, and allows you to set the system date, time, language, and security settings. System Date [Day MM/DD/YYYY] : Allows you to set the system date System Time [HH:MM:SS] : Allows you to set the system time 5.4.
  • Page 28 PMAT-03069 User Manual 5.4.1. CPU Configuration The items in this menu show CPU-related information the BIOS automatically detects. Note: The items shown in the submenu may be different depending on the type of CPU installed Hyper-Threading: options: [Disabled]; [Enabled]: When set as [Disabled] only one thread per enabled...
  • Page 29 PMAT-03069 User Manual 5.4.2. SATA Configuration Press [Enter] to make settings for the following sub-items SATA Controller(s): Use this item to enable or disable SATA device. Options: [Disabled]; [Enabled] When [Enabled]: the following items shall appear SATA Mode Selection: Options: [AHCI] SATA1/SATA2/SATA3: Port - Use this item to enable or disable SATA port.
  • Page 30 PMAT-03069 User Manual 5.4.4. Trusted Computing Press [Enter] to view current status information & make further settings in the below sub-items. Security Device Support: Use this item to enable or disable BIOS support for security device. O.S. will not show security device. TGG EFI protocol and INT1A interface will not be available.
  • Page 31 PMAT-03069 User Manual 5.4.6. Wake-up Function Settings Press [Enter] to make settings for the following sub-items. • Wake-up System with Fixed Time: Options: [Disabled]; [Enabled]. When [Enabled]: system will wake on the hour/min/sec specified • Wake-up System With Dynamic Time: enable or disable system wake on alarm event.
  • Page 32 PMAT-03069 User Manual 5.4.7. Super IO Configurations Press [Enter] to make settings for the following sub-items. ERP Support: Options: [Disabled]; [Auto]. *This item should be set as [Disabled] to have all active wake-up functions. Serial Port 1 /Serial Port 2 Configuration: Serial Port: Options: [Disable];...
  • Page 33 PMAT-03069 User Manual 5.4.8. PC Health Status SmartFAN Configuration: • CPUFAN / SYSFAN1/ SYSFAN2 Smart Mode: Options: [Disable]; [Enable]. When Enable o CPUFAN / SYSFAN1/ SYSFAN2 Full-Speed Temperature: Use this item to set CPUFAN/SYSFAN1/SYSFAN2 full speed temperature. Fan will run at full speed when above this pre-set temperature.
  • Page 34 PMAT-03069 User Manual 5.4.9. Second IO Configuration. Serial Port 7 /Serial Port 8 /Serial Port 9 /Serial Port 10 Configuration: Serial port: Use this item to enable or disable serial port (COM). Change Settings: Use this item to select an optimal setting for super IO device. Changing setting may conflict with system resources.
  • Page 35 PMAT-03069 User Manual 5.4.10. Serial Port Console Redirection Console Redirection: Options: [Disable]; [Enable]. When [Enable], following items shall appear. Console Redirection Settings: The settings specify exchange data between host & user system. Both systems should have the same or compatible settings.
  • Page 36 PMAT-03069 User Manual Putty KeyPad: Use this item to select Function Key and KeyPad on Putty. Options: [VT100]; [Linux]; [XTERMR6]; [SCO]; [ESCN]; [VT400]. Legacy Console Redirection: Press [Enter] to make settings for the following item; Legacy Console Redirection Settings: Legacy Serial Redirection Port: For user to select a COM port to display redirection of legacy OS and Legacy OPROM messages. Options: [COM1]; [COM1(Pci Bus0, Dev0, Func0) (Disabled)].
  • Page 37 PMAT-03069 User Manual Parity: The default setting is: [None]. *This item may or may not show up, depending on different configuration. Stop Bits: The default setting is: [1]. *This item may or may not show up, depending on different configuration.
  • Page 38 PMAT-03069 User Manual 5.4.12. Network Stack Configuration Network Stack: Use this item to enable or disable UEFI Network Stack. Options: [Disabled]; [Enabled]. *When set as [Enabled], the following sub-items shall appear: o Ipv4 PXE Support: Options: [Disabled]; [Enabled]. Use this item to enable IPv4 PXE boot support.
  • Page 39 PMAT-03069 User Manual 5.4.14. NVMe Configuration Press [Enter] to view current NVMe Configuration. *Note: options only when NVME device is available 5.4.15. Realtek PCIe GBE Family Controller Realtek PCIe GBE Family Controller (MAC:XX:XX:XX:XX:XX:XX)/ Realtek PCIe GBE Family Controller (MAC:XX:XX:XX:XX:XX:XX) These items show current network brief information.

  • Page 40: Chipset Menu

    PMAT-03069 User Manual 5.5. Chipset Menu 5.5.1. System Agent (SA) Configuration VT-d: Options: [Disabled]; [Enabled] Use this item to enable or disable VT-d capability Memory Configuration: Press to view brief information for the working memory module 5.5.1.1. Graphics Configuration Primary Display: Options: [Auto]; [IGFX]; [PEG]; [PCI]. Use this to select Primary Display Primary IGFX Boot Display: Options: [VBIOS Default];...
  • Page 41 PMAT-03069 User Manual Internal Graphics: Options: [Auto]; [Disabled]; [Enabled] Use this item to keep IGFX enabled based on the setup options. Aperture Size: Options: [128MB]; [256MB]; [512MB]; [1024MB]; [2048MB] Use this to select the Aperture Size. Above 4GB MMIO BIOS assignment is automatically enabled when selecting 2048MB aperture. To use this feature, please disable CSM Support DVMT Pre-allocated: Options: [32M];...
  • Page 42 PMAT-03069 User Manual 5.5.2. PCH-IO Configuration HD Audio: Options: [Disabled]; [Enabled]; This item controls detection of the HD-Audio device. Onboard Lan1 Controller: Options: [Disabled]; [Enabled]; Use this item to enable or disable corresponding onboard NIC device or controller Onboard Lan2 Controller: Options: [Disabled]; [Enabled];...

  • Page 43: Security Menu

    PMAT-03069 User Manual 5.6. Security Menu Administrator Password: If there is no password present on system, press [Enter] to create new. If password is present, press [Enter] to verify old password then to clear/change password. Press again to confirm the new administrator password.
  • Page 44 PMAT-03069 User Manual Key Management: This item enables experienced users to modify Secure Boot variables, which includes the following items: Factory Key Provision: Options: [Disabled], [Enabled]; This item is for user to install factory default secure boot keys after the platform reset and while the system is in Setup mode •...

  • Page 45: Boot Menu

    PMAT-03069 User Manual 5.7. Boot Menu Setup Prompt Timeout: Options: [Disabled], [Enabled]; Use this item to set number of seconds to wait for setup activation key. Bootup Numlock State: Options: [On], [Off]; Use this item to select keyboard numlock state Quiet Boot: Options: [Disabled], [Enabled];...
  • Page 46 PMAT-03069 User Manual www.portwell.in User’s Manual PMAT-03069...
  • Page 47 PMAT-03069 User Manual www.portwell.in User’s Manual PMAT-03069...
