Minor repair

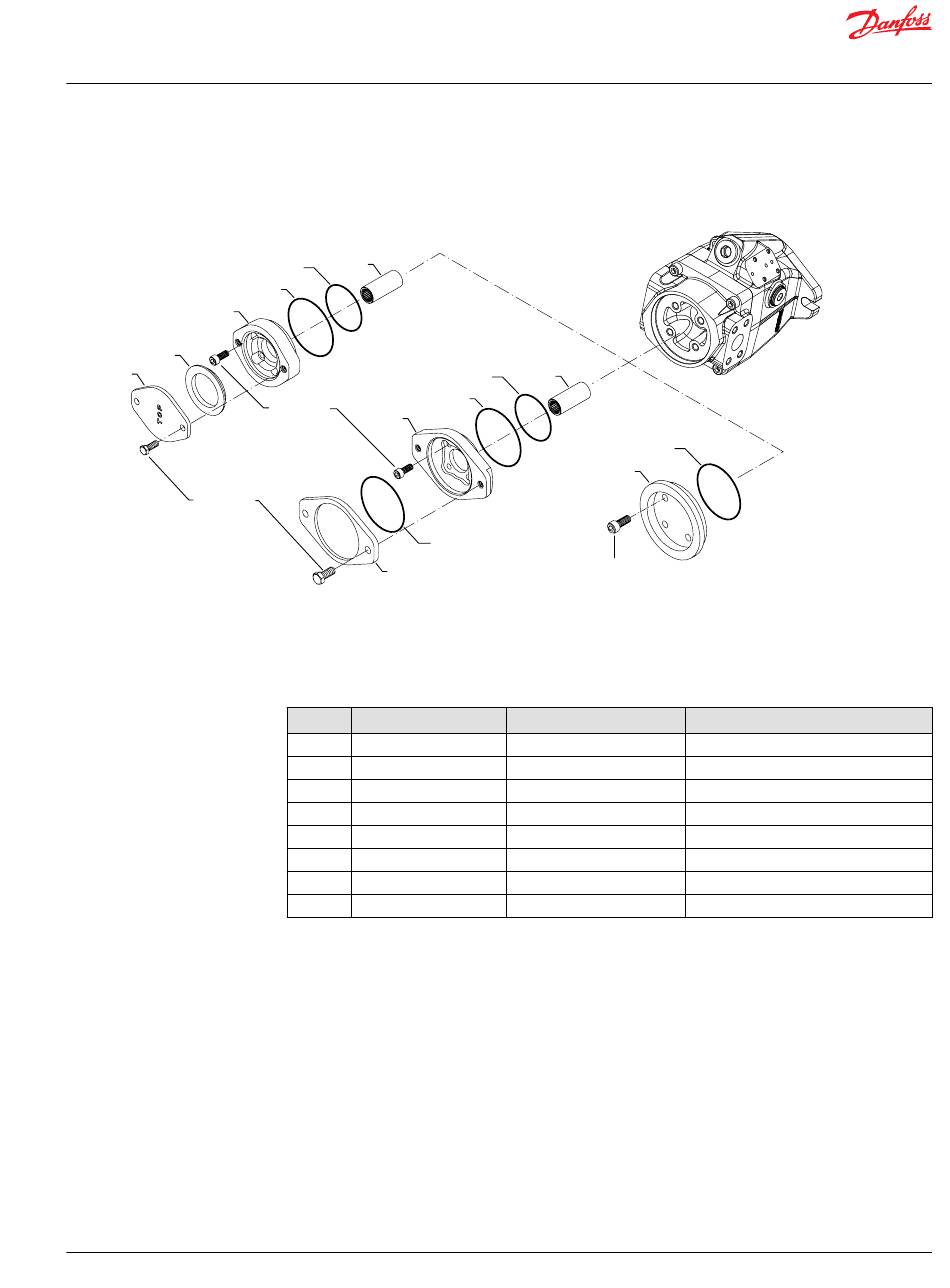

Auxiliary mounting pads
J085
J120
J110
J130(2pl.)

LS and PC Controls

© Danfoss | April 2017
8. Install two screws (J130) and torque to 44 N•m [32 lbf•ft].
J140
J095
J090
J100 (4pl. )
J085
J110
Wrench size and torque
Item Description
J085 pad adapter
J090 O-ring
J095 O-ring
J100 cap screw
J110 cover plate
J120 O-ring
J130 screw
J140 drive coupling

Inspection

Inspect sealing surfaces on the endcap and auxiliary pad and make sure that they are clean and free of
contaminants. Inspect the coupling (J140) for any signs of excessive or abnormal wear. Replace all O-
rings. Replace excessively worn parts if necessary.

Assembly

1. Install the adapter (J085) with new O-rings (J090, J095). Tighten the screws (J100) at 75 N•m [55 lbf•ft].
2. Install the coupling (J140) onto the shaft.
Disassembly
1. Remove the 4 screws (C300) holding the control housing onto the endcap.
J140
J095
J090
J085
J120
J100 (4pl.)
Wrench size
-
-
-
8 mm internal hex
-
-
9/16 inch
8 mm internal hex
J095
P109054
Torque
-
-
-
54 Nm [39 lbf•ft]
-
-
44 N•m [32 lbf•ft]
54 Nm [39 lbf•ft]
