Service Manual
Series 45 Frame K2 Open Circuit Axial Piston Pumps
Adjustments

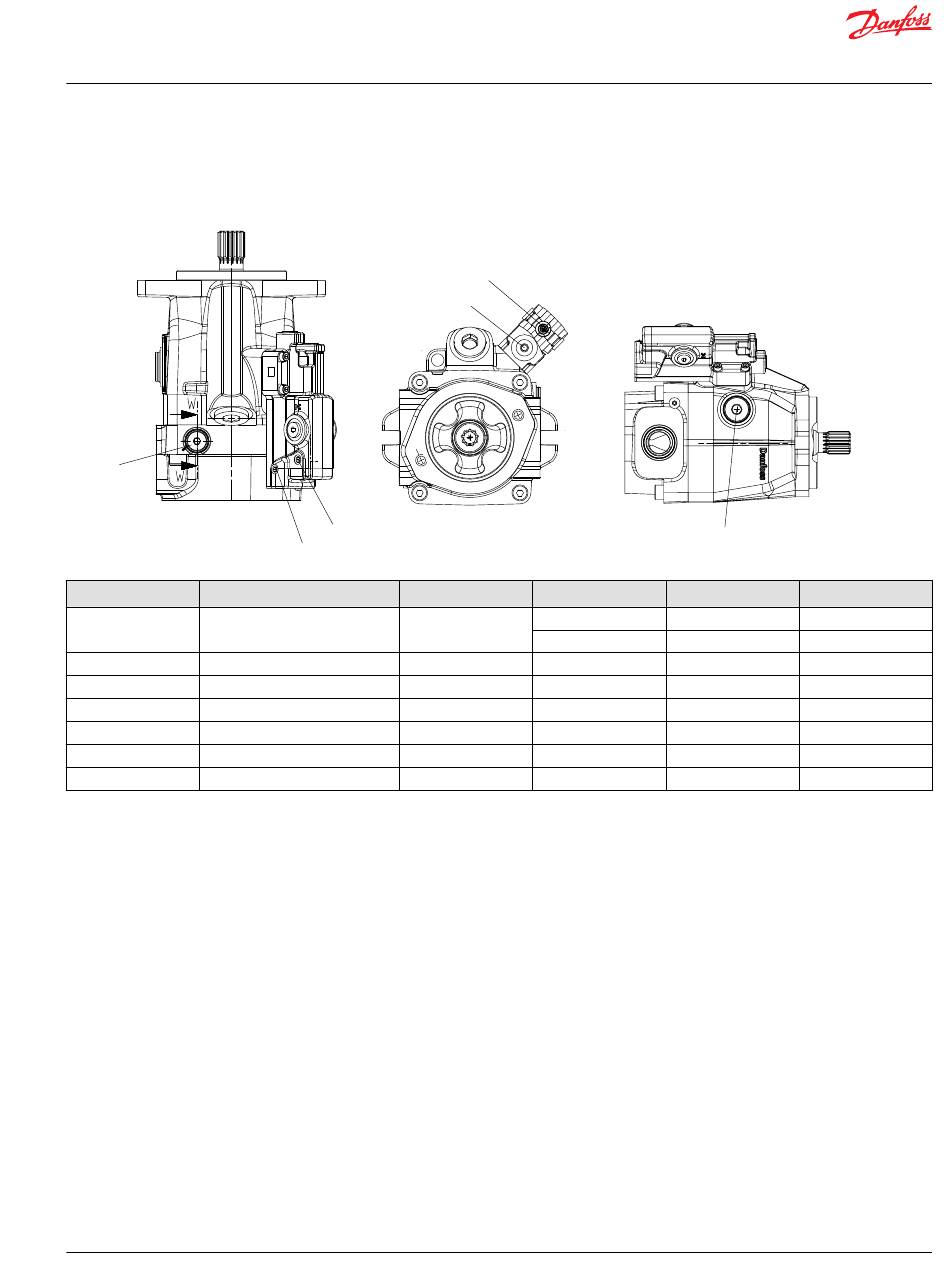

LS control adjustment: Adjustment screw, set screw, and gauge locations shown
M2
Item Description
1
M2 Gauge port
L1 Case drain port
X LS/remote PC signal port
LS adj. screw LS adjustment screw
LS set screw LS set screw
PC adj. screw PC adjustment screw
PC set screw PC set screw
1
The M2 port is not available as a standard option.
© Danfoss | April 2017
8. Stop the prime mover, remove the pressure gauges, and return the system to its normal operating
configuration.
LS adjustment screw
PC adjustment screw
LS set screw
PC set screw
Gauge
300 bar [5000 psi]
10 bar [100 psi]
-
-
-
-
-
Port size Wrench size
9/16-18 1/4 inch internal hex
M14 4 mm internal hex
7/8-14 3/8 internal hex
- -
- 6 mm internal hex
- 4 mm
- 6 mm internal hex
- 4 mm
L1
P109071
Torque
51 N•m [38 lbf•ft]
31 N•m [23 lbf•ft]
95 N•m [70 lbf•ft]
-
-
9 N•m [7 lbf•ft]
-
9 N•m [7 lbf•ft]
