Series 45 Frame K2 Open Circuit Axial Piston Pumps
Minor repair
32 |
©
Danfoss | April 2017
8. Check and adjust the control setting. See Adjustments section.

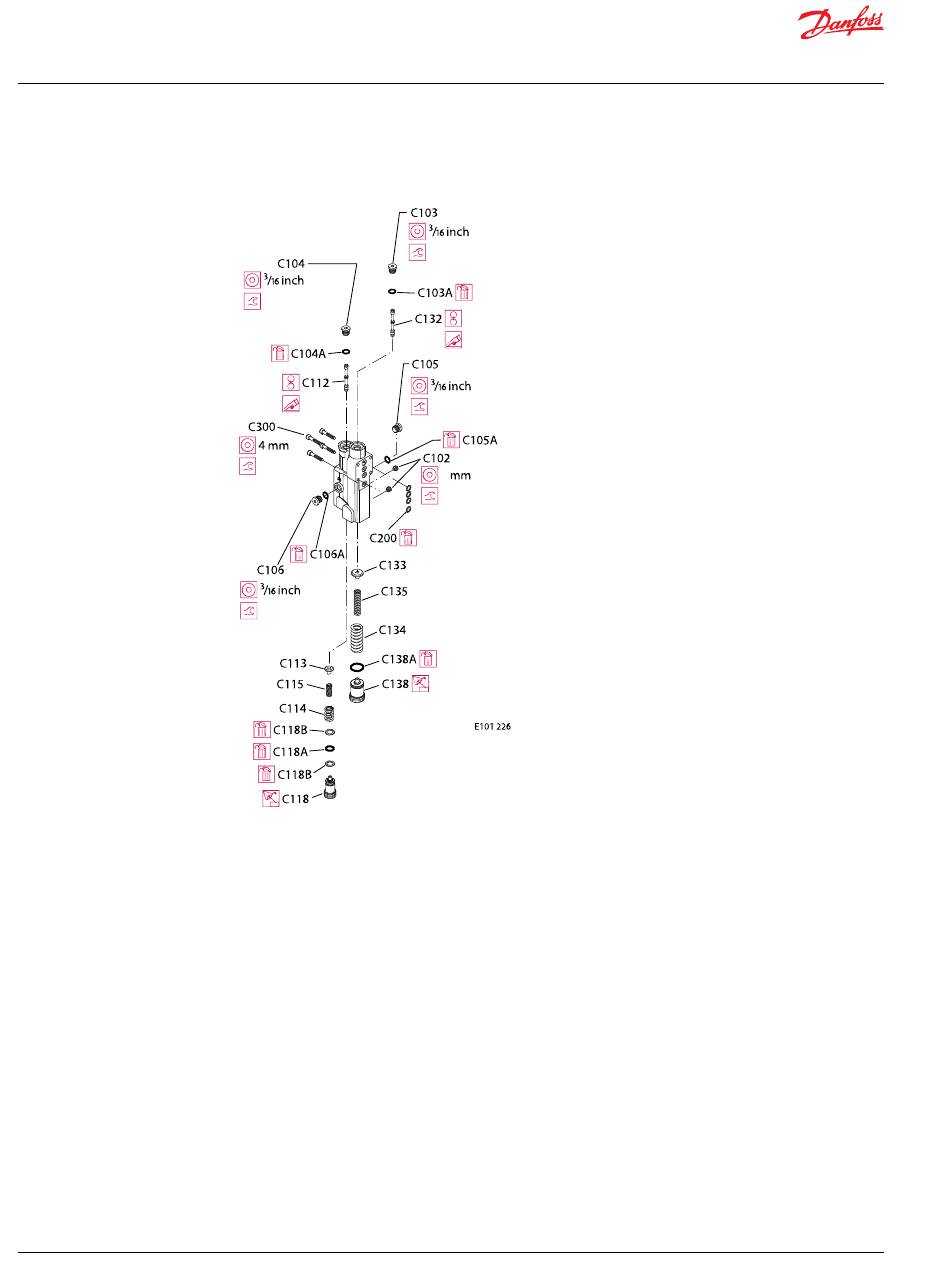

Control assembly
12 N•m
[9 lbf•ft]
6 N•m
[5 lbf•ft]
12 N•m
[9 lbf•ft]
LS control shown; parts C104 through C106 and C112 through C118 are not used on PC control
12 N•m
[9 lbf•ft]
12 N•m
[9 lbf•ft]
4
9 N•m
[7 lbf•ft]
AX00000301en-US0101
