BLEND® SELF-SERVICE DRY (AMBIENT) MERCHANDISERS
> THIS USER GUIDE IS APPLICABLE TO MODEL NM4855DSSV and NM7255DSSV
> SOLID REAR PLENUM / PRESSURIZED FAN SYSTEM TO PREVENT INSECT INFILTRATION
> HINGED FRONT GLASS DOORS WITH CENTER HANDLES /
> FRONT CUBBIES / FRONT NAPKIN DISPENSER INSIDE UNIT / TRASH DOOR
> CAUTION! DO NOT PUSH OR PULL ON GLASS UPRIGHTS!
> ONLY USE HANDLES (AT EACH END OF CASE) TO PUSH OR PULL CASE INTO POSITION!
Note: See Blend® Case-To-Case
Adjoinment Guide P/N 21-26284
For Lineup Options As Well As
Step-By-Step Lineup Instructions.
Model NM7255DSSV Ambient
Merchandiser Shown At Left

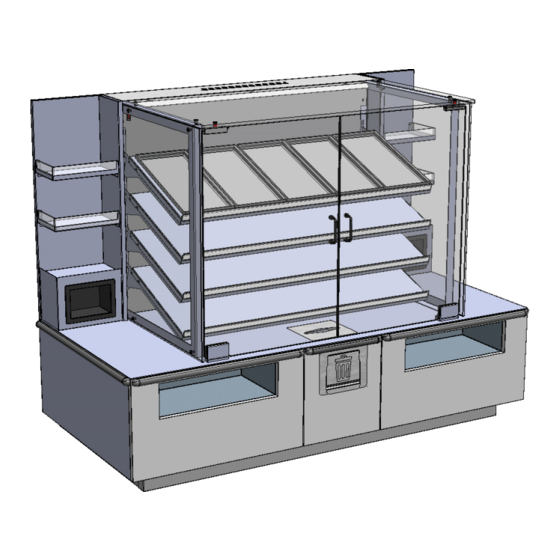

Model NM4855DSSV Ambient
Merchandiser With Optional
Tray Feature Shown At Right
Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com
REV C DATE: 03/14/2023
USER MANUALS\21-27948_BLEND_USER MANUAL_NM(L)(H)DSSV_AMBIENT_SELF-SVC_CASE
Advertisement
Table of Contents
Troubleshooting
Related Manuals for Structural Concepts BLEND NM4855DSSV
Summary of Contents for Structural Concepts BLEND NM4855DSSV

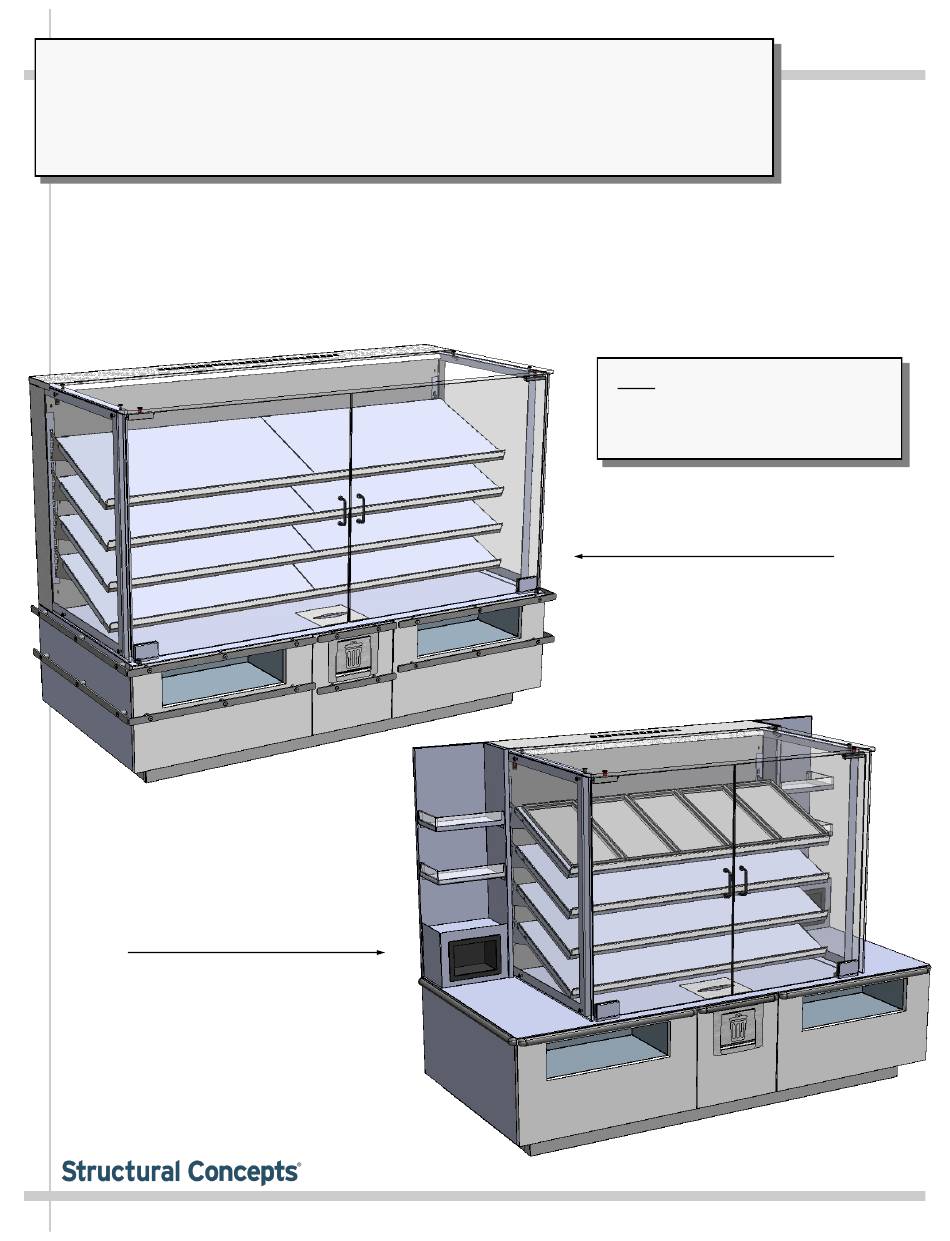

- Page 1 Merchandiser Shown At Left Model NM4855DSSV Ambient Merchandiser With Optional Tray Feature Shown At Right Structural Concepts Corp. ∙ 888 E. Porter Rd ∙ Muskegon, MI 49441 Phone: 231.798.8888 Fax: 231.798.4960 ∙ www.structuralconcepts.com REV C DATE: 03/14/2023 USER MANUALS\21-27948_BLEND_USER MANUAL_NM(L)(H)DSSV_AMBIENT_SELF-SVC_CASE...
-
Page 2: Table Of Contents
TROUBLESHOOTING (TO BE PERFORMED BY STORE PERSONNEL) ...………………....TROUBLESHOOTING (TO BE PERFORMED BY TRAINED SERVICE PROVIDERS ONLY) …..……. SERIAL LABEL LOCATION & INFORMATION LISTED / TECH INFORMATION & SERVICE ….…..… STRUCTURAL CONCEPTS TECHNICAL SERVICE CONTACT INFORMATION & LIMITED WARRANTY …………………………………………………………………………..…...…...….. -
Page 3: Wiring Diagram
OVERVIEW / COMPLIANCE / LED LIGHTS / ELECTRICAL HAZARD WARNING / WIRING DIAGRAM OVERVIEW ELECTRICAL HAZARD WARNING • • These Blend® ambient merchandisers should be Please read the important warning in this document installed and operated according to this operating carefully as it can prevent injury or death. -
Page 4: Blend® Free Standing Refrigerated Self-Service Model Applicability And Individual Model Dimensions
BLEND® FREE STANDING REFRIGERATED SELF-SERVICE MODEL APPLICABILITY & DIMENSIONS Upper Display Model Overall Case Height Case Depth x Width Case Height NM4855DSSV 35 1/4” 54 5/8” 33”D x 71 3/4”W NM7255DSSV 35 1/4” 54 5/8” 33”D x 71 3/4”W... -
Page 5: Installation: Toe-Kick & Rear Panel Removal / Removing Skid Brackets And Blocks
INSTALLATION: TOE-KICK & REAR PANEL REMOVAL / REMOVING SKID BRACKETS AND BLOCKS 1. Remove Toe-Kicks • To prevent damage to case, front and side toe-kick should NOT be on case at shipment. • If they are, you must remove toe- kicks from case before removing case from skid. -
Page 6: Skid
INSTALLATION, CONT’D.: CASTER ADJUSTMENT / LOCK / UNLOCK / CASE REMOVAL FROM SKID 3. Caster Height: Raising and Lowering Vertical • Raise or lower casters (to adjust case height) by Adjustment rotating casters’ vertical adjustment rings. Ring • Rotate vertical adjustment ring clockwise to lower caster (and increase height of case). -
Page 7: Installation, Cont'd: Toe-Kick Reattachment
INSTALLATION, CONT’D: TOE-KICK REATTACHMENT 7. Return Toe-Kicks To Case • After case has been rolled into position and casters height adjusted and locked, return toe-kicks to case. • Toe-kicks are held in place by magnets only. • See illustration below. Illustrations Shown Reflects Model NM7255DSSV. -
Page 8: Installation, Cont'd: Shelving Assembly Components
INSTALLATION, CONT’D: SHELVING ASSEMBLY COMPONENTS 8. Shelving Assembly Components • See illustrations below for components comprising each shelf assembly. • Check that shelving is in proper position before • Nylon retainer clips (2 per shelf) secure brackets placing product in case during shipment. -
Page 9: Installation, Cont'd: Field Wire (Or Plug In) Case / Turn On Led Lights
INSTALLATION, CONT’D: FIELD WIRE (OR PLUG IN) CASE / TURN ON LED LIGHTS 9. Field Wire (Or Plug In) Case / Turn on LED Lights Illustrations Shown Reflects Model • Field-wired case or plug unit into outlet (if plug is present). NM7255DSSV. -
Page 10: Case Design: Top Side View Of Ambient, Self-Service Merchandisers
CASE DESIGN: TOP SIDE VIEW OF AMBIENT, SELF-SERVICE MERCHANDISERS 1. Front View of Ambient, Self-Service Merchandisers Illustrations Shown Reflects Model • Solid back panel is shown. Your unit may have rear sliding NM7255DSSV. It May Not Exactly doors. Reflect Every Feature or Option of •... -
Page 11: Case Design, Cont'd: Underside View Of Ambient Self-Service Merchandisers
CASE DESIGN, CONT’D: UNDERSIDE VIEW OF AMBIENT SELF-SERVICE MERCHANDISERS 2. Underside Vew Of Ambient Self-Service Merchandisers Illustrations Shown Reflects Model • Power cord route may differ depending upon customer request. NM7255DSSV. It May Not Exactly • Slide-out drawer (shown below-right) may be pulled out to Reflect Every Feature or Option of access trash bags. -
Page 12: Case Design, Cont'd: Led Style Light Fixtures
Adjust magnetic mounting clips so they are equally • LED lights rarely require change-out. spaced on LED light. • Contact Structural Concepts’ Technical Service • Reattach LED light assembly to its shelf/header. Department for replacement LED lights. • Position properly in shelf/header. -
Page 13: Case Design, Cont'd: Pressurized Fan System To Prevent Insect Infiltration
CASE DESIGN, CONT’D: PRESSURIZED FAN SYSTEM TO PREVENT INSECT INFILTRATION 5. Sectioned view of case showing airflow from 4. Pressurized Fan System axial fans, along rear chimney and through • Case is pressurized from inside to out using upper baffle. axial fans at rear plenum. -
Page 14: Cleaning Schedule (To Be Performed By Store Personnel)
CLEANING SCHEDULE (TO BE PERFORMED BY STORE PERSONNEL) FREQUENCY INSTRUCTIONS Daily Glass Surfaces: Clean side glass and shelves with household or commercial glass cleaner. Daily Exterior Glass: Clean with household or commercial glass cleaner. Daily Acrylic Tray/Shelf (on NM4855DSSV Only): Use non-abrasive cloth with warm water and mild soap solution to wipe off all surfaces. -
Page 15: Troubleshooting (To Be Performed By Store Personnel)
Troubleshooting to be performed by trained service providers only is on next page. If case light still do not come on, it may need to be replaced. • Contact Structural Concepts’ Technical Service Department for replacement light (see TECHNICAL SERVICE section of this manual for contact information). •... -
Page 16: Troubleshooting (To Be Performed By Trained Service Providers Only)
Fan(s) Not • If power is supplied to the case but axial fans are not operational, case’s power Working supply may be faulty. • Axial fan(s) may be faulty and need to be replaced. Contact Structural Concepts for replacement fan(s). -
Page 17: Serial Label Location & Information Listed / Tech Information & Service
TECHNICAL SERVICE page in this manual for • Serial labels are affixed at a wide range of places instructions on contacting Structural Concepts’ (on the header, at case rear, behind panels or Technical Service Department. toe-kicks, on electrical boxes, etc.). -
Page 18: Warranty
STRUCTURAL CONCEPTS TECHNICAL SERVICE CONTACT INFORMATION & LIMITED WARRANTY YOU MUST HAVE THE FOLLOWING INFO AVAILABLE TECH SERVICE/WARRANTY CONTACT INFO: BEFORE CONTACTING STRUCTURAL CONCEPTS: 1 (800) 433-9490 / EXTENSION 1 SERIAL NO. / MODEL NO. / STORE NO. / STORE...
