Install door station
The system settings are complete.
„ Position the door station on the base and
tighten the two screws in the front plate
(figure 12).

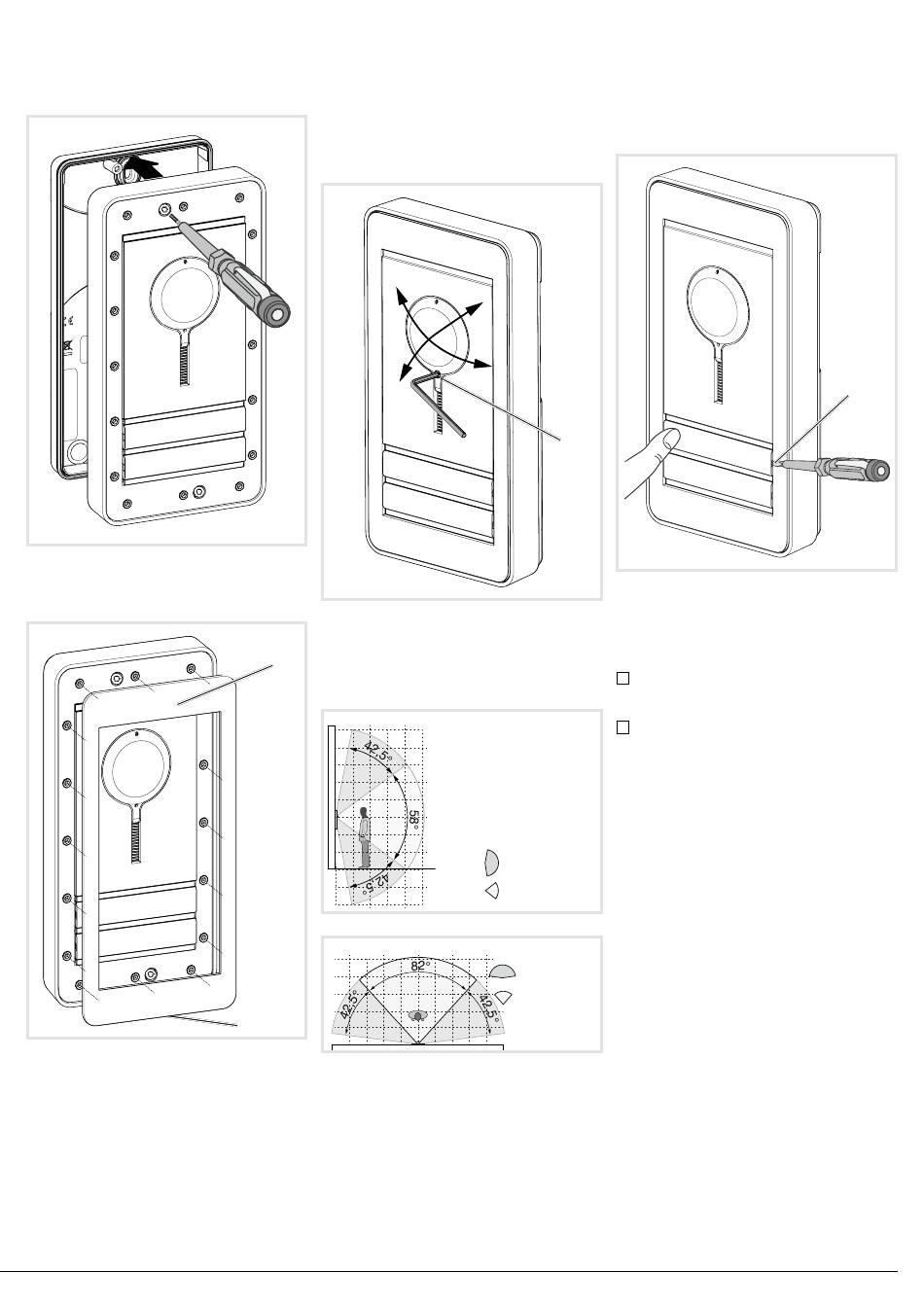

Figure 12: Installing door station
„ Clip the design front plate (1) on to the door
station making sure that the unclipping slot (16)
is pointing downwards (figure 13).
Figure 13: Clipping the design front plate on to the
base.
(16) Unclipping slot
5 Elcom Kommunikation GmbH-Zum Gunterstal-66440 BLIESKASTEL-GERMANY - www.elcom.de -
Align camera
The camera can be aligned in order to adapt
the camera picture to the local circumstances
(figure 14, 15 and 16).
The door station is installed.
„ Loosen the camera locating screw using the
1.5 mm Allen wrench provided (figure 14).
„ Call an indoor video station from the door
station by pressing the call push-buttons.
Figure 14: Aligning the camera
„ Align camera (figure 16/17).
(1) The entrance area is clearly visible on the
display of the indoor station.
„ Fix camera again with screw (4).
1 2 m
Figure 15: Vertical camera alignment
2 1 0
2
1
(16)
Figure 16: Horizontal camera alignment
(4)
2 m
1
0
1
vertical
swivelling range
2
vertical
aperture angle
1 2 m
horizontal
swivelling range
horizontal
aperture angle
Label call push-button
„ Press one side of the call push-button.
The other side can be levered open (17) using
a screwdriver.
„ Insert the screwdriver into the lever opening
system (17) and unlock the button (figure 17).
„ Remove cover with name plate insert.
Figure 17: Removing name plate cover
(17) Lever opening system
„ Label name plate insert if required.
„ Place a name plate or label inside the cover
and press down on the cover.
i
Do not use a paper name plate or label as it
may be damaged by damp and UV light along
with the writing on it.
i
Use UV-resistant media and laser printing or
marking devices for the labelling:
- small buttons - 12 mm
- medium buttons - 30 mm
It is advisable to use white writing on a black
background.
