ELCOM RER5 Y Series Manual page 3

Switching and wiring diagram symbols
Line power supply RMD
Power transformer
Door release
Video door station
Twisted wire pair for 2D video devices
(recommendation: white/yellow wire pair)
Untwisted wire pair, for e.g. for door release
i
- The earthing of the Bus line power supply (PE)
increases interference resistance.
- The Bus line power supply must be installed
far away from any sources of electromagnetic
disturbance (Wireless telephony and radio,
hi-fi equipment, video, computing, etc.).

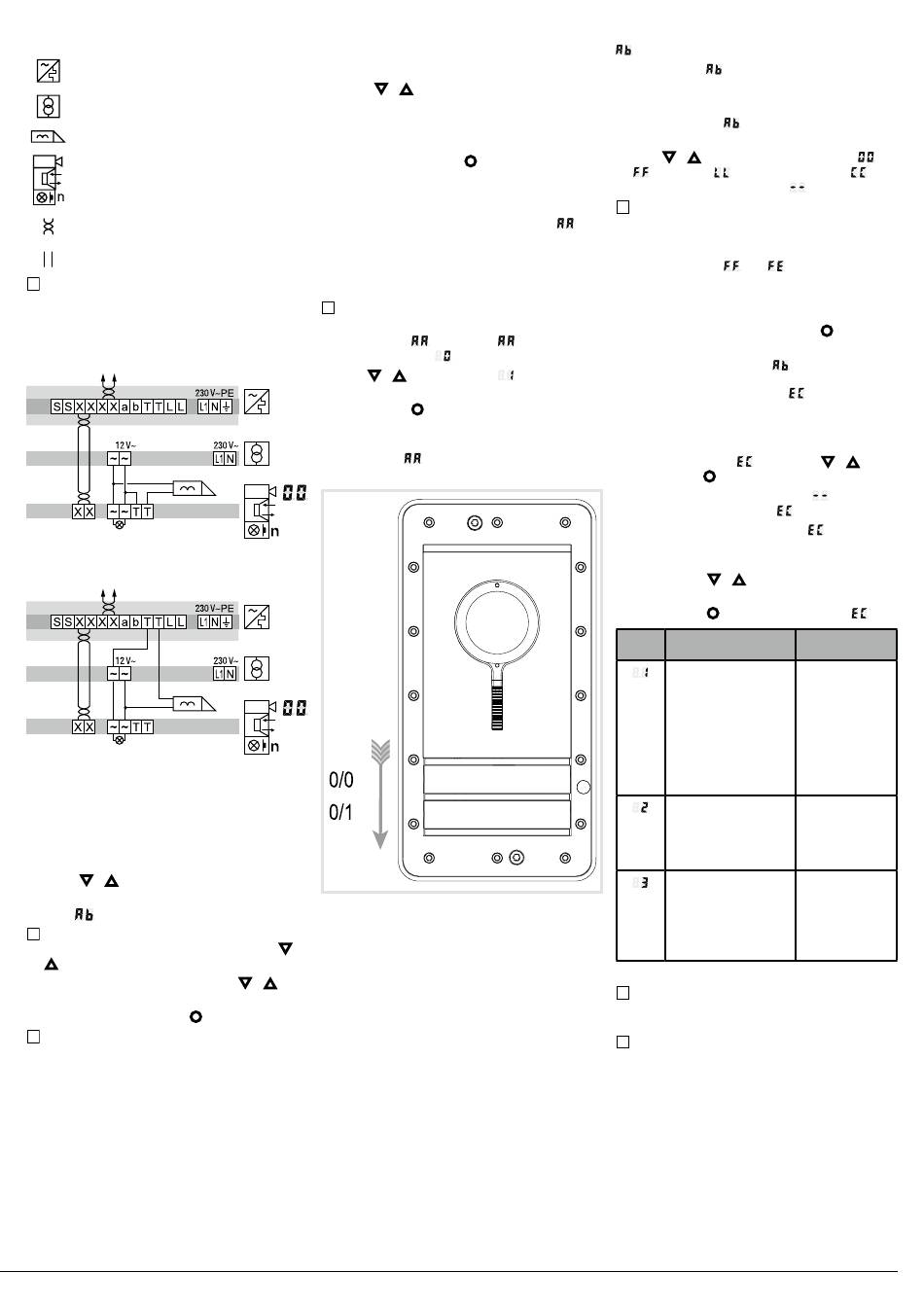

Figure 8: Door release connection on the door
station
Figure 9: Connection of door station video with
manipulation-protected door release
Call up and change system settings
On the back of the video insert (Figure 11), there
are 3 operating buttons and a 2-digit 7-segment
display (Figure 2).
„ Press / button.
Device turns to setting mode. The first menu
entry is displayed.
i
The reading direction of the 7-segment display
varies by 180° depending on which button
you start with.
„ Select the desired menu entry with
(figure 11).
„ Confirm the selection with
i
The 7-segment display goes dark if there is no
actuation for 5 seconds. Settings are applied.
The device returns to normal operation.
3 Elcom Kommunikation GmbH-Zum Gunterstal-66440 BLIESKASTEL-GERMANY - www.elcom.de -
Setting the values
The menu entry to be set is confirmed and flashes
alternately with the value to be set.
„ Press
Press briefly: change the value by one step.
Press and hold: run through values. Scrolling
stops when the button is released.
„ Confirm set value with
The device applies the setting and returns to
the previous menu entry.
Address call push-button automatically
The call push-button and connector on the back
are addressed by the automatic call push-button
addressing as follows. Addressing is performed
automatically from top to bottom (figure 10).
i
Door stations are automatically pre-configured
at the factory.
The menu entry
nately with the entry
„ With
addressing.
„ Confirm with
During the addressing, the display flickers.
Afterwards the display returns to the previous
menu entry
Figure 10: Module address and automatic call
/
/
.
/ button.
.
is selected. flashes alter-
for cancel.
/ select the entry for automatic
.
.
push-button addressing
Set individual call push-button address/function
The menu entry Set individual call push-button
address/function is selected and flashes.
„ Confirm the call push-button to be set.
The menu entry flashes alternately with the
current address/function.
„ With / select the required address
or function for light push-button,
door release push-button or
i
Internal call :
1)
In the door communication system, internal
calls from indoor station to indoor station are
possible. Unlike comfort indoor stations only the
fixed addresses and are available as call
destination for the internal call.
1) Requires the appropriate default setting by the installer
(see: Indoor station/Expanded settings).
„ Confirm set address/function with
The device applies the setting and returns to
the previous menu entry. .
Display of saved error codes
Video insert and call-button module errors that
occur during operation are stored in the the error
memory of the video insert for diagnosis.
„ Select menu entry with button
confirm with
If no error code has been saved
for 2 seconds followed by
If error codes have been saved
and the module address and error code are
displayed.
„ Press button / , to call up further error
codes if necessary.
„ Press button to return to menu entry
Error Error cause
code
Communication error
between camera
insert and call push-
button module. Once
the error has occurred
3 times, the system
is reset automatically
and the error code is
generated.
Call button stuck.
Call push-button
address failed to write
in call push-button
module.
Table 1: Error codes and corrective actions
i
The memory should only be deleted once 5
error codes have been stored, so that new error
codes can be saved.
i Identical error codes are only saved once.
...
for
for no function.
.
/ and
is displayed
again.
flashes
.
Corrective
actions
If the error con-
tinues, the call
push-button
module must be
replaced and the
addressing ope-
ration performed
again.
Check call push-
button module,
and if there is a
defect, replace
and address.
If the error per-
sists, the call
push-button
module must be
replaced and
addressed.
