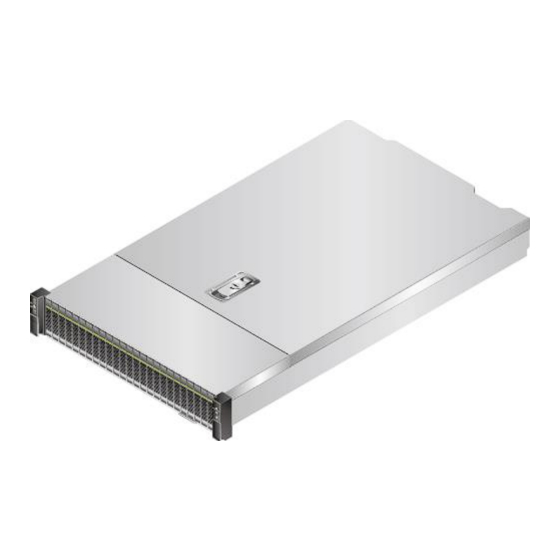

FusionServer 2488H V5 Server
Technical White Paper
Issue
07
Date
2023-04-30
xFusion Digital Technologies Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FusionServer 2488H V5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for xFusion Digital Technologies FusionServer 2488H V5

  • Page 1 FusionServer 2488H V5 Server Technical White Paper Issue Date 2023-04-30 xFusion Digital Technologies Co., Ltd.
  • Page 2 Notice In this document, "xFusion" is used to refer to "xFusion Digital Technologies Co., Ltd." for concise description and easy understanding, which does not mean that "xFusion" may have any other meaning. Any "xFusion" mentioned or described hereof may not be understood as any meaning other than "xFusion Digital Technologies Co., Ltd.", and xFusion Digital Technologies Co., Ltd.
  • Page 3: About This Document

    Technical White Paper About This Document About This Document Purpose This document describes the FusionServer 2488H V5 rack server in terms of features, structure, specifications, and component hardware and software compatibility. Intended Audience This document is intended for pre-sales engineers.
  • Page 4 U.2 drives. Updated CE, UKCA, and CCC certification ⚫ standards in 10 Certifications. ⚫ Added A.1 Chassis Label. 2022-03-18 Added 10 Certifications. 2021-12-20 This issue is the first official release. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 5: Table Of Contents

    5.4.2.1 Memory Identifier ..........................31 5.4.2.2 Memory Subsystem Architecture .....................31 5.4.2.3 Memory Compatibility ........................33 5.4.2.4 DIMM Installation Rules ........................35 5.4.2.5 Memory Installation Positions ......................35 5.4.2.6 Memory Protection Technologies .....................39 5.5 Storage ..............................39 Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 6 8 Safety Instructions......................68 8.1 Security..............................68 8.2 Maintenance and Warranty........................71 9 System Management ....................72 10 Certifications ....................... 74 A Appendix ........................76 B Glossary ........................91 C Acronyms and Abbreviations ..................94 Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 7: Product Introduction

    Technical White Paper 1 Product Introduction Product Introduction FusionServer 2488H V5 (2488H V5) is a 2U 4-socket rack server developed for Internet data center (IDC), cloud computing, enterprise, and telecom service applications. The 2488H V5 is ideal for applications such as databases, cloud computing, virtualization, and in-memory computing.
  • Page 8: Features

    (RDIMMs) and load-reduced DIMMs (LRDIMMs) with error checking and correcting (ECC). A server fully configured with forty-eight 2933 MT/s memory modules (only available with Cascade Lake processors) provides 6144 Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 9 BIOS. ⚫ The integrated Unified Extensible Firmware Interface (UEFI) improves setup, configuration, and update efficiency and simplifies fault handling. ⚫ Lockable server chassis panel ensures security of local data. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 10 Low-voltage Intel Xeon Scalable processors consume less energy, ideally suited for data centers and telecommunications environments constrained by power and thermal limitations. ⚫ SSDs consume 80% less power than HDDs. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 11: Physical Structure

    Chassis Air duct Drive Backplane Fan module bracket Drive DVD drive (or LCD) Fan module Memory Heat sink Processor Daughter board Cable organizer of the Supercapacitor daughter board Mainboard TPM/TCM Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 12 If the server is configured with a daughter board, the air duct is not required. If the server is ⚫ not configured with a daughter board, the air duct is required. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 13: Logical Structure

    The CPUs (processors) interconnect with each other through three UPI links at a speed of up to 10.4 GT/s. ⚫ The server provides 11 standard PCIe 3.0 slots of various specifications. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 14 The server provides low-speed I/O ports, such as the VGA port, USB 3.0 ports, and serial ports (RJ45). ⚫ The server provides four LOM ports, including two 10GE optical ports and two GE electrical ports. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 15: Hardware Description

    5.7 I/O Expansion 5.8 PSUs 5.9 Fans 5.10 LCD 5.11 Boards 5.1 Front Panel 5.1.1 Appearance ⚫ 8 x 2.5" SAS/SATA drive configuration Figure 5-1 Front view Drives Built-in DVD drive or Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 16: Indicators And Buttons

    25 x 2.5" SAS/SATA drive configuration Figure 5-3 Front view Drives Slide-out label plate (with an SN label) 5.1.2 Indicators and Buttons Indicator and Button Positions ⚫ 8 x 2.5" SAS/SATA drive configuration Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 17 Connection status indicator for GE LOM port 1 for GE LOM port 2 Fault diagnosis LED Health status indicator UID button/indicator Power button/indicator NMI button ⚫ 25 x 2.5" SAS/SATA drive configuration Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 18 NOTE For different OSs, you may need to shut down the OS as prompted. When the device is powered on, holding down ⚫ Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 19 Each indicator shows the connection status of an connection Ethernet LOM port. status Off: The network port is not in use or has ⚫ indicator failed. Steady green: The network port is properly ⚫ connected. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 20: Ports

    24 x 2.5" (24 x SAS/SATA or NVMe or 16 x SAS/SATA + 8 x NVMe) drive configuration Figure 5-8 Ports on the front panel USB 2.0 ports USB 3.0 port Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 21 USB device is connected. Note: The number of ports varies depending on server configuration. This table lists the maximum number of ports in different configurations. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 22: Rear Panel

    PCIe slot 3 PCIe slot 4 PCIe slot 5 PCIe slot 6 PCIe slot 7 PCIe slot 8 PCIe slot 9 PCIe slot 10 PCIe slot 11 PSU 1 PSU 2 Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 23: Indicators

    The PSU is in deep hibernation mode. − Blinking green at 4 Hz: The firmware is being ⚫ upgraded online. Steady green: The power input and output are normal. ⚫ Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 24 Blinking yellow: Data is being transmitted. ⚫ management network port Connection status Off: The network port is not connected. ⚫ indicator of the Steady green: The network port is properly connected. ⚫ management network port Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 25: Ports

    115,200 bit/s. Management 1000BASE-T Used for server management. network port NOTE The management network port is a GE port that supports 100 Mbit/s and 1000 Mbit/s auto-negotiation. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 26: Processor

    If two processors are required, install them in sockets CPU1 and CPU2. ⚫ The same model of processors must be used in a server. ⚫ Contact your local sales representative or use the Compatibility Checker determine the components to be used. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 27: Memory

    5 Hardware Description Figure 5-13 Processor positions 5.4 Memory 5.4.1 DDR4 Memory 5.4.1.1 Memory Identifier You can determine the memory module properties based on the label attached to the memory module. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 28 2400 MT/S ⚫ ⚫ 2666 MT/S 2933 MT/S ⚫ 3200 MT/S ⚫ Column Access Strobe (CAS) ⚫ P: 15 latency T: 17 ⚫ DIMM type ⚫ R: RDIMM L: LRDIMM ⚫ Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 29: Memory Subsystem Architecture

    CPU 2 A (primary) DIMM100(A) DIMM101(G) B (primary) DIMM110(B) DIMM111(H) C (primary) DIMM120(C) DIMM121(I) D (primary) DIMM130(D) DIMM131(J) E (primary) DIMM140(E) DIMM141(K) F (primary) DIMM150(F) DIMM151(L) CPU 3 A (primary) DIMM200(A) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 30: Memory Compatibility

    B (primary) DIMM310(B) DIMM311(H) C (primary) DIMM320(C) DIMM321(I) D (primary) DIMM330(D) DIMM331(J) E (primary) DIMM340(E) DIMM341(K) F (primary) DIMM350(F) DIMM351(L) 5.4.1.3 Memory Compatibility Observe the following rules when configuring DDR4 DIMMs: Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 31 DIMM ⚫ A memory channel supports more than eight ranks for LRDIMMs. A quad-rank LRDIMM generates the same electrical load as a single-rank RDIMM on a memory bus. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 32: Dimm Installation Rules

    Each memory channel must have a valid online spare configuration. The channels can have different online spare configurations. ◼ Each populated channel must have a spare rank. ◼ Memory mirroring mode − Comply with the general installation guidelines. ◼ Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 33: Memory Installation Positions

    At least one DDR4 DIMM must be installed in the memory slots corresponding to CPU CPUs 1 and 2 are located on the mainboard, and CPUs 3 and 4 are located on the daughter board. ⚫ Memory slots on the mainboard Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 34 FusionServer 2488H V5 Server Technical White Paper 5 Hardware Description Figure 5-15 Memory slots (mainboard) ⚫ Memory slots on the daughter board Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 35 FusionServer 2488H V5 Server Technical White Paper 5 Hardware Description Figure 5-16 Memory slots (daughter board) Figure 5-17 DDR4 memory installation guidelines (2 processors) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 36: Memory Protection Technologies

    Faulty DIMM isolation ⚫ Memory thermal throttling ⚫ Memory address parity protection ⚫ Memory demand/patrol scrubbing ⚫ Device tagging ⚫ Data scrambling ⚫ Adaptive double device data correction (ADDDC) ⚫ ADDDC+1 Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 37: Dcpmm

    The 2488H V5 provides 48 memory slots. Each processor integrates six memory channels, and each memory channel supports up to one DCPMM. DCPMMs must be used with DDR4 memory modules. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 38 C (primary) DIMM120(C) DIMM121(I) D (primary) DIMM130(D) DIMM131(J) E (primary) DIMM140(E) DIMM141(K) F (primary) DIMM150(F) DIMM151(L) CPU 3 A (primary) DIMM200(A) DIMM201(G) B (primary) DIMM210(B) DIMM211(H) C (primary) DIMM220(C) DIMM221(I) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 39: Memory Compatibility

    The memory must be used with Intel Xeon Scalable Cascade Lake processors. The maximum memory capacity supported varies depending on the processor model. − L processors: 4.5 TB/socket M processors: 2 TB/socket − Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 40 12 DCPMMs and 12 DDR4 memory modules are used with the L series CPUs and the DCPMMs work in AD mode. The information listed in this table is for reference only. For details, consult the ⚫ local sales representative. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 41: Dimm Installation Rules

    A 2488H V5 supports a maximum of 24 DCPMMs. The DCPMMs must be used with DDR4 DIMMs. CPUs 1 and 2 are located on the mainboard, and CPUs 3 and 4 are located on the daughter board. ⚫ Memory slots on the mainboard Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 42 FusionServer 2488H V5 Server Technical White Paper 5 Hardware Description Figure 5-20 Memory slots (mainboard) ⚫ Memory slots on the daughter board Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 43 FusionServer 2488H V5 Server Technical White Paper 5 Hardware Description Figure 5-21 Memory slots (daughter board) Figure 5-22 DCPMM and DDR4 memory configuration guidelines (2 processors) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 44 FusionServer 2488H V5 Server Technical White Paper 5 Hardware Description Figure 5-23 DCPMM and DDR4 memory configuration guidelines (4 processors) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 45: Memory Protection Technologies

    24 x 2.5" drive Front drives: 24 x 2.5" 3 x RAID controller cards ⚫ configuration (24 x − Slots 0 to 23 support PCIe RAID controller SAS/SATA) card: must be installed in Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 46: Drive Numbering

    8 x 2.5" drive configuration (8 x SAS/SATA) Figure 5-25 Drive numbering ⚫ 24 x 2.5" (24 x SAS/SATA or NVMe or 16 x SAS/SATA + 8 x NVMe) drive configuration Figure 5-26 Drive numbering Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 47: Drive Indicators

    Blinking at 1 Hz Data on the secondary drive is being rebuilt. Steady on A member drive in the RAID array is removed. Steady on Steady on The drive is faulty. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 48 The NVMe drive is being located or hot-swapped. Blinking at 0.5 Hz The hot removal process is complete, and the NVMe drive is removable. Steady on/Off Steady on The NVMe drive is faulty. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 49: Raid Controller Card

    ⚫ For details about the RAID controller card, see V5 Server RAID Controller Card User Guide. 5.6 Network 5.6.1 LOMs LOMs provide network expansion capabilities. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 50 WebUI. Figure 5-31 LOM port GE electrical port (LOM GE electrical port (LOM port 2) port 1) 10GE optical port (LOM 10GE optical port (LOM port 4) port 3) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 51 Off: The network port is not connected. ⚫ indicator for a 10GE ⚫ Steady green: The data transmission rate is 10 Gbit/s. optical port Connection status ⚫ Off: The network port is not connected. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 52: I/O Expansion

    Slots 1 and 2 are provided by the PCIe riser module. ⚫ Slots 3 to 11 are provided by the mainboard. 5.7.3 PCIe Slot Description The PCIe slots mapping to a vacant CPU socket are unavailable. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 53 PCIe cards. Full-height half-length PCIe slots are backward compatible with half-height half-length PCIe cards. All slots support PCIe cards of up to 75 W. The power of a PCIe card varies ⚫ Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 54: Psus

    When one or two 2000 W AC Platinum PSUs are configured and the input voltage ranges ⚫ from 200 V AC to 220 V AC, the output power decreases to 1800 W. Figure 5-34 PSU positions Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 55: Fans

    IP address of the iBMC management network port on the server. The LCD and the server iBMC form an LCD subsystem. The LCD directly obtains device information from the iBMC. The LCD subsystem does not store device data. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 56 Displays the IP address and MAC address of the iBMC management network port, MAC addresses of host LOM ports, device SNs, asset information, and firmware version. Setting Sets the IP address of the iBMC management network Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 57 FusionServer 2488H V5 Server Technical White Paper 5 Hardware Description Function port. For details about how to use the LCD, see FusionServer 2488H V5 Server LCD User Guide. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 58: Boards

    CPU 1 and J230 for CPU 4) VGA connector (VGA System serial port and CONN/J169) management network port (J242) 10GE optical port (10GE GE electrical port (GE Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 59: Daughter Board

    The port is reserved. ⚫ 5.11.2 Daughter Board Figure 5-39 shows the daughter board of the 2488H V5. Figure 5-40 shows the connection between the daughter board and the mainboard. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 60 CPUs 1 and 2 are on the mainboard, and CPUs 3 and 4 are on the daughter board. The mainboard and daughter board are interconnected through high-speed backplane connectors. Figure 5-39 Daughter board Slimline connector (reserved) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 61: Drive Backplane

    5.11.3 Drive Backplane ⚫ 8 x 2.5" drive backplane (8 x SAS/SATA) Figure 5-41 8 x 2.5" drive backplane (8 x SAS/SATA) Signal cable connector (J1) DVD drive power connector Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 62 24 x 2.5" drive backplane (16 x SAS/SATA + 8 x NVMe) Figure 5-43 24 x 2.5" drive backplane (16 x SAS/SATA + 8 x NVMe) NVMe (PORT B_N2/J26) NVMe (PORT B_N0/J24) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 63 ⚫ 25 x 2.5" drive backplane (25 x SAS/SATA) Figure 5-45 25 x 2.5" drive backplane (25 x SAS/SATA) (BOM: 03024MSH, 03029TDQ, and 0302Y071) Indicator signal cable Mini-SAS HD connector Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 64: Psu Backplane

    (J1) Indicator signal cable connector (J35) NOTE The connector is reserved. 5.11.4 PSU Backplane Figure 5-46 2488H V5 PSU backplane Power connector (J303) Power connector (J304) Signal connector (J306) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 65: Product Specifications

    The preceding information is for reference only. Use the Compatibility Checker to obtain specific information. DIMM Supports 48 memory modules of the following types: Up to 48 DDR4 memory modules ⚫ Max. 2933 MT/s memory speed − Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 66 Use enterprise-level high endurance (HE) SSDs or HDDs for data storage. The M.2 SSD is not recommended for write-intensive service ⚫ software due to poor endurance. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 67 For details, contact technical support. NOTE The preceding information is for reference only. Use the Compatibility Checker to obtain specific information. Port Supports a variety of ports. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 68 System management Supports UEFI. ⚫ Supports iBMC. ⚫ Supports NC-SI. ⚫ ⚫ Supports integration with third-party management systems. Security feature Power-on password ⚫ ⚫ Administrator password TCM (only in China)/TPM ⚫ Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 69: Environmental Specifications

    ⚫ Class A4 and the altitude is above 900 m (2952.76 ft), the highest operating temperature decreases by 1° C (1.8° F) for every increase of 125 m (410.1 ft). Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 70 6 months in unpacked/packed and powered-off state The maximum preservation duration is determined according to the preservation ⚫ specifications provided by drive vendors. For details, see the manuals provided by drive vendors. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 71: Physical Specifications

    610 mm to 914 mm (24.02 in. to 35.98 in.) between the front and rear mounting bars. Fully equipped weight Net weight: ⚫ − Maximum weight for server with 8 x 2.5" drives: 28 kg (61.73 lb) Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 72 Packaging materials: 5 kg (11.02 lb) ⚫ Energy consumption The power consumption parameters vary with server configurations, including the configurations complying with energy-related products (ErP) requirements. Use the Power Calculator to obtain specific information. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 73: Software And Hardware Compatibility

    ⚫ If the customer has requirements on hardware performance consistency, specify the specific configuration requirements (for example, specific drive models, RAID controller cards, or firmware versions) in the pre-sales phase. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 74: Safety Instructions

    Discontinue any dangerous operations and take protective measures. Report anything that could cause personal injury or device damage to a project supervisor. ⚫ Do not move devices or install racks and power cables in hazardous weather conditions. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 75 Tighten the strap buckle and ensure that the ESD wrist strap is in contact with your skin. Insert the ground terminal attached to the ESD wrist strap into the jack on the grounded rack or chassis. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 76 Transportation precautions include but are not limited to: ⚫ The logistics company engaged to transport the device must be reliable and comply with international standards for transporting electronics. Ensure that the Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 77: Maintenance And Warranty

    For more information about safety instructions, see Server Safety Information. 8.2 Maintenance and Warranty For details about the maintenance policy, visit Customer Support Service. For details about the warranty policy, visit Warranty. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 78: System Management

    Detects and accurately locates faults in a field replaceable unit (FRU). System watchdog Supports BIOS POST, OS watchdog, and automatic system reset after fault timeout. Users can enable or disable these features individually. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 79 IPv6 Supports IPv6 to help build an all-IPv6 environment. Network Controller Supports NC-SI, allowing access to the iBMC through Sideband Interface (NC-SI) the service network port. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 80: Certifications

    ETSI EN 300 386 V2.1.1:2016 RoHS: EN IEC 63000:2018 ErP: Commission Regulation(EU) 424/2019 ГОСТ CISPR 32-2015 Russia EAC&GOST ГОСТ CISPR 24-2013 ГОСТ 30804 3.2-2013 ГОСТ 30804 3.3-2013 ГОСТ 15150-69 UKCA Safety: EN 62368-1:2014+A11:2017 EMC: Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 81 ETSI EN 300 386 V2.1.1:2016 RoHS: BS EN IEC 63000:2018 ErP: Commission Regulation(EU) 424/2019 China GB 17625.1-2012 GB 4943.1-2011 GB/T 9254.1-2021 China RoHS SJ/T-11364 GB/T 26572 Japan VCCI VCCI 32-1 Global IEC 62368-1:2014 Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 82: A Appendix

    NOTE For details, see A.2 Product SN. Reserved space for custom Pressure-proof label label NOTE This label indicates that do not place any objects on top of a rack-mounted device. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 83 Figure A-2 Nameplate example Table A-1 Nameplate description Description Server Model For details, see A.4 Nameplate . Device names Power Supply Requirements Vendor Information Authentication ID A.1.1.2 Certificate Figure A-3 Sample certificate Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 84 Letters J to N indicate the 18th to 22nd. Letters P to Y indicate the 23rd to 31st ⚫ Indicates the hour (one digit). Digits 0 to 9 indicate 0:00 to 9:00. ⚫ Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 85 Subnet mask of the iBMC management network port Default iBMC user name Default iBMC password Default BIOS password Technical support website P/N Code QR Code NOTE Scan the QR code to obtain technical support resources. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 86 The quick guide is optional. For details, see the actual product. A.2 Product SN The serial number (SN) on the slide-out label plate uniquely identifies a device. The SN is required when you contact technical support. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 87 (113° F) 8 x 2.5" All options All options Options Options ⚫ ⚫ ⚫ ⚫ SAS/SATA supported supported supported: supported: drive processors processors configuration of up to of up to Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 88 165 W 25 x 2.5" ⚫ All options ⚫ All options ⚫ Options ⚫ SAS/SATA supported supported supported: supported drive processors configuration of up to Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 89 Identifies faulty DIMMs to facilitate isolation and replacement of the faulty DIMMs. Memory Thermal Throttling Automatically adjusts the memory temperature to prevent the memory from being damaged due to overheat. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 90 With the features such as eMCA, the BIOS collects error information recorded in hardware registers in compliance with UEFI specifications, notifies the OS through the APEI interface of the ACPI, and locates the error unit, improving Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 91 1 to 4. CpuN Margin CPU1 Margin temperature CPUN Prochot CPU Prochot CPUN VDDQ Temp CPU VDDQ temperature CPU 1: Components in positions U4333 and U4339 on the mainboard. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 92 The value is 1 or CPUN Status CPU status CPU. N indicates the CPU number. The value ranges from 1 to 4. CPUN Memory DIMM status DIMMs of CPUN. N Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 93 Mainboard 12.0 V voltage (the first output 12 V voltage detection for soft-start (CPU1 +PCIe Slot)) SYS 12V_2 Mainboard 12.0 V voltage (the second output 12 V voltage detection for Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 94 PCH 1.05 V voltage SSDN Temp SSD temperature PwrOk Sig. Drop Voltage dip status ACPI State ACPI status SysFWProgress Software process and system startup errors SysRestart System restart causes Boot Error Boot error Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 95 BMC Boot Up iBMC startup events SEL Status SEL full or clearing events Op. Log Full Operation log full or clearing events Sec. Log Full Security log full or clearing events Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 96 PCIe smart card air inlet temperature PCIeN Cpu Temp PCIe smart card CPU temperature PCIeN OP Temp PCIe card optical module temperature PCIeN NIC Temp PCIe card chip temperature PSN VIN Input voltage Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 97: B Glossary

    Ethernet standards. It is compatible with 10M and 100M Ethernet and complies with IEEE 802.3z standards. Replacing or adding components without stopping or hot swap shutting down the system. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 98 A special computer that provides services for clients over a network. system event log Event records stored in the system used for subsequent (SEL) fault diagnosis and system recovery. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 99 A unit defined in International Electrotechnical Commission (IEC) 60297-1 to measure the height of a cabinet or chassis. 1 U = 44.45 mm UltraPath A point-to-point processor interconnect developed by Interconnect (UPI) Intel. Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 100: C Acronyms And Abbreviations

    Advanced Encryption Standard New Instruction Set Address Resolution Protocol Advanced Vector Extensions backup battery unit BIOS Basic Input/Output System calendar day Conformite Europeenne Common Information Model command-line interface direct current DCPMM DC persistent memory module Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 101 European Telecommunication Standards C.2 F-J FB-DIMM Fully Buffered DIMM Fiber Channel Federal Communications Commission FCoE Fibre Channel over Ethernet File Transfer Protocol Gigabit Ethernet GPIO General Purpose Input/Output graphics processing unit Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 102 IPMB Intelligent Platform Management Bus IPMI Intelligent Platform Management Interface C.3 K-O keyboard, video, and mouse Lucent connector LRDIMM load-reduced dual in-line memory module light emitting diode Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 103 Preboot Execution Environment Quick Path Interconnect RAID redundant array of independent disks reliability, availability and serviceability RDIMM registered dual in-line memory module REACH Registration Evaluation and Authorization of Chemicals Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 104 Turbo Boost Technology Trusted Computing Group trusted cryptography module total cost of ownership thermal design power TELNET Telecommunication Network Protocol Trusted Execution Technology TransFlash module TFTP Trivial File Transfer Protocol Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 105 VCCI Voluntary Control Council for Interference by Information Technology Equipment Video Graphics Array VLAN virtual local area network voltage regulator-down WEEE waste electrical and electronic equipment WSMAN Web Service Management Issue 07 (2023-04-30) Copyright © xFusion Digital Technologies Co., Ltd.
