FusionServer 2488H V7 Server
Technical White Paper
Issue
01
Date
2023-09-01
xFusion Digital Technologies Co., Ltd.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FusionServer 2488H V7 and is the answer not in the manual?

Questions and answers

Related Manuals for xFusion Digital Technologies FusionServer 2488H V7

Summary of Contents for xFusion Digital Technologies FusionServer 2488H V7

  • Page 1 FusionServer 2488H V7 Server Technical White Paper Issue Date 2023-09-01 xFusion Digital Technologies Co., Ltd.
  • Page 2 Notice In this document, "xFusion" is used to refer to "xFusion Digital Technologies Co., Ltd." for concise description and easy understanding, which does not mean that "xFusion" may have any other meaning. Any "xFusion" mentioned or described hereof may not be understood as any meaning other than "xFusion Digital Technologies Co., Ltd.", and xFusion Digital Technologies Co., Ltd.

  • Page 3: About This Document

    About This Document Purpose This document describes the appearance, features, performance parameters, and hardware and software compatibility of FusionServer 2488H V7, so that users can have an in-depth and detailed understanding of FusionServer 2488H V7. Intended Audience This document is intended for pre-sales engineers.
  • Page 4 FusionServer 2488H V7 Server Technical White Paper About This Document Change History Issue Date Description 2023-09-01 This issue is the first official release. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 5: Table Of Contents

    5.5.1.1 8 x 2.5" Drive Pass-Through Configuration..................29 5.5.1.2 12 x 2.5" Drive Pass-Through Configuration..................32 5.5.1.3 25 x 2.5" Drive EXP Configuration.......................35 5.5.2 Drive Indicators............................37 5.5.3 RAID Controller Card..........................39 5.6 Network..............................39 Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 6 A.1.3 Chassis Tail Label...........................75 A.2 Product SN..............................76 A.3 Operating Temperature Limitations......................78 A.4 Nameplate..............................81 A.5 RAS Features............................81 A.6 Sensor List..............................81 B Glossary......................... 87 B.1 A-E................................87 B.2 F-J................................88 Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 7 FusionServer 2488H V7 Server Technical White Paper Contents B.3 K-O................................88 B.4 P-T................................88 B.5 U-Z................................89 C Acronyms and Abbreviations..................90 C.1 A-E................................90 C.2 F-J................................91 C.3 K-O................................92 C.4 P-T................................93 C.5 U-Z................................95 Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 8: Overview

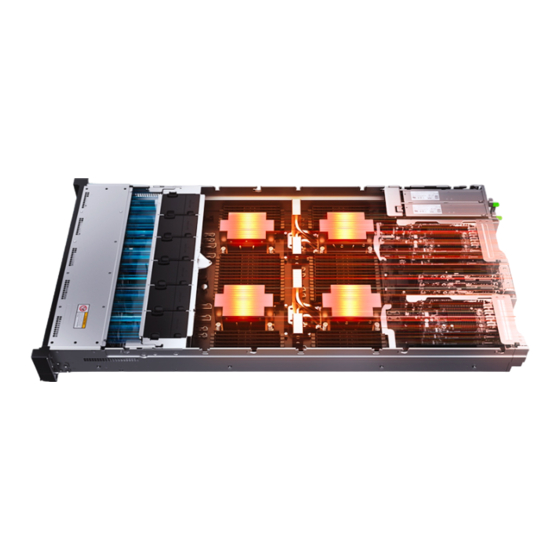

    1 Overview Overview FusionServer 2488H V7 (2488H V7) is a 2U 4-socket rack server designed for the Internet Data Center (IDC), cloud computing, enterprise business, and telecom. The 2488H V7 is ideal for various applications, such as databases, cloud computing, virtualization, and in-memory computing.

  • Page 9: Features

    RAID cache data against power failures. ● The panel provides a UID/Healthy LED indicator, fault diagnosis LCD, and fault diagnosis LCD touch panel. The iBMC Web management interface provides key Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 10 Supports the trusted platform module (TPM) and trusted password module (TCM) to provide advanced encryption functions, such as digital signature and remote authentication. ● Meets the following requirements in NIST SP 800-147B: Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 11 ● The power consumption of SSDs is 80% lower than that of traditional HDDs. You are advised to use SSDs. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 12: Physical Structure

    Figure 3-1 2488H V7 with 8 x 2.5" drive (example) I/O module 1 PCIe cards I/O module 2 Chassis Power shelf PSU backplane Mezzanine RAID controller card or M.2 SSD Air duct Supercapacitor Intrusion sensor Fan board Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 13 Left mounting ear plate Drives Drive backplane Right mounting ear plate Heat sinks Remote heat sinks Processors Cable management arms (CMAs) Mainboard Memory modules OCP 3.0 NIC PCIe expansion board BMC card Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 14: Logical Structure

    (Sapphire Rapids). ● It supports 64 DDR5 DIMMs. ● The processors interconnect with each other through three UltraPath Interconnect (UPI) links at a speed of up to 16 GT/s. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 15 Supports low-speed I/O ports, such as VGA, USB 3.0, and serial port (RJ45). ● The BMC management chip integrated on the mainboard supports ports such as a video graphic array (VGA) port, a management network port, and a serial port. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 16: Hardware Description

    5.7 I/O Expansion 5.8 PSUs 5.9 Fan Modules 5.10 LCD 5.11 Boards 5.1 Front Panel 5.1.1 Appearance ● 8 x 2.5" drive pass-through configuration (8 x SAS/SATA) Figure 5-1 Front view Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 17: Indicators And Buttons

    Figure 5-3 Front view SAS/SATA drive Slide-out label plate (with an SN label) 5.1.2 Indicators and Buttons Indicator and Button Positions ● 8 x 2.5" drive pass-through configuration (8 x SAS/SATA) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 18 Fault diagnosis LED FlexIO card presence iBMC direct connect indicator management port indicator ● 25 x 2.5" drive EXP configuration (25 x SAS/SATA) Figure 5-6 Indicators and buttons on the front panel Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 19 ● When the device is powered on, you can hold down this button for 6 seconds to forcibly power off the device. ● When the power indicator is steady yellow, you can press this button to power on the device. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 20: Ports

    ● Blinking green at short intervals for 3 seconds and then off: The port is disabled. ● Steady green: The terminal is connected. 5.1.3 Ports Port Positions ● 8 x 2.5" drive pass-through configuration (8 x SAS/SATA) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 21 VGA port ● 25 x 2.5" drive EXP configuration (25 x SAS/SATA) Figure 5-9 Ports on the front panel USB 3.0 port iBMC direct connect management port VGA port Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 22: Rear Panel

    CD/DVD drives, an external power supply is required. 5.2 Rear Panel 5.2.1 Appearance ● Server with drive modules or PCIe riser modules on the rear panel Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 23: Indicators

    Figure 5-11 Indicators on the rear panel Health status indicator Data transmission status indicator of the management network port Connection status Serial port indicator indicator of the NOTE management network Reserved and unavailable port currently. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 24 The possible causes of no output are as follows: ● Power supply overtemperature protection ● Power output overcurrent or short- circuit ● Output overvoltage ● Short-circuit protection ● Device failure (excluding failure of all devices) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 25: Ports

    Server with drive modules or PCIe riser modules on the rear panel Figure 5-12 Ports on the rear panel Management network Serial port port VGA port USB 3.0 ports PSU 1 socket PSU 2 socket Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 26 You can select the PSUs as required. NOTE When determining the PSUs, ensure that the rated power of the PSUs is greater than that of the server. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 27: Processors

    Figure 5-13 Positions of the processors 5.4 Memory 5.4.1 DDR5 Memory 5.4.1.1 Memory Identifier You can determine the memory module properties based on the label attached to the memory module. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 28 ● C = 42-42-42 DIMM type ● RD0: reference design for version RDIMM D0 SPD version ● 10: SPD version ● 10: SPD versions from Byte 192 to Byte 447 Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 29: Memory Subsystem Architecture

    DIMM010(B) DIMM011(J) C (primary) DIMM020(C) DIMM021(K) D (primary) DIMM030(D) DIMM031(L) E (primary) DIMM040(E) DIMM041(M) F (primary) DIMM050(F) DIMM051(N) G (primary) DIMM060(G) DIMM061(O) H (primary) DIMM070(H) DIMM071(P) CPU2 A (primary) DIMM100(A) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 30 A (primary) DIMM200(A) DIMM201(I) B (primary) DIMM210(B) DIMM211(J) C (primary) DIMM220(C) DIMM221(K) D (primary) DIMM230(D) DIMM231(L) E (primary) DIMM240(E) DIMM241(M) F (primary) DIMM250(F) DIMM251(N) G (primary) DIMM260(G) DIMM261(O) H (primary) DIMM270(H) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 31: Memory Compatibility

    ® ® ● The memory module can be used with the new-generation Intel Xeon Scalable processors (Sapphire Rapids). The maximum memory capacity supported by all processor models is the same. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 32: Memory Module Installation Rules

    5.4.1.4 Memory Module Installation Rules Observe the following rules when configuring DDR5 memory modules: ● At least one DDR5 memory module must be configured if the server uses SPR CPUs (excluding HBM CPUs). Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 33: Positions Of The Memory Modules

    Observe the memory module installation rules when configuring memory modules. For details, see the Server Assembly Guide. Figure 5-15 Positions of the memory modules Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 34 FusionServer 2488H V7 Server Technical White Paper 5 Hardware Description Figure 5-16 Recommended slots for DDR5 memory modules (2 processors) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 35 FusionServer 2488H V7 Server Technical White Paper 5 Hardware Description Figure 5-17 Recommended slots for DDR5 memory modules (4 processors) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 36: Memory Protection Technologies

    Built-in Drive Drive Management Mode 8 x 2.5" drive ● Front drive ● PCH pass- pass-through (8 x 2.5"): through configuration – Slots 0 to 7 support only SATA drives. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 37 RAID controller card. This section uses the drive numbers identified by a RAID controller card that adopts the default cabling described in "Internal Cabling" in the FusionServer 2488H V7 Server Maintenance and Service Guide. ● Drive numbering of the 8 x 2.5" drive pass-through configuration 1 in Table 5-7.
  • Page 38 Drive numbering of the 8 x 2.5" drive pass-through configuration 2 in Table 5-7. Figure 5-19 Drive numbering Table 5-9 Drive numbering Drive No. Drive Number Drive Number Displayed on the iBMC Identified by the RAID WebUI Controller Card Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 39: 12 X 2.5" Drive Pass-Through Configuration

    3 support ● NVMe only drive: CPU SATA pass- drives. through – Slots 4 to 7 support SATA/ NVMe drives. – Slots 8 to 11 support only NVMe drives. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 40 RAID controller card. This section uses the drive numbers identified by a RAID controller card that adopts the default cabling described in "Internal Cabling" in the FusionServer 2488H V7 Server Maintenance and Service Guide. ● Drive numbering of the 12 x 2.5" drive pass-through configuration 1 in Table 5-10.
  • Page 41 Drive numbering of the 12 x 2.5" drive pass-through configuration 2 in Table 5-10. Figure 5-21 Drive numbering Table 5-12 Drive numbering Drive No. Drive Number Drive Number Displayed on the iBMC Identified by the RAID WebUI Controller Card Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 42: 25 X 2.5" Drive Exp Configuration

    ● a: The PCIe plug-in RAID controller card is installed in slot 4 by default. ● For details about the optional components, consult the local sales representative or see "OS and Parts Compatibility" in the Compatibility Checker. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 43 RAID controller card. This section uses the drive numbers identified by a RAID controller card that adopts the default cabling described in "Internal Cabling" in the FusionServer 2488H V7 Server Maintenance and Service Guide. ● Drive numbering of the 25 x 2.5" drive EXP configuration in...

  • Page 44: Drive Indicators

    SAS/SATA Drive Indicators Figure 5-23 SAS/SATA drive indicators Table 5-15 SAS/SATA drive indicator description Activity Indicator Fault Indicator Description (Green) (Red/Blue) The drive is not detected. Steady on The drive is detected. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 45 Blinking at 4 Hz Data is being read from or written to the NVMe drive. Steady on/ Blinking blue at 4 The NVMe drive is being located. blinking Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 46: Raid Controller Card

    ● For details about the RAID controller card, see the V7 Server RAID Controller Card User Guide. 5.6 Network 5.6.1 OCP 3.0 NICs OCP 3.0 NICs provide network expansion capabilities. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 47: I/O Expansion

    I/O module 1 or I/O module 2 (board name: BC15PRUL (JDM)) – Provides PCIe slots 1, 2, and 3 when installed in I/O module 1. – Provides PCIe slots 7, 8, and 9 when installed in I/O module 2. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 48: Pcie Slot Description

    PCIe 4.0 CPU 1 Port5A Half-height x16 (x16) half-length (HHHL) Slot 4 PCIe 4.0 x8 CPU 1 Port3A HHHL (x8) Slot 5 PCIe 4.0 x8 CPU 1 Port3E HHHL (x8) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 49: Psus

    If you want to use a DC power supply, purchase a DC power supply that meets the requirements of the safety standards or a DC power supply that has passed the CCC certification. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 50: Fan Modules

    Supports N+1 redundancy. The server runs properly when one fan fails. ● Supports intelligent fan speed adjustment. ● Fan modules of the same part number (P/N code) must be used in a server. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 51: Lcd

    IP address of the iBMC management network port on the server. The LCD and the server iBMC form an LCD subsystem. The LCD directly obtains device information from the iBMC. The LCD subsystem does not store device data. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 52 Function Status Displays the port 80 status, serial number, component status, and component alarms of the server. Monitor Displays the current power, CPU temperature, and inlet temperature of the server. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 53: Boards

    SNs, asset information, and firmware version. Setting Sets the IP address of the iBMC management network port. For details about how to use the LCD, see the FusionServer Rack Server LCD User Guide. 5.11 Boards Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 54: Mainboard

    FusionServer 2488H V7 Server Technical White Paper 5 Hardware Description 5.11.1 Mainboard Figure 5-31 Mainboard Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 55 PCIe riser 1 slot (PCIE RISER1 (CPU1)/J12901) M.2 low-speed signal Fan low-speed signal connector (M.2 MIS/J51) connector (FANBOARD/ J6077) LCD connector (LCD CONN/ PCH SATA PORT (A-B) J17702) connector (J14901) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 56: Drive Backplane

    Managed Drive Slot Backplane signal cable connector (HDD BP/ J12) Power connector (HDD_POWER/J14) mini-SAS HD connector Slot 0 to 3 (PORT A/J28) mini-SAS HD connector Slot 4 to 7 (PORT B/J1) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 57 HD connector Slot4~Slot7 (PORT B/J601) ● 25 x 2.5" drive EXP backplane (board name: BC15HBED) All drive configurations in 5.5.1.3 25 x 2.5" Drive EXP Configuration support this backplane. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 58 Low-speed signal connector for I/O module 2 (REAR_BP1/J2301) Backplane signal connector (HDD BP/J302) Power connector (HDD POWER/ J301) mini-SAS HD connector (PORT B/ J2203) mini-SAS HD connector (PORT A/ J2202) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 59: Psu Backplane

    Drive backplane connector connector (J1) (BP/J15) 5.11.4 Fan Board Figure 5-36 Fan board Fan board signal connector Fan board power (MISC CONN/J3) connector (POWER CONN1/J2) Fan connector (FAN1/J5) Fan connector (FAN2/J6) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 60: Built-In M.2 Adapter Board

    Fan connector (FAN3/J7) Fan connector (FAN4/J8) Fan connector (FAN5/J9) Fan connector (FAN6/J10) 5.11.5 Built-in M.2 Adapter Board Figure 5-37 Built-in M.2 adapter board Signal connector (M. High-speed connector 2CONN/J1) (Simline X8/J2) Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 61: Product Specifications

    ● Min. 1.875 MB L3 cache per core ● Max. 350 W thermal design power (TDP) NOTE The preceding information is for reference only. For details, see "Search Parts" in the Compatibility Checker. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 62 – A server must use DDR5 DIMMs of the same P/N code. NOTE The preceding information is for reference only. For details, see "Search Parts" in the Compatibility Checker. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 63 RAID level migration, and drive roaming. – The RAID controller card supports a supercapacitor for power-off protection to ensure user data security. – The PCIe RAID controller card occupies one PCIe slot. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 64 – One RJ45 management network port ● Built-in ports: – One USB 2.0 port – Two SATA ports NOTE You are not advised to install the OS on the USB storage media. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 65 Security feature ● Power-on password ● Administrator password ● TPM (for China and outside China)/TCM (only for China) ● Secure boot ● Front bezel (optional) ● Chassis cover opening detection Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 66: Environmental Specifications

    1ºC (1.8°F) for every increase of 125 m (410.10 ft). ● HDDs cannot be used at an altitude of over 3050 m (10,006.56 ft). Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 67 6 months in unpacked/packed and powered-off state ● The maximum preservation duration is determined according to the preservation specifications provided by drive vendors. For details, see the manuals provided by drive vendors. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 68: Physical Specifications

    ● Packing materials: 6.0 kg Power consumption The power consumption parameters vary with hardware configurations (including the configurations complying with EU ErP). Use the Power Calculator to obtain specific information. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 69: Software And Hardware Compatibility

    ● If the customer has requirements on hardware performance consistency, specify the specific configuration requirements (for example, specific drive models, RAID controller cards, or firmware versions) in the presales phase. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 70: Safety Instructions

    Do not carry the weight that exceeds the maximum load per person allowed by local laws or regulations. Before moving a device, check the maximum device weight and arrange required personnel. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 71 Fasten the strap buckle and ensure that the ESD wrist strap is in contact with your skin. Insert the ground terminal attached to the ESD wrist strap into the jack on the grounded cabinet or chassis. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 72 Transportation precautions include but are not limited to: ● The logistics company engaged to transport the device must be reliable and comply with international standards for transporting electronics. Ensure that the Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 73: Maintenance And Warranty

    ● Female: 10/22.05 of the People's Republic of China (AQSIQ) For more information about safety instructions, see Server Safety Information. 8.2 Maintenance and Warranty For details about maintenance, see Customer Support Service. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 74 FusionServer 2488H V7 Server Technical White Paper 8 Safety Instructions For details on warranty, see Warranty. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 75: System Management

    NMS platform to collect the fault information about the server. – If the server is configured with the LCD module, the LCD can directly obtain device information from the iBMC. ● Security management methods Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 76 License management allows advanced features to be used by authorized users. The advanced edition of the iBMC provides the following features: – Use Redfish to deploy the OS. – Use Redfish to collect raw data for intelligent diagnosis. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 77: Certifications

    FusionServer 2488H V7 Server Technical White Paper 10 Certifications Certifications Country/Region Certification Standard China GB4943.1-2011 GB/T 9254.1-2021 GB17625.1-2012 Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 78: A Appendix

    Product SN NOTE For details, see Product Reserved space for customized Pressure-proof label label NOTE This label warns users not to place any objects on top of a rack- mounted device. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 79: Nameplate

    Table A-1 Nameplate description Description Server model NOTE For details, see Nameplate. Device name Power supply requirements Enterprise Standard Number Vendor information Certification marks A.1.1.2 Certificate Figure A-3 Certificate example Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 80 ● Letters A to H indicate the 10th to 17th. ● Letters J to N indicate the 18th to 22nd. ● Letters P to Y indicate the 23rd to 31st. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 81: Quick Access Label

    Subnet mask of the iBMC management network port Default iBMC user name Default iBMC password Default BIOS password Technical support website P/N code QR code NOTE Scan the QR code to obtain technical support resources. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 82: Chassis Internal Label

    ● The quick start guide is optional. For details, see the actual product. A.1.3 Chassis Tail Label Figure A-7 Chassis tail label NO TE For details about the warning label, see the Server Safety Information. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 83: Product Sn

    – Digits 1 to 9 indicate January to September respectively. – Letters A to C indicate October to December respectively. Serial number (six characters) RoHS compliance status (one character). Y indicates RoHS compliant. Internal model, that is, product name. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 84 – Letters A to C indicate October to December respectively. Serial number (six characters) RoHS compliance status (one character). Y indicates RoHS compliant. Nameplate (six characters). Serial number. The number of digits depends on the actual product. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 85: Operating Temperature Limitations

    ● GPU cards 100GE than 270 each of ports or which has ports of a capacity higher rate of or more are not than 128 supported. GB are not supported. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 86 ● GPU cards 100GE than 270 each of ports or which has ports of a capacity higher rate of or more are not than 128 supported. GB are not supported. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 87 CPU TDP equals to or is higher than 270 ● There is no restriction on IB cards when the CPU TDP equals to or is higher Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 88: Nameplate

    Server RAS Feature Technical White Paper. A.6 Sensor List Sensor Description Component Inlet Temp Air inlet temperature Right mounting ear Mngmnt Health Management subsystem Management module health status Outlet Temp Air outlet temperature BMC card Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 89 Mainboard N indicates CPU number. The value ranges from 1 to 4. CPUN Core Temp CPU core temperature CPUN N indicates CPU number. The value ranges from 1 to 4. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 90 PSU N N indicates PSU number. The value ranges from 1 to 2. PSN IOut PSU output current PSU N N indicates PSU number. The value ranges from 1 to 2. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 91 2. PowerN PSU input power PSU N N indicates PSU number. The value ranges from 1 to 2. Power Server input power PS Redundancy Redundancy failure due to PSU removal Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 92 PCIeN OP Temp PCIe card optical module PCIe card N temperature sensor N indicates PCIe slot number PCIeN Temp PCIe card chip PCIe card N temperature sensor N indicates PCIe slot number Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 93 Hot restart reminder and fault diagnosis program information collection System Error System shutdown or restart. Check the background logs. Boot Error Boot error SEL Status SEL full or events being cleared Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 94: B Glossary

    DEC. Ethernet uses the Carrier Sense Multiple Access/Collision Detection (CSMA/CD) access method and allows data transfer over various cables at 10 Mbit/s. The Ethernet specification is the basis for the IEEE 802.3 standard. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 95: F-J

    A PCI system can be transformed to a PCIe system by modifying the physical layer instead of software. PCIe delivers a faster speed and can replace almost all AGP and PCI buses. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 96: U-Z

    A unit defined in International Electrotechnical Commission (IEC) 60297-1 to measure the height of a cabinet, chassis, or subrack. 1U = 44.45 mm (1.75 in). UltraPath A point-to-point processor interconnect developed by Interconnect (UPI) Intel. Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 97: C Acronyms And Abbreviations

    Advanced Encryption Standard New Instruction Set Address Resolution Protocol Advanced Vector Extensions backup battery unit BIOS Basic Input/Output System baseboard management controller China Compulsory Certification calendar day Conformite Europeenne Common Information Model command-line interface Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 98: F-J

    ID European Efficiency enterprise resource planning European Telecommunication Standards C.2 F-J FB-DIMM Fully Buffered DIMM Fiber Channel Federal Communications Commission FCoE Fibre Channel over Ethernet File Transfer Protocol Gigabit Ethernet Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 99: K-O

    Internet Group Message Protocol IOPS input/output operations per second Internet Protocol Intelligent Power Capability IPMB Intelligent Platform Management Bus IPMI Intelligent Platform Management Interface C.3 K-O keyboard, video, and mouse Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 100: P-T

    Network Controller Sideband Interface Open Compute Project C.4 P-T PCIe Peripheral Component Interconnect Express power distribution unit physical layer PMBUS power management bus Power OK pulse-width modulation Preboot Execution Environment Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 101 LAN SONCAP Standards Organization of Nigeria-Conformity Assessment Program solid-state drive Streaming SIMD Extension TACH tachometer signal Turbo Boost Technology Trusted Computing Group trusted cryptography module total cost of ownership Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.

  • Page 102: U-Z

    Voluntary Control Council for Interference by Information Technology Equipment Video Graphics Array VLAN virtual local area network voltage regulator-down VROC Virtual RAID on CPU WEEE waste electrical and electronic equipment Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
  • Page 103 FusionServer 2488H V7 Server Technical White Paper C Acronyms and Abbreviations WSMAN Web Service Management Issue 01 (2023-09-01) Copyright © xFusion Digital Technologies Co., Ltd.
