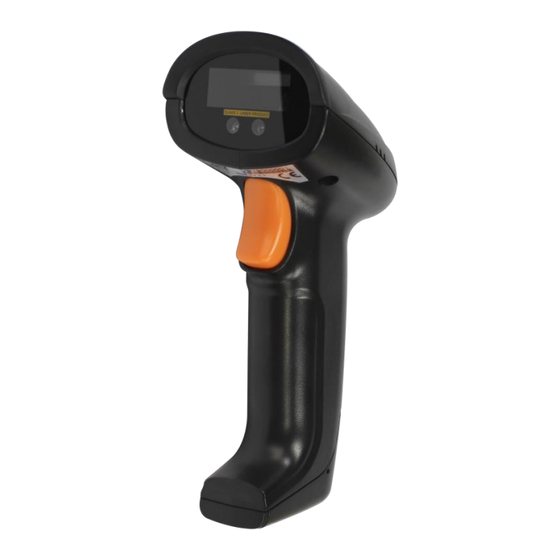

GS200/GS200AS Laser Barcode Scanner
User Manual
Version: GS200/GS200AS_UM_EN_V1.1.3

Advertisement

Table of Contents
loading

Related Manuals for Godex GS200

Summary of Contents for Godex GS200

  • Page 1 GS200/GS200AS Laser Barcode Scanner User Manual Version: GS200/GS200AS_UM_EN_V1.1.3...
  • Page 3 Notice Ensure that the optional DC adapter works at +5V, especially for the RS-232 interface cable. Make sure you carefully read the following information to ensure that your barcode scanner is able to perform at the designed level. All software, including firmware, furnished to the user is on a licensed basis. The right is reserved to make changes to any software or product to improve reliability, function, or design.

  • Page 5: Table Of Contents

    Contents Notice ..............................i Contents ..............................iii 1 Specifications ............................. 1 1-1 Technical specifications ........................ 1 1-2 Default settings for various types of barcode ................2 1-3 Decode zone ..........................3 2 Get started ............................4 2-1 Electrical interface/Pin assignment ....................4 2-2 Dimensions ...........................
  • Page 6 3-22 MSI/Plessey ..........................58 3-23 UK/Plessey ..........................60 3-24 China Post ..........................62 3-25 Telepen ............................. 63 3-26 GS1 DataBar (GS1 DataBar Truncated) .................. 65 3-27 GS1 DataBar Limited ........................ 66 3-28 GS1 DataBar Expanded ......................67 3-29 G1-G4 & FN1 substitution string setting ................... 68 3-30 G1-G4 string position &...

  • Page 7: Specifications

    1 Specifications 1-1 Technical specifications Table 1-1 Technical specifications @25°C Input voltage 5 VDC ± 0.25 V 150 mW (Standby); 525 mW (Operating); 850 mW (Max.) Power 30 mA (Standby); 105 mA (Operating); 170 mA (Max.) Current Laser 630-650 nm laser diode Decoding rate 200 times/sec ±60°, ±65°, ±42°...

  • Page 8: Default Settings For Various Types Of Barcode

    1-2 Default settings for various types of barcode Table 1-2 Default settings Read Check digit Check digit Min. code Proprietary Code type enable verification transmission length code ID code ID √ √ √ UPC-A (12) √ √ √ UPC-E √ √...

  • Page 9: Decode Zone

    1-3 Decode zone Figure 1-1 Decode zone @25°C, scan angle: 55° Table 1-3 Description of barcode patterns applied in Figure 1-1 Wide-narrow Resolution Barcode type Barcode content Contrast element ratio 3 mil Code39 2.5：1 4 mil Code39 2.5：1 123456789 5 mil Code39 2.5：1 10 mil...

  • Page 10: Get Started

    2 Get started 2-1 Electrical interface/Pin assignment The scanner provides a RJ-45 cable connector. Pin 10 Pin 1 Cable connector Figure 2-1 Electrical interface/Pin Table 2-1 lists the pin assignments of the scanner. Table 2-1 Electrical interface/Pin assignment USB cable Power(+5V) Reseved Ground...

  • Page 11: Dimensions

    2-2 Dimensions Figure 2-2 Dimensions...

  • Page 12: Parts Of The Scanner

    2-3 Parts of the scanner Figure 2-3 Parts of the scanner ① LED ② Beeper ③ Exit window ④ Trigger ⑤ Release-hole of the cable ⑥ Cable interface port...

  • Page 13: Introduction To Installation

    2-4 Introduction to installation Note: If any of the below operation is incorrect, turn off the power immediately and check the scanner for any improper connections. Go through all steps again. 2-4-1 Installation - USB The scanner attaches directly to a USB host, and is powered by it. No additional power supply is required.

  • Page 14: Remove The Interface Cable

    2-4-2 Remove the interface cable Figure 2-5 Find the release-hole (Figure 2-5). Insert a thin wire into the hole and pull out the cable gently. 2-5 Assembling the stand Note: The stand is an optional accessory. See the figure above, tighten the screws. Bend the neck to the desired position for scanning.

  • Page 15: Scanning

    2-6 Scanning When the scanner is scanning, ensure the laser beam crosses every bar and space of the barcode. See Figure 2-6. √ × Figure 2-6 2-7 Auto-detection Note: Auto-detection and stand are optional accessories. To scan a barcode, present the bar code and ensure the scan line crosses every bar and space of the symbol.
  • Page 16 DIS-AutoDete EN-AutoDete Figure 2-8...

  • Page 17: Parameter Menus

    3 Parameter menus 3-1 Introduction This section describes the programmable parameters, provides barcodes for programming. The scanner is shipped with the factory default settings as described in this chapter. These factory-default-settings values are stored in flash memory and are preserved even when the scanner is powered down.

  • Page 18: Example: Configure Scanner

    3-2 Example: configure scanner Note: The factory default settings are indicated with asterisks (*) in this manual. 1、Single-scan setting Scan the appropriate Single-scan setting barcode according to the user’s demand. Example: Set Flow control to be none. Steps: Scan the following barcode. 2、Multiple-scan setting The steps of configuration are: a) Scan the SETUP barcode on the parameter setting part.
  • Page 19 SETUP barcode Single-scan setting SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value None RTS/CTS Flow control (Host idle: Low RTS) RTS/CTS (Host idle: High CTS) ACK/NAK 1200 2400 4800 9600 Baud rate 19200 38400 57600 115200 Alphanumeric entries END barcode Option barcode Figure 4-4...

  • Page 20: Rs232 Interface

    3-3 RS232 interface Flow control: None- The communication only uses TXD and RXD signals without any hardware or software handshaking protocol. RTS/CTS- If the scanner requests to send the barcode data to host computer, it will issue the RTS signal first, wait for the CTS signal from the host computer, and then perform the normal data communication.
  • Page 21 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value None RTS/CTS Flow control (Host idle: Low RTS) RTS/CTS (Host idle: High RTS) ACK/NAK 00-99 Inter-character delay 00-99 (1ms) 01-99 Response delay 01-99 (100 ms) 1200 2400 4800 9600 Baud rate 19200 38400 57600...
  • Page 22 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Even Data bit 8 bits 1 bit Stop bit 2 bits 01-99 Host-character delay 01-99 (10ms) Decoded data packet format Packeted...

  • Page 23: Usb Interface

    3-4 USB interface USB device type: HID keyboard– By setting, the scanner is used as a USB HID keyboard emulation device. USB virtual COM– By setting, the scanner emulates a USB virtual COM device. If a Microsoft Windows PC is connected to the scanner, a driver is required to install on the connected PC. The driver will use the next available COM Port number.
  • Page 24 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value HID keyboard USB device type HID keyboard for Apple Mac USB virtual COM Turkish F Turkish Q French Italian Spanish Keyboard layout Slovak Denmark Japanese German Belgian Russian 0 ms Inter-character delay 5 ms 10 ms...
  • Page 25 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value 20 ms 40 ms 60 ms Alphabetic key Numeric key Numeric keypad Alt + keypad...

  • Page 26: Scan Trigger Mode & Some Global Settings

    3-5 Scan trigger mode & some global settings Scanning mode: Good-read off-The trigger button must be pressed once to activate scanning. The light source of scanner stops scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed.
  • Page 27 Table 4-1 The number of successful reads (n) Multiple confirm (m) Barcode type m>=3 EAN-13, EAN-8, UPC-A, Code93, China Post, UK Plessey n=m+1 UPC-E, Codabar, Interleaved 2/5, Code39, Industry2/5, Matrix n=m+1 2/5, Code11, MSI Plessey, UPC-E1 UCC/EAN128, Code128, GS1 DataBar, GS1 DataBar Limited, n=m+1 GS1 DataBar Expand, ISBT 128 Global Max./Min.
  • Page 28 Character output restraint: Disable- the scanner will output all the barcode data. Printable character only- If this option is selected, the scanner will output the printable characters only, i.e. in ASCII from 20H to 7EH. Alphanumeric character only- If this option is selected, the scanner will output the alphanumeric characters only, i.e.
  • Page 29 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Good-read off Momentary Alternate continue Scanning mode Note 1 Continue Timeout off Auto-detection 01-99 Standby duration 01-99 (100ms) 00-FF Same barcode delay time 00-FF (100ms) (00: None) 00-09 Double confirm 00-09 (00: None) 04-99...
  • Page 30 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value (00: None) Disable Element amendment Enable Disable Character output restraint Printable character only Alphabetic & Numeric only Disable Decoder optimization Enable Wide (56°) Scan angle Narrow (40°) 1 second 5 seconds 10 seconds 30 seconds Auto-sleep delay...
  • Page 31 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value 1 hour 3 hours Never Disable “No read” response Enable Disable Deep sleep Enable ASCII Character encoding system UTF-8 Windows-1251 Note 1: This configure will not be changed when the scanner scans load default setting barcode. Note 2: The tolerance is ±20%.

  • Page 32: Indication

    3-6 Indication Power on alert: After power-on or restart, the scanner will generate alert signal (Beeper beeping and LED flashing). LED indication: When the scanner decodes successfully, the LED will glitter. Beeper indication: After each successful reading, the scanner will beep to indicate a good barcode reading, and its beep tone duration is adjustable.
  • Page 33 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Power on alert Enable Disable LED indication Enable Disable Beeper indication Enable 01-09 Beep tone duration 01-09 (25 ms) Volume of beeper Middle High 2.7KHz Frequency of beeper 2.5KHz 2.3KHz...

  • Page 34: Upc-A

    3-7 UPC-A Read: Format System character Data digits (10 digits) Check digit Check digit verification: The check digit verification is optional. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a succeeding reading.
  • Page 35 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <A>* 00-44 Insert group selection 00-44 (00: None) None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros Truncation/Expansion...

  • Page 36: Upc-E

    3-8 UPC-E Read: Format System character “0” Data digits (6 digits) Check digits Check digit verification: The check digit verification is optional. Check digit trans.: By setting Enable, check digit will be transmitted. 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A Insert group selection: Refer to Insert group selection of Supplement digits:...
  • Page 37 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value 00-FF Code ID setting 00-FF (ASCII) <D>* 00-44 Insert group selection 00-44 (00: None) None 2 digits Supplement digits 5 digits 2 or 5 digits None Truncate leading zeros Expand to EAN-13 Truncation/Expansion Expand to UPC-A Truncate system character...

  • Page 38: Upc-E1

    3-9 UPC-E1 Read: Format System character “1” Data digits (6 digits) Check digits Check digit verification: The check digit verification is optional. Check digit trans.: By setting Enable, check digit will be transmitted. 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A Insert group selection: Refer to Insert group selection of Supplement digits:...
  • Page 39 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value 00-FF Code ID setting 00-FF (ASCII) <D>* 00-44 Insert group selection 00-44 (00: None) None 2 digits Supplement digits 5 digits 2 or 5 digits None Expand to EAN-13 Truncation/Expansion Expand to UPC-A Truncate system character Add country code...

  • Page 40: Ean-13 (Isbn/Issn)

    3-10 EAN-13 (ISBN/ISSN) Read: Format Data digits (12 digits) Check digit Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. 3-7 UPC-A EAN-13 code ID setting: Refer to Code ID setting of 3-7 UPC-A Insert group selection: Refer to Insert group selection of Supplement digits:...
  • Page 41 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Check digit transmission Enable 00-FF EAN-13 code ID setting 00-FF (ASCII) <A>* 00-44 Insert group selection 00-44 (00: None) None 2 digits Supplement digits 5 digits 2 or 5 digits Disable ISBN/ISSN conversion Enable...

  • Page 42: Ean-8

    3-11 EAN-8 Read: Format Data digits (7 digits) Check digit Check digit verification: The check digit verification is optional. Check digit trans.: By setting Enable, check digit will be transmitted. 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A Insert group selection: Refer to Insert group selection of Supplement digits:...
  • Page 43 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification Enable Disable Check digit trans. Enable 00-FF Code ID setting 00-FF (ASCII) <C>* 00-44 Insert group selection 00-44 (00: None) None 2 digits Supplement digits 5 digits 2 or 5 digits...

  • Page 44: Code 39 (Code 32, Trioptic Code 39)

    3-12 Code 39 (Code 32, Trioptic Code 39) Read: Format Start character(*) Data digits (variable) Check digit (optional) End character(*) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
  • Page 45 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <M>* 00-44 Insert group selection 00-44...
  • Page 46 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable “*” as data character Enable Disable Convert Code 39 to Code 32 Enable Disable Code 32 Prefix “A” transmission Enable Disable Trioptic Code 39 read Enable Trioptic Code 39 Start/End Disable transmission Enable...

  • Page 47: Interleaved 2 Of 5

    3-13 Interleaved 2 of 5 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. 3-12 Code 39 Max./Min. code length: Refer to Max./Min. code length of 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A...
  • Page 48 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification OPCC Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <I>* 00-44 Insert group selection 00-44...

  • Page 49: Industrial 2 Of 5

    3-14 Industrial 2 of 5 Read: Format Data digits (variable) Check digit transmission: By setting Enable, check digit will be transmitted. 3-12 Code 39 Max./Min. code length: Refer to Max./Min. code length of 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A Insert group selection: Refer to Insert group selection of SETUP...

  • Page 50: Matrix 2 Of 5

    3-15 Matrix 2 of 5 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. 3-12 Code 39 Max./Min. code length: Refer to Max./Min. code length of 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A...
  • Page 51 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <X>* 00-44 Insert group selection 00-44...

  • Page 52: Codabar

    3-16 Codabar Read: Format Start character Data digits (variable) Check digit (optional) End character Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. 3-12 Code 39 Max./Min. code length: Refer to Max./Min. code length of 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A...
  • Page 53 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <N>* 00-44 Insert group selection 00-44 (00: None) ABCD/ABCD abcd/abcd Start/End type ABCD/TN*E abcd/tn*e Disable Start/End transmission Enable Disable Start/End character equality Enable...

  • Page 54: Code 128

    3-17 Code 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. 3-12 Code 39 Max./Min. code length: Refer to Max./Min. code length of 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A...
  • Page 55 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Reserved 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <K>* 00-44 Insert group selection 00-44...

  • Page 56: Ucc/Ean 128

    3-18 UCC/EAN 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. 3-12 Code 39 Max. /Min. code length: Refer to Max. /Min. code length of 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A...
  • Page 57 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Reserved 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <K>* 00-44 Insert group selection 00-44...

  • Page 58: Isbt 128

    3-19 ISBT 128 Read: Format Start character(“=” or “&”) Data digits (variable) Check digit (optional) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. 3-12 Code 39 Max./Min. code length: Refer to Max./Min. code length of 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A...
  • Page 59 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Reserved 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <K>* 00-44 Insert group selection 00-44...
  • Page 60 3-20 Code 93 Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. 3-12 Code 39 Max./Min. code length: Refer to Max./Min. code length of 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A...
  • Page 61 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <L>* 00-44 Insert group selection 00-44...

  • Page 62: Code 11

    3-21 Code 11 Read: Format Data digits (variable) 1 or 2 check digits (optional) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, 1 or 2 check digits will be transmitted upon the selected check digit verification method.
  • Page 63 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification One digit Two digits Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <V>*...

  • Page 64: Msi/Plessey

    3-22 MSI/Plessey Read: Format Data digits (variable) 1 or 2 check digits (optional) Check digit verification: The MSI/Plessey has one or two optional check digits. There are three methods to verify check digits, i.e. Mod10, Mod10/10 and Mod 11/10. 1 or 2 check digits will be calculated as the sum module 10 or 11 of the data digits.
  • Page 65 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable 1 digit Check digit verification (Mod 10) 2 digits (Mod 10/10) 2 digits (Mod 11/10) Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min.

  • Page 66: Plessey

    3-23 UK/Plessey Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The UK/Plessey has two optional check digits. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted.
  • Page 67 SETUP Multiple-scan setting Single-scan setting Option barcode Option Alpha. value Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF (ASCII) <U>* 00-44 Insert group selection 00-44...

  • Page 68: China Post

    3-24 China Post Read: Format 11 Data digits 3-12 Code 39 Max. /Min. code length: Refer to Max. /Min. code length of . The code length of China Post is 11. 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A Insert group selection: Refer to Insert group selection of SETUP...

  • Page 69: Telepen

    3-25 Telepen Read: Format Start character (_) Data digits (variable) Check digit End character (z) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. 3-12 Code 39 Max./Min. code length: Refer to Max./Min. code length of 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A...
  • Page 70 SETUP Multiple-scan setting Alpha. Single-scan setting Option barcode Option entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF <P>* 00-66 Insertion group selection 00-66 Alphanumeric...

  • Page 71: Gs1 Databar (Gs1 Databar Truncated)

    3-26 GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Truncated is structured and encoded as the same as the standard GS1 DataBar format, except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or equal to 33 modules.

  • Page 72: Gs1 Databar Limited

    3-27 GS1 DataBar Limited Read: Format 16 Data digits 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A Insert group selection: Refer to Insert group selection of 3-26 GS1 DataBar (GS1 DataBar Truncated) Conversion: Refer to Conversion of SETUP Multiple-scan setting Single-scan setting...

  • Page 73: Gs1 Databar Expanded

    3-28 GS1 DataBar Expanded Read: Format Data characters (variable) 3-7 UPC-A Code ID setting: Refer to Code ID setting of 3-7 UPC-A Insert group selection: Refer to Insert group selection of Conversion: 3-31 String transmission UCC/EAN 128- Refer to Code ID transmission of , ]Cm will be identified as AIM ID.

  • Page 74: G1-G4 & Fn1 Substitution String Setting

    3-29 G1-G4 & FN1 substitution string setting Format of barcode data transmission: Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Suffix string setting: The <enter > key is represented in different ASCII when it is applied by different OS. For a Windows/DOS OS, <enter>...
  • Page 75 Testing barcode: FN1 substitution string setting: The FN1 character (0x1D) in an UCC/EAN128 barcode, or a Code 128 barcode, or a GS1 DataBar barcode can be substituted with a defined string. Example: Set FN1 substitution string to be “ABCD”. Original code data (hexadecimal) “31 1D 32 1D 33 1D 34 1D 35”...
  • Page 76 SETUP Multiple-scan setting Single-scan setting Option bar code Option Alpha. value Prefix string setting 0-22 characters 00-FF (Default: None) 0-22 characters 00-FF Suffix string setting <ENTER> 0D0A* Preamble string setting 0-22 characters 00-FF (Default: None) Postamble string setting 0-22 characters 00-FF (Default: None) Insert G1 string setting...

  • Page 77: G1-G4 String Position & Code Id Position

    3-30 G1-G4 string position & Code ID position Format of barcode data transmission: Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Insert G1/G2/G3/G4 string position: The scanner offers 4 positions to insert strings among the symbol. In case of the insertion position is greater than the length of the symbol, the insertion of string is not effective.

  • Page 78: String Transmission

    3-31 String transmission Format of barcode data transmission: Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Prefix transmission: By setting Enable, prefix will be appended before the data transmitted. Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted. Code name transmission: By setting Enable, code name will be transmitted before code data.
  • Page 79 SETUP Multiple-scan setting Single-scan setting Option bar code Option Alpha. value Disable Postamble transmission Enable Disable Code ID transmission Proprietary ID AIM ID Code length Disable transmission Enable Disable Upper (data only) Case conversion Lower (data only) Upper (whole string) Lower (whole string) Disable FN1 substitution...

  • Page 80: Barcode Representing Non-Printable Character

    4 Barcode representing non-printable character Notes to make the following barcode: 1. According to different barcode printing software, the method of printing following barcode is different. 2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special input syntax”. For example, if we wish to make “F1” barcode, select “code128”, then select “CODE A” type, and input “{DOC1}”...

  • Page 81: Ascii Table

    5 ASCII table for keyboard wedge for RS-232 Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ Notes: The 2nd and the 3rd columns above are used for keyboard wedge only. “ & ‘ < > Example: ASCII “A” = “41”.

  • Page 82: Test Chart

    6 Test chart UPC-A UPC-E UPC-E1 EAN-13 ISBN/ISSN EAN-8 Code 39 Code 32 A908765439 Trioptic Code 39 (Default setting: Disable) Interleaved 2 of 5 Industrial 2 of 5 (Default setting: Disable) Matrix 2 of 5 Codabar...
  • Page 83 Test chart (continue) Code 128 UCC/EAN 128 ISBT 128 Code 93 Code 11 (Default setting: Disable) MSI/Plessey (Default setting: Disable) UK/Plessey China Post Telepen GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Limited GS1 DataBar Expanded...

  • Page 84: Return Default Parameters & Firmware Version

    7 Return default parameters & firmware version WARNING: Restore factory defaults If you wish to return the scanner to all the factory default settings, scan the barcode above. But Scanning mode remains unchanged. Write to customer defaults Write current parameter settings to the customer default settings. But Scanning mode remains unchanged.

  • Page 85: Quick Setting To Enable/ Disable Auto-Detection

    8 Quick setting to enable/ disable Auto-detection Note: Auto-detection is an optional accessory. Enable Auto-detection If you wish to enable Auto-detection, scan the barcode above. Disable Auto-detection If you wish to disable Auto-detection, scan the barcode above. Note: The Scanning mode will switch to momentary.

  • Page 86: Configuration Alphanumeric Value Barcode (As Para. Value)

    9 Configuration alphanumeric value barcode (as Para. value) To finish parameter setting, please scan the bar code below.
