User Guide
Updated: 6/21/2012
©2012 Shelby Systems, Inc. All Rights Reserved
Other brand and product names are trademarks or registered trademarks of the respective holders.

Advertisement

loading
Need help?

Need help?

Do you have a question about the GS220 and is the answer not in the manual?

Questions and answers

Related Manuals for Godex GS220

Summary of Contents for Godex GS220

  • Page 1 User Guide Updated: 6/21/2012 ©2012 Shelby Systems, Inc. All Rights Reserved Other brand and product names are trademarks or registered trademarks of the respective holders.

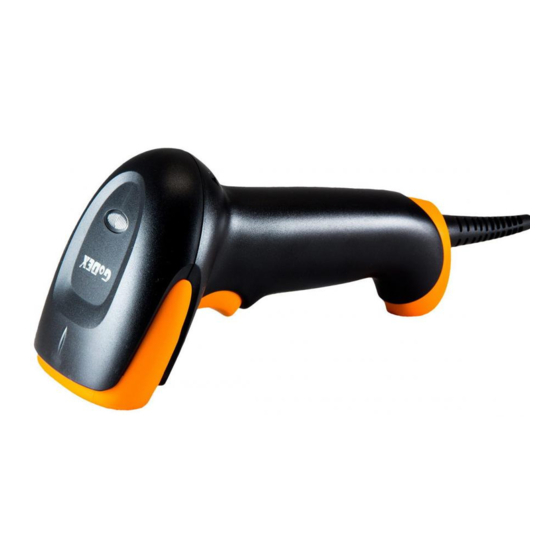

  • Page 2 Godex GS220 User Guide The Godex GS220 barcode scanner is a hand-held laser barcode scanner designed to facilitate Check-In and attendance processing. Scanning barcodes allows you to quickly check in individuals without having to manually enter phone numbers or name IDs. In addition, scanning barcodes on rolls allows you to speed up your attendance processing.
  • Page 3 Godex GS220 User Guide When you purchase the Godex GS220 barcode scanner, you will receive the scanner hardware and the configuration sheet necessary to make it work with Shelby v.5. You will receive a package containing:  Scanner  USB Connection Cable ...
  • Page 4 Godex GS220 User Guide Connect the USB cable that came with the Godex GS220 scanner to the device (as illustrated in the Quick Start guide). Plug the other end of the USB cable into your workstation. The drivers for the barcode scanner will install automatically.
  • Page 5 Godex GS220 User Guide The Godex GS220 barcode scanner can be used for both manned and unmanned Check-In modes. This enables your organization to swiftly process individuals when checking in and out. When you click the Check In Procedure link on the Check-In Home Base screen, you are in manned mode until you click another mode of operation.
  • Page 6 Godex GS220 User Guide To use this mode, click on the Check In Procedure link on the Check-In Home Base screen. Then, click the Unmanned Operation button. The screen will look similar to the illustration below, although your background will be plain unless you specify a background image in the Preferences utility.
  • Page 7 Godex GS220 User Guide The Godex GS220 barcode scanner can be used to facilitate quick entering of attendance data. On the Attendance Entry screen, click the By Name ID # tab. With the cursor in the Name ID # field, you can begin scanning Attendance Roll barcodes.
  • Page 8 Godex GS220 User Guide To Configure the Godex GS220: 1. Enable Carriage Return 2. Enable Tab Suffix 3. Set Minimum Symbol Length to 1. a) Scan Enter/Exit Configure Mode b) Scan Minimum Symbol Length c) Scan the following Code Bytes: 0, 0, 1...
  • Page 9 Godex GS220 User Guide Click this link to access a helpful Check-In Quick Reference Guide. We want to hear from you! Sales (800) 877-0222 sales@shelbyinc.com Support (888) My-Shelby v5support@shelbyinc.com Customer Service (901) 757-2372 customerservice@shelbyinc.com Training (800) 654-1605 training@shelbyinc.com Workshops (800) 654-1605 workshops@shelbyinc.com...
